Flexible Coupling Disc Type

Description

Product Overview

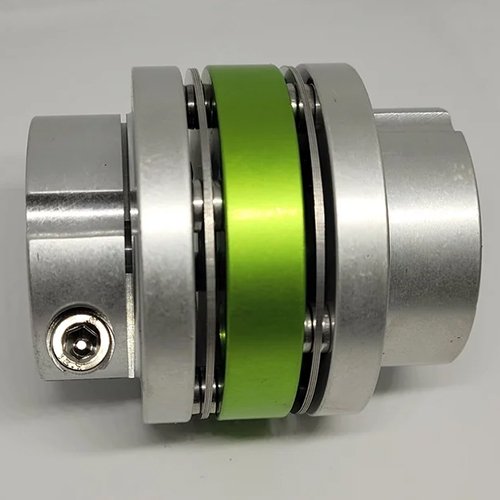

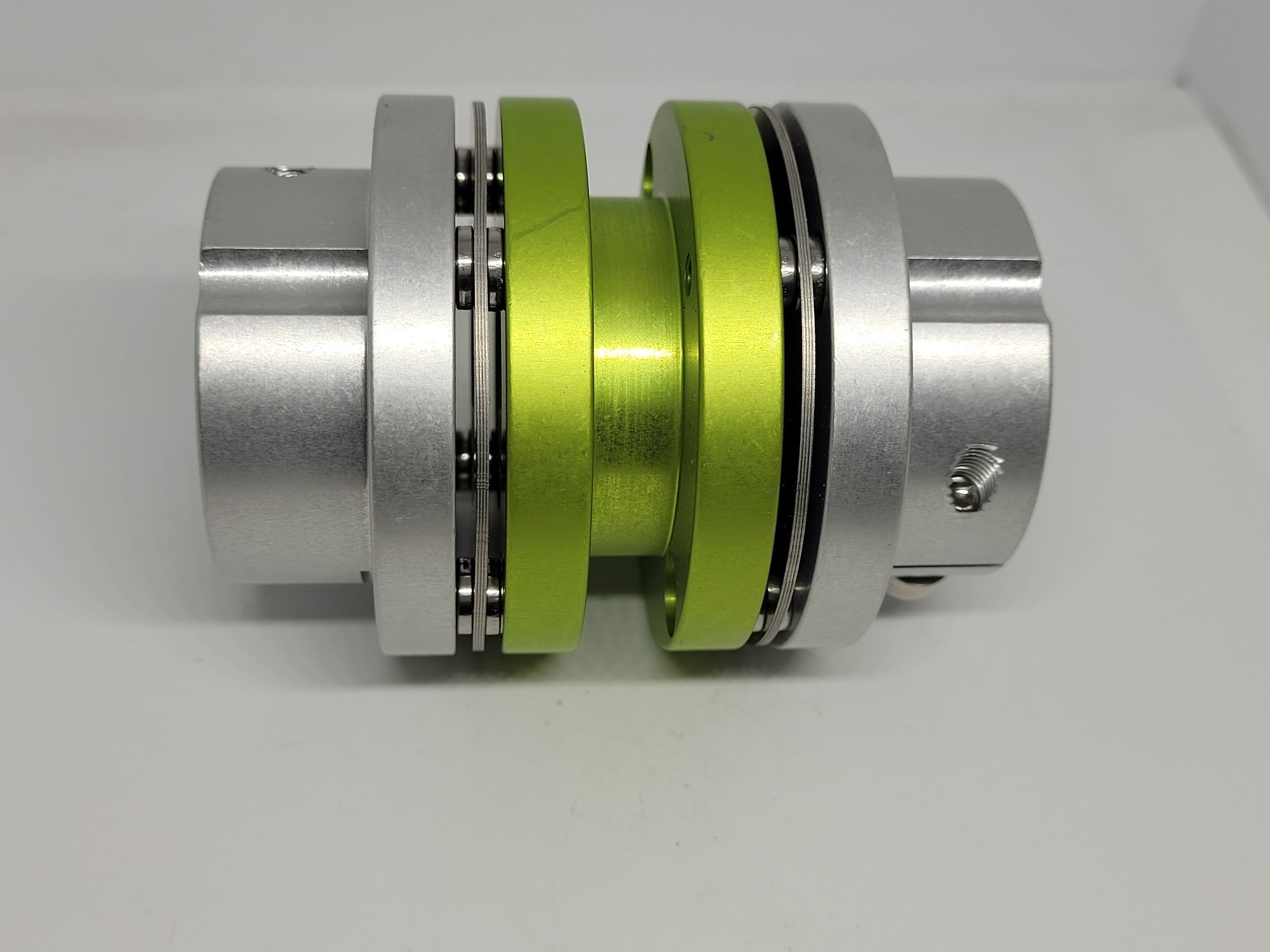

Flexible Coupling Disc Type is a precision-engineered rotating-element used to transmit torque between misaligned shafts while isolating vibration and shock. Primarily deployed in heavy rotating equipment—pumps, compressors, gearboxes, and industrial motors—this disc-type flexible coupling ensures reliable power transfer where angular, axial, or parallel misalignment exists. Its key value proposition is predictable torsional flexibility combined with high fatigue life, reducing downtime and maintenance costs. Strategically, it enables plants and OEMs to increase equipment uptime, simplify inventory (one coupling solution across multiple shaft arrangements), and lower total cost of ownership.

Key Specifications & Technical Characteristics

• Material composition: High-strength stainless steel (commonly AISI 304/316) or alloy steel (e.g., 4140) with surface treatments available (phosphated, zinc-plated, or passivated stainless finish).

• Elastomer/insulator options: High-performance polymer or composite spacer available for hybrid designs (PTFE, reinforced rubber, or polyurethane) where vibration damping or chemical resistance is required.

• Mechanical grade: Manufactured to industrial coupling tolerances (balanced to ISO G2.5/G6.3 as specified), heat-treated where applicable for fatigue resistance.

• Hardness: Steel hubs and discs typical range HRC 28–40 after heat treatment (dependent on alloy and specification).

• Physical characteristics: Disc pack configuration; thickness and diameter options to match torque and shaft bore requirements; standard bore sizes 10–200 mm (custom bore and keyway options available).

• Load & performance: Rated torque ranges from small industrial (tens of Nm) to heavy duty (several kNm) depending on model; operational temperature range typically −40°C to +120°C for standard materials (extended ranges with specialty elastomers).

• Dimensional tolerances: Keyway and bore tolerances per DIN/ANSI standards on request.

• Surface finish: Typical Ra ≤ 3.2 µm for sealing/contact surfaces; corrosion-resistant finishes available.

• Packaging: Industrial palletized crates, steel-banded wooden crates, or bulk palletized cartons; individual units protected with anti-corrosion film and desiccant.

• Shelf life: Indefinite for metal components if stored dry and protected; elastomeric elements recommended use within 24 months if stored at controlled temperature (15–25°C) away from UV.

• Documentation: Material certificates (EN 10204/3.1), balancing certificates, dimensional drawings, and installation/maintenance guides available on delivery.

Core Industrial Applications

• Primary industries: Oil & gas, petrochemical, power generation, marine propulsion, mining, heavy manufacturing, water & wastewater, pulp & paper, and rotating equipment OEMs.

• Specific use cases: Coupling high-horsepower centrifugal pumps to electric motors in refineries, connecting gearbox outputs to large compressors, compensating misalignment in marine shaftlines, and coupling variable-speed drives where torsional compliance is required.

• Performance versus alternatives: Disc-type flexible couplings deliver near-zero backlash and superior torsional stiffness compared with elastomeric couplings, while providing better misalignment accommodation and maintenance profiles than rigid couplings. Compared with grid or gear couplings, disc types offer lower maintenance (no lubrication), higher fatigue life per unit mass, and reduced vibration transmission.

• Operational benefits: Reduced machine downtime due to fewer replacements, predictable maintenance intervals, improved alignment tolerance reducing installation labor, and better protection of bearings and gearboxes through controlled torsional damping.

Competitive Advantages

• Quality consistency: Manufactured under ISO 9001-compliant processes with batch traceability and material certification to ensure uniform mechanical properties.

• Supply reliability: Scalable production with safety-stock strategies; priority allocations and scheduled replenishment programs for large industrial customers.

• Logistics capability: Export-ready packaging, EXW and FOB shipping terms, support for containerized (20’/40’) and breakbulk shipments, and capacity for drop-shipment to global sites.

• Price competitiveness: Cost-effective pricing through modular disc-stack designs and multiple material options to match buyer budgets without compromising life-cycle performance.

• Sustainability: Long service life reduces replacement frequency and lifecycle environmental impact; recyclable metal components; optional low-VOC coatings and compliant supply chain sourcing.

• Technical support: Detailed installation manuals, torque tables, dimensional drawings, failure-mode guidance, and on-request engineering support for selection, shaft alignment, and dynamic balancing.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Typical loading for container shipments: 20′ container up to ~20–22 MT (depending on packing density), 40′ container up to ~24–26 MT (depending on packing and crate dimensions). Specific load plans provided per order based on unit dimensions and packaging.
