Crimp Butt Connector IEC 61238

Description

1. Product Overview

Crimp Butt Connector IEC 61238 is a high-performance electrical connector designed for the secure joining and termination of low-voltage and power cables through mechanical crimping technology. Manufactured to meet IEC 61238 performance requirements, it provides reliable electrical conductivity, strong mechanical retention, and long-term connection stability in demanding electrical installations. The product is widely used in power distribution, industrial wiring, renewable energy systems, and infrastructure projects where safety and connection integrity are critical. Its standardized design, durability, and installation efficiency make it a strategic component for global electrical supply chains.

2. Key Specifications & Technical Characteristics

• Material Composition:
  • High-conductivity electrolytic copper body for superior electrical performance
  • Optional tin-plated copper surface treatment for corrosion resistance and improved contact reliability
  • Insulation materials (where applicable) manufactured from flame-retardant PVC or heat-shrinkable polymer compounds
• Grade / Standard Compliance:
  • Manufactured according to IEC 61238-1 requirements for compression and mechanical connectors
  • Suitable for low-voltage and medium-voltage cable connection applications depending on design specification
• Physical Characteristics:

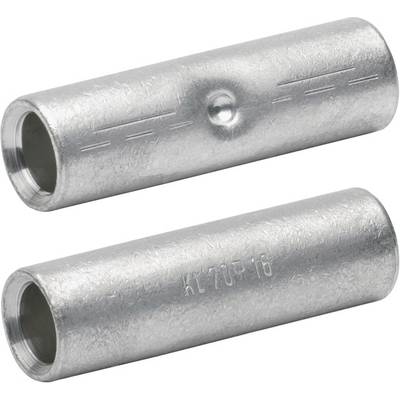

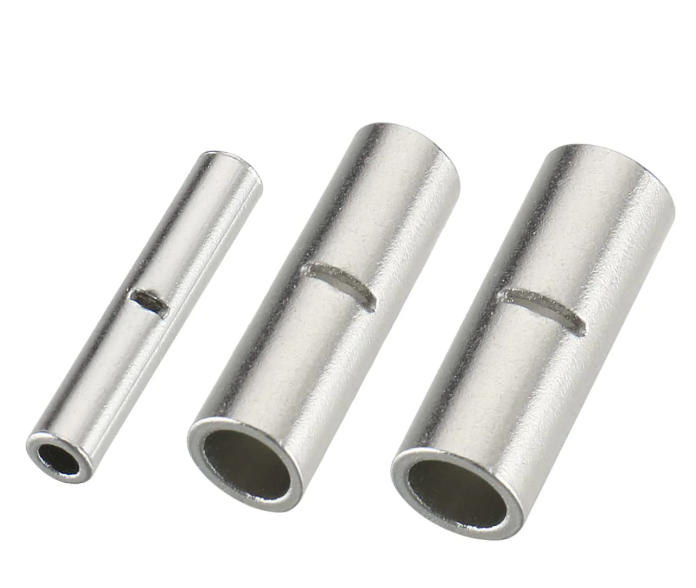

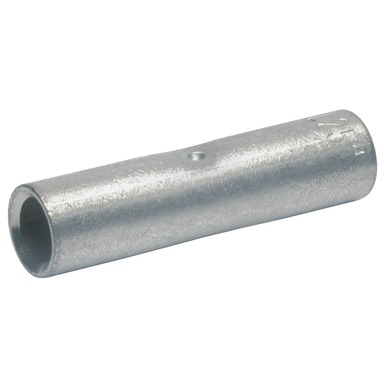

  • Form: Cylindrical tubular butt connector with crimping barrel design
  • Color: Metallic copper or tin-plated silver finish
  • Surface Finish: Smooth conductive surface with anti-oxidation treatment options
  • Cable Compatibility: Available for multiple conductor sizes and cable cross-sections
  • Connection Type: Permanent mechanical crimp connection
• Electrical Performance:
  • Low contact resistance for efficient power transmission
  • High mechanical pull-out strength after crimping
  • Stable performance under thermal cycling and vibration conditions
• Packaging Options:
  • Bulk cartons, plastic containers, or industrial reels depending on connector size
  • Customized labeling and export packaging available for OEM and distributor requirements
• Shelf Life:
  • Long shelf life when stored in dry, controlled warehouse conditions
  • Protective packaging minimizes oxidation and surface degradation during storage

3. Core Industrial Applications

• Power Distribution Networks:
  Used for reliable cable jointing and termination in electrical distribution systems, substations, and utility infrastructure.
• Industrial Electrical Installations:
  Applied in manufacturing plants, automation systems, control panels, and heavy-duty electrical equipment requiring secure cable connections.
• Renewable Energy Projects:
  Used in solar farms, wind power installations, and energy storage systems where durable and maintenance-free electrical connections are essential.
• Construction & Infrastructure:
  Installed in commercial buildings, transportation systems, and large-scale infrastructure projects for efficient cable management.
• Telecommunications & Utility Engineering:
  Supports dependable cable connections in communication power systems and external electrical networks.
• Performance Advantages:
  • Provides faster installation compared with soldering or traditional connection methods
  • Delivers consistent electrical conductivity and mechanical strength
  • Reduces maintenance requirements through durable, vibration-resistant connections
  • Offers cost efficiency through simplified installation and extended service life

4. Competitive Advantages

• Quality Consistency:
  Manufactured with controlled material selection and precision forming processes to ensure uniform dimensions, reliable crimp performance, and compliance with international standards.
• Supply Reliability:
  Supported by scalable production capacity and stable raw material sourcing to meet the needs of distributors, contractors, and industrial procurement programs.
• Logistics Capability:
  Available in export-ready packaging with flexible shipment options for global markets, including bulk container supply and customized packaging solutions.
• Price Competitiveness:
  Optimized manufacturing processes provide competitive pricing while maintaining high electrical and mechanical performance standards.
• Sustainability Benefits:
  Copper-based construction supports recyclability and long service life, reducing material waste and replacement frequency.
• Technical Support & Documentation:
  Available with technical datasheets, compliance documentation, dimensional specifications, and application guidance to support engineering and procurement decisions.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 18–22 MT per 20-foot container (depending on connector size, packaging configuration, and shipment requirements)
