Mechanical Cable Connector IEC 61238

Description

1. Product Overview

Mechanical Cable Connector IEC 61238 is a high-performance mechanical connector designed for reliable joining and termination of power cables in low and medium-voltage electrical distribution systems. Manufactured to meet IEC 61238 performance requirements, it provides secure electrical conductivity, mechanical strength, and long-term operational stability without the need for specialized crimping equipment. Its innovative mechanical fastening technology enables faster installation, reduced maintenance requirements, and consistent connection quality across demanding industrial environments. As global power infrastructure expands, this connector serves as a critical component for efficient, safe, and scalable electrical network development.

2. Key Specifications & Technical Characteristics

• Material Components:
  • High-strength aluminum alloy or tinned copper conductor body
  • Corrosion-resistant mechanical bolts and contact elements
  • Protective outer coating for enhanced environmental resistance
  • Insulation components compatible with electrical distribution applications
• Performance Grade:
  • Designed according to IEC 61238 standards for compression and mechanical cable connectors
  • Suitable for low-voltage and medium-voltage cable applications
  • High electrical conductivity and mechanical load resistance
• Physical Characteristics:

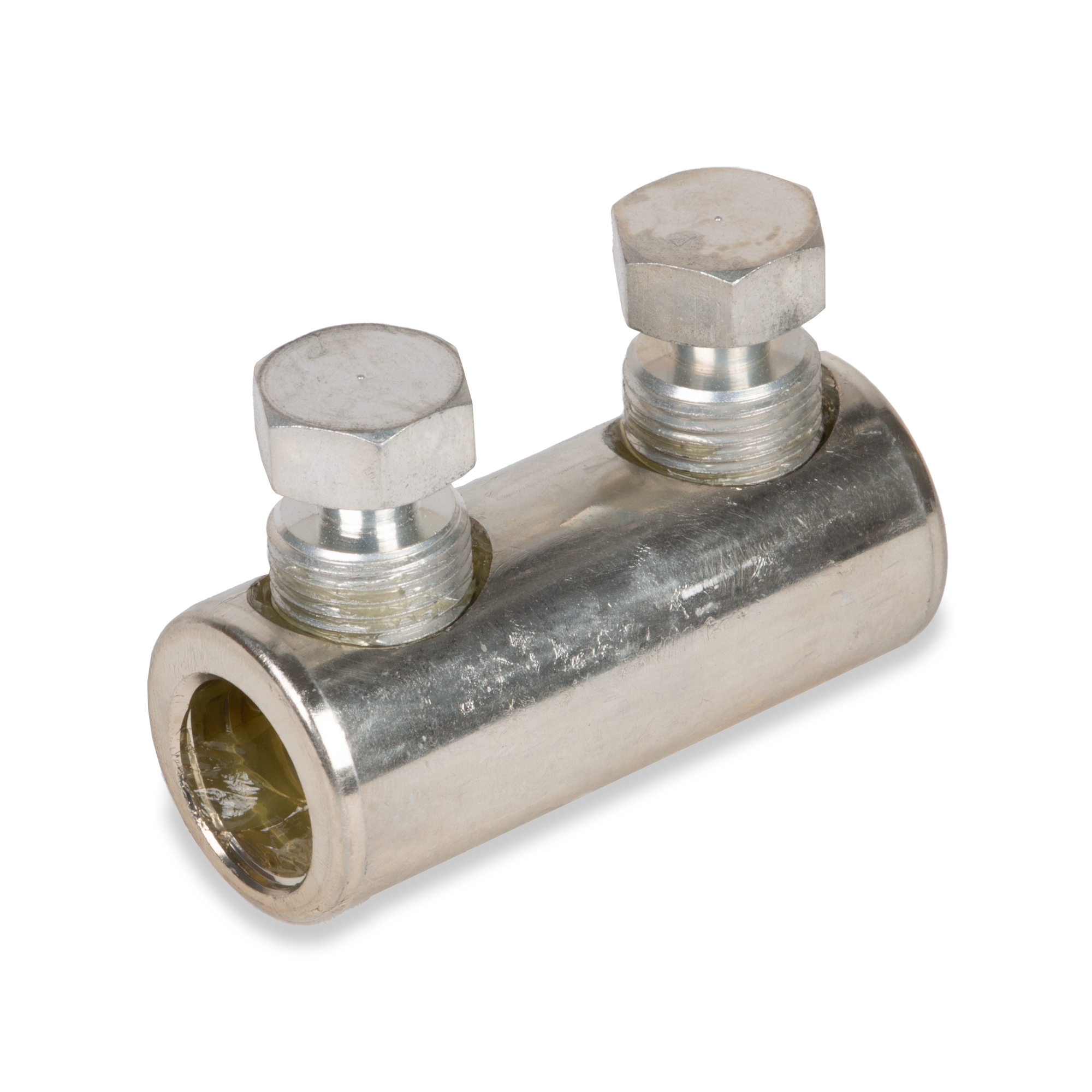

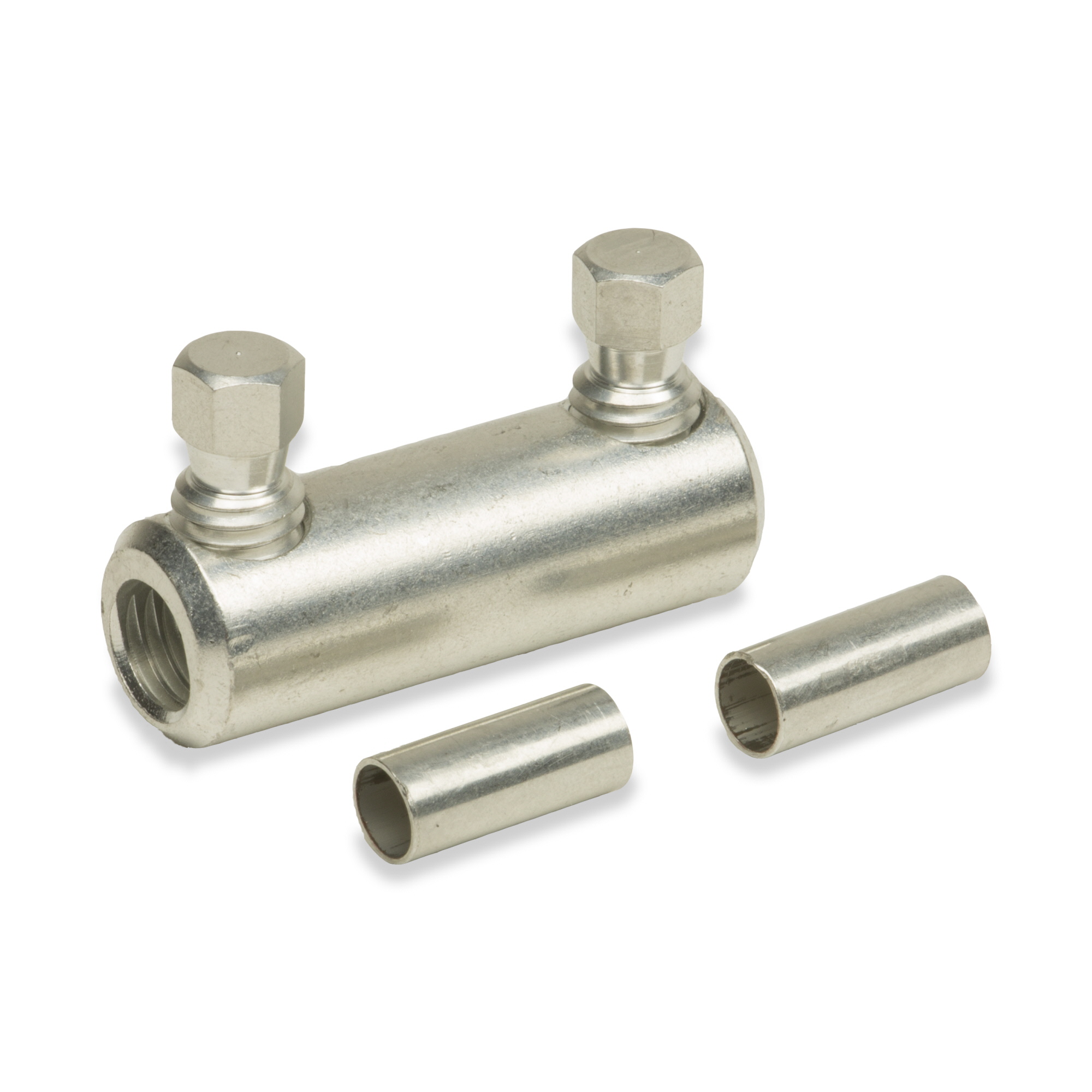

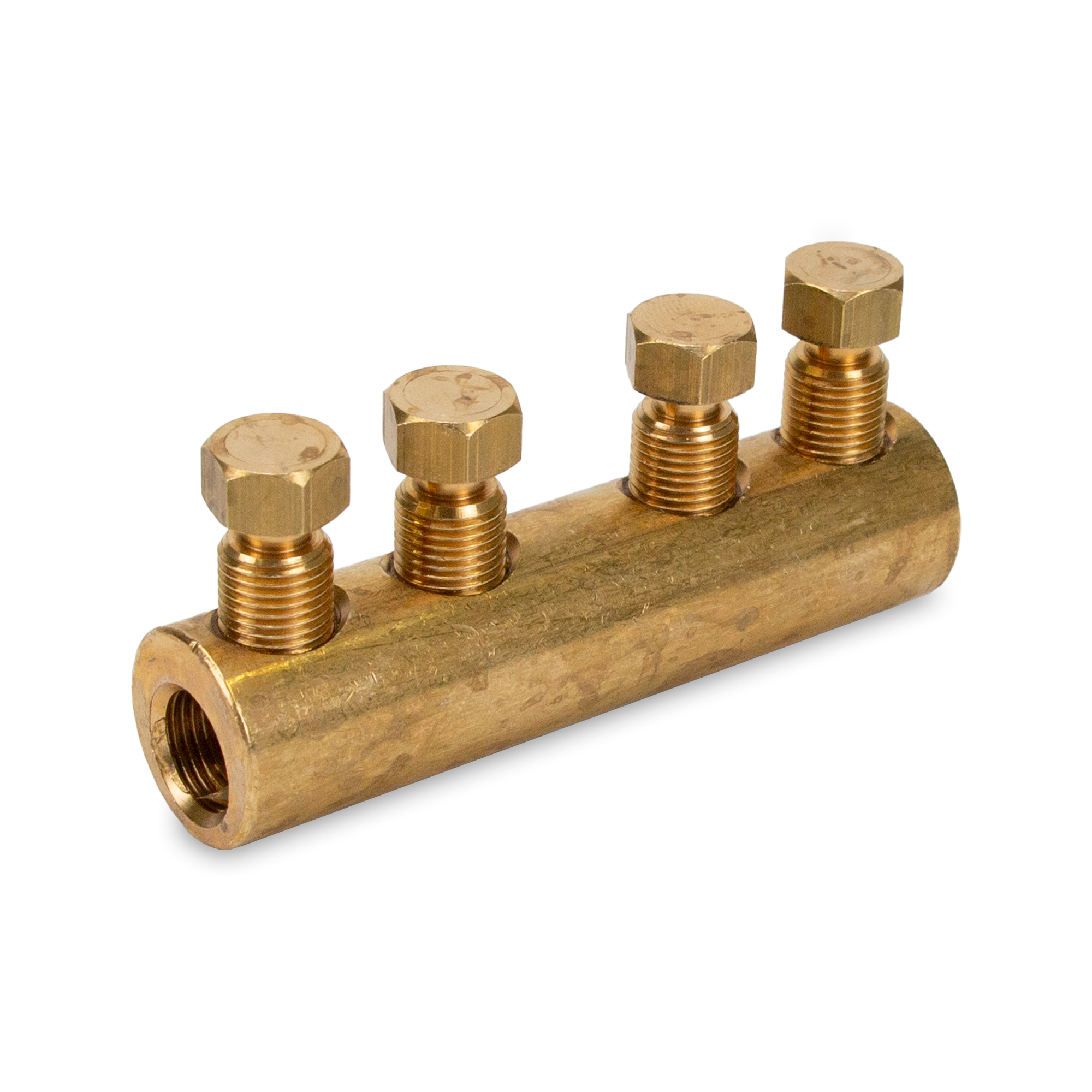

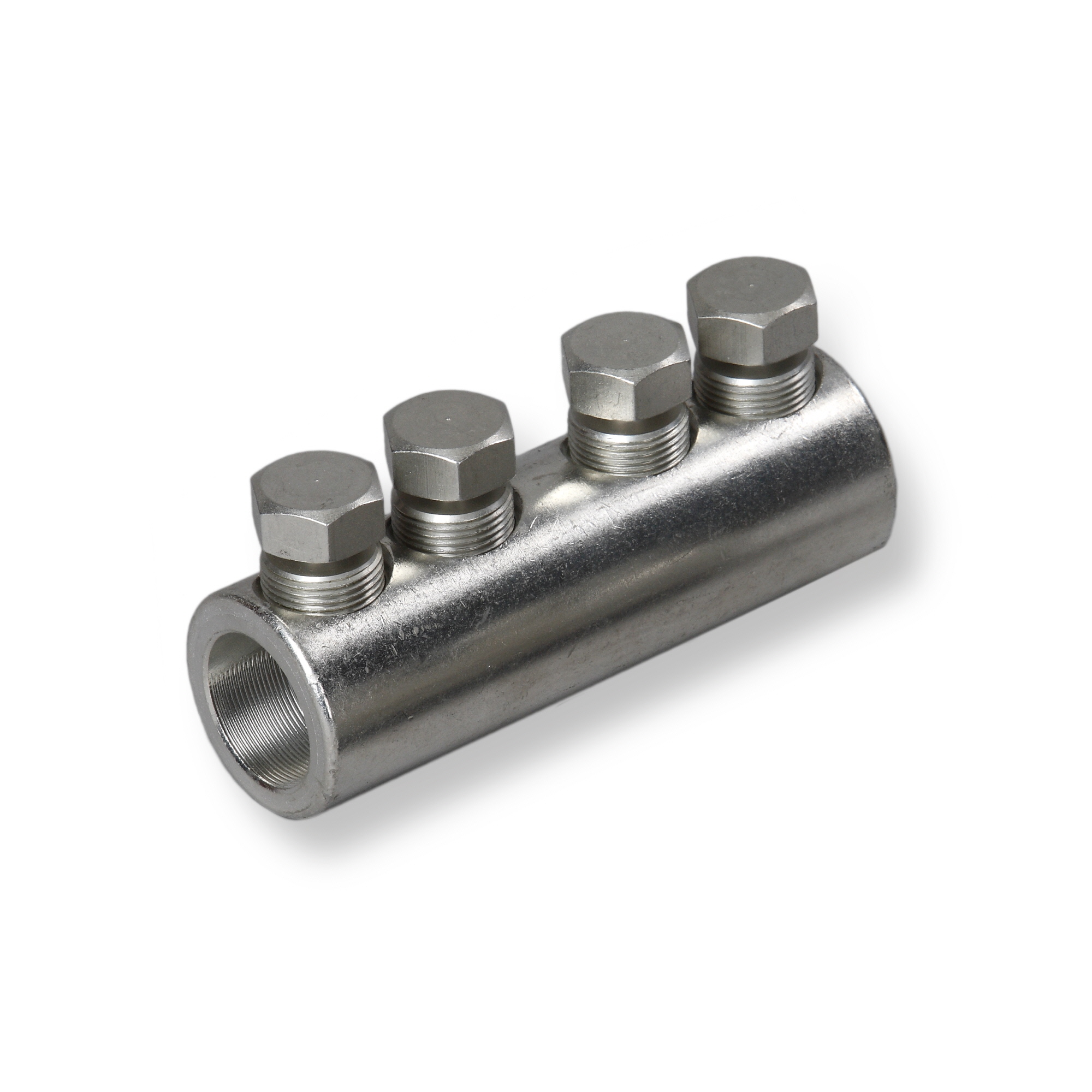

  • Form: Cylindrical or barrel-type mechanical connector design
  • Color: Metallic aluminum, silver, or tin-plated finish
  • Installation Type: Shear bolt or torque-controlled mechanical fastening system
  • Temperature Resistance: Suitable for continuous electrical operation under industrial conditions
  • Environmental Resistance: Designed for moisture, corrosion, and vibration resistance
• Electrical Characteristics:
  • Stable low-contact resistance performance
  • Reliable current transmission capability
  • Compatible with various conductor materials including aluminum and copper cables
  • Maintains connection integrity under thermal cycling conditions
• Packaging Options:
  • Individual protective packaging
  • Bulk cartons for industrial projects
  • Customized export packaging available for large-volume orders
• Shelf Life:
  • Typically 5+ years when stored in dry, protected warehouse conditions

3. Core Industrial Applications

• Power Transmission & Distribution:
  Used for cable jointing, termination, and connection points in electrical grids, substations, and distribution networks.
• Renewable Energy Infrastructure:
  Applied in solar farms, wind power installations, and energy storage systems requiring reliable cable connections.
• Industrial Electrical Systems:
  Supports manufacturing plants, mining operations, oil & gas facilities, and large commercial electrical networks.
• Construction & Infrastructure Projects:
  Used in underground cable systems, building power distribution, and utility expansion projects.
• Operational Advantages:
  • Faster installation compared with traditional crimped connectors
  • Eliminates dependence on hydraulic crimping tools
  • Provides consistent contact pressure and reduced installation errors
  • Enhances system reliability through durable mechanical locking technology
  • Reduces maintenance costs and downtime in critical electrical applications

4. Competitive Advantages

• Quality Consistency:
  Manufactured under strict quality control processes to ensure reliable electrical performance, dimensional accuracy, and compliance with IEC 61238 requirements.
• Supply Reliability:
  Stable production capacity supports continuous supply for utility companies, contractors, and international infrastructure projects.
• Logistics Capability:
  Available with export-ready packaging, bulk shipment options, and efficient container loading solutions for global distribution.
• Price Competitiveness:
  Offers a cost-effective alternative to traditional cable connection methods by reducing installation time, labor requirements, and specialized tooling costs.
• Sustainability Benefits:
  Durable construction extends service life, minimizes replacement frequency, and supports efficient energy infrastructure development.
• Technical Support & Documentation:
  Available with technical specifications, compliance documentation, installation guidance, and quality certificates to support professional procurement requirements.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 18–22 MT per 20-foot container (depending on connector size, packaging configuration, and shipment requirements)
