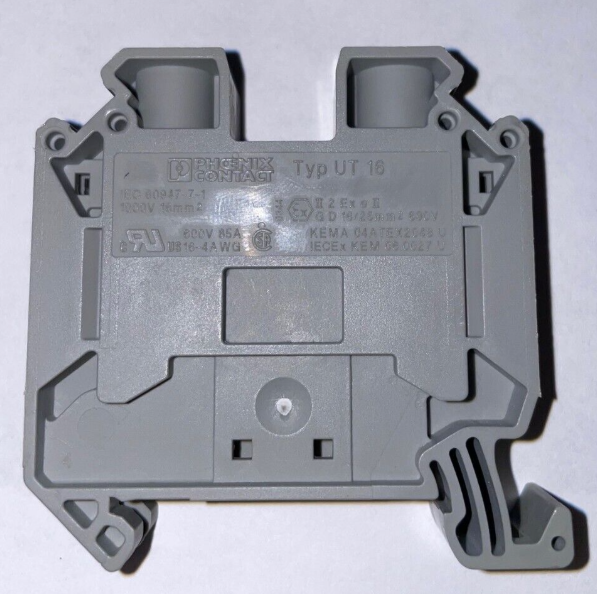

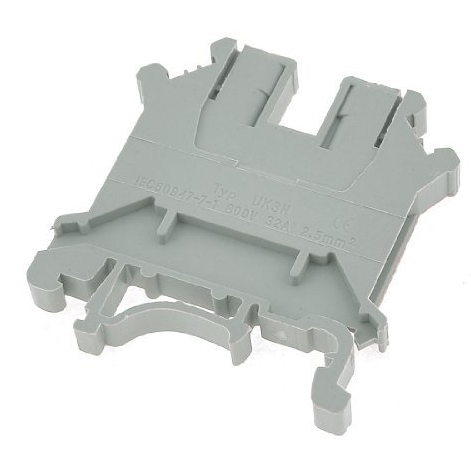

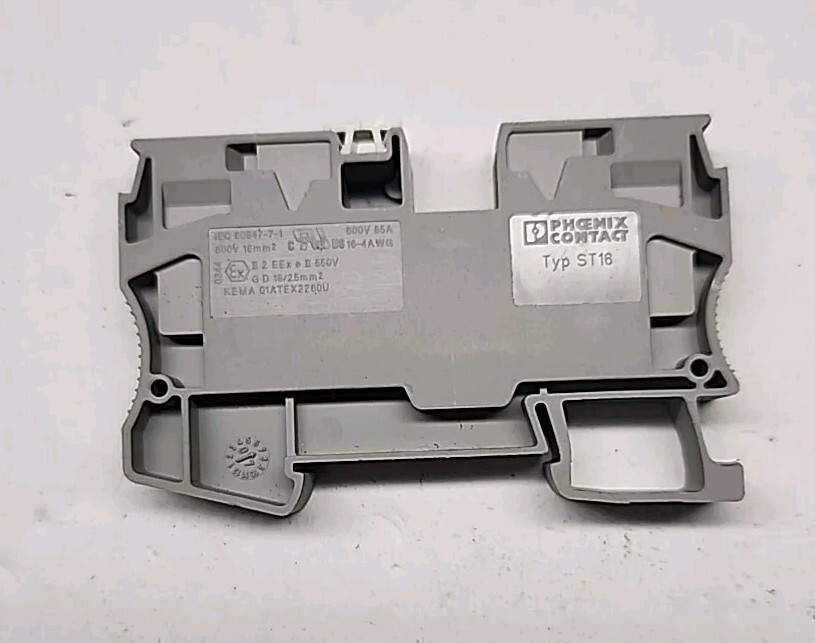

Modular Terminal Block IEC 60947-7-1

Description

1. Product Overview

Modular Terminal Block IEC 60947-7-1 is a high-performance electrical connection component designed for safe, organized, and reliable termination of industrial wiring systems. Manufactured in compliance with IEC 60947-7-1 standards, it provides secure electrical connections in control panels, automation systems, power distribution equipment, and industrial installations. Its modular design enables flexible configuration, easy expansion, and efficient maintenance, reducing installation time and improving operational reliability. As industries continue to adopt advanced automation and smart electrical infrastructure, modular terminal blocks remain a critical component for safe and scalable power and control systems.

2. Key Specifications & Technical Characteristics

• Product Type: Modular Terminal Block for electrical connection and distribution applications
• Standard Compliance: IEC 60947-7-1 low-voltage switchgear and controlgear terminal block requirements
• Material Components:
  • Insulating housing: Flame-retardant engineering thermoplastic (typically PA66 or equivalent)
  • Conductive parts: High-conductivity copper alloy or electrolytic copper
  • Clamping system: Stainless steel or galvanized steel components for mechanical stability
• Electrical Grade: Industrial-grade terminal connection component suitable for low-voltage electrical systems
• Voltage Rating: Typically up to 1,000 V AC/DC depending on model configuration
• Current Rating: Available in various ranges, commonly from 10 A to 150 A+ depending on terminal size
• Insulation Material Properties: High dielectric strength, flame resistance, and temperature stability
• Physical Characteristics:
  • Form: Modular rail-mounted terminal block
  • Color: Standard industrial colors such as grey, blue, green/yellow, or customized options
  • Mounting Type: DIN rail mounting (TS35 standard commonly used)
  • Design: Compact modular structure allowing side-by-side installation
• Operating Temperature Range: Typically -40°C to +105°C depending on material specification
• Connection Technology: Screw clamp, spring clamp, or push-in connection options available
• Packaging Options: Export cartons, protective trays, customized industrial packaging, bulk packaging for large projects
• Shelf Life: Long-term storage stability when maintained in dry, protected environments

3. Core Industrial Applications

• Industrial Automation: Used in PLC cabinets, control panels, and automation equipment for reliable signal and power connections.
• Electrical Distribution Systems: Applied in switchboards, distribution panels, and power control assemblies to organize complex wiring networks.
• Manufacturing Facilities: Supports machinery wiring, production line controls, and industrial electrical infrastructure.
• Renewable Energy Systems: Used in solar power plants, wind energy equipment, and energy storage systems for secure electrical connections.
• Transportation & Infrastructure: Suitable for rail systems, building automation, and infrastructure electrical installations.

Operational Advantages:

• Provides faster installation and easier troubleshooting compared with traditional fixed wiring methods.
• Modular architecture allows quick system expansion and replacement without major rewiring.
• Ensures stable electrical performance with reduced connection failures and maintenance requirements.
• Delivers long service life and reliable operation in demanding industrial environments.

4. Competitive Advantages

• Quality Consistency: Manufactured with strict process controls to ensure uniform dimensions, reliable electrical performance, and compliance with IEC 60947-7-1 requirements.
• Supply Reliability: Supported by scalable production capacity and consistent availability for industrial projects and OEM requirements.
• Logistics Capability: Optimized for international bulk shipments with secure packaging suitable for global distribution networks.
• Price Competitiveness: Provides an economical alternative to complex wiring solutions by reducing installation labor and maintenance costs.
• Durability & Sustainability: High-quality flame-retardant materials and recyclable engineering plastics contribute to extended product life and reduced replacement frequency.
• Technical Support & Documentation: Available with technical datasheets, compliance documentation, dimensional drawings, and application guidance for engineering teams.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 20 MT per container (depending on packaging configuration and terminal block specifications)
