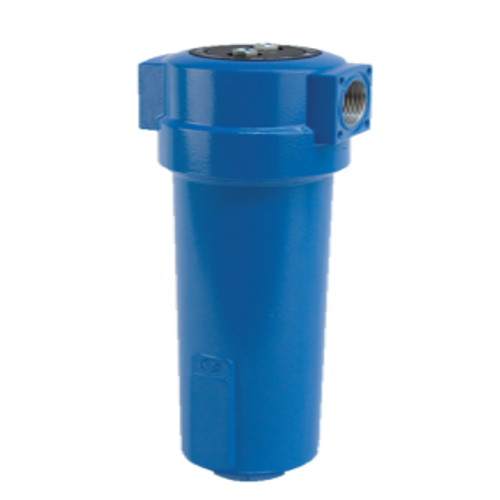

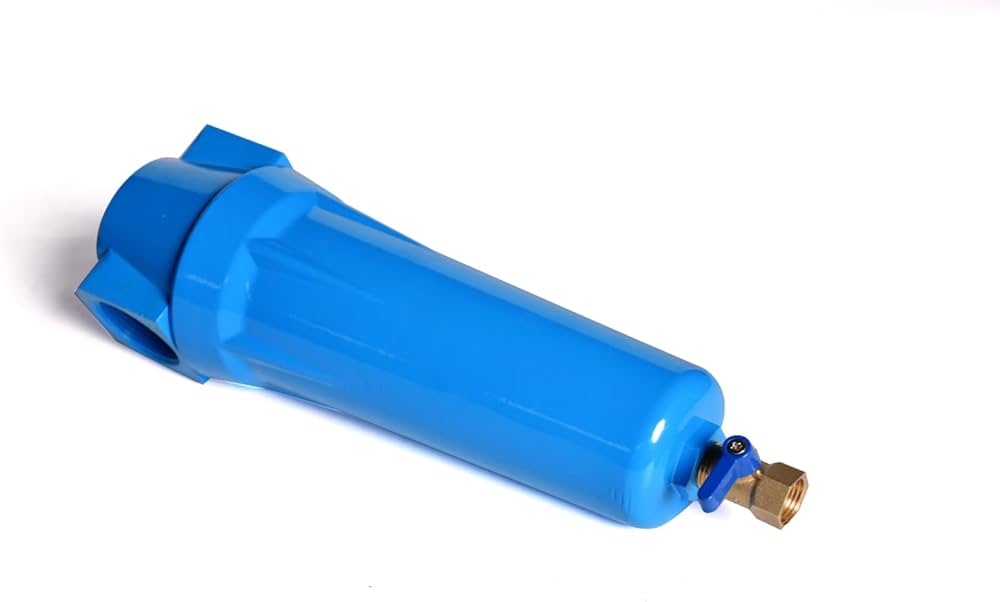

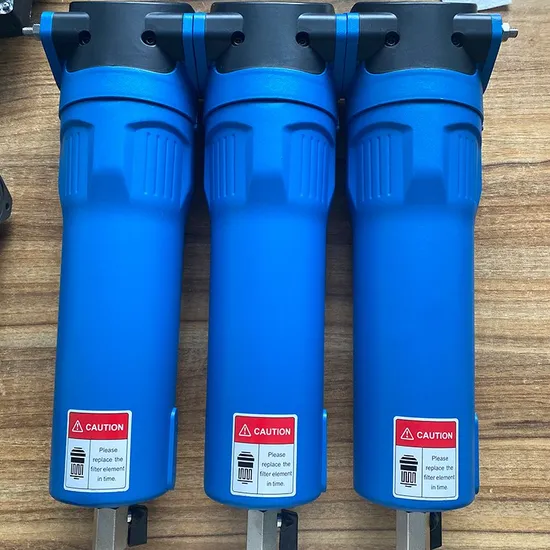

Compressed air line filter

Description

1. Product Overview
   Compressed air line filter engineered for industrial compressed-air systems to remove particulates, oil aerosols, and condensed moisture before downstream equipment. Primarily used in manufacturing, food & beverage, pharmaceuticals, instrumentation, and pneumatic control systems to protect sensitive tools and processes. Delivers high-efficiency contaminant removal with low pressure drop, reducing maintenance, preventing product loss, and extending downstream equipment life. Strategically important as a first-line quality control device that safeguards productivity, ensures regulatory compliance, and lowers total cost of ownership for large-scale industrial air systems.

2. Key Specifications & Technical Characteristics

• Filter type: Coalescing particulate and aerosol removal element with integrated particulate pre-filter (multi-stage cartridge design).

• Materials of construction: Housing—carbon steel or stainless steel (316L option); internal elements—glass-fiber media, hydrophobic PTFE drainage layer, stainless steel support cores; seals—Viton or NBR (customer-selectable).

• Filtration ratings: Available β ratios for targeted efficiency: 0.01 μm (99.99% for oil aerosols, coalescing mode), 0.3 μm and 5 μm particulate cartridges.

• Operating pressure range: Standard up to 16 bar (230 psi); high-pressure versions up to 40 bar (580 psi) available.

• Operating temperature range: -20°C to +80°C standard; high-temp up to +150°C with special seals.

• Flow capacity: Multiple sizes covering nominal flow ranges from 100 to 10,000 Nm³/h (select model to match system CFM requirements).

• Pressure drop: Low differential pressure design, typical initial ΔP < 0.02 bar (2.0 kPa) at rated flow for coalescing elements.

• Drain options: Automatic float drain (stainless internals), timed electronic drain, or manually operated drain.

• Connection standards: ANSI/ASME, DIN, BSP, NPT flange or threaded options.

• Corrosion protection: Epoxy-coated carbon steel standard; 316L stainless for corrosive environments.

• Certification/standards: Manufactured to ISO 8573 compatibility for compressed air quality; available with PED/CE and ATEX configurations on request.

• Packaging options: Industrial crate, palletized shrink-wrap; export-ready packaging with timber ISPM-15 treated pallets.

• Shelf life/maintenance interval: Cartridge shelf life 24 months unused; recommended element replacement per operating hours or when ΔP exceeds recommended threshold (typical service interval 6–12 months depending on duty cycle).

3. Core Industrial Applications

• Primary industries: Chemical processing, oil & gas, food & beverage, pharmaceuticals, automotive manufacturing, electronics, utilities, and instrument air systems.

• Specific use cases: Protecting pneumatic actuators and valves in process plants; delivering oil-free, dry air for packaging and bottling lines; ensuring clean instrument air for control rooms and analyzers; safeguarding paint booths and robotic spray equipment from contamination; preserving integrity of compressed-air driven filtration and separation systems.

• Why it outperforms alternatives: Multi-stage media design captures both sub-micron aerosols and larger particulates with minimal pressure loss, reducing energy consumption compared with oversized single-stage filters. Robust materials and options for stainless housings and high-temp seals extend service life in harsh operating conditions, lowering lifecycle maintenance and replacement costs. Modular cartridge formats simplify onsite servicing and reduce downtime versus welded or proprietary replacement systems.

4. Competitive Advantages

• Quality consistency: Engineered manufacturing with traceable material certificates and batch testing for filtration efficiency and pressure integrity.

• Supply reliability: Capacity to supply continuous production volumes with safety-stock inventory and scheduled replenishment for long-term contracts.

• Logistics capability: Export-ready packaging, consolidated LCL/FCL shipping options, and regional distribution hubs to accelerate lead times.

• Price competitiveness: Tiered pricing for volume procurement and long-term agreements; design for manufacturability keeps unit cost and TCO attractive for bulk buyers.

• Sustainability: Long-life replaceable cartridges reduce waste; recyclable stainless housings and reduced energy consumption due to low pressure drop improve environmental footprint.

• Technical support & documentation: Comprehensive datasheets, installation and maintenance manuals, CAD drawings, performance curves, and on-request site selection support from experienced application engineers.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Typical loading capacity depends on packaging density and model configuration; approximate container loadings: 20ft container ≈ 18–20 MT, 40ft container ≈ 24–26 MT. (Exact counts provided on inquiry with model/packaging specification.)
