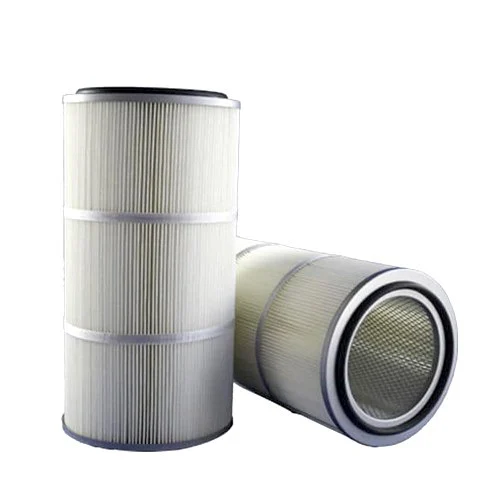

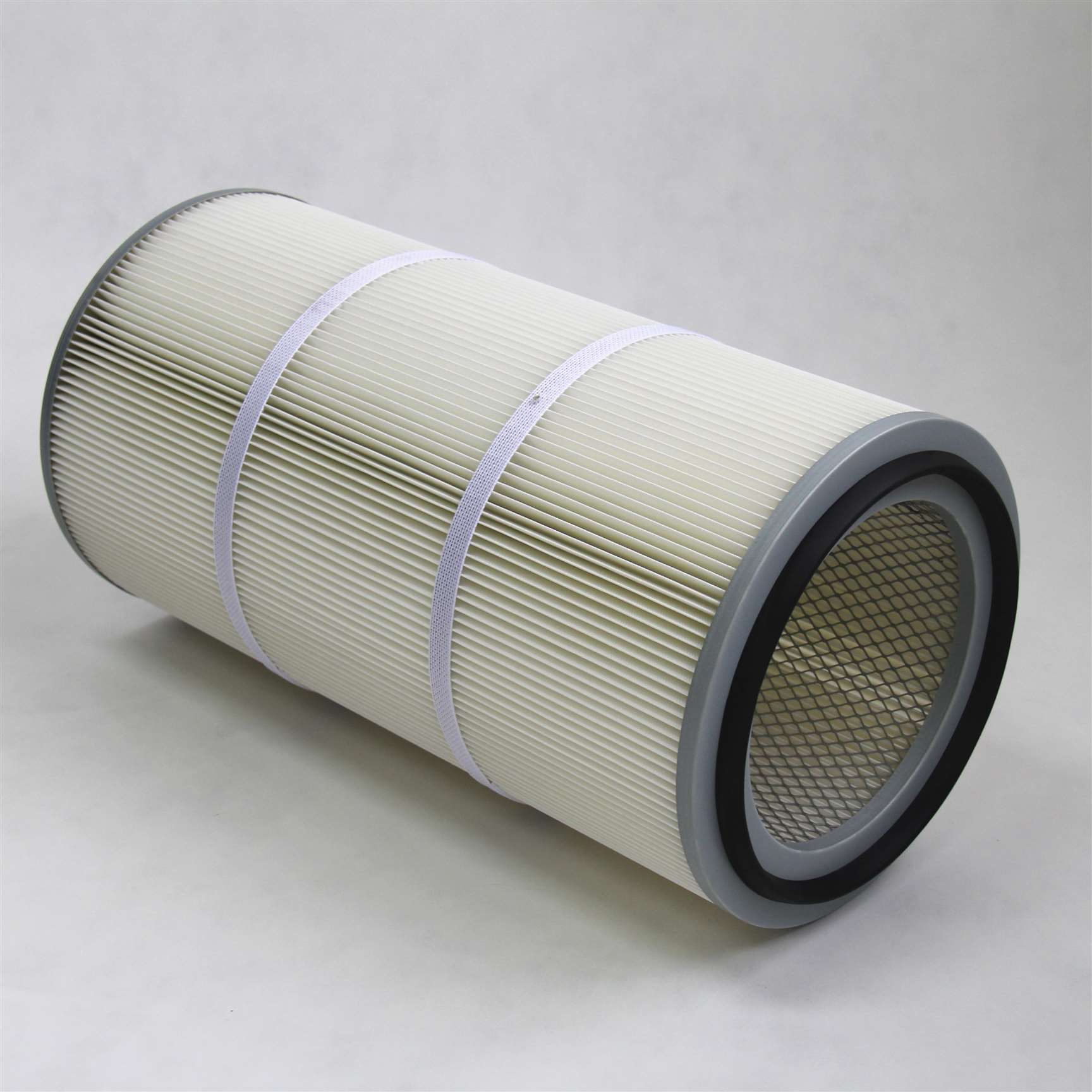

Cartridge dust filter industrial

Description

1. Product Overview

Cartridge dust filter industrial is a high-performance particulate filtration cartridge engineered for demanding industrial dust collection systems. It captures fine and coarse particulates from process, HVAC, and material-handling air streams to protect equipment, ensure regulatory compliance, and improve workplace air quality. The cartridge combines high filtration efficiency with low pressure drop, extending service intervals and reducing operational cost. As a strategic component in dust control programs, it mitigates downtime, supports emissions targets, and preserves product quality across manufacturing and processing operations.

2. Key Specifications & Technical Characteristics

• Filter media: Multi-layer pleated microfiberglass (or PTFE-membrane laminated polyester) options.

• Frame and endcaps: Galvanized steel core with molded polyurethane or stainless-steel endcaps (options available).

• Media efficiency rating: MERV 13 to MERV 16-equivalent; HEPA-grade option available (up to 99.97% @ 0.3 µm).

• Nominal particle capture range: 0.1 µm – 100 µm (application-dependent).

• Initial pressure drop: Typical 35–75 Pa (0.14–0.30 in. H2O) at rated airflow per cartridge.

• Maximum operating temperature: Standard 120°C; high-temperature variants to 200°C.

• Chemical compatibility: Resistant to common industrial gases and particulates; PTFE option for aggressive chemistries.

• Physical form: Cylindrical pleated cartridge; standard lengths 610 mm, 762 mm, 1016 mm; diameters 152 mm–203 mm.

• Media surface area: 2.5–8.0 m² per cartridge (model-dependent).

• Gasket material: Silicone or EPDM options for airtight seal.

• Structural integrity: Burst strength > 3 bar; rated for cyclic pulse-cleaning systems.

• Packaging options: Palletized wooden crates, bulk shrink-wrapped pallets, or boxed individual units; protective endcap covers.

• Shelf life: 3 years when stored dry, protected from UV and chemical exposure.

3. Core Industrial Applications

• Cement and aggregates: Capture of kiln, mill, and crusher dust to reduce baghouse wear, protect downstream equipment, and meet particulate emission limits.

• Metalworking and foundries: Filtration of grinding, shot-blasting, and casting dust to protect PPE, improve product finish, and extend equipment life.

• Food & beverage (non-contact areas) and grain handling: Dust control in conveyors and receiving silos to prevent cross-contamination and reduce fire/explosion risk (use food-grade or antistatic variants where required).

• Chemical and pharmaceutical processing: Fine-particulate capture in milling, coating, and transfer processes; PTFE-lined media option for corrosive atmospheres.

• Woodworking and composites: Capture of wood dust, varnish overspray, and composite particulates to improve worker safety and reduce nozzle/clogging events.
  This product outperforms generic alternatives through higher effective media area per cartridge, lower operating pressure drop (energy savings), and construction rated for pulse-cleaning durability (longer service life and fewer changeouts).

4. Competitive Advantages

• Quality consistency: Manufactured under ISO 9001 processes with batch traceability for media, adhesives, and frame components.

• Supply reliability: Multiple production lines and regional inventory hubs reduce lead times; scalable production for emergency replenishment.

• Logistics capability: Pallet optimization, container-loading plans, and pre-packed customs documentation for fast cross-border shipment.

• Price competitiveness: Volume-tier pricing for enterprise contracts and multi-year supply agreements to lower total cost of ownership.

• Sustainability: Media formulations available with lower-VOC binders; recyclable core and reduced material usage per unit via optimized pleat geometry.

• Technical support: Application engineering for dust-loading analysis, recommended change intervals, retrofit guides, and on-site performance validation (data sheets and installation manuals provided).
  Positioned as a strategic sourcing decision, the cartridge reduces operational risk, simplifies compliance, and lowers lifecycle costs versus single-use or under-specified filters.

5. Commercial & Supply Information

• Minimum order quantity (MOQ) BULK: 20 MT.

• Loading capacity (MT per container): Typical 20-foot container load up to 20 MT (palletized), 40-foot container load up to 26–28 MT depending on packaging configuration.
