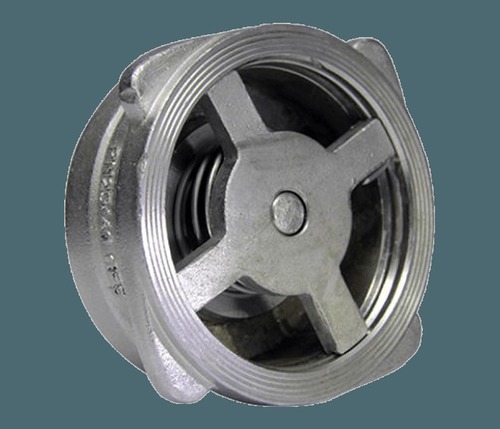

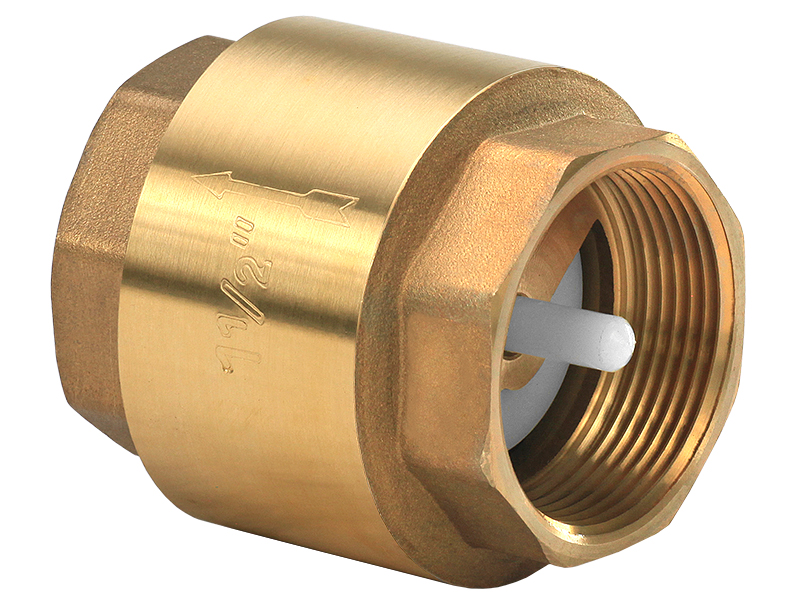

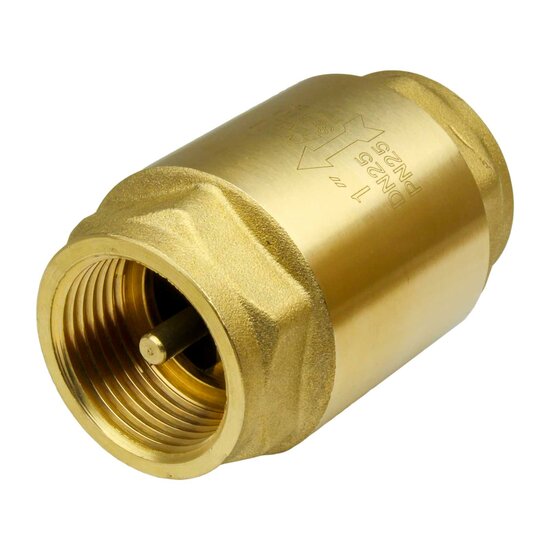

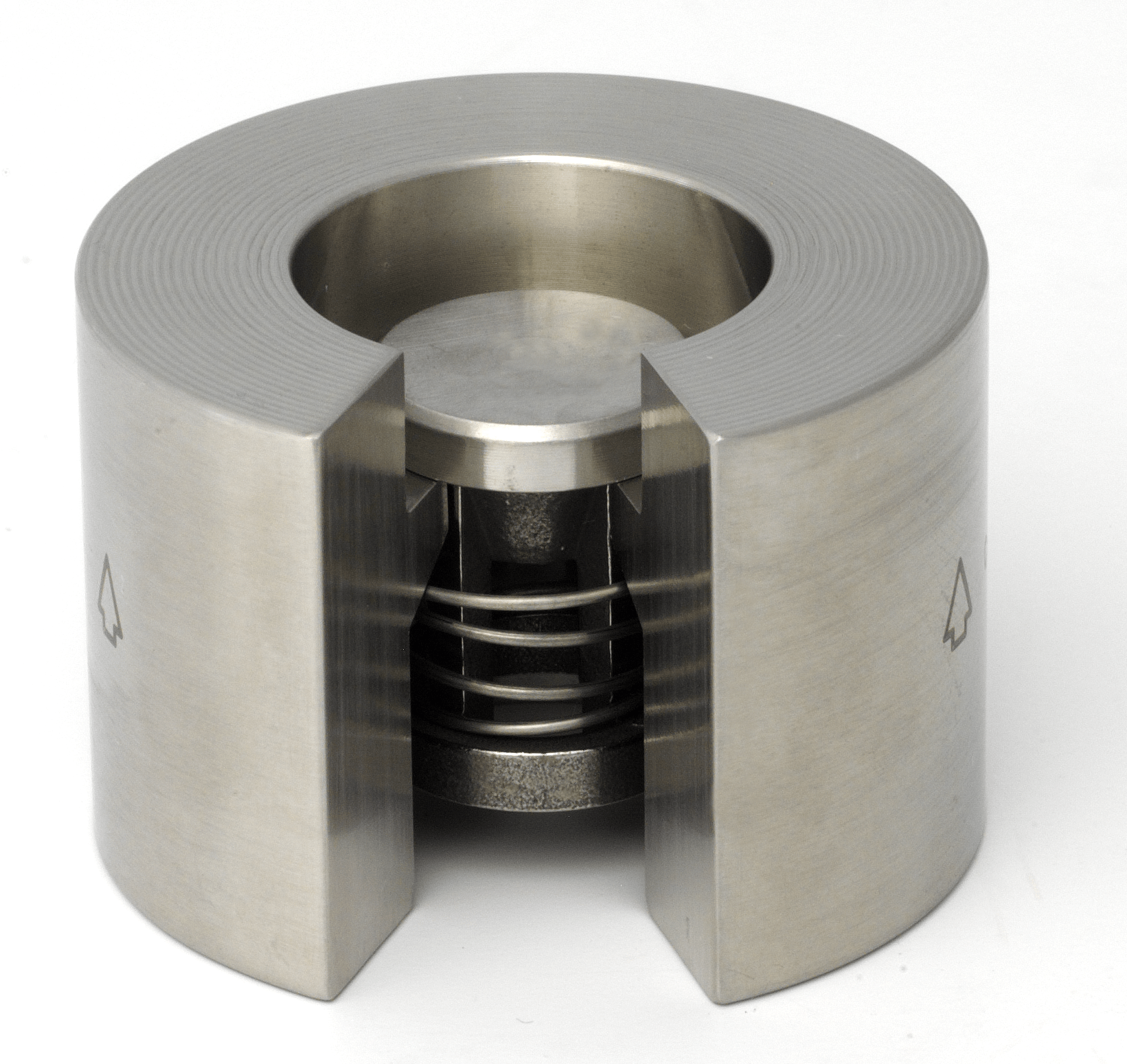

Check Valve Spring Loaded Type

Description

1. Product Overview

The Check Valve Spring Loaded Type is a precision-engineered industrial valve component that prevents backflow by using a calibrated spring to close the valve seat automatically when flow reverses or pressure falls. It is primarily used in fluid-handling systems across petrochemical, oil & gas, water treatment, power generation, and industrial process plants to protect equipment and maintain unidirectional flow. The key value proposition is reliable, fast-acting backflow prevention with predictable cracking pressures and long operational life, reducing downtime and protecting downstream assets. Strategically, this component is critical for process integrity, safety compliance, and optimizing maintenance cycles in large-scale industrial operations.

2. Key Specifications & Technical Characteristics

• Materials: Body options include stainless steel 316/316L, carbon steel (ASTM A216 WCB), bronze (C86200), and duplex stainless steels; spring material typically 17-7PH stainless or Inconel for high-temperature/corrosive service.

• Sealing elements: PTFE, FKM (Viton), EPDM, or metal-to-metal seating depending on application and temperature.

• Pressure rating: Standard designs rated from PN16 up to PN400 (ANSI 150–2500 equivalent), depending on size and material.

• Temperature range: -40°C to +400°C for elastomer-sealed variants; up to +600°C for metal-seated/high-alloy constructions.

• Flow orientation and size range: Available in sizes from DN15 (½”) to DN600 (24″) with horizontal and vertical installation options.

• Cracking pressure: Factory-configurable spring preload options, typically 0.05 bar to 2.0 bar (customizable for low-backflow sensitivity or higher actuation thresholds).

• End connections: Flanged (BS EN, ASME/ANSI), threaded (NPT/BSP), socket weld, butt weld.

• Surface finish: Internal machined Ra ≤ 0.8 µm for hygienic or low-fouling services; standard external coating: epoxy primer or galvanizing for corrosion protection.

• Density & weight: Dependent on size/material (example: DN100 stainless steel body ≈ 12–18 kg); detailed weight tables provided on request.

• Packaging: Industrial bulk packaging on pallets with corrosion inhibitor, greased internals, or wooden crates for export; protective end caps and desiccant on request.

• Shelf life & storage: Indefinite under dry, sheltered storage; elastomer seals recommended to be stored <25°C away from UV for maximum service life (replace after 5–8 years recommended if unused).

• Quality & standards: Manufactured to ISO 9001 QA, available with material traceability (EN 10204 3.1), NDT reports, and optional third-party inspection (TPI).

3. Core Industrial Applications

• Petrochemical & Refining: Installed in feedstock lines, hydrocarbon transfer, and flare systems to prevent cross-contamination and protect pumps/compressors from reverse flow. Performs better than wafer or swing check valves where fast closure and precise cracking pressure are required to prevent water hammer and protect rotating equipment.

• Oil & Gas Upstream & Midstream: Used in production flowlines, compressor suction/discharge lines, and pipeline pigging systems where robust metallurgy and spring bias ensure reliable operation under pressure transients.

• Power Generation (thermal, nuclear, and combined-cycle): Protects feedwater systems, boiler feed pumps, and auxiliary skids; spring-loaded design minimizes valve chatter and reduces maintenance compared with gravity-operated alternatives.

• Water & Wastewater Treatment: Applied in booster pump stations and chemical dosing lines where compact, predictable closure reduces backflow risk and chemical exposure.

• Chemical Processing & Specialty Manufacturing: Suitable for corrosive or high-temperature services when specified with appropriate alloys and seal materials; ideal where sizing and cracking pressure control are critical for process stability.
  Why it outperforms alternatives: spring-loaded check valves offer faster, more controlled closure than swing or lift check valves, reduced footprint compared with dual-check arrangements, and precise cracking pressure tuning that reduces water hammer and increases pump life. This translates to higher process uptime, lower maintenance costs, and better protection of capital equipment.

4. Competitive Advantages

• Quality consistency: Manufactured under ISO 9001-controlled processes with full material traceability and tight dimensional tolerances to ensure interchangeability and predictable performance.

• Supply reliability: Scalable production capacity with safety stock options and prioritized allocation for long-term contracts to support continuous operations.

• Logistics capability: Export-ready packaging, coordinated FOB/CIF shipping, and experience with ADR/IMO hazardous goods support; local warehousing options in strategic hubs on request.

• Price competitiveness: Tiered pricing for volume orders and negotiation available for framework agreements; optimized sourcing of alloys lowers landed cost without compromising metallurgy.

• Sustainability: Material selection and durable design reduce replacement frequency and lifecycle impact; options for recyclable packaging and lower-VOC coatings available.

• Technical support: Detailed installation and maintenance manuals, pressure-flow charts, cracking-pressure calibration certificates, dimensional drawings, and OEM spare parts availability; on-request engineering support for custom spring rates and material upgrades.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Standard 20′ container capacity typically 20–22 MT; 40′ container capacity typically 24–26 MT, depending on packing configuration, valve sizes, and palletization.
