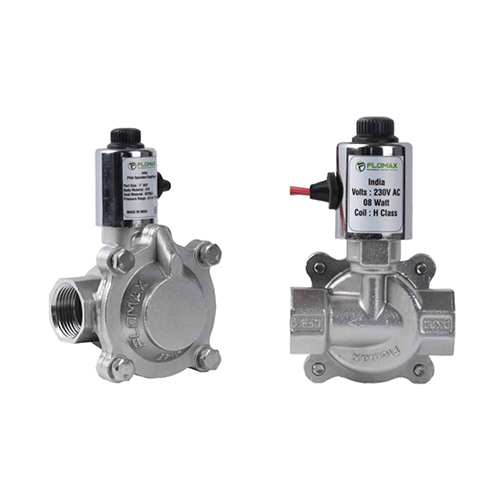

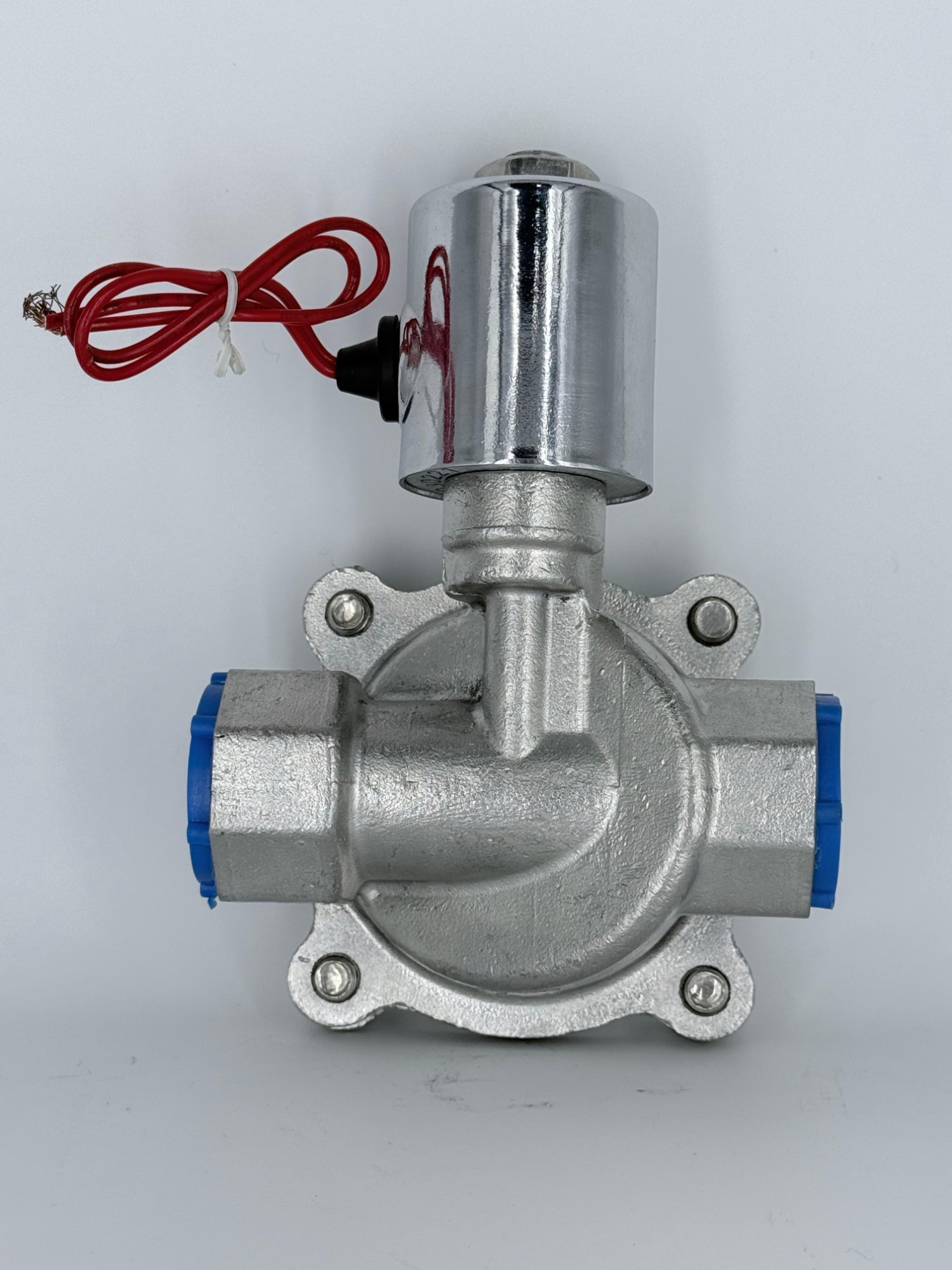

Solenoid Valve 2 Way Industrial Type

Description

1. Product Overview

The Solenoid Valve 2 Way Industrial Type is a precision-engineered electromechanical valve designed to control fluid and gas flow in automated industrial systems. It provides reliable on/off control for pneumatic, hydraulic, water, steam, and inert gas applications across manufacturing, process, and utilities environments. Its key value proposition is durable, repeatable actuation with fast response times and low power consumption, enabling tighter process control and reduced downtime. Strategically, this valve supports automation, safety and efficiency upgrades across industrial plants, making it a high-impact component in modernization and digitalization projects.

2. Key Specifications & Technical Characteristics

• Valve type: 2-way, normally closed (NC) or normally open (NO) options available.

• Actuation: Direct-acting and pilot-operated variants (specify per SKU).

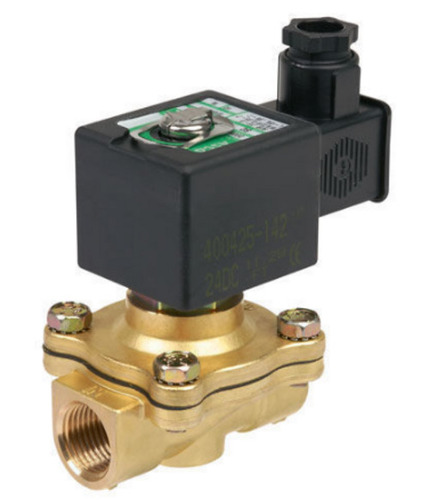

• Body material: Stainless steel (SS304 or SS316), brass, or corrosion-resistant alloys (selectable).

• Seal materials: NBR (nitrile), EPDM, FKM/Viton, PTFE-lined options for aggressive media.

• Orifice sizes: Standard range 1/8″ to 2″ (DN4 to DN50), custom sizes on request.

• Pressure rating: Up to 10 bar for general versions; high-pressure variants to 40 bar (specify per model).

• Temperature range: Standard -10 °C to 80 °C; extended-temperature trims available (-40 °C to +180 °C).

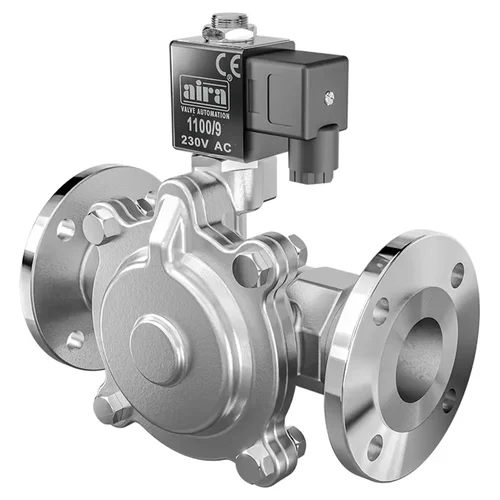

• Port connection types: BSP/NPT threaded, flanged (ANSI/DIN), compression fittings, and sanitary tri-clamp options.

• Electrical specs: 12 VDC, 24 VDC, 110 VAC, 230 VAC coil options; power consumption from low‑power coils (≤5 W) to industrial coils (specify per model).

• Response time: Typical 10–50 ms (direct-acting), 50–200 ms (pilot-operated), depending on size and media.

• Flow coefficient (Cv/Kv): Model-dependent; available on datasheet for each orifice size.

• Leak class: Industrial tight shut-off with tested seat leak rates ≤ specified standard (provide model datasheet).

• Surface finish: Internal/external electro-polish or passivation for stainless versions; protective coatings for brass/alloy bodies.

• Certification/standards: CE, RoHS; ATEX/IECEx versions for hazardous areas available on request.

• Packaging options: Wooden crate for bulk pallets, export-grade cardboard on pallet, individual boxed units with protective inserts.

• Shelf life: Indefinite for mechanical components when stored dry and protected; recommended storage conditions 0–40 °C, humidity <70%.

• Documentation provided: Datasheet, dimensional drawing, material certificate (MTC) on request, installation and maintenance manual, electrical wiring diagram.

3. Core Industrial Applications

• Primary industries: Chemical processing, oil & gas, water & wastewater treatment, power generation, pharmaceutical production, food & beverage, HVAC and building automation, marine and mining.

• Specific use cases: Automated isolation of process lines, dosing and batching control, emergency shutdown sub-systems, steam and condensate control, pneumatic tool circuits, backwash and filtration systems.

• Why it outperforms alternatives: Robust material selection and seal options enable compatibility with aggressive chemicals and high-purity fluids; low power coil designs reduce operational energy costs; fast, repeatable actuation improves process control accuracy and reduces product scrap. Pilot-operated variants allow higher flow capacity with smaller actuation energy, lowering lifecycle cost versus larger mechanically actuated valves. Modular design simplifies onsite repairs, reducing mean time to repair (MTTR).

4. Competitive Advantages

• Quality consistency: Manufactured to tight tolerances with batch inspection and traceable material certificates for repeatable performance across large-scale procurements.

• Supply reliability: Scalable production capacity with safety-stock scheduling to support repeat monthly orders and rapid replenishment for MRO programs.

• Logistics capability: Export-ready packaging, consolidation services, and CIF/FOB shipping terms; palletized loading for container optimization.

• Price competitiveness: Tiered pricing for volume contracts (negotiable at MOQ and above), competitive landed cost through regional distribution hubs.

• Sustainability: Long service life reduces replacement frequency; stainless and recyclable materials minimize lifecycle environmental impact. Energy-efficient coil options lower operational emissions.

• Technical support: Comprehensive documentation, installation guidance, maintenance schedules, spare parts listings, and engineering support for valve selection and system integration. Optional on-site commissioning and training available.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container):

  • 20’ container: approximately 18–20 MT depending on packaging and pallet configuration.

  • 40’ HC container: approximately 24–26 MT depending on packaging and pallet configuration.

• Lead time: Standard stock SKUs available for immediate shipment; bulk production lead times for MOQ orders typically 6–10 weeks (confirm at time of purchase).

• Packaging: Units secured on pallets, protected by corrosion inhibitors and export crates for sea freight.

• Terms: FOB, CIF, DAP negotiable; payment terms subject to credit evaluation and contract
