1. Product Overview

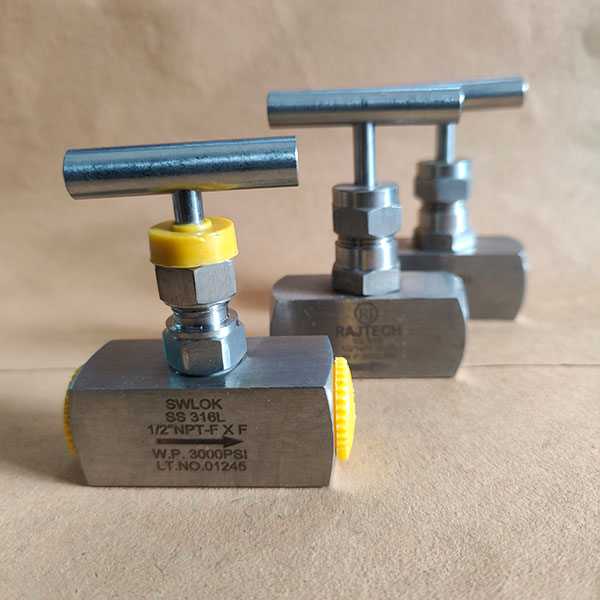

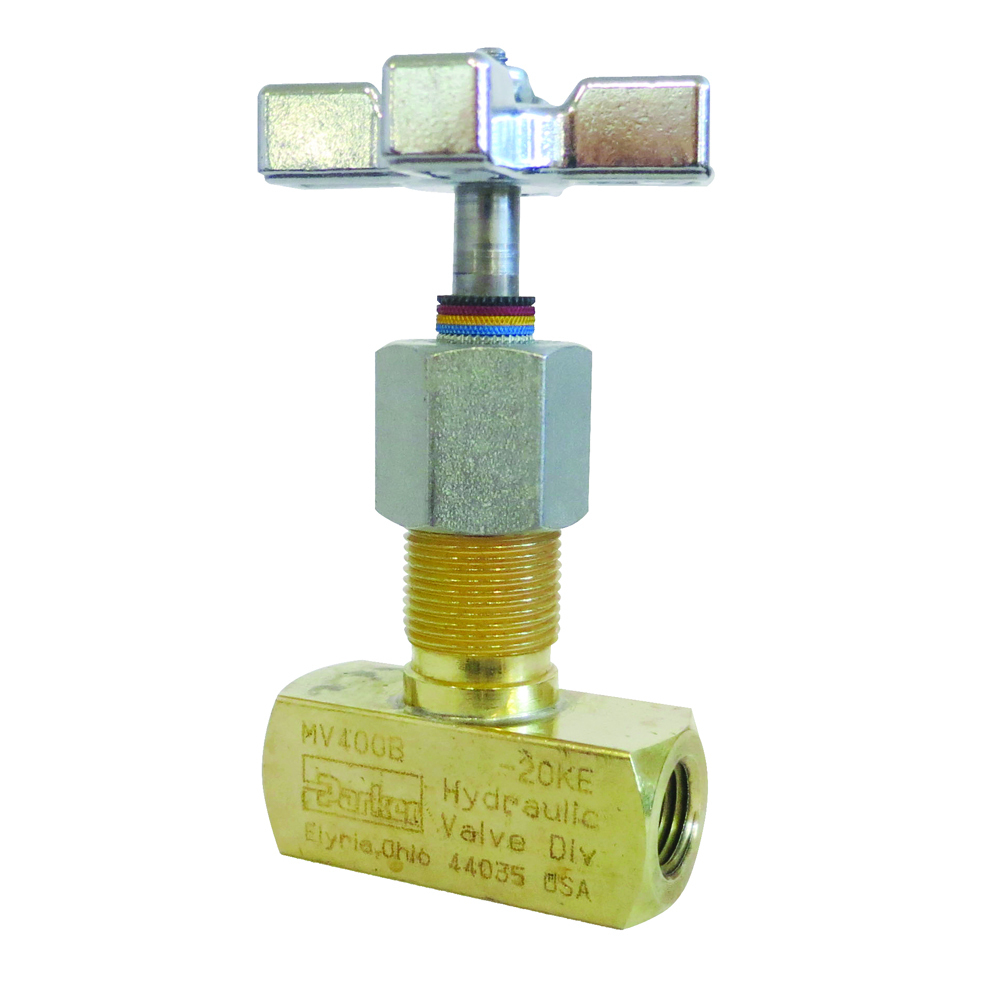

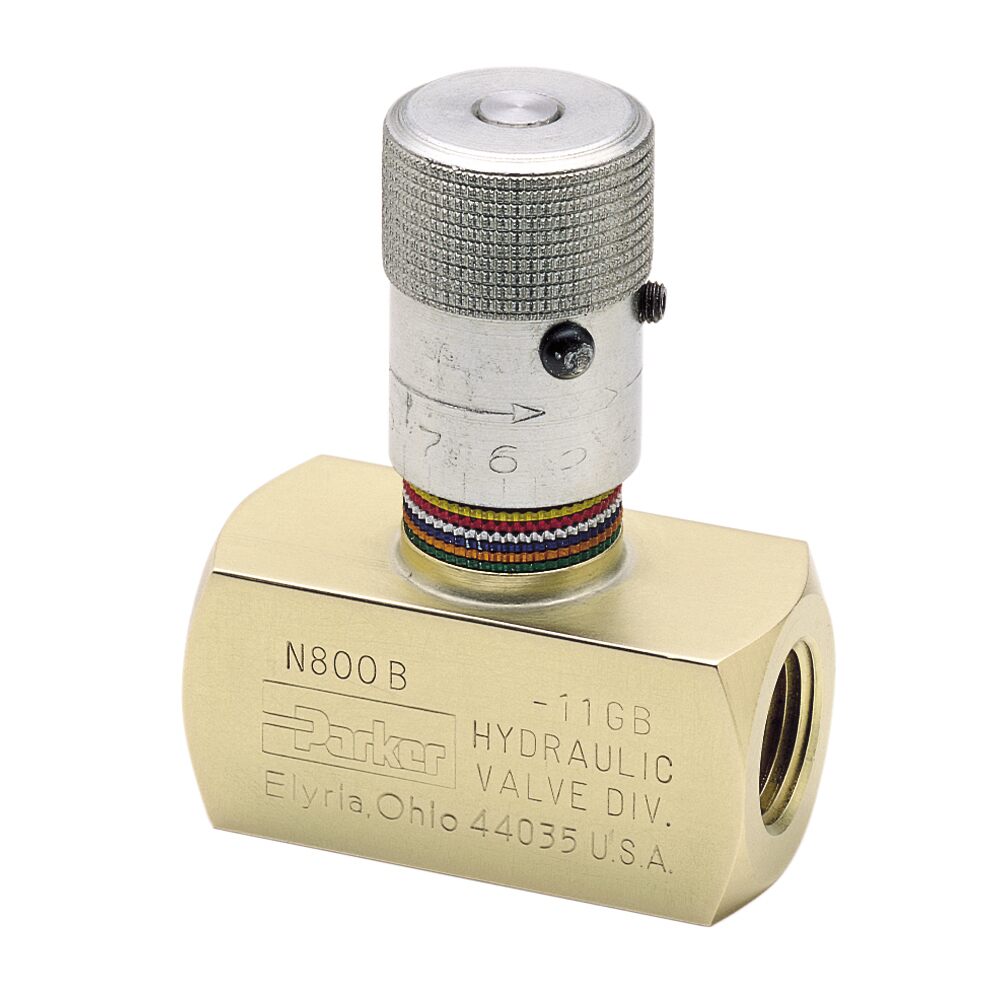

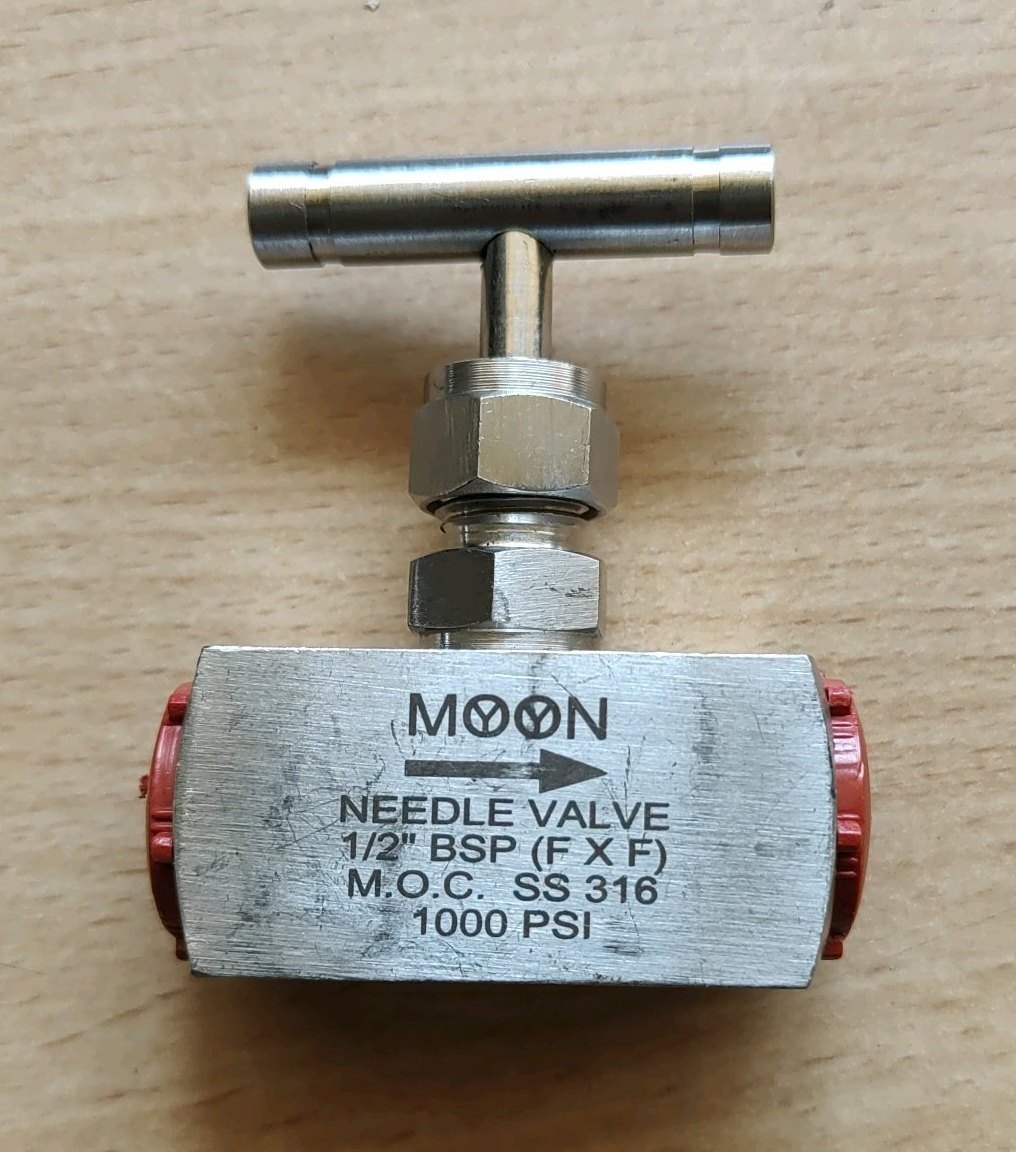

   Needle Valve Precision Flow Control is a high-precision mechanical valve engineered for fine metering and shutoff of liquids and gases in demanding industrial systems. It provides repeatable, leak-tight flow adjustment for instrumentation, chemical dosing, hydraulic subsystems, and process control loops. The valve’s primary value proposition is precise, stable flow regulation combined with robust materials that resist corrosion and wear — reducing process variability, downtime, and maintenance costs. For strategic sourcing, it delivers predictable performance at scale, enabling tighter process control, regulatory compliance, and lower total cost of ownership across industrial operations.

2. Key Specifications & Technical Characteristics

• Materials: Body — stainless steel 316/316L (standard); optional alloys: 304, Monel, Hastelloy C276, brass; stem/needle — hardened stainless steel or ceramic tip options.

• Seals & Packing: PTFE (standard), Graphite or FKM (optional) for elevated temperature/chemical resistance.

• Pressure rating: up to 600 bar (8,700 psi) depending on model and material selection.

• Temperature range: -196°C to +500°C depending on seal and material combination.

• Valve sizes & connections: 1/8″ to 1″ (NPT, BSPT, BSPP, SAE, Flare, Compression fittings, and DIN/ISO flanges available).

• Flow coefficient (Cv/Kv): Model-dependent; precision low Cv ranges typical (e.g., Cv 0.01–0.5) for micro-metering applications.

• Leak class: ANSI/FCI VI/ISO 15848-class options with soft-seat or metal-seat configurations.

• Actuation: Manual stem/handwheel standard; optional pneumatic, electric, or electro-pneumatic actuators with positioners.

• Finish: Internal surface Ra ≤ 0.8 µm standard; electropolished internal options for sanitary/chemical purity.

• Physical characteristics: Solid machined components, weight varies by size (e.g., 0.2–8 kg); color — metallic finish or coated to spec.

• Packaging options: Individual corrugated export cartons with foam inserts; wooden crates or palletized skids for bulk; anti-corrosion VCI film available for maritime shipment.

• Shelf life: Indefinite for valve body; recommend protective storage (dry, ambient) and exercise/inspection after prolonged storage (>24 months).

• Documentation: Material certificates (EN 10204 3.1), pressure test reports, dimensional drawings, installation & maintenance manual, and ATEX/CE documentation where applicable.

3. Core Industrial Applications

• Primary industries: Oil & Gas, Petrochemical, Chemical Processing, Power Generation, Pharmaceuticals, Semiconductor fabrication, Instrumentation & Process Automation, Shipbuilding, and HVAC.

• Specific operational use cases: Precision dosing and sampling lines, bleed-off and bypass control, instrumentation isolation valves (pressure transmitters, flow meters), laboratory and pilot-plant metering, hydraulic pilot lines, steam and condensate control, and leak-testing rigs.

• Why it outperforms alternatives: Superior metering resolution (fine-threaded stem and low-Cv designs) yields more stable setpoints versus globe or ball valves in low-flow regimes; high-grade materials and seal options minimize corrosion and soft-seating degradation in aggressive chemistries; electropolishing and low-Ra finishes reduce contamination risk for sanitary and semiconductor processes.

• Commercial relevance: Reduces wasted reagent and rework through accurate dosing; lowers frequency of maintenance and unplanned shutdowns; supports regulatory compliance (traceability via certificates).

4. Competitive Advantages

• Quality consistency: CNC machined bodies with factory inspection, dimensional control, and serial-traceable material certificates ensure repeatable performance across batches.

• Supply reliability: Production planning with finished-goods inventory, configurable lead times, and strategic raw-material sourcing to support continuous supply for OEMs and MRO programs.

• Logistics capability: Export-ready packaging, inland and ocean freight coordination, and multi-modal distribution with bulk pallet/container options.

• Price competitiveness: Modular design enables standard core components with configurable options, reducing custom-engineering cost while enabling competitive unit pricing for bulk orders.

• Sustainability: Long service life and repairable design (replaceable packing/stem) reduce lifecycle waste; optional RoHS/REACH-compliant materials and recyclable packaging minimize environmental footprint.

• Technical support & documentation: Dedicated technical datasheets, installation/maintenance guides, 3.1 material test reports, dimensional drawings, compatibility charts, and application engineering support for sizing and selection.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Typical 20’ container loading capacity up to ~20 MT (subject to packaging, palletizing, and local regulations); 40’ HC container loading capacity up to ~26–28 MT.

• Lead times: Standard configurable models — typically 4–8 weeks; stocked SKUs and MRO kits available for immediate dispatch.

• After-sales: Spare-parts kits, refurbishment services, and extended warranty options available upon contract.
