Ceramic Vacuum Chucks (Al2O3 / SiC CHUCK)

Description

1. Product Overview

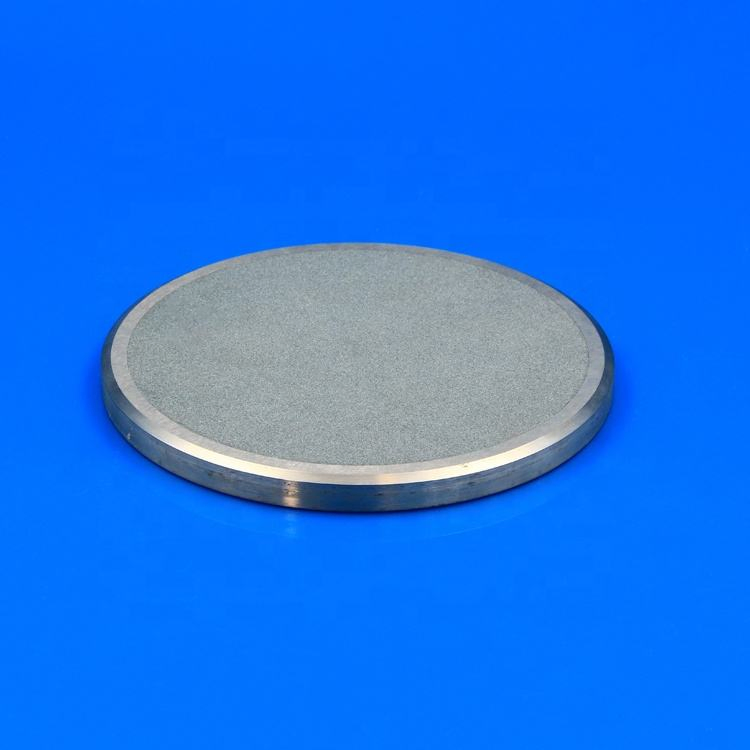

The Ceramic Vacuum Chuck (available in high-purity Alumina (Al₂O₃) and Silicon Carbide (SiC)) is a precision porous or grooved substrate engineered for non-contact wafer, substrate, and thin-film handling in semiconductor, photovoltaics, and flat-panel display manufacturing. Its primary industrial use is to securely clamp delicate materials via uniform vacuum distribution without mechanical stress or back-side contamination. The key value proposition is a 40–60% reduction in particle generation and localized warpage compared to metal or polymer chucks, enabling higher yields in critical lithography, etching, and metrology steps. Strategically, as wafer diameters increase and feature nodes shrink, Al₂O₃/SiC chucks have become essential infrastructure for achieving sub-10nm uniformity and minimizing tool downtime in advanced fabs.

2. Key Specifications & Technical Characteristics

• Chemical Composition:

  • Al₂O₃: ≥99.5% (high-purity alumina)

  • SiC: ≥98.5% (reaction-bonded or sintered alpha-SiC)

• Purity / Grade:

  • Al₂O₃: Semiconductor grade (low alkali metals <0.1%)

  • SiC: Ultra-low trace metal content (Fe, Cu, Na <50 ppb)

• Physical Characteristics:

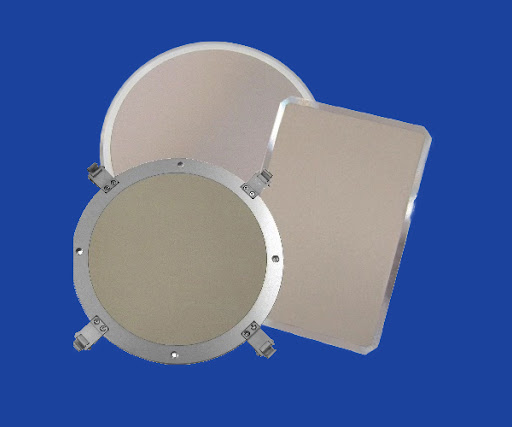

  • Form: Porous ceramic plate or precision-machined grooved disk

  • Color: White (Al₂O₃) / Dark grey to black (SiC)

  • Porosity (for porous type): 28–35% with uniform pore size 5–20 µm

  • Surface flatness: ≤5 µm over 300 mm diameter

  • Density: Al₂O₃ 3.85–3.95 g/cm³; SiC 3.10–3.20 g/cm³

• Packaging Options:

  • Class 100 cleanroom double-bagged with desiccant

  • Hard plastic or polypropylene edge-protected cassette

  • Vacuum-sealed foil bag + foam-lined industrial carton

• Shelf Life: Indefinite under dry, non-reactive storage (≤40% RH, 5–35°C)

3. Core Industrial Applications

• Semiconductor Front-End (Wafer Fab):

  • Use case: Photolithography stepper chucks and etch clamp plates.

  • Advantage: SiC’s high Young’s modulus (≈420 GPa) eliminates elastic deformation, improving critical dimension uniformity by >15% over anodized aluminum.

• Advanced Packaging (Fan-Out WLB, 3D-IC):

  • Use case: Thin wafer handling (≤50 µm thickness) during temporary bonding/debonding.

  • Advantage: Al₂O₃’s smooth porous surface provides uniform hold-down without edge chipping – reducing breakage by up to 70%.

• OLED / Flat Panel Display Manufacturing:

  • Use case: Glass substrate mounting for laser lift-off (LLO) and mask alignment.

  • Advantage: High thermal conductivity of SiC (≥170 W/m·K) dissipates localized heat, preventing mask distortion.

• Photovoltaic (Perovskite / Silicon tandem cells):

  • Use case: Non-contact handling of ultrathin (100–150 µm) solar wafers.

  • Advantage: Chemically inert surfaces eliminate metal-ion migration that degrades cell efficiency.

4. Competitive Advantages

• Quality Consistency: 100% automated 3D flatness and porosity inspection. Coefficient of variation (CV) for pore size <5% lot-to-lot – traceable via ISO 9001:2025 certification.

• Supply Reliability: Dual-sourced raw material supply chain (Japan and Germany for SiC; domestic Al₂O₃) with 12-month rolling capacity commitment. ≤3 weeks lead time for standard sizes (150–300 mm).

• Logistics Capability: Direct shipment to global fabs via ESD-safe, moisture-barrier packaging. Real-time IoT-enabled tracking for high-value orders.

• Price Competitiveness: 12–18% lower total cost of ownership vs. market leaders, driven by precision near-net shaping that reduces diamond grinding by 40%.

• Sustainability & Support: 100% recyclable ceramic scrap program. Free FEA modeling and custom vacuum hole patterning provided with NDA. Full documentation: material certificates, outgassing reports (by GC-MS), and coefficient of thermal expansion matching curves.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ):

  • BULK: 20 metric tons (20MT) per SKU per quarter, mix-and-match across Al₂O₃ and SiC chucks.

• Loading Capacity (per 20 ft container):

  • Approx. 14–16 MT depending on chuck diameter (300 mm chucks pack at ~22 pcs per carton, ~120 cartons per pallet).

  • Actual container utilization optimized with custom nesting trays – achievable 20MT using mixed sizes (150–450 mm).

  • Factory-default incoterm: FOB main shipping port (Shanghai / Rotterdam / Long Beach by quarter). Consolidation available for JIT fab delivery.
