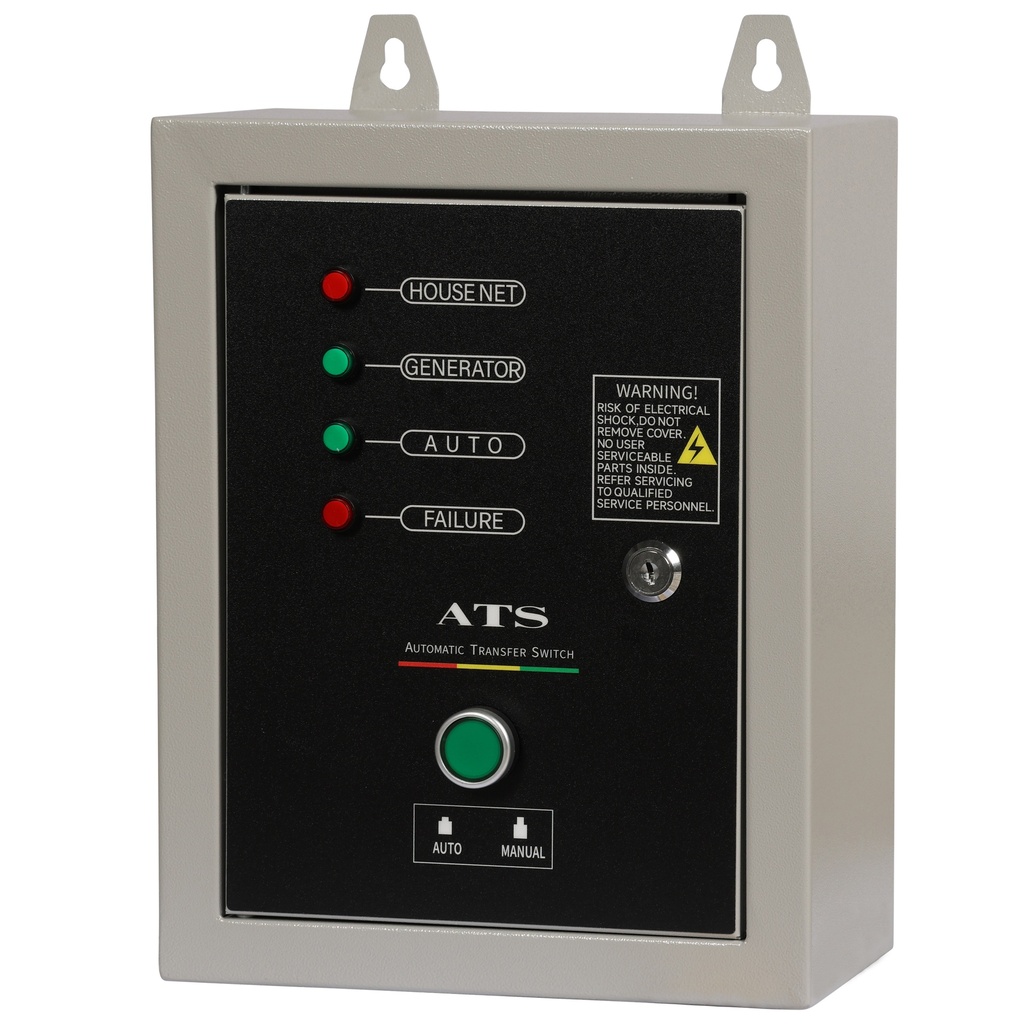

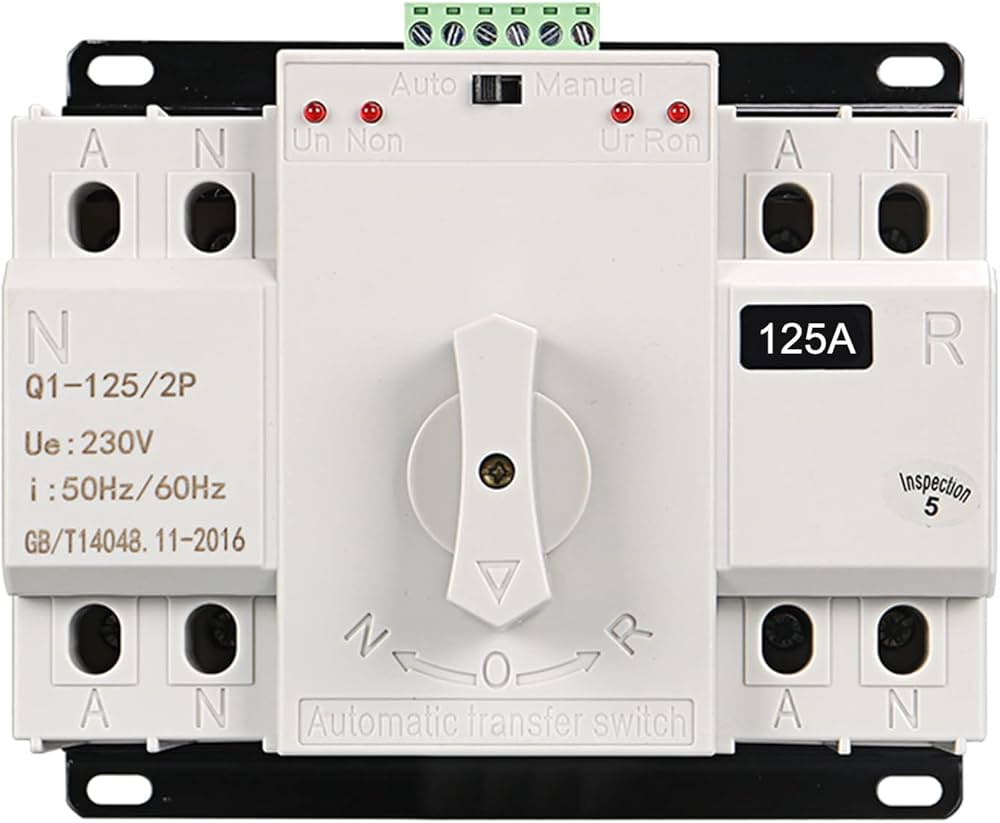

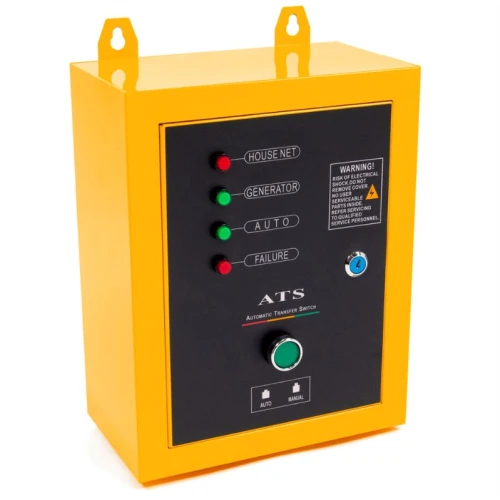

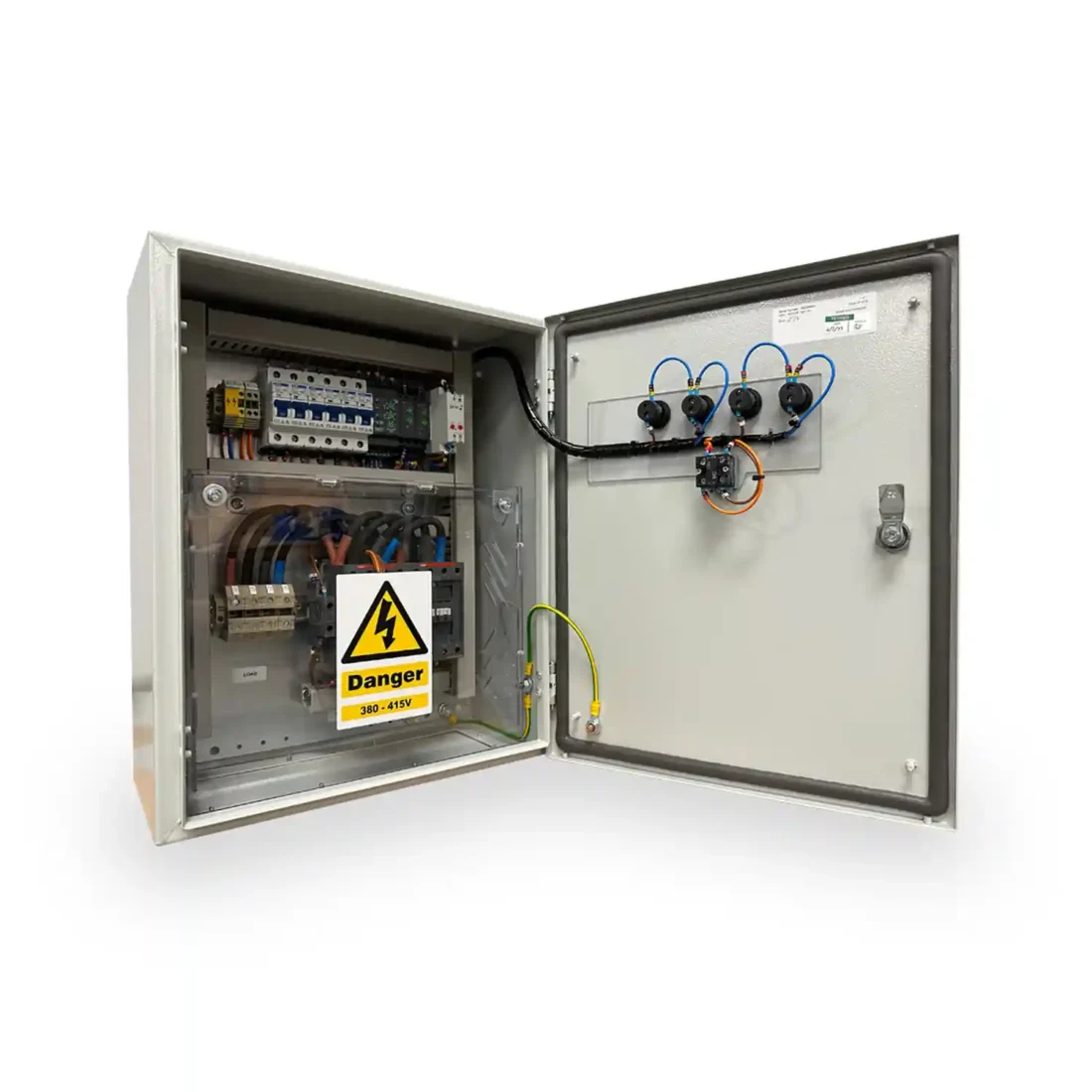

Automatic transfer switch (ATS)

Description

1. Product Overview
   The Automatic Transfer Switch (ATS) is a high-reliability electrical switching device that automatically transfers a load between a primary power source and a secondary or backup source (generator, alternate utility feed, or UPS). Designed for industrial and commercial power-continuity systems, it ensures uninterrupted operations for critical facilities such as data centers, manufacturing plants, hospitals, and telecom sites. The primary value proposition is guaranteed, instantaneous power switching with minimal disruption, reducing downtime risk, protecting sensitive equipment, and enabling compliant emergency power systems. Strategically, ATS units are a core component of resilient power architectures that support regulatory compliance, uptime SLAs, and operational continuity across global industrial supply chains.

2. Key Specifications & Technical Characteristics

• Material and construction: Sheet-steel or stainless-steel enclosure; copper alloy contacts; silver- or silver-alloy contact overlays for high conductivity and wear resistance.

• Mechanical components: Heavy-duty actuators, mechanically interlocked changeover mechanism, anti-pumping protection.

• Electrical ratings: Available from 63 A to 4000 A (custom ranges on request); available in single-phase and three-phase configurations; rated operational voltage up to 690 V AC.

• Transfer type: Open-transition (break-before-make), closed-transition (make-before-break), soft-load make, and delayed transition options.

• Control and monitoring: Microprocessor-based controllers with programmable logic, manual override, remote/SCADA communication (Modbus, SNMP, IEC 61850 optional), event logging, and auxiliary contact outputs.

• Protections and standards: Integrated short-circuit and overload capability per IEC/ANSI; arc flash mitigation options; complies with IEC 60947-6-1, NFPA 70, and other regional standards upon request.

• Physical characteristics: Wall-mounted and floor-mounted configurations; IP54/IP65 ingress protection options; modular design for onsite servicing; typical weight varies by rating (consult datasheet).

• Operating environment: -20°C to +55°C standard; extended-temperature variants available; altitude derating guidance provided.

• Packaging options: Industrial crating with anti-corrosion treatment for ocean shipment; shrink-wrapped skid for regional transport; single-unit and palletized bulk shipments.

• Shelf life and storage: No functional shelf-life limit for electrical components when stored dry; recommend storage in humidity-controlled environment and periodic mechanical inspection if stored >2 years.

3. Core Industrial Applications

• Data centers and colocation facilities: Automatic, rapid transfer to backup generation or alternate utility to protect uptime and meet SLAs.

• Healthcare (hospitals, clinics): Seamless transfer for life-safety systems, HVAC, and critical medical equipment during utility outages.

• Manufacturing and process industries: Protects continuous-process lines and automation systems from damaging brownouts and abrupt power loss.

• Telecom and broadcast sites: Ensures uninterrupted power for transmission equipment and network nodes, reducing service interruptions.

• Oil & gas, mining, and utilities: Robust transfer under harsh conditions; supports remote site generation with telemetry and control integration.
  Why it outperforms alternatives:

• Faster, deterministic transfer times reduce equipment restart costs and process scrap.

• Closed-transition and soft-make options minimize inrush and transient stresses on sensitive loads.

• Modular, serviceable design lowers total cost of ownership through reduced downtime and faster on-site repairs.

• Advanced communications and diagnostics enable predictive maintenance and integration into enterprise energy management systems.

4. Competitive Advantages

• Quality consistency: Factory-tested units with traceable components and pre-shipment functional testing; serial-numbered QA records.

• Supply reliability: Scalable production and secure sourcing channels; scheduled replenishment and capacity planning for bulk industrial customers.

• Logistics capability: Export-grade packaging, consolidated LCL/FCL options, and local partner networks for inland delivery and on-site commissioning.

• Price competitiveness: Tiered pricing for volume purchases and long-term supply contracts; engineering-to-cost options for high-volume projects.

• Sustainability: Designed for long operational life with recyclable metal enclosures; energy-efficient control electronics and low-standby-loss designs.

• Technical support: Complete technical documentation (installation, commissioning, maintenance), FAT/PAT support, commissioning assistance, and optional extended warranty and on-site service plans.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT.

• Loading capacity (MT per container): Typical 20 ft container up to ~22–24 MT, 40 ft container up to ~26–28 MT depending on unit configuration and packing. Exact loading calculated per order based on unit weight and palletization.
