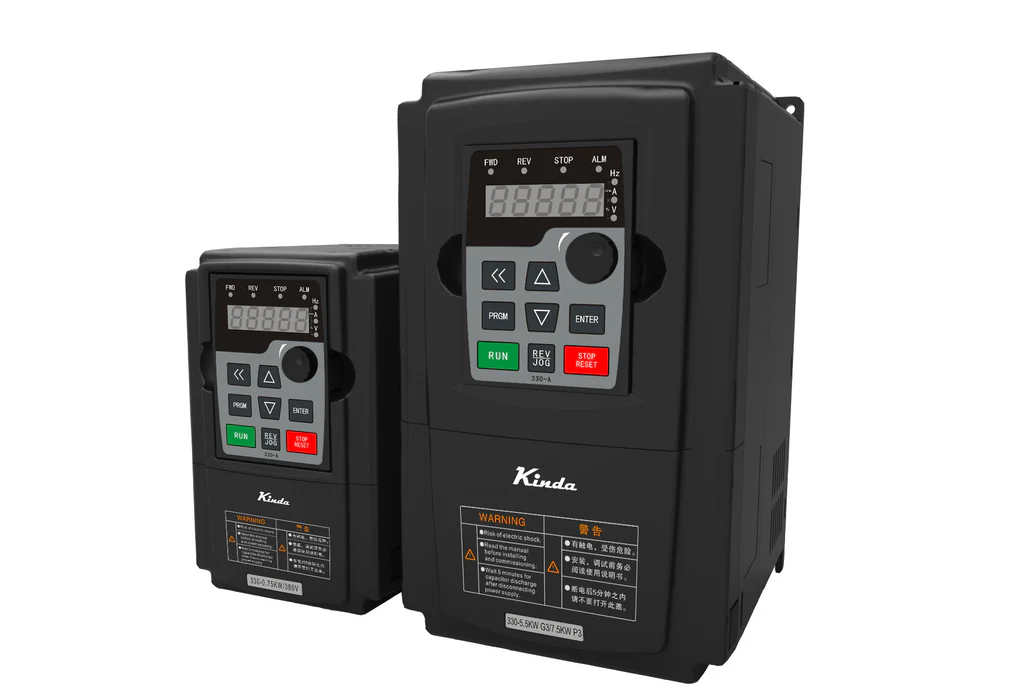

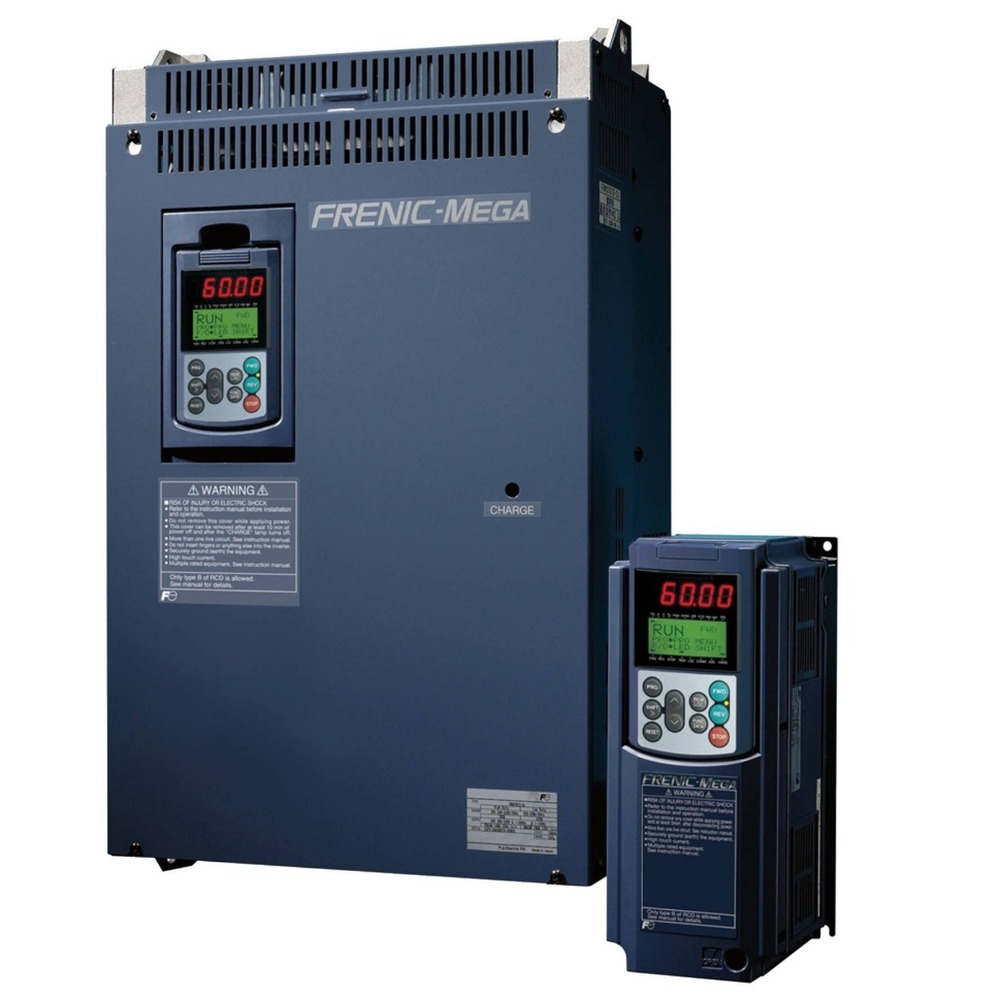

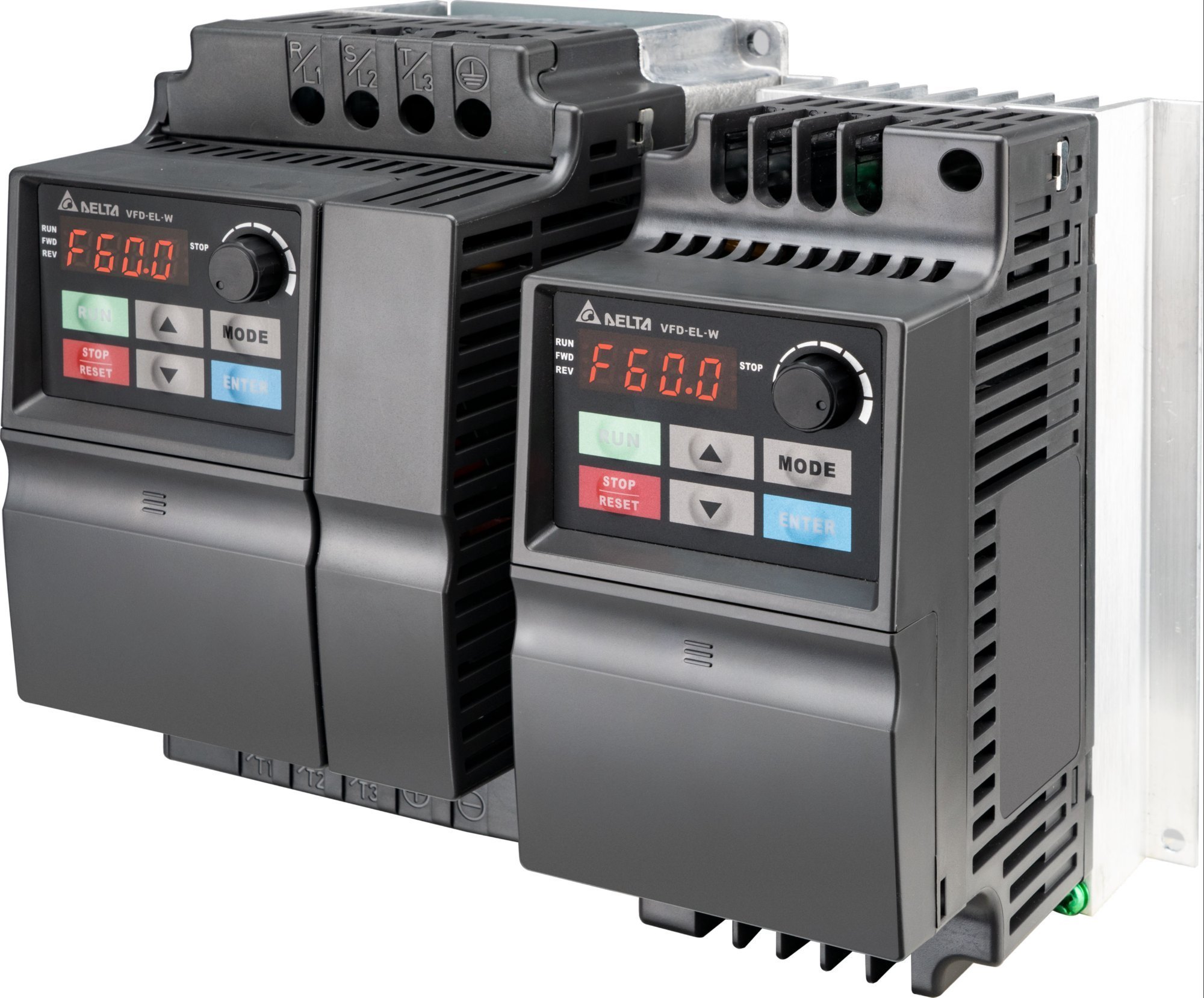

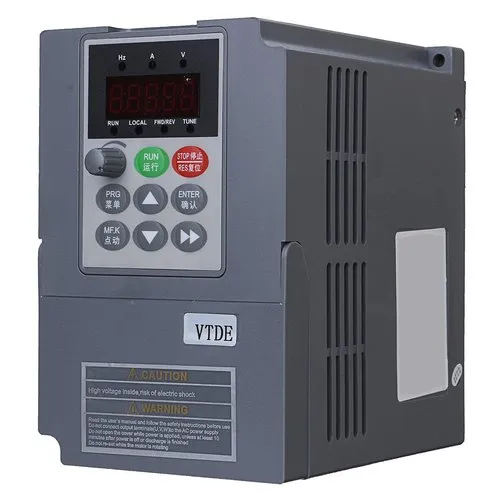

Variable frequency drive (VFD)

Description

Product Overview
Variable Frequency Drive (VFD) — an industrial power-electronics device that precisely controls AC motor speed and torque by varying supply frequency and voltage. Primarily used in process, HVAC, pumping, conveyor, and manufacturing systems to optimize motor-driven equipment performance and reduce energy consumption. The key value proposition is predictable, high-efficiency motor control that cuts energy use, lowers mechanical stress, and extends asset life while enabling process accuracy and remote integration. Strategically, VFDs are central to industrial decarbonization and digitalization efforts—delivering measurable OPEX savings, improved production throughput, and compliance with increasingly stringent energy and emissions standards.

Key Specifications & Technical Characteristics

• Electrical rating: input 3-phase 380–480 VAC (±10%), 50/60 Hz; available variants for 208–690 VAC on request

• Power range: 0.75 kW to 2,000 kW models (custom sizing available for special projects)

• Control methods: V/f, sensorless vector, closed-loop vector (encoder feedback)

• Output frequency range: 0–400 Hz standard, higher-frequency options available

• Overload capacity: 150% for 60 seconds; 200% for 3 seconds (model dependent)

• Harmonic mitigation: built-in sine-wave filters or active front-end (AFE) options

• Cooling: forced-air or liquid-cooled options for high-power installations

• Environmental rating: IP20 standard; IP54/IP55 and NEMA 12/4X cabinets available

• Ambient operating temperature: -20°C to +50°C standard; extended-range versions to +60°C

• Altitude capability: up to 1,000 m standard; derating and high-altitude kits available

• EMC compliance: conforms to EN 61800-3, IEC/EN 61000 series for immunity and emissions

• Materials and construction: silicon-carbide (SiC) MOSFET/IGBT power modules, conformal-coated PCBs, anodized/heavy-gauge steel enclosures

• Protective features: overcurrent, overvoltage, undervoltage, ground-fault, short-circuit, phase-loss, thermal protection

• Communications & integration: Modbus RTU/TCP, Profibus, PROFINET, EtherNet/IP, BACnet, OPC UA; native BACnet/IP and MQTT options for IIoT

• Control interface: integrated multilingual LCD/HMI; remote keypad and web-based GUI available

• Safety: STO (Safe Torque Off) and SIL2-capable functional safety options

• Packaging options: palletized skids for bulk units, wooden crates for export, custom OEM packaging for project skids

• Shelf life/warehouse handling: electronic components — indefinite if stored in climate-controlled environment; recommend ESD-safe, dry storage, humidity <60% RH

Core Industrial Applications

• Water & wastewater: variable-speed pumping for energy-efficient flow control, anti-cavitation, and reduced surge events. Delivers up to 50% energy savings versus fixed-speed drives in variable-flow systems.

• HVAC & building services: fan and compressor modulation for optimized system balancing, demand control ventilation, and peak-demand shaving.

• Oil & gas & petrochemical: compressor and pump drive control for throughput management, soft-start to reduce mechanical stress, and improved process stability under varying load.

• Mining & minerals: conveyors, mills, and hoists where torque control and regenerative braking reduce peak loads and lower maintenance costs.

• Manufacturing & process industries: precise speed control for mixers, extruders, laminators, and assembly lines—resulting in tighter process control, lower scrap rates, and faster changeovers.

• Marine & ports: thrusters, winches, and cargo handling equipment with robust enclosures and harmonic mitigation for on-board power stability.
  Why it performs better than alternatives:

• Energy efficiency through optimized motor loading and advanced control algorithms (sensorless/vector), delivering lower lifecycle energy costs than soft starters or fixed-speed motors.

• Reduced mechanical wear via controlled ramp-up/ramp-down and torque limiting, extending the service interval and lowering maintenance spend.

• Superior process control and repeatability when closed-loop feedback is used, enabling higher product quality and throughput.

Competitive Advantages

• Quality consistency: production-run traceability, ISO 9001 manufacturing, and component traceability for lifecycle assurance.

• Supply reliability: strategic inventory hubs, regional distribution centers, and production scale that support large project rollouts with predictable lead times.

• Logistics capability: packaged for multimodal transport, container-loading optimisation, and export documentation support for fast customs clearance.

• Price competitiveness: scalable configurations that balance upfront CAPEX with low TCO; competitive pricing for bulk and long-term contracts.

• Sustainability benefits: reduced operational energy consumption, optional low-loss SiC modules for improved efficiency, and end-of-life recycling programs for power electronics.

• Technical support & documentation: detailed factory test reports, FMEA on request, commissioning assistance, on-site start-up, and multilingual manuals plus firmware updates and application tuning support.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Standard 20-foot container: up to 18–20 MT depending on unit sizes and packing; 40-foot container: up to 24–26 MT depending on unit sizes and packing

• Lead times: available on request; preferred-customer and long-term agreements reduce lead time risk

• Warranty & service: standard 12–24 months depending on configuration; extended service contracts and spare-parts kits available
