Low voltage switchgear panels

Description

Product Overview

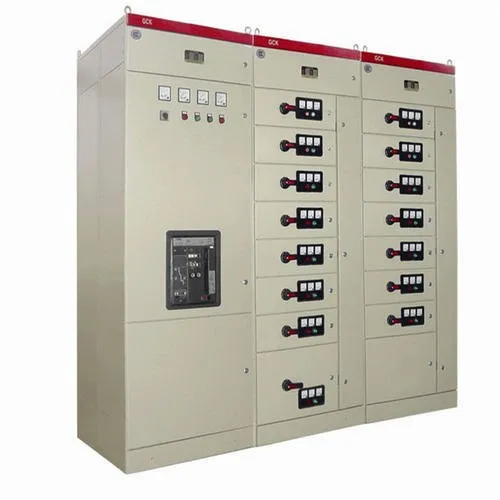

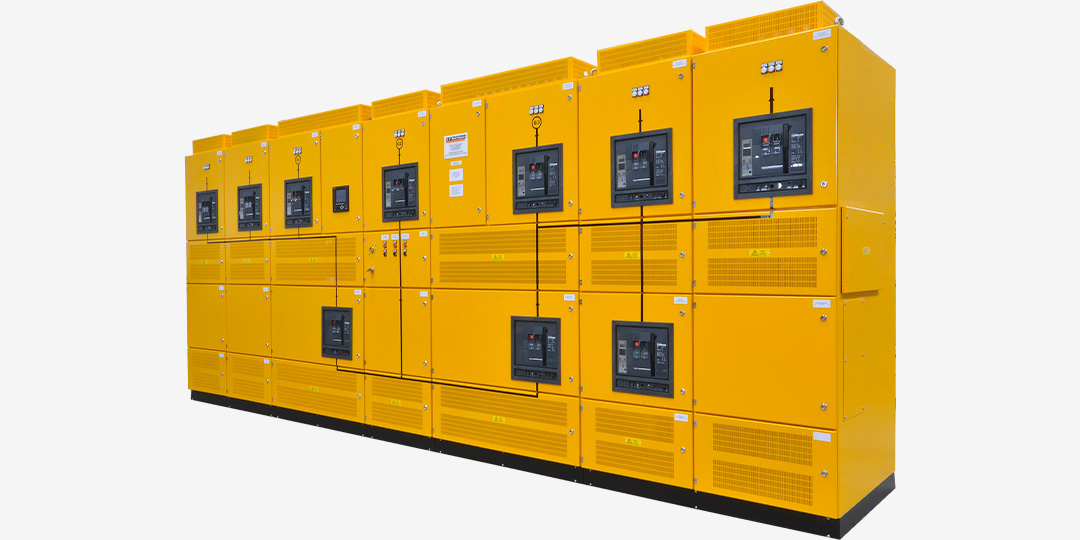

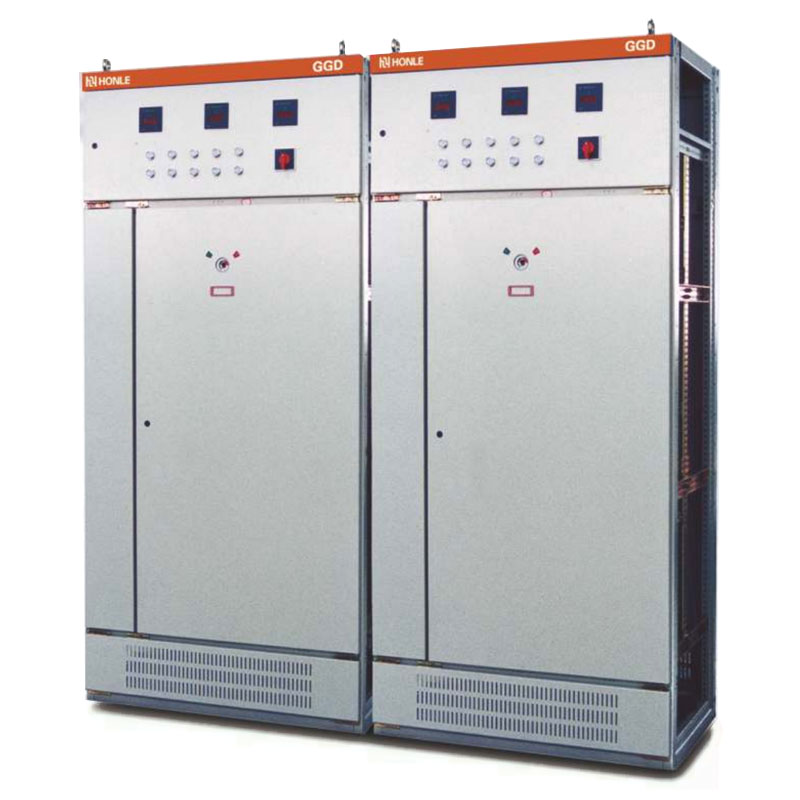

Low voltage switchgear panels are engineered assemblies that distribute, control, and protect electrical circuits up to typically 1,000 V AC in industrial and commercial installations. They serve as the primary point for power distribution, fault protection, and system monitoring within factories, commercial complexes, data centers, and infrastructure projects. The key value proposition is reliable, compact, and modular power management that reduces downtime, simplifies maintenance, and ensures personnel and asset safety. Strategically, high-quality low voltage switchgear panels reduce lifecycle costs, support regulatory compliance, and enable scalable electrification for modern industrial operations.

Key Specifications & Technical Characteristics

• Standard ratings: 400 V / 480 V / 690 V AC, up to 1,000 V where specified.

• Current ratings: main busbar options from 400 A up to 4,000 A; outgoing feeders 16 A–2,000 A.

• Short-circuit withstand: rated breaking capacity 25 kA, 35 kA, 50 kA (selectable per model).

• Protection devices: integrated MCCBs, ACBs, earth leakage relays, overcurrent relays, and optional vacuum circuit breakers.

• Busbar system: copper/aluminum busbars, tin-plated or silver-plated options for improved conductivity and corrosion resistance.

• Enclosure materials: powder-coated steel (IP30–IP54 standard), stainless steel (IP54–IP65 optional) for corrosive environments.

• Insulation & internal components: halogen-free, fire-retardant insulating materials; tested to IEC 61439 series.

• Control & metering: optional digital relays, multi-function meters, PLC/SCADA interfaces, Modbus/Profibus/EtherNet/IP support.

• Physical characteristics: modular cubicle form factor, standard widths per module 400/600/800 mm, depth 600–1,000 mm, heights 1,800–2,200 mm.

• Ambient operating range: -10 °C to +40 °C (derating options available for higher temperatures).

• Vibration & seismic options: reinforced mounting and bracing available to comply with regional seismic codes.

• Packaging options: wooden export crates with anti-corrosion wrapping; palletized modular shipments; container-ready skids.

• Shelf life: not applicable for electrical assemblies; recommended storage conditions dry, ambient, protected from mechanical damage.

• Standards & certification: designed and tested per IEC 61439, ANSI/IEEE (on request), CE marking, optional local certifications (e.g., CCC, BIS) available.

Core Industrial Applications

• Manufacturing plants: primary and secondary distribution, motor control centers (MCC), process line isolation, and safety interlocks for continuous production.

• Data centers & telecommunications: resilient distribution for critical loads, redundancy configurations (N+1, 2N), upstream fault isolation to protect sensitive equipment.

• Oil & gas / petrochemical: explosion-resistant configurations and stainless enclosures for hazardous zones; integrated emergency shutdown and fire alarm interfaces.

• Mining & heavy industries: robust mechanical construction and high short-circuit withstand for heavy-load motors, conveyors, and crushers.

• Commercial & infrastructure projects: building main distribution boards (MDB), tenant distribution, HVAC and lighting central control.
  Why it outperforms alternatives: modular design allows faster on-site assembly and easier maintenance; higher specified short-circuit ratings and quality busbar construction lower failure risk; integrated digital monitoring increases uptime through predictive maintenance and faster fault diagnosis. This translates to lower total cost of ownership and higher operational availability.

Competitive Advantages

• Quality consistency: manufactured under ISO 9001 processes with batch testing and factory acceptance tests (FAT) including electrical, insulation, and functional tests.

• Supply reliability: scalable production capacity with documented lead-times, strategic component sourcing, and buffer stock for critical parts to meet large project schedules.

• Logistics capability: containerized skids and modular packing for safe sea/air freight; local assembly options and field service networks for rapid deployment.

• Price competitiveness: flexible configuration tiers (standard, enhanced, premium) to align capex constraints with required performance; volume pricing for multi-MT orders.

• Sustainability: use of halogen-free insulating materials, recyclable steel enclosures, and energy-efficient designs that reduce standby losses.

• Technical support: full documentation package — single-line diagrams, wiring schedules, assembly drawings, test reports, and commissioning support; optional on-site commissioning and training.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT.

• Loading capacity (MT per container): typical 20′ container up to 20 MT gross (configuration dependent); 40′ HC container up to 26–28 MT gross.

• Lead times: subject to configuration, standard models 8–12 weeks; customized or certified units quoted per project schedule.

• Warranty & service: standard 12–24 month warranty options; extended service contracts and spare parts kits available.
