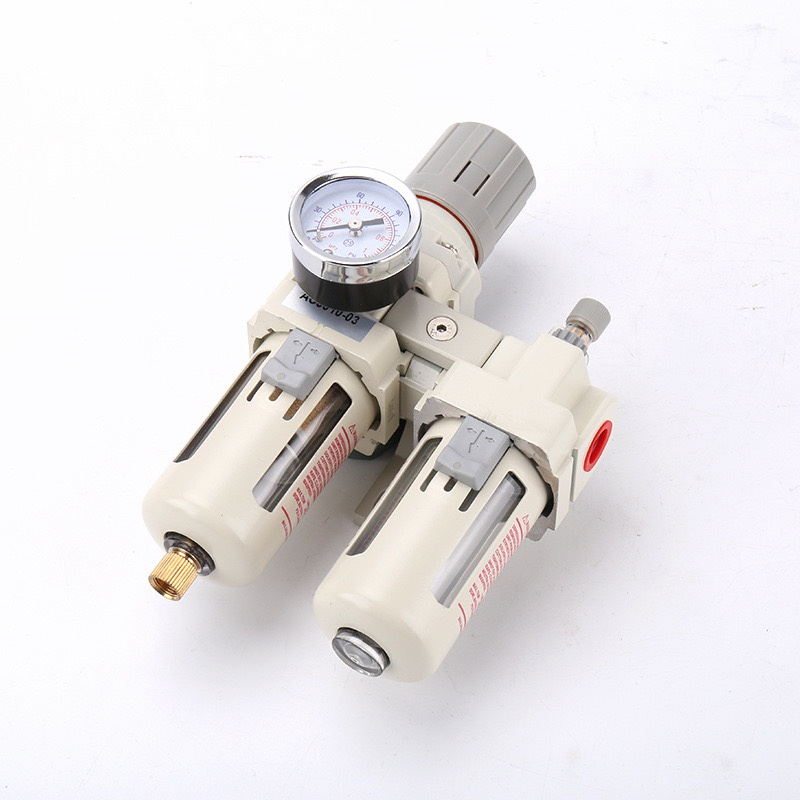

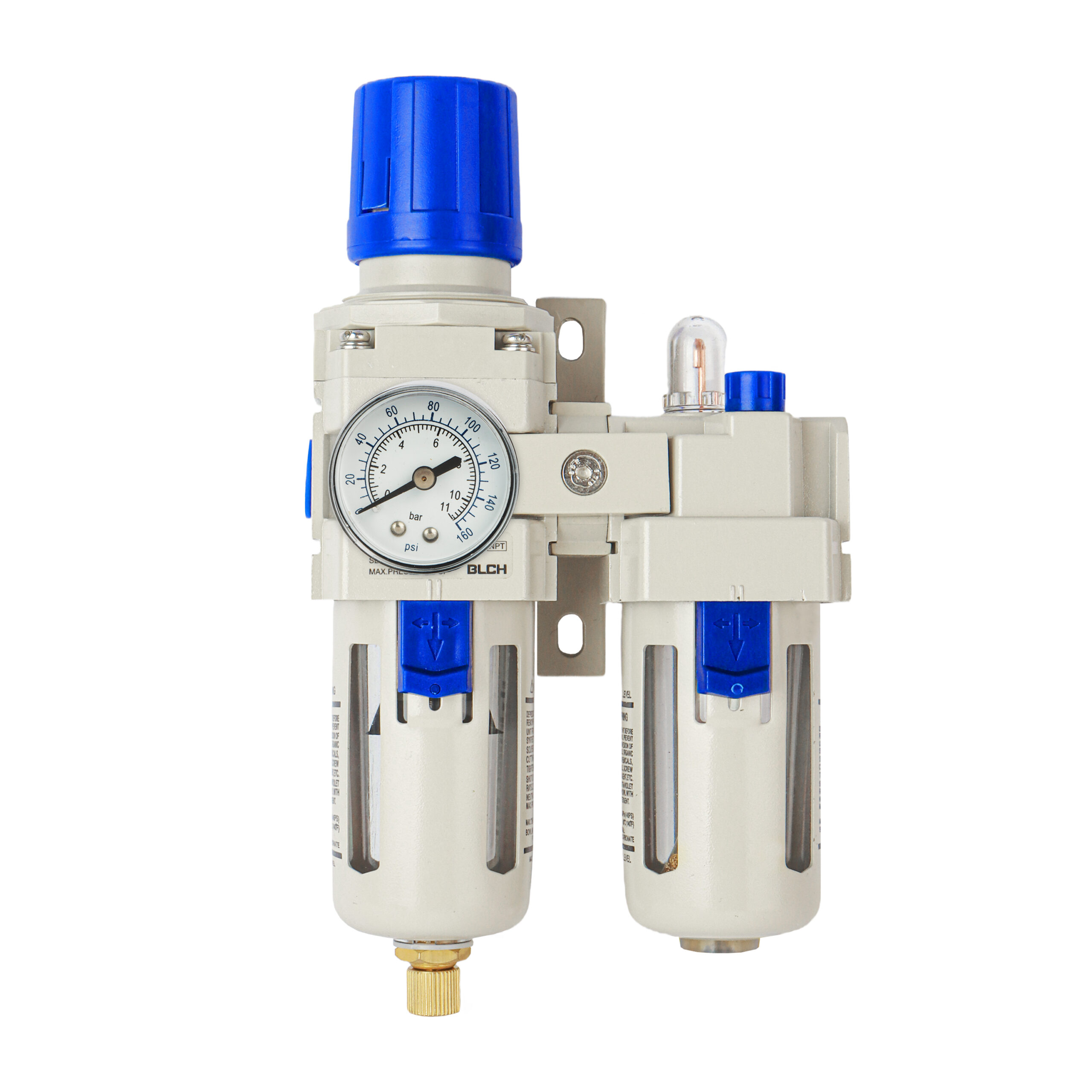

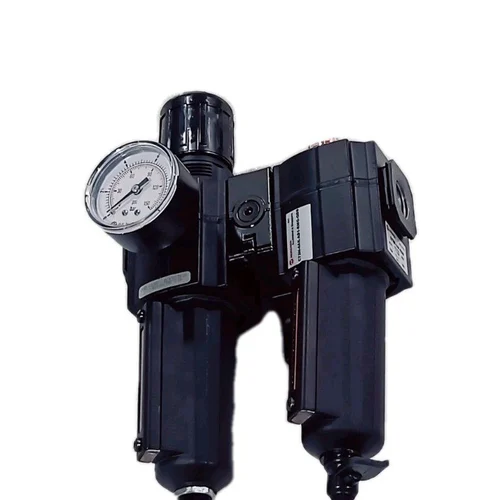

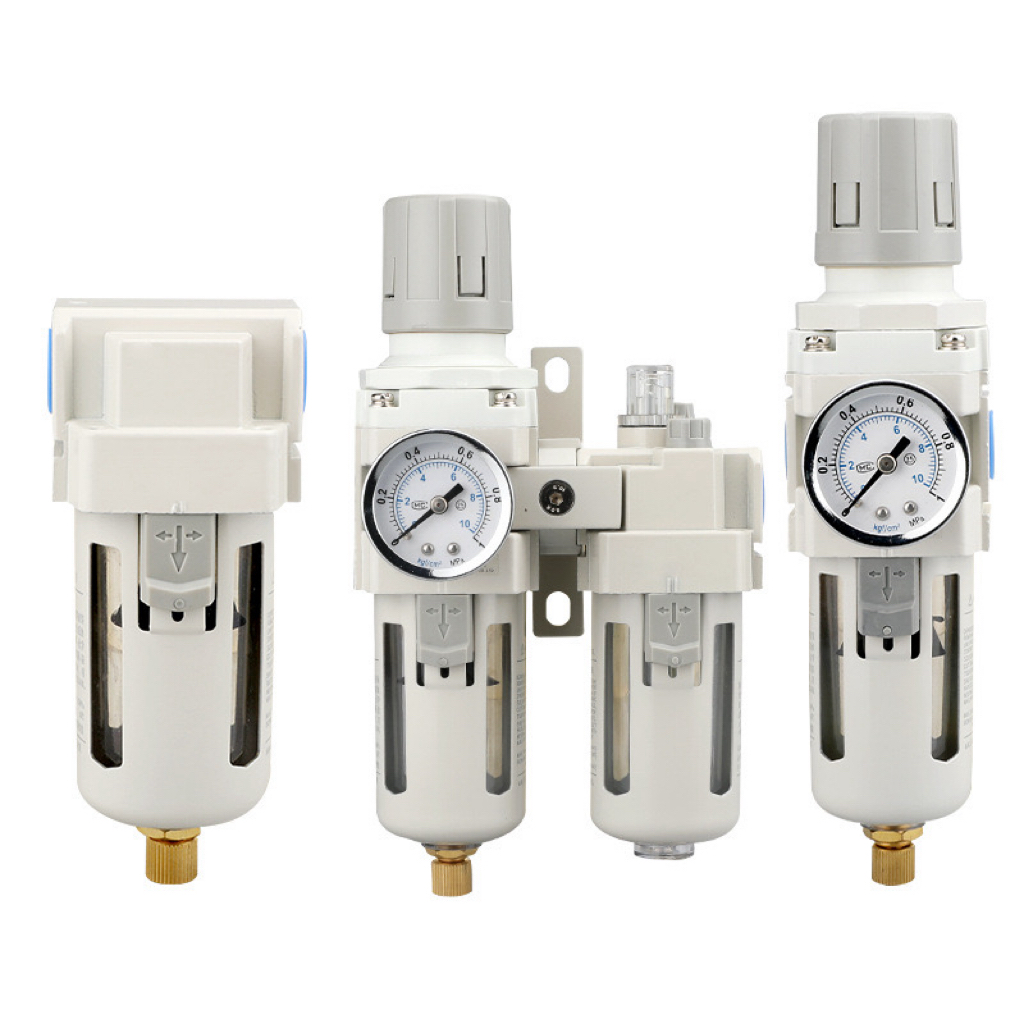

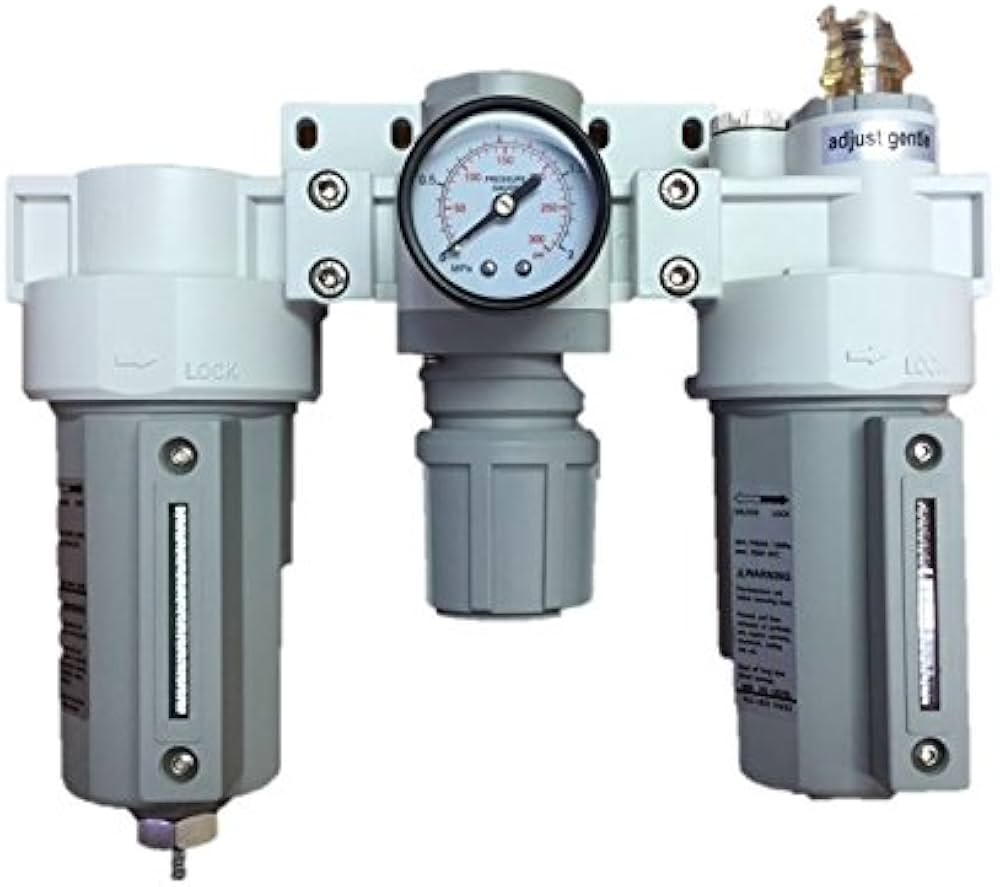

Air Preparation Unit FRL Combination

Description

1. Product Overview

Air Preparation Unit FRL Combination is an integrated filtration, regulation and lubrication (FRL) assembly engineered to condition compressed air for industrial pneumatic systems. It ensures contaminant-free, pressure-stable, and lubricated air supply to valves, actuators and tooling, reducing downtime and extending equipment life. By combining filtration, pressure regulation and precise oiling in a compact modular package, it delivers consistent pneumatic performance, lowers maintenance costs and improves process reliability. Strategically, an FRL combination is a cornerstone component for safe, efficient automation across manufacturing, process and heavy-industry operations where compressed air quality directly impacts throughput and asset longevity.

2. Key Specifications & Technical Characteristics

• Material construction: anodized aluminum body, zinc-plated steel fittings, nitrile (NBR) seals; optional stainless-steel (AISI 304/316) wetted components for corrosive environments.

• Filtration media: multi-layer polyester/sintered bronze/activated carbon options; standard 40 µm and 5 µm elements, upgradeable to 0.01 µm coalescing cartridges.

• Filtration efficiency: standard particulate removal >99% at 5 µm; coalescing grade removes oil/aerosol to <0.01 mg/m³.

• Pressure regulation range: 0–10 bar (0–145 psi) standard; fine-adjust variants with ±0.1 bar stability.

• Lubricator delivery: adjustable metering valve with 1–40 drops per minute range; reservoir sight glass and automatic level feed.

• Flow capacity (Cv): models available to support nominal flows from 0.05 to 5.0 m³/min (1.8–177 scfm); select model to match system CFM and pressure drop targets.

• Operating temperature: -20 °C to +60 °C standard; -40 °C low-temp option.

• Port sizes: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″ BSP/NPT; manifold mounting and inline configurations.

• Mounting: wall, panel or manifold rail compatible; modular stacking with quick-connect fittings.

• Indicators and drains: manual/automatic condensate drain options; pressure gauge port and lockable regulator knob.

• Compliance and standards: designed to meet ISO 8573 compressed air quality classes, CE marking, RoHS; optional ATEX-certified variants.

• Packaging options: individual boxed units (cardboard with foam inserts), palletized crated bulk packs, export-ready wooden crates for 20 MT shipments.

• Shelf life and storage: dry, ambient storage recommended; no chemical degradation under normal conditions—store away from direct UV and excessive humidity.

3. Core Industrial Applications

• Primary industries: automotive manufacturing, food & beverage processing, pharmaceuticals, chemical plants, semiconductor fabrication, packaging, heavy machinery, and offshore/shipbuilding.

• Specific use cases: pneumatic control valves and cylinders, air-driven tools and torque wrenches, process instrumentation supply, blow-off and drying stations, paint-spray booths, and packaging/sealing lines.

• Why it outperforms alternatives: integrated FRL combination minimizes interconnection leaks and pressure drop compared with disparate components; precise regulation reduces energy waste from over-pressurized systems; high-efficiency coalescing filters protect downstream equipment from oil/aerosol damage, lowering unscheduled maintenance.

• Operational benefits: faster mean-time-between-service (MTBS) due to robust separation and condensate management; reduced purge and compressor runtime through optimized pressure control; predictable lubrication dosing extends actuator life and stabilizes cycle performance.

4. Competitive Advantages

• Quality consistency: factory-calibrated regulators, traceable component sourcing, and batch-tested filter efficiency ensure repeatable performance across orders.

• Supply reliability: stocked core models with regional distribution hubs for expedited fulfillment; scalable production for large industrial contracts.

• Logistics capability: packaged and palletized for standard container loads; export documentation and INCO terms support (EXW, FOB, CIF).

• Price competitiveness: tiered pricing for volume procurement and long-term contracts; total-cost-of-ownership focus (energy and maintenance savings) compared to lower-capex alternatives.

• Sustainability benefits: longer-lifetime filter elements and optional recyclable metal housings reduce lifecycle waste; energy savings from optimized pressure regulation lower greenhouse gas intensity of compressed-air systems.

• Technical support & documentation: comprehensive datasheets, CAD models, maintenance guides, start-up commissioning checklists, and responsive technical advisory for system integration and troubleshooting.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): standard 20‑foot container capacity approximately 20 MT; 40‑foot container capacity approximately 26–28 MT depending on packing configuration and unit model weights.
