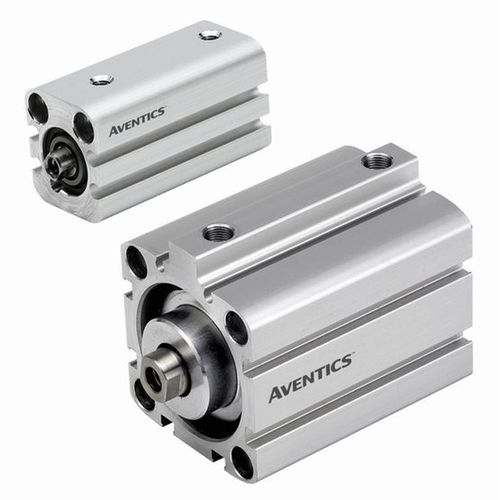

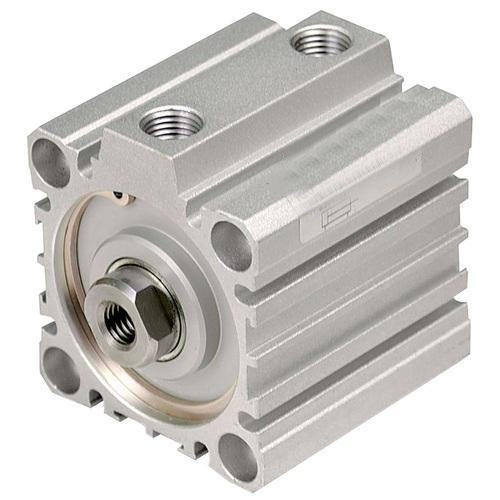

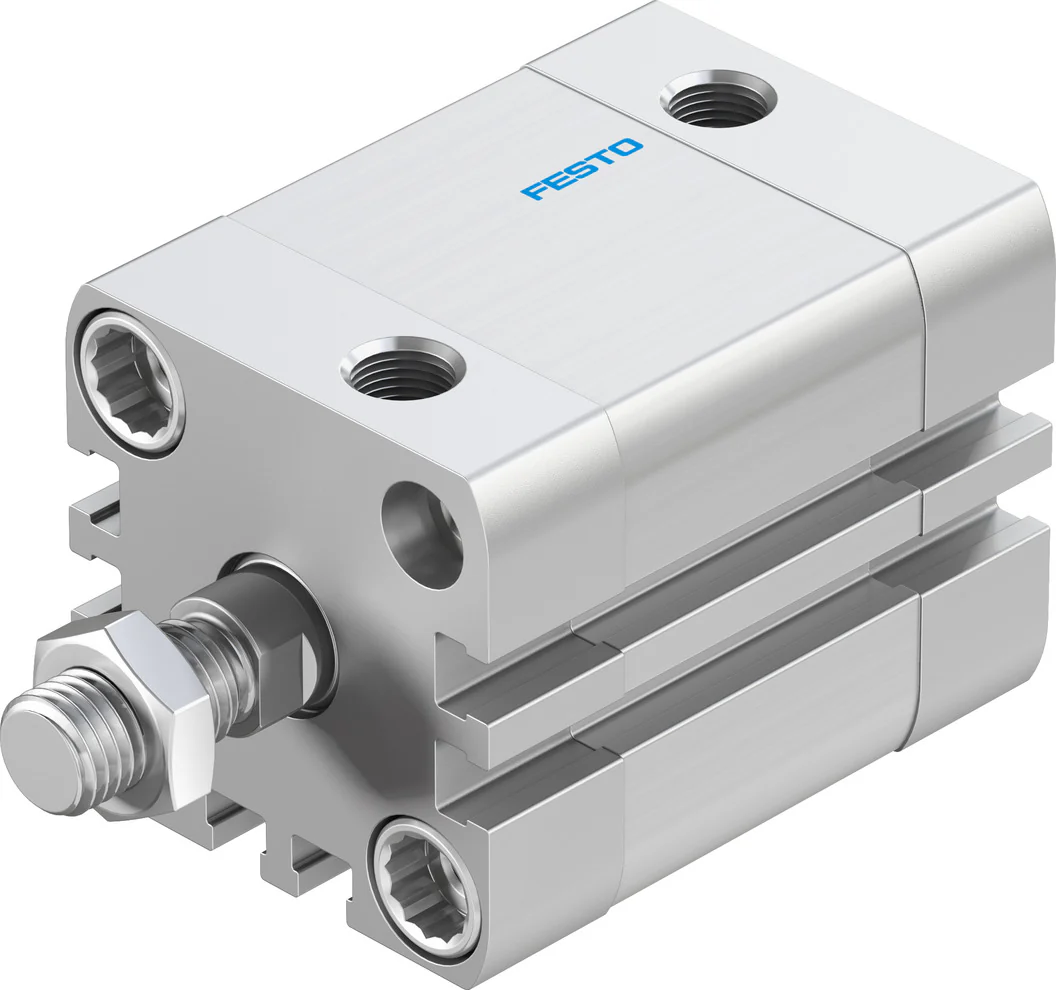

Compact Pneumatic Cylinder Short Stroke

Description

1. Product Overview

The Compact Pneumatic Cylinder Short Stroke is a high-performance linear actuator engineered for confined installations where precise, repeatable short-travel motion is required. It delivers controlled push/pull force in packaging, automation, robotics, and process equipment where space constraints and cycle-rate reliability are critical. Its key value proposition is delivering industrial-grade force and repeatability in a minimized footprint with simplified mounting and rapid integration. Strategically, it enables OEMs and system integrators to reduce machine footprint, lower total cost of ownership through reduced downtime, and accelerate time-to-market for compact automated systems.

2. Key Specifications & Technical Characteristics

• Actuator type: Single- or double-acting pneumatic cylinder, short-stroke design.

• Materials: Body — anodized aluminum; piston — hardened stainless steel (SS 420 or equivalent); rod — chrome-plated steel (or stainless steel on request); seals — polyurethane (PU) or NBR (nitrile) standard; optional FKM (Viton) for elevated chemical resistance.

• Bore sizes: 12 mm, 16 mm, 20 mm, 25 mm (custom bore sizes available on request).

• Stroke lengths: 5 mm to 50 mm standard; custom strokes available in 1 mm increments.

• Operating pressure range: 0.2–0.8 MPa (2–8 bar) typical; max rated 1.0 MPa.

• Temperature range: standard seals -10 °C to 80 °C; high-temp options up to 150 °C.

• Mounting options: front flange, rear trunnion, through-rod, compact foot.

• Repeatability: ±0.01 mm (typical), depending on mounting and control.

• Cycle frequency: up to 200 cycles/min depending on stroke and load.

• Speed range: 50–1000 mm/s, dependent on pressure and load.

• Force capability: proportional to bore and pressure; example at 0.6 MPa: 20 mm bore ~188 N push theoretical.

• Corrosion protection: anodized surfaces; optional stainless variants for corrosive environments.

• IP rating: IP54 standard; higher ingress protection available for washdown versions.

• Certifications: CE; RoHS compliant; ATEX available on certified variants.

• Packaging options: industrial bulk crates (palletized), wooden cases for export, protective dunnage, and individual boxed units with foam.

• Shelf life/Storage: non-actuated components stable >24 months when stored dry at 5–35 °C; recommend periodic lubrication checks after extended storage.

3. Core Industrial Applications

• Primary industries: Packaging and filling, semiconductor and electronics assembly, pharmaceutical automation, food & beverage processing, automotive sub-assembly, general factory automation.

• Specific use cases: small-part pick-and-place in high-density feeders, clamp/release actions in assembly stations, indexing stops in compact conveyor segments, valve actuation in process manifolds, and ejector mechanisms in molding and testing rigs.

• Why it outperforms alternatives: compact footprint enables higher machine density and smaller machine envelope; hardened piston and precision machining deliver superior repeatability under high cycle counts; multiple mounting options reduce custom engineering and installation time.

• Efficiency, durability, cost advantages: lower air consumption per stroke due to short-stroke optimization, reduced energy waste; long seal life and hardened components reduce maintenance intervals and spare-part costs; simplified integration reduces engineering hours and accelerates deployment.

4. Competitive Advantages

• Quality consistency: production controlled to industrial tolerances with incoming material inspection, CNC machining, and final functional testing on every unit.

• Supply reliability: planned safety stocks, long-lead supplier agreements, and batch-tracking ensure continuity for production customers.

• Logistics capability: palletized export packaging, readiness for FCL and LCL ocean shipments, and expedited courier options for spare parts.

• Price competitiveness: modular design reduces manufacturing complexity and enables volume-driven pricing; competitive landed costs for bulk procurement.

• Sustainability: aluminum and stainless components are highly recyclable; options for low-friction seals reduce lifetime energy use; packaging optimized for reuse and reduced waste.

• Technical support & documentation: full CAD models (STEP), dimensional drawings, pneumatic circuit examples, installation guides, maintenance schedules, and field troubleshooting support available; lifecycle spares list and recommended spares kits provided.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT.

• Loading capacity: standard 20-foot container capacity and specific MT per container available on request depending on packaging density; approximate loading for compact pneumatic cylinders (palletized) — up to 18–20 metric tons per 20’ container (subject to final packing configuration).
