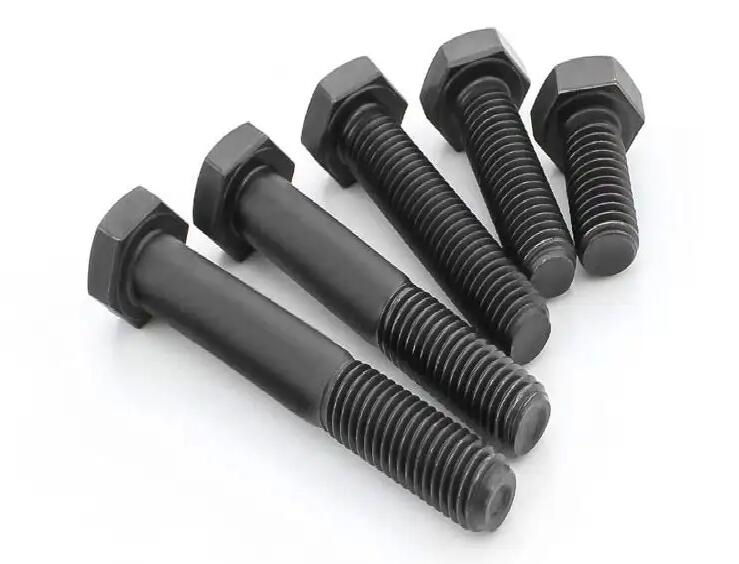

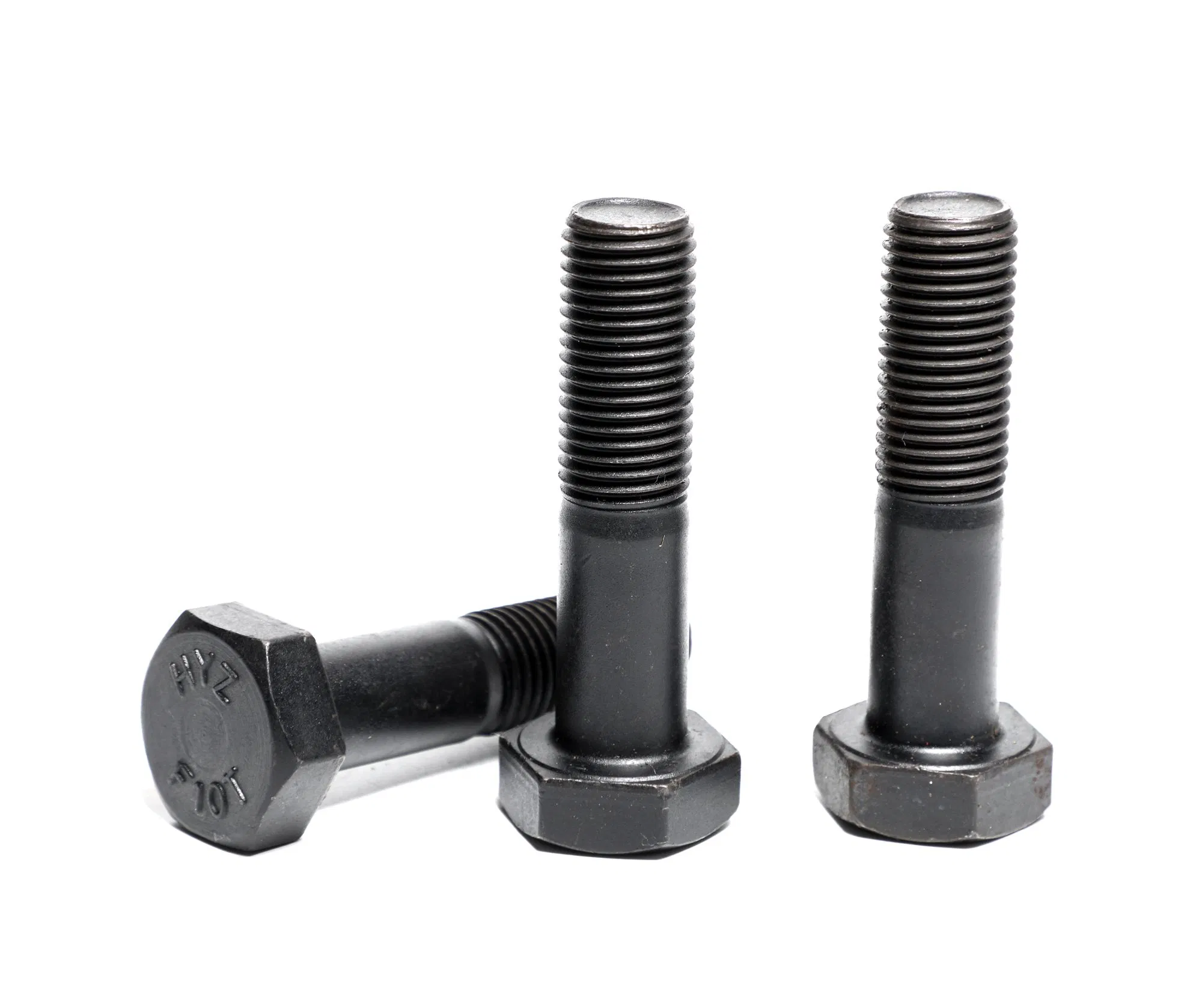

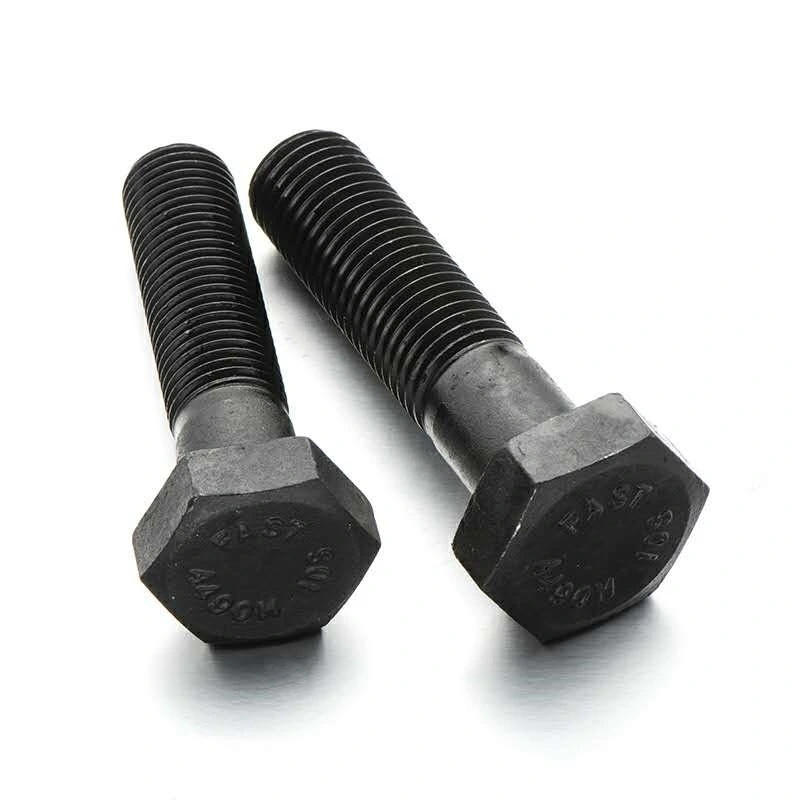

ASTM A490 Heavy Structural Bolt (ANSI/ASME F3125 A490)

Description

1. Product Overview
   ASTM A490 Heavy Structural Bolt (ANSI/ASME F3125 A490) is a high-strength, quenched and tempered alloy steel bolt engineered for heavy structural connections in high-load applications. Primarily specified for steel-to-steel bolted joints in buildings, bridges, towers, and industrial structures, it delivers superior tensile strength and reliable performance under static and dynamic loads. The key value proposition is predictable, certified high-strength performance (minimum tensile and proof load limits) reducing joint count and enabling leaner structural designs. Strategically, A490 bolts are essential for contractors and fabricators pursuing code-compliant, long-life structural systems where safety margins, installation efficiency, and lifecycle cost optimization are priorities.

2. Key Specifications & Technical Characteristics

• Standard: ASTM F3125 Grade A490 / ASTM A490

• Material: Alloy steel, quenched and tempered

• Mechanical properties: Minimum tensile strength typically ≥ 150 ksi (consult mill cert for batch values); specified proof load per standard

• Hardness: Controlled Rockwell hardness range per specification (manufacturer cert required)

• Threading: Fully or partially threaded options, UNC/UNR standard coarse threads; rolled threads for fatigue resistance

• Finish/coating options: Uncoated (bare), hot-dip galvanized to ASTM A153 / F2329, mechanical galvanizing, or high-performance corrosion-resistant coatings (specify on order)

• Dimensional range: Available in standard heavy hex bolt diameters and lengths as per ASTM/ASME dimensional tables (selectable per application)

• Form: Heavy hex head bolt with closely controlled shank and thread fit for snug and slip-critical connections

• Packaging: Bulk palletized steel crates, wooden crates, or bulk bags; labeled with heat number, batch test certificates, and counting slips

• Traceability: Full mill heat-number traceability and material test reports (MTRs) included

• Shelf life: Indefinite when stored dry and protected from corrosion; coating-specific service life dependent on environmental exposure

• Quality assurance: Supplied with manufacturer’s inspection certificate, dimensional inspection, and mechanical test reports; available third-party or mill inspection upon request

3. Core Industrial Applications

• Construction & Infrastructure: High-rise buildings, bridges, stadiums — used in main structural connections where high tensile capacity and predictable behavior are required.

• Heavy civil engineering: Offshore platforms, transmission towers, and industrial steel frameworks where fatigue resistance and integrity under cyclic loads matter.

• Fabrication & Erection: Structural steel fabricators and erectors for slip-critical and bearing-type joints; reduces number of fasteners and simplifies erection sequencing.

• Specialized industrial equipment: Heavy machinery bases and structural frames requiring high-strength bolting with certified performance.
  Why it outperforms alternatives:

• Higher specified tensile strength than A325-class bolts, enabling fewer or smaller fasteners for equivalent capacity.

• Quenched and tempered alloy composition provides superior toughness and fatigue performance compared with plain carbon bolts.

• Available finishes and certified supply chain reduce rework and meet project specification and code compliance, improving overall installation efficiency and lifecycle cost.

4. Competitive Advantages

• Quality consistency: Manufactured to strict heat-treatment and dimensional control with full MTRs, ensuring repeatable mechanical performance across batches.

• Supply reliability: Bulk production capacity with scheduled shipments and stock allocation for large projects; ability to prioritize long-lead contracts.

• Logistics capability: Export-ready packaging, container-loading optimization, and coordination for FOB, CIF, or DDP shipments from Buea regional hub; documentation support for customs and inspection.

• Price competitiveness: Competitive bulk pricing tiers for 20 MT+ orders and negotiated long-term contract rates for repeat buyers.

• Sustainability: Option for lower-impact coatings and procurement traceability to reduce rework and material waste; supplier adheres to responsible manufacturing practices.

• Technical support: Engineering data sheets, torque and pretension guidelines, installation best practices, and on-request NDT/third-party inspection documentation to support specification and field installation.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity: Standard 20-foot container capacity and 40-foot container capacity vary by packaging; typical loading estimate per container: 20-foot: ~18–20 MT, 40-foot: ~24–26 MT (final loading depends on packaging, palletization, and blocking).
