J-Type Anchor Bolt — F1554

Description

1. Product OverviewThe J-Type Anchor Bolt — F1554 is a high-strength, bent anchor bolt designed to securely fasten structural supports to concrete foundations in demanding industrial environments. Its primary use spans construction, oil & gas, energy, and heavy infrastructure projects where reliable anchoring under tensile and shear loads is critical. The key value proposition lies in its compliance with ASTM F1554, ensuring certified yield strength, chemical consistency, and dimensional tolerances that exceed generic carbon steel anchors. Strategically, this product addresses the global market’s growing need for code-compliant, failure-resistant fastening solutions in seismic zones and high-wind regions, making it essential for engineering integrity and long-term asset safety.

2. Key Specifications & Technical Characteristics

• Material Components: Carbon steel, medium carbon boron steel, alloy steel, or high-strength low-alloy (HSLA) steel per ASTM F1554

• Grade Options: F1554 Grade 36 (36 ksi yield), Grade 55 (55 ksi yield), or Grade 105 (105 ksi yield); J-Type typically supplied in Grade 36 or 55 for standard applications

• Chemical Composition (Grade 36): Carbon ≤0.25% (heat), Manganese 0.60–0.90%, Phosphorus ≤0.04%, Sulfur ≤0.05%

• Mechanical Properties (Grade 36): Tensile strength 58–80 ksi, Yield strength ≥36 ksi, Elongation ≥20% (8 in.), Reduction of Area ≥40%

• Physical Characteristics:

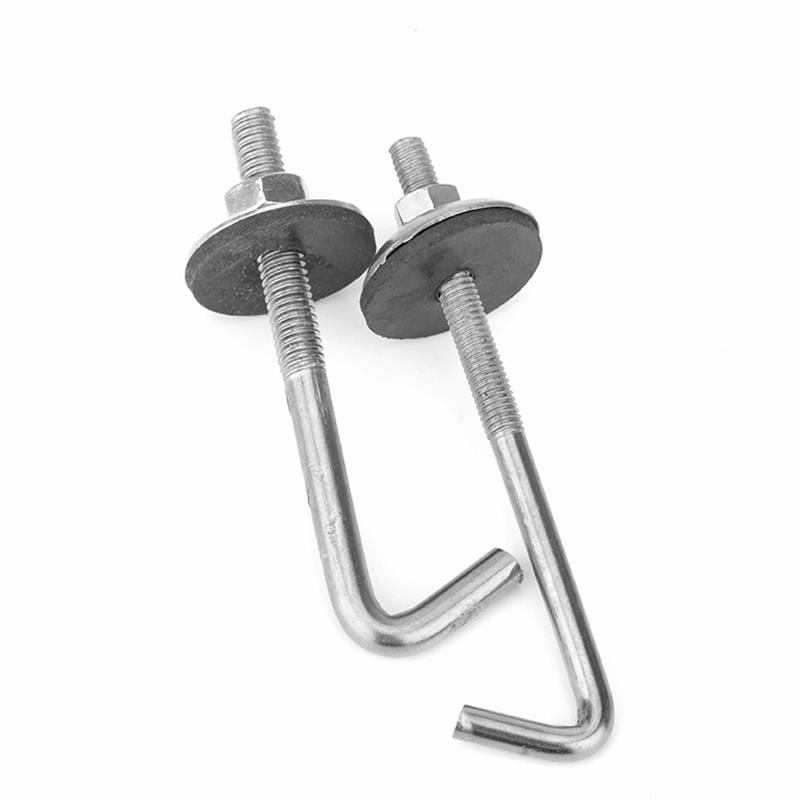

  • Form: J-shaped bend (hook) with threaded projecting end

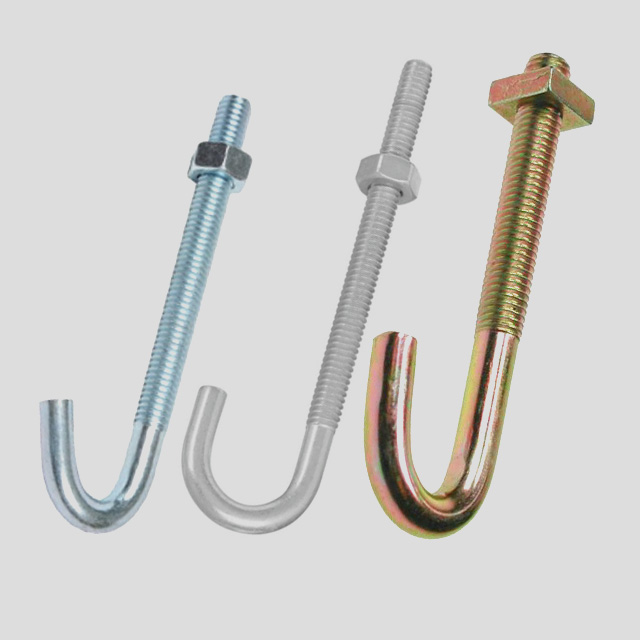

  • Surface Finish Options: Hot Dip Galvanized, Zinc Plated, Mechanical Galvanized, or Self Finish

  • Thread Series: UNC/UNF or Metric Coarse/Fine; Class 2A tolerance per ASME B1.1

  • Diameter Range: M6 to M100 (imperial equivalents available)

  • Color Coding (required): Blue = Grade 36, Yellow = Grade 55, Red = Grade 105

• Packaging: Bulk捆 in steel crates or woven bags with moisture-proof lining; custom labeling per buyer specification

• Shelf Life: Indefinite when stored dry; galvanized variants resist corrosion for 20+ years in normal atmospheres

3. Core Industrial Applications

• Primary Industries:

  • Structural steel construction (buildings, bridges, stadiums)

  • Oil & gas refineries and processing plants

  • Power generation (thermal, solar, wind turbine bases)

  • Water treatment and heavy industrial facilities

• Specific Use Cases:

  • Anchoring column bases, beam connections, and equipment skids to concrete footings

  • Securing pre-engineered metal buildings (PEBs) in seismic/wind-prone regions

  • Fixing pipeline supports, transformer pads, and tank foundations

• Performance Advantages:

  • J-bend geometry provides superior pull-out resistance compared to straight rods

  • ASTM F1554 certification guarantees minimum yield strength, reducing risk of brittle failure

  • Galvanized options deliver 3–5× longer service life in corrosive environments vs. plain steel

  • Cost efficiency: Higher load capacity per diameter reduces total bolt count and concrete reinforcement needs

4. Competitive Advantages

• Quality Consistency: Full traceability with heat-number certification; mandatory color coding and optional die-stamping (S2/S3) for grade verification

• Supply Reliability: Production capacity of 500+ MT/month; inventory buffering for Grade 36/55 common sizes

• Logistics Capability: Optimized container loading (见 Section 5); direct shipping from Cameroon port (Douala) to global destinations

• Price Competitiveness: 15–20% lower than EU/US equivalents for equivalent grade; no premium for ASTM certification

• Sustainability: Hot-dip galvanized variants meet ISO 1461; recyclable steel content >98%; low-VOC packaging

• Technical Support: CAD drawings, load-calculation templates, and installation guides provided; engineering consultation available for custom bends

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT

• Loading Capacity: 20–22 MT per 40′ HC container (optimized for M16–M36 diameters); 18–20 MT for M40+ diameters due to weight density
