Foundation Anchor Bolt — ASTM F1554 Gr.55

Description

1. Product OverviewThe Foundation Anchor Bolt — ASTM F1554 Gr.55 is a high-strength structural fastener engineered for anchoring critical steel supports, columns, machinery, and infrastructure to concrete foundations. Its primary industrial use spans construction, power generation, oil & gas, transportation, and heavy manufacturing, where superior load-bearing reliability is non-negotiable. The key value proposition lies in its guaranteed 55 ksi (380 MPa) minimum yield strength—53% higher than standard A36 steel—delivering exceptional durability under heavy static and dynamic loads. Strategically, this product addresses growing global demand for resilient infrastructure and industrial safety, making it a foundational component in modern engineering projects where failure tolerance is zero.

2. Key Specifications & Technical Characteristics

• Material Composition: Modified low-yield carbon steel (high-strength low-alloy), weldable grade with controlled carbon content for fabrication integrity

• Grade/Standard: ASTM F1554 Grade 55—mandatory compliance for structural anchoring applications

• Mechanical Properties:

  • Minimum Yield Strength: 55 ksi (380 MPa)

  • Tensile Strength: 75–95 ksi (515–655 MPa)

  • Elongation (8″): ≥21%

  • Reduction of Area: ≥30%

• Physical Characteristics:

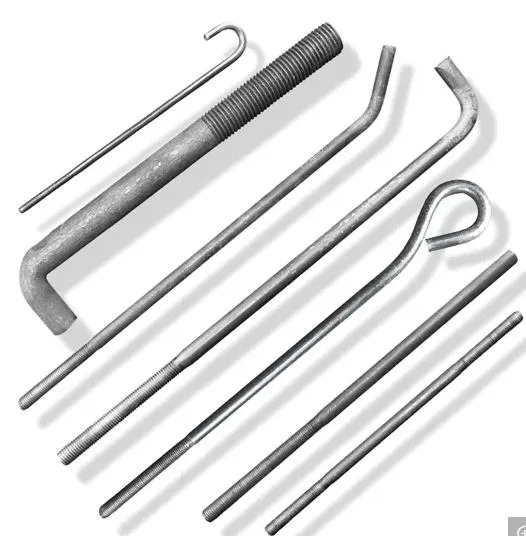

  • Form: Straight, L-shaped, J-shaped, or forged head configurations

  • Thread Options: UNC (Unified Coarse) or UNF (Unified Fine); full or partial threading

  • Diameter Range: ½” to 4″ (M12–M100)

  • Length Range: Up to 1,200mm (custom lengths available)

  • Finish Options: Plain (black), hot-dip galvanized, or zinc-plated for corrosion resistance

• Packaging: Bulk bundles, protected with moisture-resistant wrapping; custom packaging per buyer requirements

• Shelf Life: Indefinite under proper storage (dry, non-corrosive environment); galvanized/zinc-plated variants offer extended service life

3. Core Industrial Applications

• Primary Industries:

  • Commercial & industrial building construction

  • Oil & gas refineries and processing plants

  • Power generation (thermal, nuclear, renewable)

  • Transportation infrastructure (bridges, highways, signage)

  • Heavy manufacturing and machinery installation

• Operational Use Cases:

  • Anchoring structural steel columns/beams to concrete foundations

  • Securing transmission towers, light poles, traffic signals, and street lighting

  • Mounting heavy machinery, compressors, and industrial equipment

  • Infrastructure projects: bridges, tunnels, retaining walls

• Performance Advantages:

  • 53% higher yield strength than A36 steel → resists cracking under extreme loads

  • Superior ductility balances strength and flexibility for dynamic load absorption

  • Galvanized/zinc-plated finishes extend service life in corrosive environments

  • Weldable grade enables seamless integration without post-weld strength degradation

4. Competitive Advantages

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT

• Loading Capacity: 18MT per 40-foot high-containers (40HQ); 16MT per 20-foot general containers

• Customization: Diameters, lengths, threading, and finishes tailored to project specifications upon request

• Certification: Full ASTM F1554 compliance documentation included with every shipment
