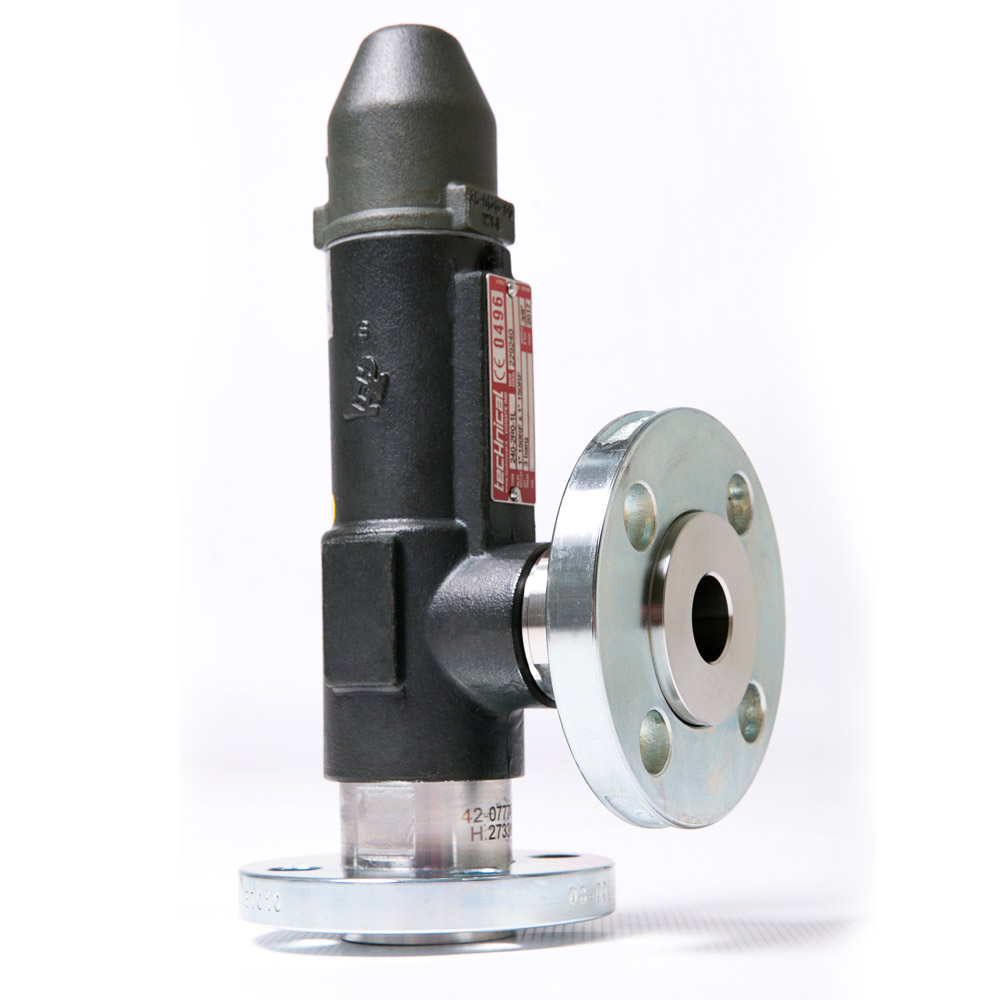

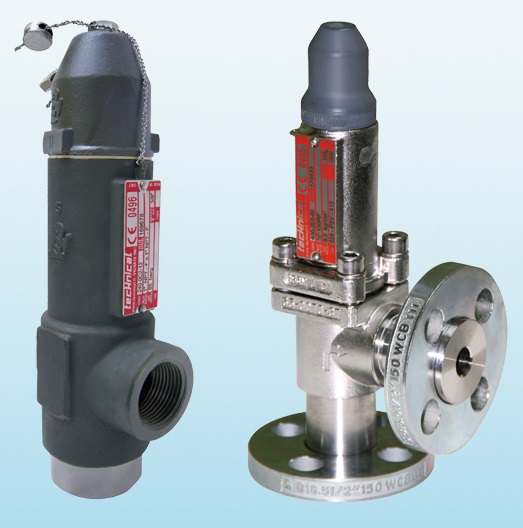

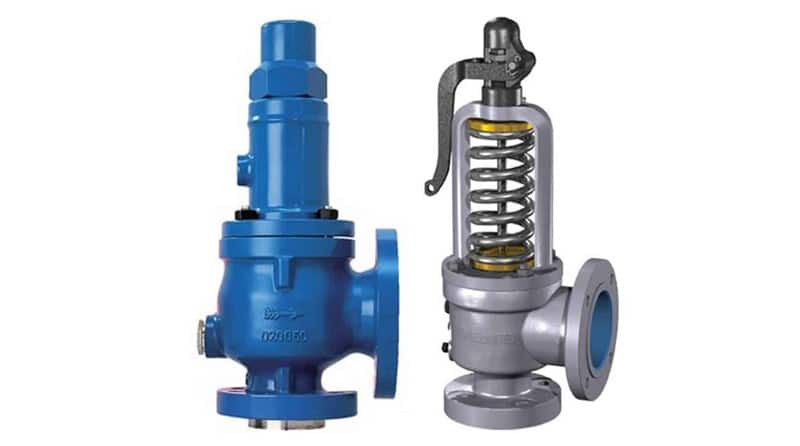

Pressure Relief Valve Safety Type

Description

1. Product Overview
   Pressure Relief Valve — Safety Type is an industrial-grade safety device engineered to protect pressure vessels, pipelines, and process equipment by automatically releasing excess pressure to safe levels. Its primary use is safeguarding chemical, petrochemical, energy, and manufacturing operations against overpressure events that risk equipment failure, downtime, or catastrophic loss. The valve delivers precise set-point control, rapid response and reliable reseating, reducing unplanned shutdowns and regulatory non-compliance. As a strategic asset in risk-managed operations, it preserves asset integrity, supports process continuity, and lowers total cost of ownership through reduced maintenance and insurance exposure.

2. Key Specifications & Technical Characteristics

• Type: Spring-loaded pilot-operated safety relief valve (safety type)

• Materials of construction: Body and bonnet available in Carbon Steel (WCB), Stainless Steel 316/316L (CF3M/1.4404), Duplex 2205, optionally Nickel alloys (Monel/Alloy 400) for corrosive service

• Trim: Stainless Steel 316/316L or hardened stainless trim; optional soft-seat PTFE or metallic seat for high-cycle applications

• Pressure rating: ASME class 150–2500 (PN16–PN420 equivalent), set pressure range typically 0.02–420 bar (customizable)

• End connections: Flanged (RF/RJ), threaded (NPT/BSP), butt-weld (BW) to customer specification

• Flow capacity: API/ASME-calculated Cv / Kv values; certified capacity curves supplied per set pressure and backpressure

• Leakage class: Meets API 527 soft-seat leakage where applicable, metallic-seat variants to API 520 tightness tolerances

• Temperature range: -196°C to +550°C (material dependent; cryogenic and high-temp options available)

• Certifications & compliance: ASME Section VIII, API 520/521, ISO 4126 series, ATEX/IECEx options for explosive atmospheres, PED (where applicable)

• Surface finish & coatings: Internal machined finish; external epoxy/polyurethane coating; specialty corrosion-resistant coatings available

• Instrumentation & accessories: Tamper-proof locking, blowdown control, pilot systems, dump lines, sensing lines, and external bellows for backpressure compensation

• Documentation: Manufacturer data sheets, certified material test reports (MTRs), hydraulic capacity calculations, PQ, FAT available on request

• Packaging options: Wooden crate or palletized export packing, moisture-proof wrapping; per-valve protective caps/packaging; bulk containerized shipment for multiples

• Shelf life: Indefinite when stored in dry, controlled environment; recommended inspection before commissioning if stored over 24 months

3. Core Industrial Applications

• Primary industries: Oil & gas (upstream, midstream, downstream), petrochemical and chemical processing, power generation (thermal and nuclear auxiliary systems), compressed air systems, LNG and cryogenics, pharmaceutical API manufacturing, marine and offshore platforms, heavy process manufacturing.

• Specific operational use cases: Overpressure protection for reactors, distillation columns, separators, heat exchangers, compressors, storage tanks, steam boilers, and high-pressure piping networks.

• Why it performs better: High-precision set-point control minimizes unnecessary venting while ensuring rapid actuation in crisis conditions, reducing product loss and environmental release. Material and trim selections tailored to process chemistry lower corrosion-related failures. Pilot-operated designs offer stable operation under fluctuating backpressure and higher capacities versus simple direct-acting valves, improving efficiency and reducing required valve counts.

• Commercial relevance: Fewer false trips and reliable reseating reduce unplanned downtime and maintenance interventions, translating to lower lifecycle operating expense and improved process uptime.

4. Competitive Advantages

• Quality consistency: Manufactured to tight tolerances with documented quality controls and full traceability (MTRs, QA/QC records).

• Supply reliability: Production planning and safety stock policies support scheduled deliveries and emergency spares; global manufacturing footprint enables regional fulfillment.

• Logistics capability: Export-ready packing, container consolidation expertise, and coordination for FOB, CIF, DDP shipments; support for hazardous cargo handling and customs documentation.

• Price competitiveness: Configurable options allow balancing initial capex and lifecycle costs; volume pricing for procurement contracts and framework agreements.

• Sustainability benefits: Reduced fugitive emissions through tight-sealing options; material choices and coatings selected to extend service life and minimize replacements.

• Technical support: Commissioning guidance, set-pressure verification, on-site start-up support, and aftermarket services including calibration, repair kits, and spare parts. Comprehensive documentation (FAT/PQ, installation/maintenance manuals) supplied with each order.

• Strategic sourcing position: Selecting this valve reduces operational risk, simplifies compliance with safety regulations, and consolidates vendor management through documented performance and aftersales capability.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (per container): Approximate loading capacity depends on valve size and packing density; typical estimates:

  • 20 ft container: up to 20–22 MT of packaged valves (subject to dimensional constraints)

  • 40 ft container: up to 25–28 MT of packaged valves (subject to dimensional constraints)

• Lead times: Standard configurable models 8–12 weeks; custom or specialty material builds 12–20 weeks (confirm at RFQ).

• Packaging & shipment: Valves palletized/crated, desiccant and wrap for marine transit; spare parts kits and documentation enclosed.

• Commercial terms: Volume discounts available; extended warranty and service contracts negotiable; export compliance and certification packages provided on request.
