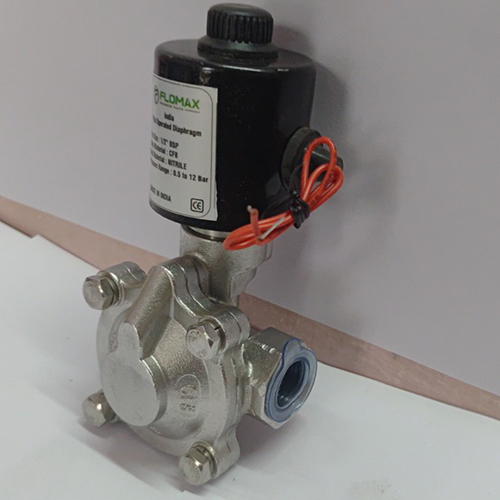

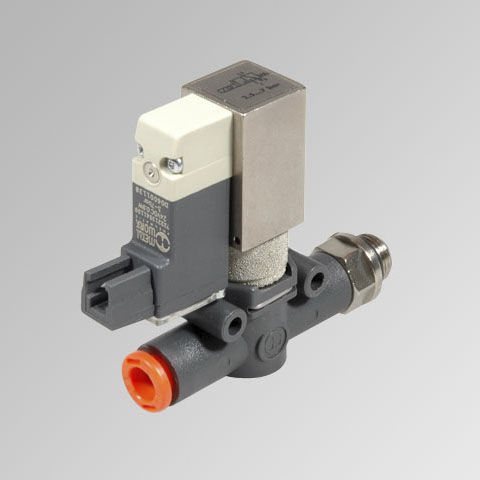

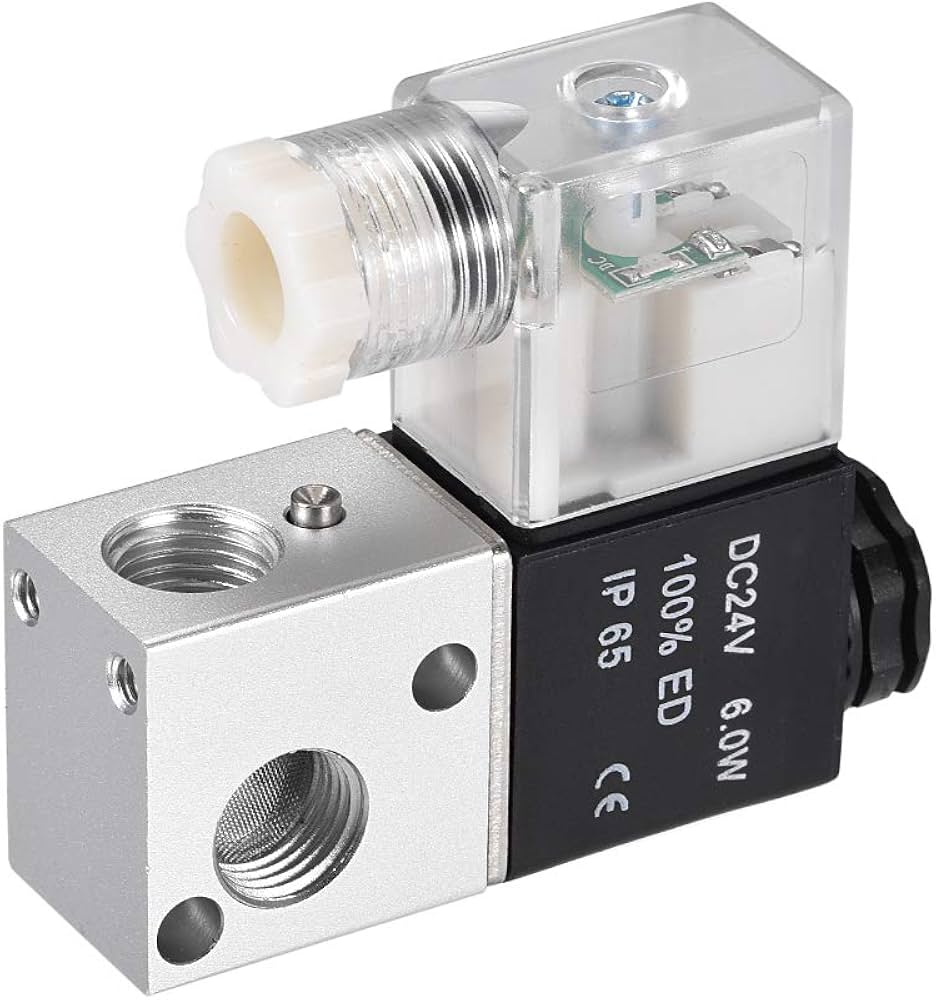

Solenoid Valve 3 Way Industrial Type

Description

1. Product Overview
   The Solenoid Valve 3 Way Industrial Type is an electrically actuated, three-port directional control valve engineered for reliable fluid and gas routing in high-demand industrial systems. It controls flow paths for pneumatic, hydraulic, and process media to enable automated sequencing, diversion, and shutoff functions. Key value propositions are precision actuation, rapid switching response, and robust sealing for continuous operation under variable pressure and temperature. Strategically, this valve reduces downtime, simplifies control architectures, and supports automation and safety upgrades across process plants, utilities, and OEM equipment lines.

2. Key Specifications & Technical Characteristics

• Body material: Stainless steel 316 (standard); options: brass, carbon steel, PVDF for corrosive applications.

• Sealing elements: FKM (Viton) standard; optional EPDM, NBR, PTFE for chemical compatibility.

• Actuator: Direct-acting or pilot-operated solenoid; coil insulation class F.

• Voltage options: 24 VDC, 110 VAC, 220–240 VAC, and custom voltages on request.

• Port configuration: 3-way (Common, Normally Open, Normally Closed); threaded (BSP / NPT) and flange ANSI/DIN options.

• Pressure rating: Up to 16 bar (standard), high-pressure variants to 40 bar available.

• Temperature range: -20 °C to +120 °C standard; extended ranges with special seals.

• Response time: Typical 10–50 ms depending on configuration.

• Flow capacity: Cv values and Kv performance curves supplied per model.

• Mounting: Inline, manifold, or sub-base mounting options.

• Ingress protection: IP65 standard, IP67 available for washdown environments.

• Certifications: CE, RoHS; ATEX and SIL ratings available for hazardous or safety-critical applications.

• Physical characteristics: compact actuator form factor; typical valve weights 0.5–15 kg depending on size/material.

• Packaging options: Wooden crate for export bulk, palletized cardboard for regional shipments, protective plastic wrap for humidity control.

• Shelf life/Storage: Indefinite under recommended dry storage conditions; recommended preventative maintenance after 24 months in storage.

3. Core Industrial Applications

• Process Manufacturing: Diverting and sequencing corrosive and non-corrosive liquids in chemical, pharmaceutical, and refinery processes where precise flow control and chemical compatibility are required.

• Water & Wastewater Treatment: Automated dosing, backwash control, and process isolation; corrosion-resistant variants extend service life in aggressive waters.

• HVAC & Building Services: Zone control for air handling units and chilled/hot water circuits enabling energy optimization and precise climate control.

• Food & Beverage: Sanitary material options (e.g., PTFE seals, stainless body) for CIP-compatible diverting and blending operations.

• Oil & Gas and Petrochemical: Pilot and direct-operated configurations for control lines, sampling, and product routing under high-pressure conditions.
  Why it outperforms alternatives:

• Higher cycle life and consistent sealing reduce leak-related losses.

• Fast electrical response improves process throughput and control accuracy.

• Material and seal options provide tailored chemical resistance, reducing corrosion downtime.

• Compact designs and manifold mounting lower installation footprint and piping complexity.

4. Competitive Advantages

• Quality consistency: Manufactured under ISO-aligned processes with traceable material certificates and batch testing.

• Supply reliability: Multi-sourced components and dedicated production slots ensure predictable lead times for bulk procurement.

• Logistics capability: Palletized export packaging, container loading optimization, and regional warehousing options to support just-in-time delivery.

• Price competitiveness: Volume-tiered pricing and contract terms for recurring industrial buyers; TCO focus through lifecycle performance.

• Sustainability: Long service life and repairable modules reduce replacement waste; selectable low-energy coils lower operational consumption.

• Technical support & documentation: Comprehensive datasheets, performance curves, chemical compatibility matrix, installation guides, and on-request FAT (Factory Acceptance Test) documentation and OEM customization support.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Typical loading capacity: 20-foot container up to ~20 MT (depending on packaging and model dimensions); 40-foot container up to ~24–25 MT with optimized packing.

• Lead times: Standard models 4–8 weeks for bulk orders; expedited production schedules negotiable for contract buyers.

• Warranty & after-sales: Standard 12-month warranty against manufacturing defects; extended warranty and maintenance contracts available.

• Order support: Technical specification checklist and sample/testing options available upon request.
