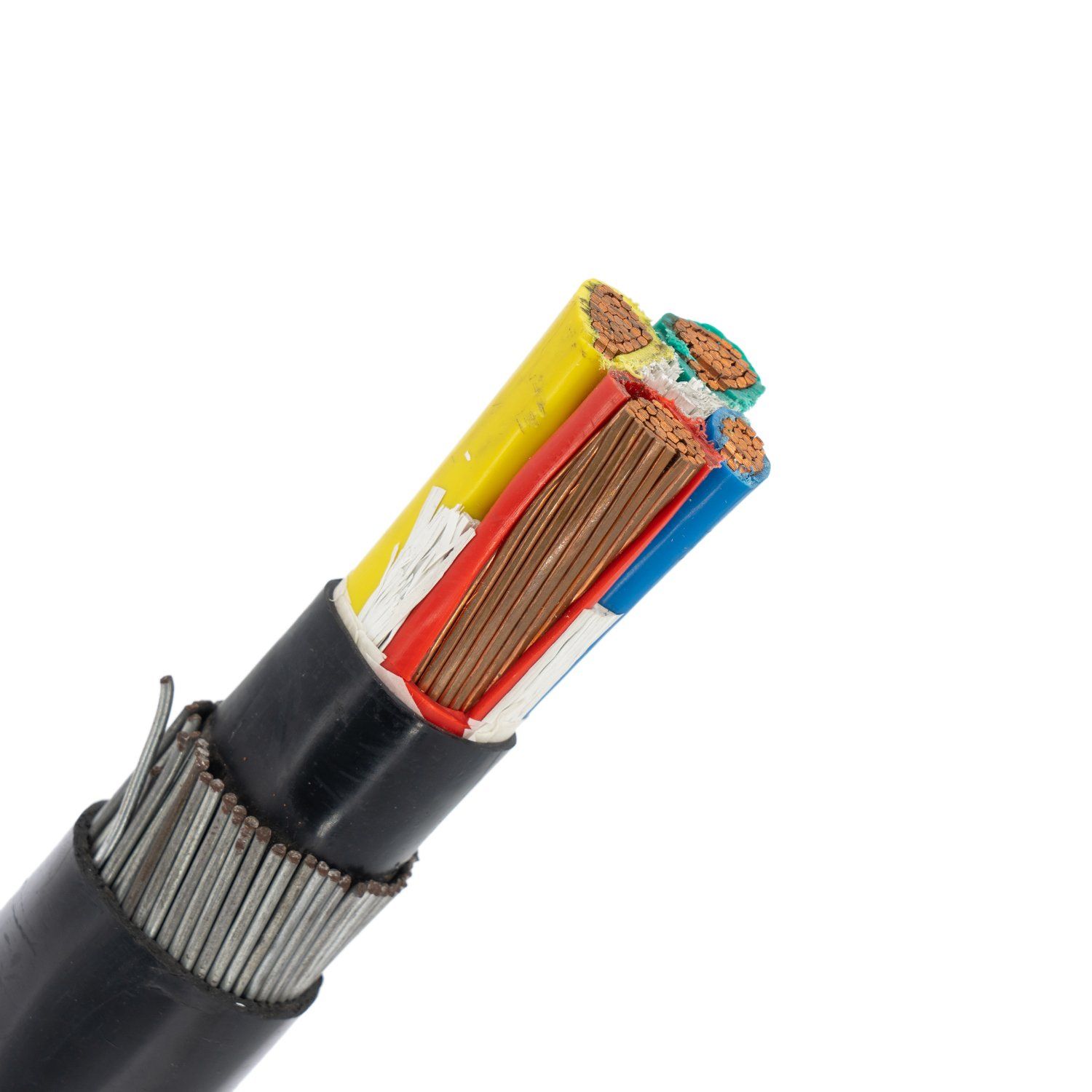

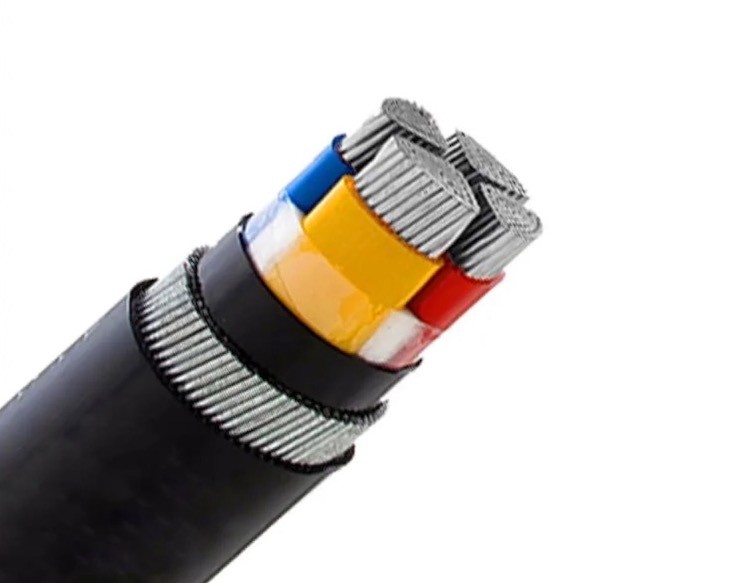

XLPE armoured power cable 0.6/1kV SWA — IEC 60502-1

Description

1. Product Overview

XLPE Armoured Power Cable 0.6/1kV SWA — IEC 60502-1 is a low-voltage power cable engineered for reliable electrical power transmission in demanding industrial, commercial, and infrastructure environments. Manufactured with cross-linked polyethylene (XLPE) insulation and galvanized steel wire armour (SWA), it delivers outstanding mechanical protection, thermal stability, and long-term electrical performance. Designed in compliance with IEC 60502-1, this cable is ideal for fixed installations where durability, safety, and operational reliability are essential. It represents a strategic solution for power distribution projects requiring consistent performance under harsh operating conditions.

2. Key Specifications & Technical Characteristics

• Standard: IEC 60502-1
• Voltage Rating: 0.6/1kV
• Conductor Material: High-conductivity stranded copper or aluminum (optional)
• Conductor Class: Class 2 stranded conductor (IEC compliant)
• Insulation Material: Cross-Linked Polyethylene (XLPE)
• Inner Bedding: PVC or LSZH (Low Smoke Zero Halogen) compound
• Armour: Galvanized Steel Wire Armour (SWA)
• Outer Sheath: PVC, PE, or LSZH
• Operating Temperature: Up to 90°C continuous conductor temperature
• Short-Circuit Temperature: Up to 250°C (maximum 5 seconds)
• Color: Black outer sheath (standard), other colors available upon request
• Core Configuration: Single-core, two-core, three-core, four-core, and multicore options
• Conductor Size Range: Multiple cross-sectional areas available according to project requirements
• Flame Performance: Flame-retardant options available
• Packaging: Steel-wooden drums, treated wooden drums, plywood drums, export reels, or customized packaging
• Shelf Life: Indefinite under proper dry indoor storage conditions before installation

3. Core Industrial Applications

• Electrical power distribution networks
• Industrial manufacturing facilities
• Commercial and residential building infrastructure
• Power generation plants
• Oil & gas facilities
• Mining operations
• Water and wastewater treatment plants
• Renewable energy projects
• Utility substations
• Underground cable installations and outdoor power distribution

This cable is specifically designed for fixed installations where high mechanical protection is required. The steel wire armour provides excellent resistance against mechanical impact, crushing, and installation stress, making it suitable for direct burial and demanding industrial environments. XLPE insulation offers superior thermal performance, higher current-carrying capacity, lower dielectric losses, and longer service life compared to conventional PVC-insulated cables, reducing maintenance costs and improving operational reliability.

4. Competitive Advantages

• Manufactured in accordance with internationally recognized IEC 60502-1 standards
• Consistent electrical and mechanical performance through stringent quality control
• Reliable global supply capability for large infrastructure and industrial projects
• Efficient logistics with export-grade packaging for international shipments
• Competitive pricing without compromising technical performance or product reliability
• Excellent resistance to moisture, chemicals, abrasion, and mechanical damage
• Long operational service life with reduced maintenance requirements
• Environmentally responsible material options including LSZH sheath configurations
• Complete technical documentation, factory test certificates, compliance reports, and engineering support available
• Ideal for EPC contractors, utilities, industrial manufacturers, and infrastructure developers seeking dependable long-term cable solutions

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity (20ft Container): Approximately 20–24 MT, depending on cable size, drum dimensions, and packing configuration.
