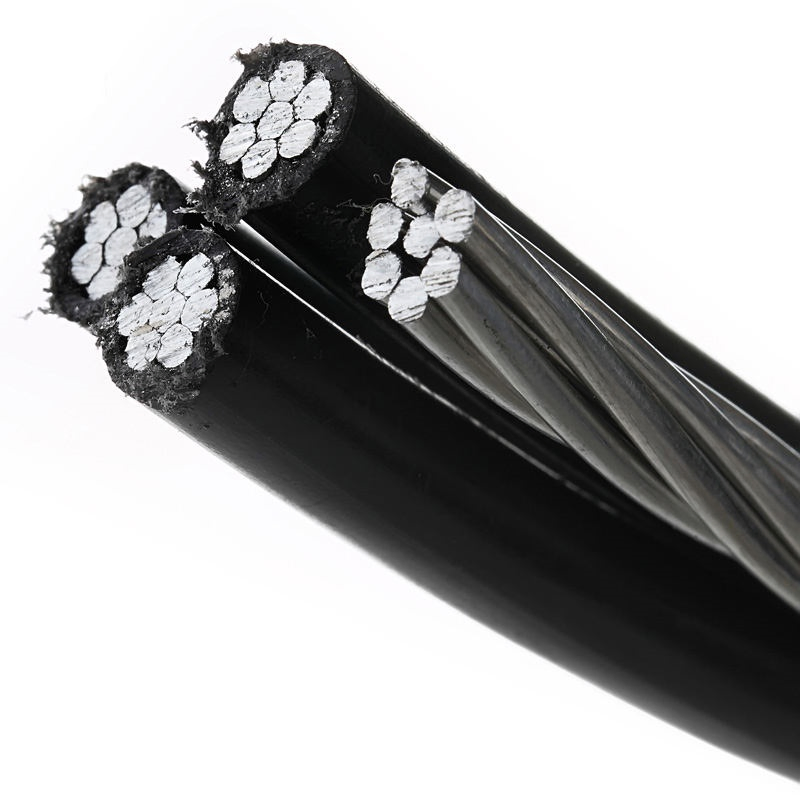

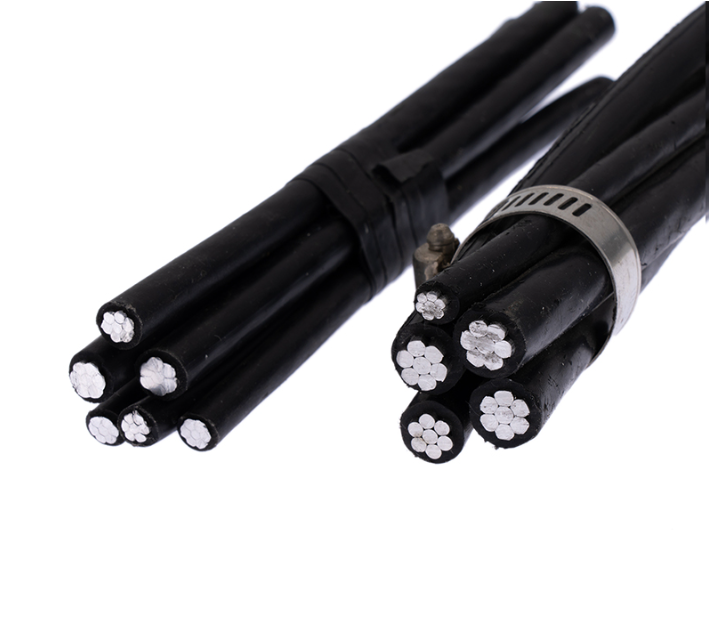

Aerial bundled conductor (ABC) LV cable — BS EN 50397

Description

1. Product Overview

Aerial Bundled Conductor (ABC) LV Cable — BS EN 50397 is a low-voltage overhead power distribution cable system designed for safe, reliable, and efficient electricity transmission in urban, rural, and industrial networks. It consists of insulated conductors bundled around a supporting element, providing a compact alternative to traditional bare overhead conductors. Engineered for enhanced safety, reduced installation complexity, and improved resistance to environmental conditions, ABC cables support modern utility infrastructure development. Its compliance with BS EN 50397 makes it a preferred solution for dependable low-voltage power distribution projects worldwide.

2. Key Specifications & Technical Characteristics

• Material Composition:
  • Phase conductors: Stranded compacted aluminium conductors for high conductivity and reduced weight.
  • Neutral/support conductor: Aluminium alloy or aluminium conductor designed for mechanical strength.
  • Insulation: UV-resistant cross-linked polyethylene (XLPE) insulation for enhanced thermal and environmental performance.
  • Optional messenger/support wire: High-strength aluminium alloy or galvanized steel depending on design requirements.
• Standard & Grade:
  • Manufactured according to BS EN 50397 requirements for covered conductors and aerial bundled cable systems.
  • Voltage rating: Typically 0.6/1 kV low-voltage distribution applications.
  • Suitable for utility-grade electrical infrastructure.
• Physical Characteristics:
  • Form: Bundled multi-core overhead cable assembly.
  • Conductor type: Stranded aluminium.
  • Insulation color: Black UV-resistant outer insulation.
  • Temperature performance: Designed for continuous outdoor operation under varying climatic conditions.
  • High mechanical strength with resistance to abrasion, moisture, and weather exposure.
• Electrical Characteristics:
  • Excellent electrical conductivity with low power losses.
  • Improved insulation performance compared with traditional bare conductors.
  • Enhanced protection against accidental contact and short circuits.
• Packaging Options:
  • Supplied in export-grade wooden reels or steel drums.
  • Available in customized cable lengths according to project requirements.
  • Suitable for containerized bulk shipment.
• Shelf Life:
  • Long service life typically exceeding 25 years when installed according to manufacturer specifications.
  • Stored reels should be protected from prolonged exposure to extreme environmental conditions.

3. Core Industrial Applications

• Electricity Distribution Networks:
  • Used by power utilities for low-voltage overhead distribution lines connecting substations to residential, commercial, and industrial consumers.
• Urban Electrification Projects:
  • Ideal for densely populated areas where compact installation and improved public safety are required.
• Rural Power Expansion:
  • Provides cost-effective electrification solutions in remote areas due to simplified installation requirements and reduced infrastructure needs.
• Industrial Facilities and Infrastructure Development:
  • Used for temporary and permanent power supply networks in factories, construction zones, and large-scale facilities.
• Renewable Energy Integration:
  • Supports connection of distributed solar, wind, and other renewable power generation systems to local distribution grids.

Performance Advantages Over Traditional Conductors:

• Reduced risk of electrical faults caused by contact with trees, wildlife, or external objects.
• Requires fewer poles and accessories compared with conventional overhead systems.
• Faster installation with lower maintenance requirements.
• Improved reliability in challenging weather and environmental conditions.

4. Competitive Advantages

• Quality Consistency:
  • Manufactured using controlled production processes to ensure consistent electrical performance, mechanical strength, and dimensional accuracy.
  • Compliance with international quality standards including BS EN 50397.
• Supply Reliability:
  • Suitable for large-scale utility projects with dependable production capacity and bulk order fulfillment.
  • Flexible customization of conductor sizes, lengths, and configurations.
• Logistics Capability:
  • Export-ready packaging designed for safe international transportation.
  • Optimized reel sizes for efficient container loading and project deployment.
• Price Competitiveness:
  • Aluminium construction provides a cost-efficient alternative to copper-based solutions.
  • Reduced installation and maintenance costs improve total project economics.
• Sustainability Benefits:
  • Aluminium conductors are recyclable and support lower-impact electrical infrastructure development.
  • Improved energy distribution efficiency helps reduce operational losses.
• Technical Support & Documentation:
  • Available with technical datasheets, compliance certificates, test reports, and installation guidance.
  • Supports engineering approvals, procurement processes, and utility project documentation requirements.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 18–22 MT per 20-foot container (depending on cable size, drum dimensions, and packing configuration)
