WSM20 carbide insert grade

Description

1. Product Overview

The WSM20 carbide insert grade is a premium tungsten carbide-based cutting tool material engineered for high-performance metal turning operations. It is primarily used for machining alloy steels, stainless steels, and general steels in industrial manufacturing environments. The key value proposition lies in its tough fine-grain carbide substrate combined with a multi-layer TiAlN+Al₂O₃+(ZrN) coating, delivering exceptional tool life, edge stability, and consistent cutting performance. Strategically important in the global market, WSM20 enables manufacturers to achieve superior efficiency in finishing, roughing, and grooving operations while reducing downtime and tooling costs.

2. Key Specifications & Technical Characteristics

• Chemical Composition/Material Components: Cemented carbide (tungsten carbide substrate) with multi-layer coating: TiAlN + Al₂O₃ + (ZrN/ZrCN)

• Grade designation: WSM20 (manufacturer’s grade designation)

• Physical Characteristics:

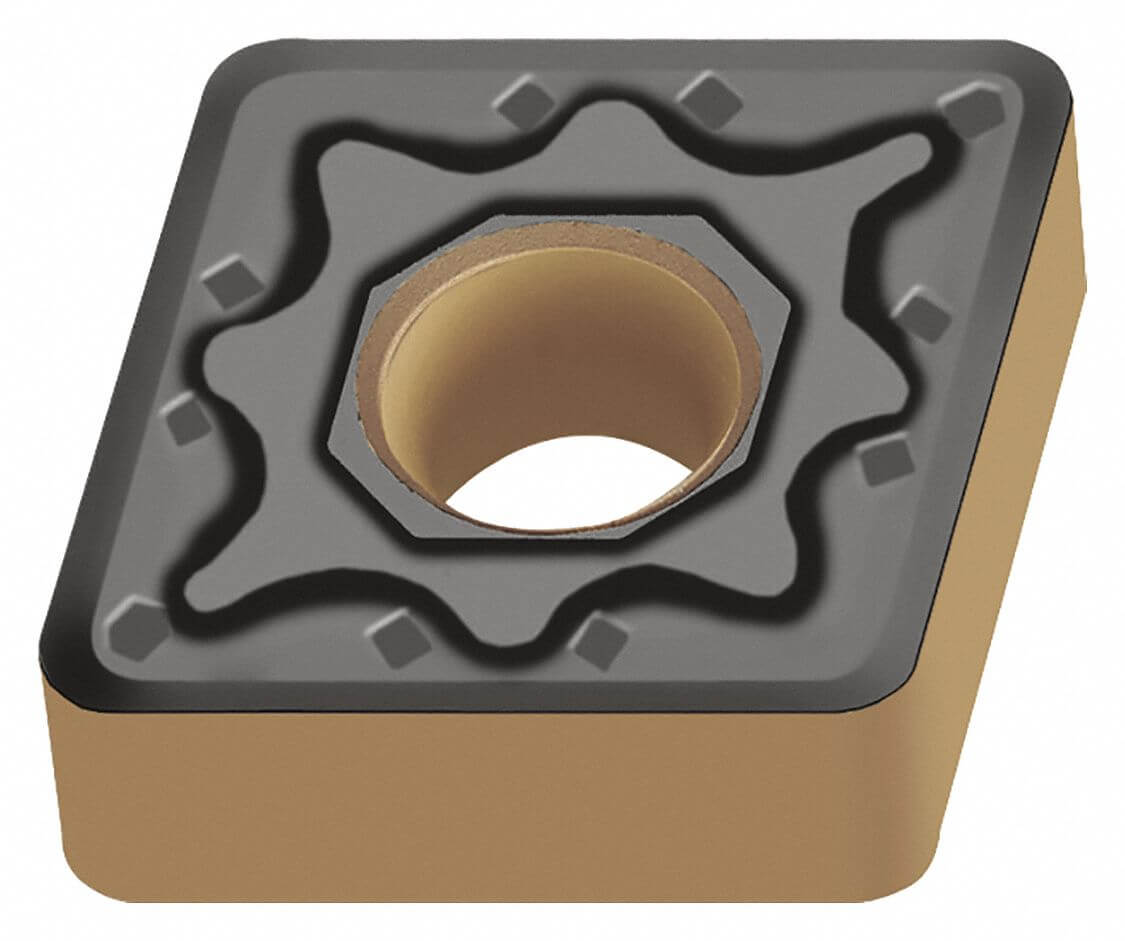

  • Form: Indexable turning insert (available in multiple shapes: CNMG, WNMG, TNMG, VCGT)

  • Coating process: PVD (Physical Vapor Deposition)

  • Corner radius options: 0.008″ to 0.0315″ (0.2mm to 0.8mm)

  • Inscribed circle: 0.250″ to 0.500″ (6.35mm to 12.7mm)

  • Insert thickness: 0.125″ to 0.1875″ (3.18mm to 4.76mm)

  • Number of cutting edges: 2–3 per insert

• Packaging Options: Standard industrial bulk packaging; custom packaging available for enterprise orders

• Shelf Life: Indefinite when stored in dry, climate-controlled conditions (no chemical degradation)

3. Core Industrial Applications

4. Competitive Advantages

• Quality Consistency: Precision-ground inserts with M tolerance class ensure repeatable cutting performance across batches

• Supply Reliability: Available from established global suppliers (Walter Tools/Seco) with established distribution networks

• Logistics Capability: Standard industrial packaging optimized for container shipping; bulk orders (20MT) accommodate large-scale sourcing

• Price Competitiveness: Fine-grain carbide substrate with multi-layer coating delivers premium performance at mid-range price point compared to ceramic or CBN alternatives

• Sustainability Benefits: Extended tool life reduces material waste; PVD coating process is environmentally cleaner than traditional CVD methods

• Technical Support: Comprehensive technical documentation including ISO/ANSI standard designations (DIN4000-76, TNMG160404, TNMG331)

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT

• Loading Capacity: Standard industrial container loading (specific MT per container available upon request based on insert shape and packaging configuration)
