TP2501 carbide insert grade

Description

Product Overview
TP2501 carbide insert grade is a premium cemented carbide (tungsten carbide-cobalt) grade engineered for high-performance cutting and metalworking applications. It delivers a balance of wear resistance and fracture toughness for reliable performance in turning, milling, and bore machining of steels and alloy steels. The grade’s key value proposition is sustained tool life under mixed cutting conditions, reducing downtime and total tooling cost per part. Strategically, TP2501 supports manufacturers aiming to optimize productivity and cost control across high-volume and precision machining operations.

Key Specifications & Technical Characteristics

• Material system: Tungsten carbide (WC) with cobalt (Co) binder (cemented carbide).

• Typical composition: WC 86–92 wt%, Co binder 7–13 wt% (nominal target: WC 90 / Co 10).

• Microstructure: Uniform WC grain size ~0.8–1.2 µm, homogeneous binder distribution.

• Hardness: Rockwell A / Vickers equivalent typically in the range of HRA 86–90 (as-sintered Vickers ~1100–1400 HV).

• Fracture toughness: K_IC approx. 8–12 MPa·m^0.5 (application-dependent).

• Density: Sintered density ~14.8–15.6 g/cm³.

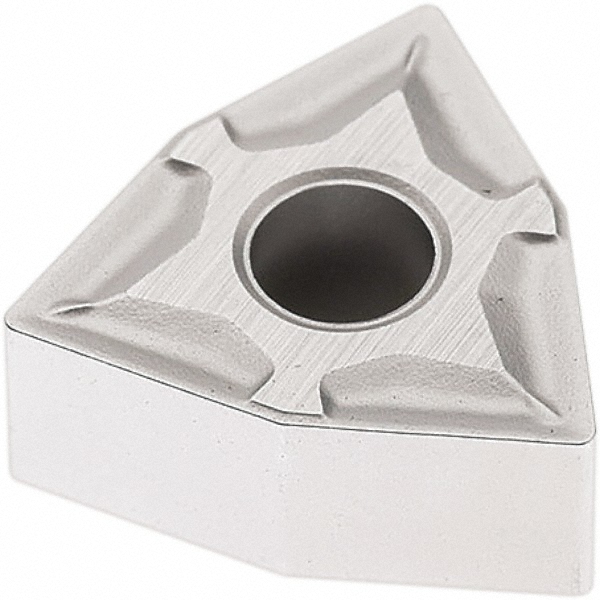

• Physical form: Precision-ground indexable inserts, standard geometries (CNMG, SNMG, TNMG, VBMT, DCMT, etc.), available in uncoated and PVD/CVD-coated finishes.

• Typical coatings available: TiN, TiCN, Al2O3, TiAlN (single or multi-layer PVD/CVD) to extend wear resistance and thermal stability.

• Tolerances: Dimensional tolerances per ISO/ANSI insert standards, edge radius options 0.2–1.2 mm.

• Packaging: Industrial blister packs (10–50 pcs), re-sealable cartons, and palletized bulk crates for large orders.

• Shelf life: Indefinite when stored in dry, temperature-stable conditions; recommend humidity-controlled storage to prevent oxidation of coatings and packaging metal components.

Core Industrial Applications

• Primary industries: Automotive, aerospace (subassemblies), heavy machinery, oil & gas component manufacturing, precision engineering, general metalworking subcontractors.

• Specific use cases: High-volume turning of medium- to high-carbon steels, interrupted cutting operations (e.g., grooving, parting), finish and semi-finish milling where mixed wear and impact loads occur, boring of alloy steels and chilled cast irons.

• Performance vs alternatives: TP2501’s optimized WC/Co balance and fine-grain microstructure provide higher wear resistance than softer grades while maintaining greater toughness than ultra-hard, coarse-grain formulations. This yields fewer insert failures under variable cutting conditions and longer life than general-purpose grades, reducing tool change frequency and improving process uptime.

• Operational benefits: Stable cutting-edge retention for consistent surface finish, predictable wear behavior enables tighter tool-change planning, and compatibility with a range of coatings allows tailoring to specific materials and cutting speeds.

Competitive Advantages

• Quality consistency: Manufactured under controlled powder metallurgy and sintering processes with in-line quality inspections (microstructure, hardness, dimensional checks) to assure batch-to-batch uniformity.

• Supply reliability: Scalable production lines and safety-stock protocols to support continuous supply for OEMs and contract manufacturers.

• Logistics capability: Export-ready packaging, consolidated palletization, and global freight partners for sea/air/land shipment; documentation support for import/export compliance.

• Price competitiveness: Engineered for low total cost of ownership—competitive per-unit pricing combined with extended life reduces effective tooling cost per component.

• Sustainability: Material-efficient manufacturing, options for reclaim/recycling programs for spent carbide, and low-waste packaging options available on request.

• Technical support: Application engineering support, cutting-parameter recommendations, and material-specific trial programs; product datasheets, safety data sheets (SDS), and ISO certification documentation provided.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT.

• Loading capacity (MT per container): Typical 20-foot container capacity for packaged inserts: up to 20 MT (dependent on packaging density and palletization); 40-foot container: up to 24–26 MT with optimized packing.
