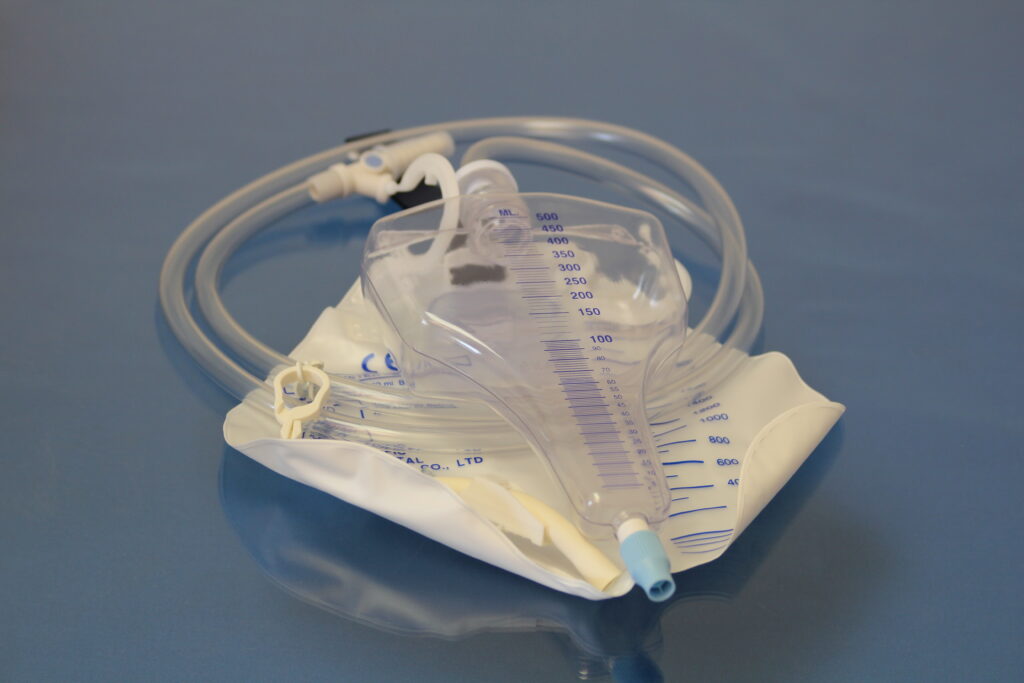

Urine Meter Drainage Bag 500ml ICU Type

Description

1. Product Overview

The Urine Meter Drainage Bag 500ml ICU Type is a precision-engineered medical device designed for accurate, real-time measurement of urine output in critically ill patients. Its primary industrial use is within intensive care units (ICUs), post-anesthesia care units (PACUs), and emergency departments, where strict fluid balance monitoring is clinically critical. The key value proposition is high-contrast, graduated 500ml metering chamber combined with a larger collection bag—enabling continuous, error-resistant output tracking without breaking closed-system sterility. Strategically, this product addresses the global ICU priority of early acute kidney injury (AKI) detection, reducing manual transfer errors and infection risk, making it indispensable for hospitals and clinical procurement groups.

2. Key Specifications & Technical Characteristics

• Material Components

  • Metering chamber: Medical-grade, phthalate-free PETG (rigid, transparent)

  • Collection bag: Flexible PVC (DEHP-free, anti-microbial additive optional)

  • Tubing: Non-kinking PVC, Luer-slip connector (male/female compatible)

  • Drain port: One-way anti-reflux valve + twist-action drain

• Accuracy / Tolerance

  • Metering chamber: Graduated in 10ml increments up to 500ml (±5% accuracy per ISO 8536-4)

• Physical Characteristics

  • Meter chamber dimensions: 150 x 70 x 50 mm

  • Total bag capacity: 2000ml (collection section)

  • Color: Transparent chamber with bold blue/black markings

  • Backflow prevention: Yes (floating ball valve at chamber inlet)

• Packaging Options

  • Individually sterilized (EO gas or gamma), peel-open pouch

  • Box: 20 units/box, 12 boxes/carton (240 units/carton)

• Shelf Life

  • 3 years from date of manufacture, when stored in dry, clean conditions (10–30°C)

3. Core Industrial Applications

• Primary industries

  • Hospital ICUs (general, cardiac, neuro, trauma)

  • Post-operative recovery units

  • Emergency and transport medicine (ambulance / helicopter retrieval)

  • Long-term acute care (LTAC) facilities

• Specific operational use cases

  • Hourly urine output monitoring for septic shock or post-major surgery

  • Diuretic response monitoring (e.g., furosemide challenge)

  • Renal replacement therapy (RRT) prerequisite assessment

• Performance vs. alternatives

  • Compared to standard drainage bags (no metering): Eliminates need for manual pouring into measuring cylinder → reduces spill, contamination, and nursing time (saves ≈5–7 min per patient per shift).

  • Compared to electronic uroflow meters: No battery/calibration dependency; lower total cost per use (40–60% less).

  • ICU Type design: Stiffer metering chamber resists compression from bed rails or patient movement, unlike soft all-PVC bags.

4. Competitive Advantages

• Quality consistency – ISO 13485 certified manufacturing; batch-level sterility validation and lot traceability.

• Supply reliability – Dual sourced raw materials; buffer stock maintained in EU, NA, and Asia hubs.

• Logistics capability – ≤10-day lead time for standard orders; 72h emergency ICU surge orders available.

• Price competitiveness – Tiered pricing for GPOs, IDNs, and government tenders (20–30% below leading EU brands for equivalent spec).

• Sustainability – PVC-free metering chamber option available (PETG fully recyclable); reduced packaging volume vs. rigid canister systems.

• Technical support – Full IFU, clinical insertion guide, and compliance documentation (CE MDR, FDA 510k, UKCA) available upon request.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ) – BULK: 20 metric tons (MT)

  • Equivalent to approx. 1,600 cartons (~384,000 units)

• Loading capacity (per 20ft container)

  • 20 MT net weight = one full 20ft dry container (approx. 26–28 pallets depending on carton dimensions)

Note: For sample orders (<20 units), clinical evaluation units, or urgent airfreight of 2–5 MT, contact the commercial desk separately.
