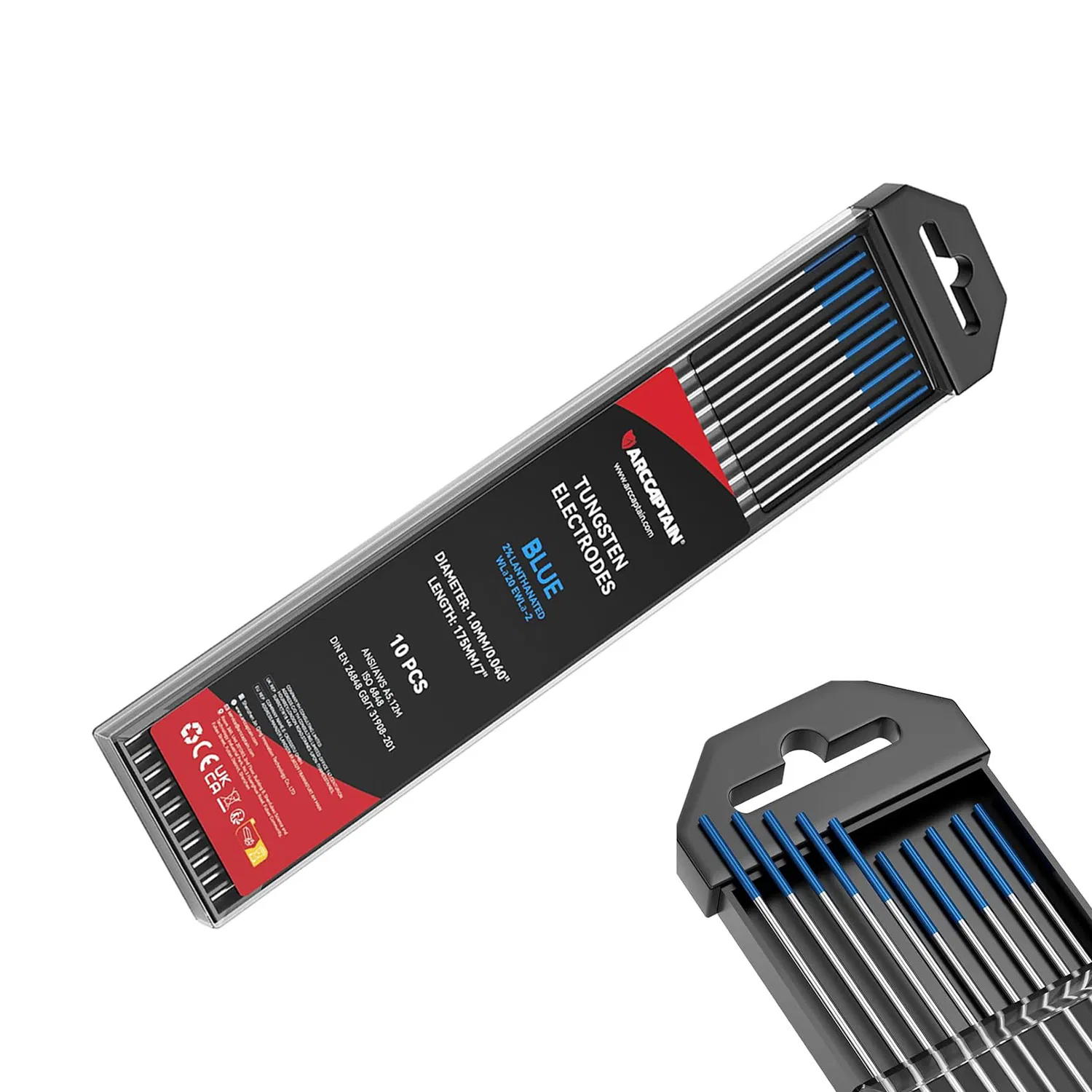

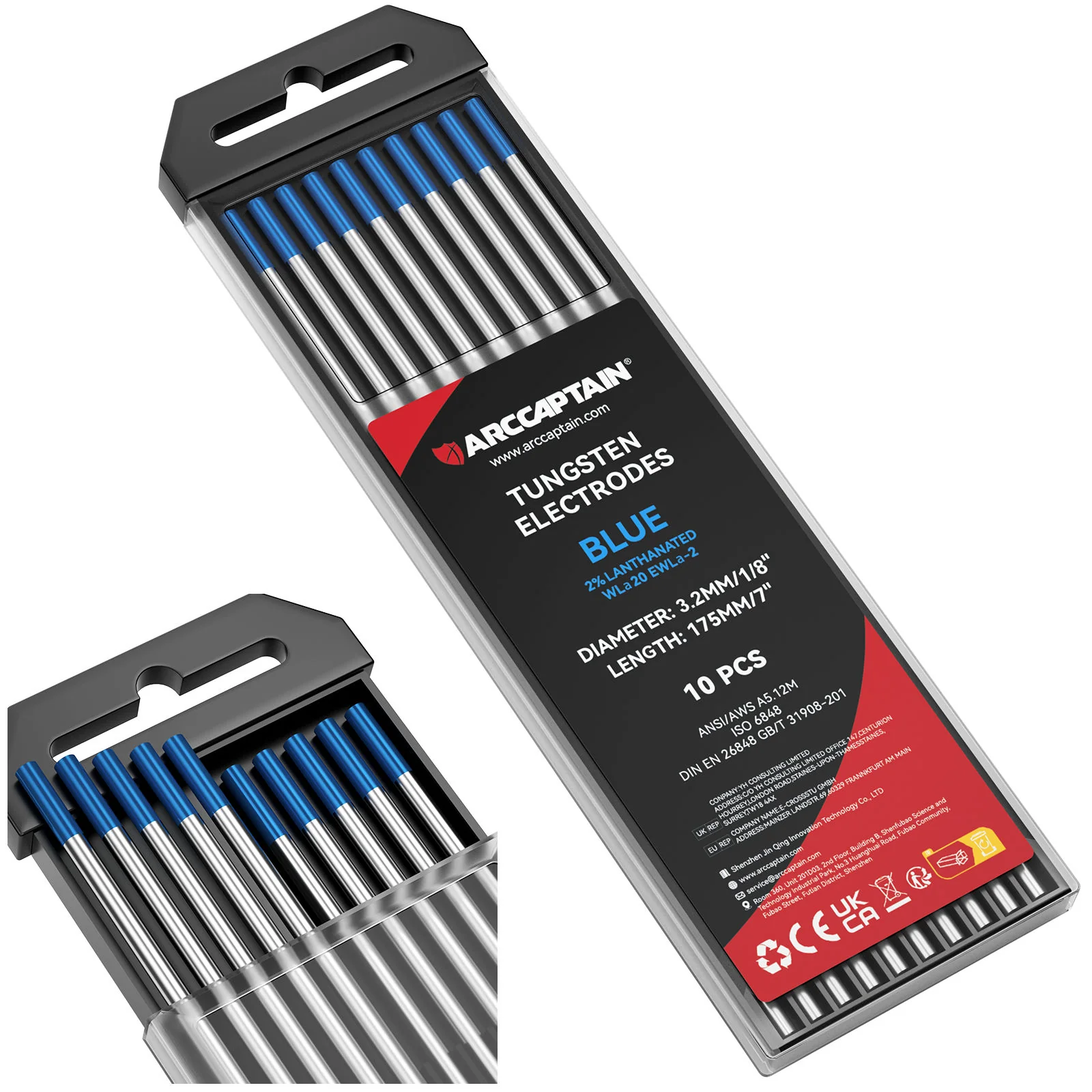

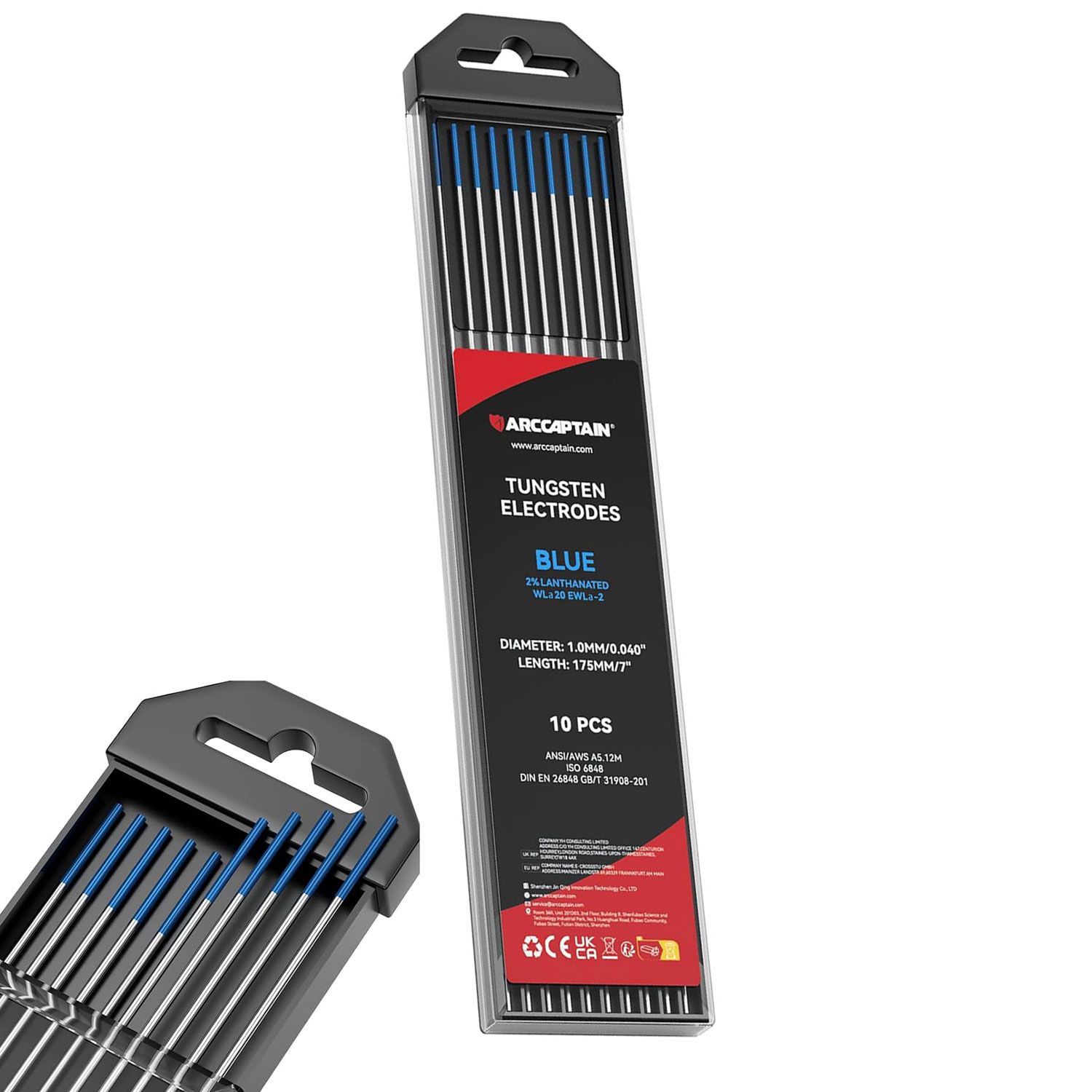

Tungsten Rod (W-La 2%)

Description

The Tungsten Rod (W-La 2%) is a high-performance lanthanated tungsten alloy engineered for extreme-temperature and high-wear industrial environments, combining the refractory strength of tungsten with the enhanced electron emission and recrystallization resistance of 2% lanthanum oxide. It serves as a critical component in advanced arc welding (GTW – Gas Tungsten Welding), plasma cutting, thermal spraying, and high-temperature furnace systems. Strategically important for industries demanding operational uptime and precision, this rod delivers superior arc stability, longer electrode life, and lower consumption rates compared to conventional thoriated or pure tungsten alternatives—addressing both performance and regulatory compliance needs in global markets.

2. Key Specifications & Technical Characteristics

• Chemical Composition: Tungsten (W) balance with 1.8–2.2% Lanthanum Oxide (La₂O₃) by weight

• Purity Level: ≥99.95% tungsten basis; low trace metallic impurities (<500 ppm total)

• Physical Form: Solid round rod, straightened

• Color Code: Light blue (industry standard for W-La 2%)

• Diameter Range: 0.5 mm – 10.0 mm (custom tolerances: ±0.05 mm standard; ±0.025 mm precision)

• Length: 100 mm, 150 mm, or 175 mm (custom lengths available)

• Density: 18.6 – 18.9 g/cm³

• Surface Finish: Ground, polished, or etched (as specified)

• Packaging Options:

  • Vacuum-sealed plastic tubes (10–50 rods per tube)

  • Plastic clamshells with anti-corrosion liner

  • Bulk cartons (500 rods per master carton)

• Shelf Life: Indefinite under dry, room-temperature storage (<70% RH)

3. Core Industrial Applications

Why this product performs better: Lanthanum oxide uniformly disperses within tungsten matrix, minimizing grain growth at high heat and enabling stable arc even at low amperage. Non-radioactive (unlike 2% thoriated tungsten), eliminating handling, disposal, and OSHA/EPA compliance costs.

4. Competitive Advantages

• Quality Consistency: ISO 9001:2025 certified production; 100% eddy current and laser micrometer inspection; each batch traceable to raw material lot certification.

• Supply Reliability: Three dedicated manufacturing lines with 98.5% on-time delivery rate over 24 months; safety stock held in North America, Europe, and Asia.

• Logistics Capability: Export compliant packaging (UN-certified when required); door-to-door tracking with damage <0.1% claim rate.

• Price Competitiveness: Volume pricing 8–12% below European and Japanese equivalents at equal or higher purity.

• Sustainability & Compliance: 100% REACH, RoHS, and Conflict Mineral compliant; zero radioactive materials; recyclable under standard tungsten scrap programs.

• Technical Support: Free weld parameter guidance; downloadable certificate of analysis (CoA) per lot; on-call metallurgical engineer support for qualification runs.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 metric tons (MT) (approximately 20,000 kg) – mixed diameters and lengths allowed within a single order

• Loading Capacity per 20-ft Container: 24 MT (standard) | 26 MT (with floor reinforcement)

• Packaging for Bulk Shipment: Steel-reinforced export cartons on pallets, stretch-wrapped and strapped; desiccant included for ocean freight

• Delivery Term Options: FOB (main Chinese port), CIF, or DDP subject to negotiation for contracts ≥20 MT

• Lead Time for Bulk Orders (≥20 MT): 30 days after deposit receipt or L/C confirmation

For spot purchases below 20 MT, please request quotation via the marketplace messaging system.
