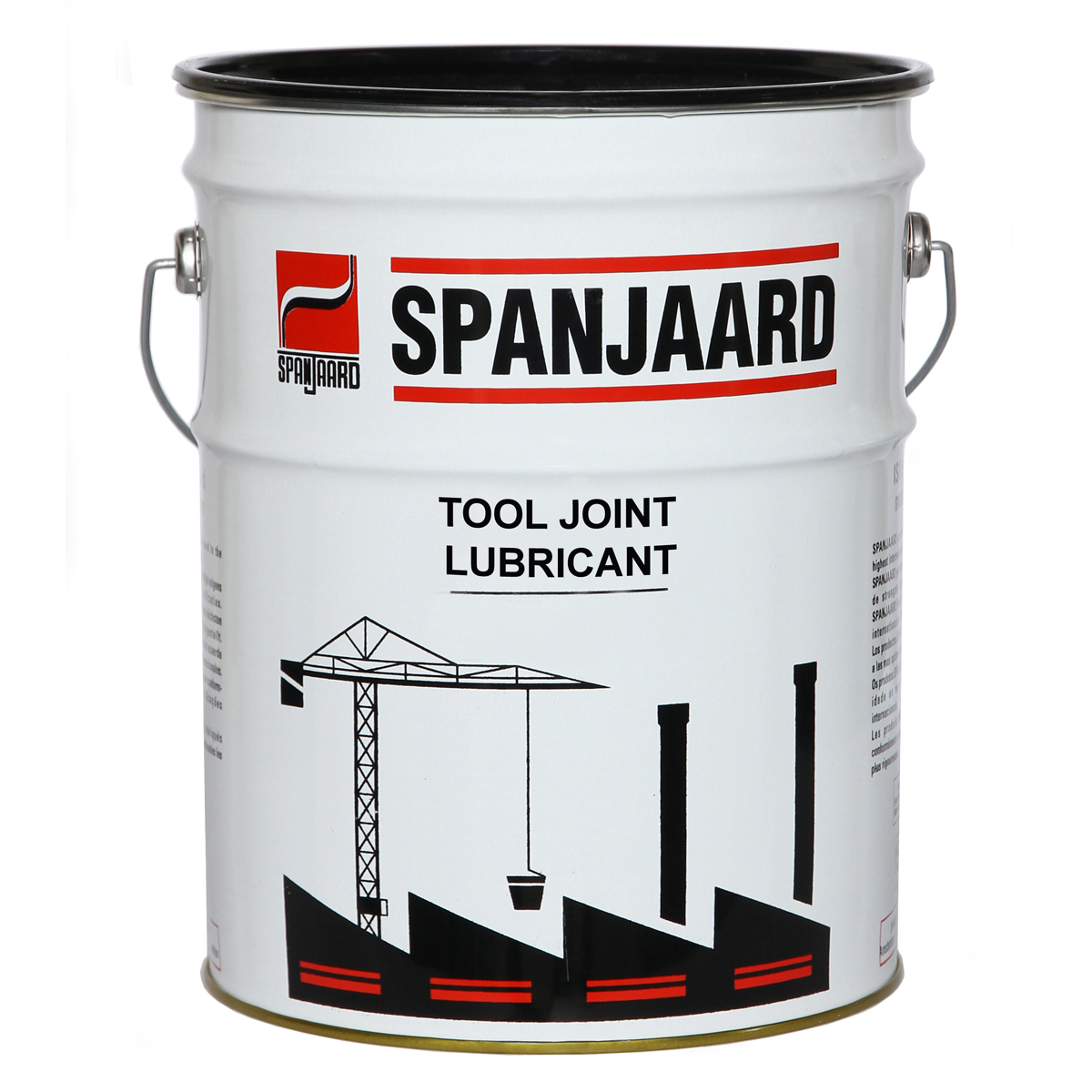

Tool Joint Lubricant — Drill string lubrication

Description

1. Product Overview

This high-performance Tool Joint Lubricant is a heavy-duty, thread compound engineered specifically for rotary shouldered connections in drill strings. It is used to prevent galling, seizing, and leakage during make-up and break-out of tool joints under extreme downhole conditions. The key value proposition is superior extreme-pressure (EP) protection that ensures consistent torque validation and thread integrity across multiple runs. Strategically, it is critical for reducing costly connection failures and maximizing asset utilization in deep-well, horizontal, and offshore drilling.

2. Key Specifications & Technical Characteristics

• Chemical composition: Copper-free, high-solids blend with metallic (zinc, lead-free) and graphite-based EP additives in a non-melting, water-repellent carrier grease

• Purity / grade: API 7‑2 / ISO 13678 compliant; NSF H2 registered available

• Physical characteristics: Opaque gray to black paste; smooth, buttery consistency; no separation or settling at 50°C; density ~1.3–1.5 g/cm³; particle size < 75 microns

• Packaging options: 55-gallon drums (net 200–220 kg), 5-gallon pails, 500-gallon totes, and custom bulk containers

• Shelf life: 24 months when stored in original sealed containers between -10°C and 45°C

3. Core Industrial Applications

• Primary industries: Onshore and offshore oil & gas drilling, geothermal drilling, deep mining (raise boring), and heavy foundation drilling

• Specific use cases: Make-up of NC, REG, IF, FH, and proprietary tool joint threads; high-torque horizontal drilling; extreme high-angle wells; subsea BOP connections

• Performance advantage: Maintains effective lubrication at >300°C downhole temperatures and withstands 10,000+ psi hydraulic pressure, whereas standard compounds degrade or wash out

• Efficiency gains: Reduces false torque readings by 20%, cuts thread repair frequency in half, and allows 3–4 re-makes per connection versus 1–2 with low-end alternatives

4. Competitive Advantages

• Quality consistency: Lot-to-lot ISO 9001:2025 certified manufacturing with full traceability and third-party validation of friction coefficient (±2% tolerance)

• Supply reliability: Dual-continent production (Americas, MENA) with 48-hour emergency dispatch to major drilling hubs; 99.5% on-time delivery rate

• Logistics capability: Pre-cleared hazardous material documentation (IMDG, IATA, ADR) and temperature-controlled bulk shipping options

• Price competitiveness: Tier-1 performance at 15–20% lower cost than legacy premium brands through direct mill-to-rig supply model

• Sustainability: 100% heavy-metal free (no lead, no barium), low-VOC, and fully incinerable packaging; assists operators in meeting environmental KPIs

• Technical support: Free on-site friction and torque validation training, digital torque calculation tool, and 24/7 engineering consultation

5. Commercial & Supply Information

• Minimum order quantity (MOQ): 2,000 kg (10 drums) for standard grade; 500 kg for trial orders subject to freight approval

• Bulk 20MT loading capacity: 20 metric tons (net) = 100 drums on a standard 20FT container

• Loading capacity per container (20FT): 20 MT net; 22 MT maximum gross weight including pallets
