Steel Wire Rope — Hoisting

Description

1. Product Overview

This Steel Wire Rope — Hoisting is a high-tensile, stranded mechanical cable specifically manufactured for vertical and overhead lifting operations in industrial settings. Its primary use is in cranes, elevators, mine hoists, and shipboard cranes where dynamic load control is mission-critical. The key value proposition is an extended service life under cyclic bending and high shock loads, reducing unplanned downtime. Strategically, this product matters because global infrastructure and logistics expansion demand lifting components that maximize safety margins while minimizing total cost of ownership.

2. Key Specifications & Technical Characteristics

• Material composition: High-carbon steel (0.6%–0.85% C), zinc or smooth bright finish; optional galvanized for corrosion resistance

• Grade: 1770 N/mm², 1960 N/mm², or 2160 N/mm² tensile strength grades

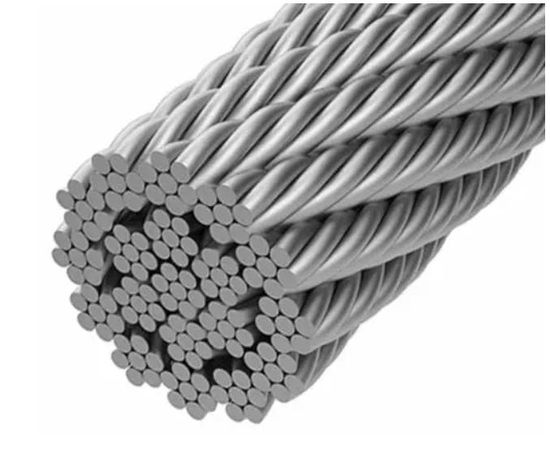

• Construction types: 6×19, 6×36, 8×26, or 19×7 class; compacted strand available

• Core: Fiber core (FC), independent wire rope core (IWRC), or polypropylene core

• Diameter range: 6 mm to 60 mm

• Physical form: Coiled or spooled; lubricated for internal wire corrosion protection

• Packaging options: Wooden reels (export standard), plastic flanged spools, or coil-wrapped steel pallets

• Shelf life: 24 months in dry, covered storage (≤70% humidity, no chemical exposure)

3. Core Industrial Applications

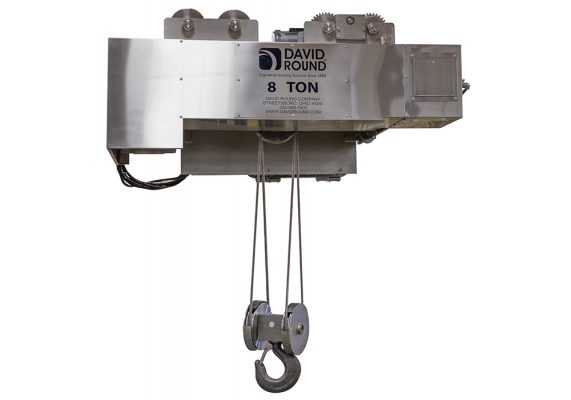

• Primary industries: Construction (tower cranes, overhead cranes), mining (shaft hoists, draglines), marine (ship cranes, hatch covers), and general manufacturing (electric hoists, winches)

• Operational use cases: Lifting precast concrete panels, hoisting ore skips, mooring winch operations, and elevator traction systems

• Performance advantage: Higher fatigue life than standard ropes due to balanced strand geometry and controlled lubrication penetration, reducing replacement frequency by 25–35%

• Commercial benefit: Lower total operating cost per lift – fewer change-outs, less downtime, reduced inventory needs

4. Competitive Advantages

• Quality consistency: ISO 2408 certified; full mill test certificates (EN 10204 3.1) provided per batch

• Supply reliability: Multi-mill sourcing with 98% on-time delivery track record for contract orders

• Logistics capability: Export-ready packaging; containerized shipping directly to port or job site

• Price competitiveness: Tier-1 Chinese and Southeast Asian manufacturing at 15–20% below EU/US average landed cost

• Sustainability: Lead‑free lubrication; extended rope life reduces scrap steel generation

• Technical support : Engineering team provides drum capacity calculations, bend‑to‑sheave ratio optimization, and failure analysis

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT (mixed diameters permitted)

• Loading capacity: 24–26 MT per 20-ft standard container (depending on reel dimensions); 18–22 MT per 20-ft open-top for large-diameter reels
