Structural Steel Sections

Description

1. Product Overview
Structural Steel Sections are hot-rolled, load-bearing profiles including I-beams, H-beams, channels, angles, and tees, engineered for heavy-duty framework construction. They are primarily used in building infrastructure, industrial plants, and bridge superstructures, delivering superior strength-to-weight ratios for high-load environments. The key value proposition is predictable mechanical performance under static and dynamic stresses, enabling faster fabrication and safer assembly. As the backbone of global urbanization and energy infrastructure, sourcing high-grade structural steel is a strategic lever for project lifecycle cost reduction and risk mitigation.

2. Key Specifications & Technical Characteristics

• Material Composition: Low-carbon steel (ASTM A36, A572 Gr. 50 / EN S235JR, S355JR) or microalloyed steel with controlled carbon equivalent (CEV ≤ 0.45%) for weldability.

• Grade Standards: Structural grades 250–355 MPa minimum yield strength; certified to ASTM, EN 10025, JIS G3101, or GB/T 706.

• Physical Characteristics:

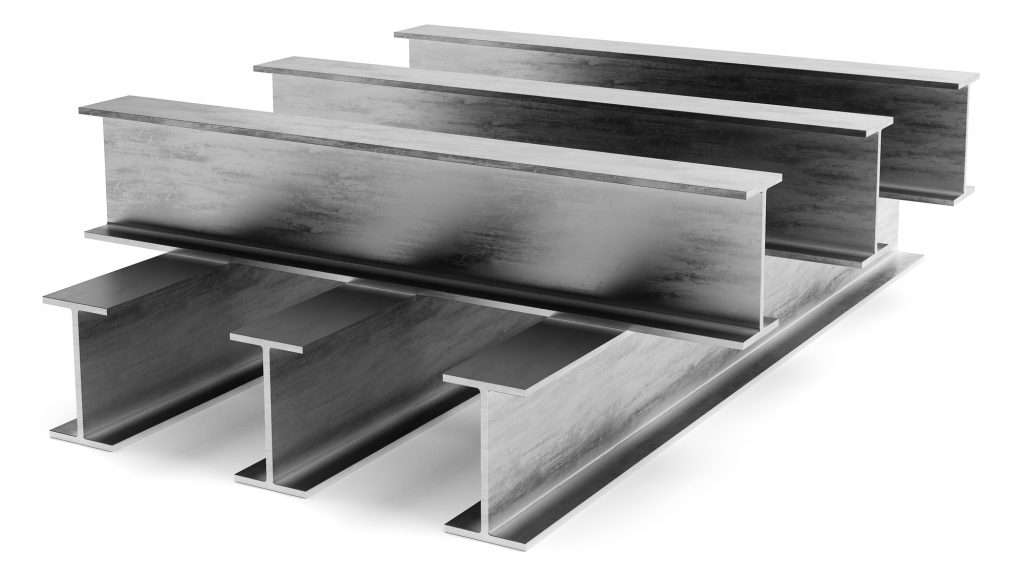

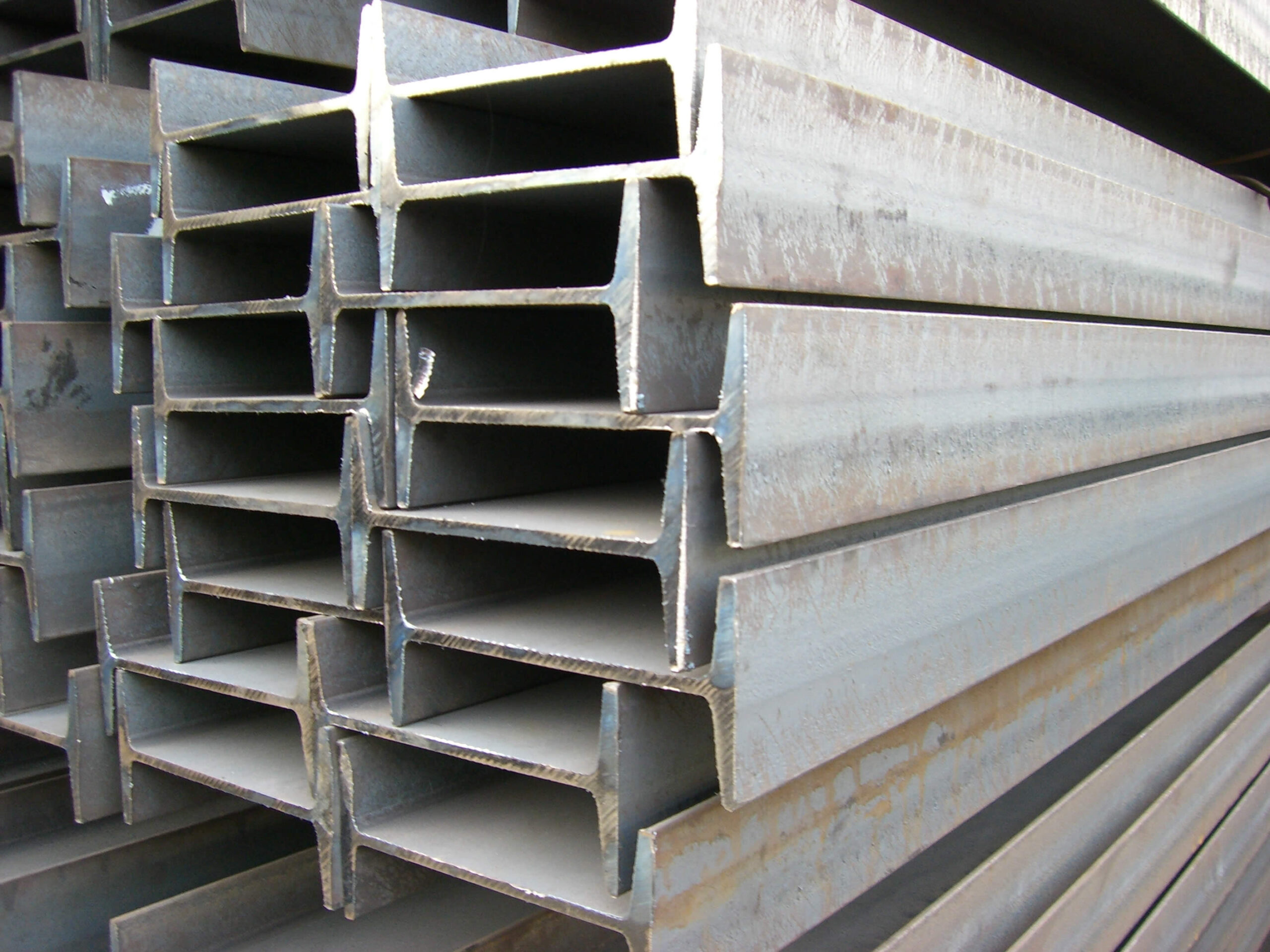

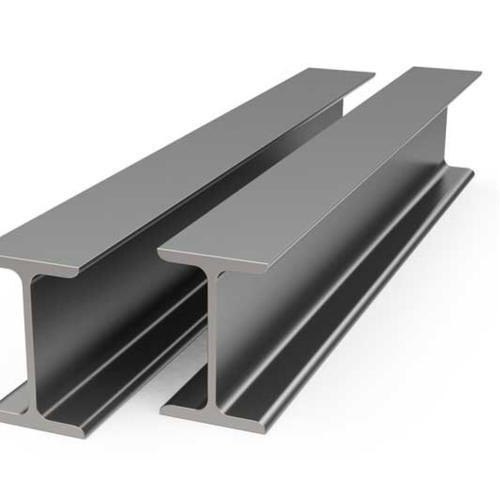

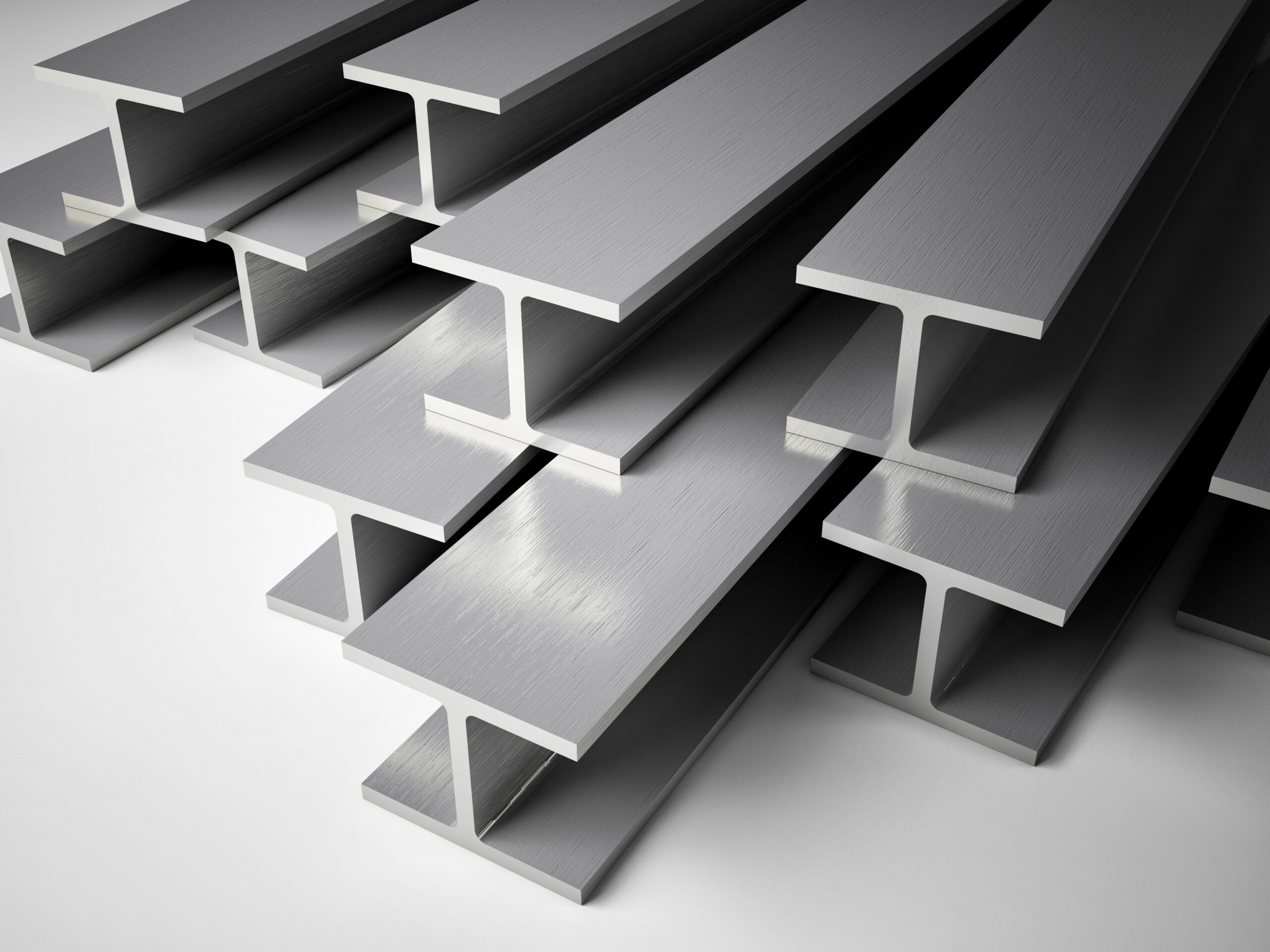

  • Form: I-beam, H-beam, U-channel, equal/unequal angle, tee section.

  • Color: Mill scale finish (dark grey) or optional pre-primed (red oxide).

  • Dimension range: Web depth 80–1200 mm; flange width 40–400 mm; length 6–18 m (±5 mm tolerance).

  • Density: 7.85 g/cm³.

• Packaging Options: Standard export seaworthy bundled packs with steel straps; interleaved timber separators to prevent transit damage; optional shrink-wrapped for corrosion protection.

• Shelf Life: Indefinite when stored above ground, dry, and ventilated; no chemical degradation.

3. Core Industrial Applications

• Primary industries: Commercial construction, bridge engineering, port crane manufacturing, mining infrastructure, power transmission towers, and offshore module fabrication.

• Specific operational use cases:

  • Primary beams for high-rise steel-framed buildings (reduces column spacing).

  • Crane runway girders in heavy industrial plants (absorbs impact loading).

  • Tunnel support ribs and mine roof arches (provides immediate ground control).

• Performance advantages vs. alternatives: Compared to reinforced concrete, steel sections reduce erection time by 40% and foundation load by 25%. Versus fabricated built-up sections, hot-rolled profiles offer zero residual stress and superior fatigue resistance. Cost efficiency comes from standardised dimensions → lower cutting waste → faster bolted or welded connections.

4. Competitive Advantages

• Quality consistency: ISO 9001:2025 mill certification; third-party ultrasonic testing (UT) and dimensional inspection reports provided per lot; traceable heat numbers on each section.

• Supply reliability: Multi-mill sourcing network (Asia, Europe, MENA) with 98.5% on-time-in-full (OTIF) track record for project-sized orders.

• Logistics capability: Dedicated breakbulk and containerized shipping lanes; direct to project site or nearest port hub; cargo insurance included.

• Price competitiveness: Quarterly fixed-price contracts with no hidden surcharges; volume-based rebates for annual framework agreements.

• Sustainability benefits: Average 45% recycled content; EPD (Environmental Product Declaration) available; compliant with low-carbon steel procurement mandates (e.g., LEED v4, BREEAM).

• Technical support: Free cutting and drilling layouts from BIM models; welding procedure specification (WPS) recommendations; on-call metallurgical engineer support.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT (single section type and size)

• Loading capacity per 20 ft container: 18–22 MT (depending on section shape and stacking configuration)

• Loading capacity per 40 ft container: 24–26 MT (for longer lengths up to 12 m)

• Breakbulk / flat rack option: Up to 500 MT per shipment for project cargo >12 m lengths
