API 5L Line Pipes

Description

1. Product Overview
API 5L Line Pipes are high-strength, carbon-steel seamless or welded pipes engineered for the long-distance transmission of oil, gas, and water under extreme pressure and environmental conditions. Their primary industrial use lies in onshore and offshore pipeline systems for the upstream and midstream energy sector. The key value proposition is a certified balance of mechanical integrity, fracture toughness, and weldability—ensuring operational safety and lifecycle cost reduction. Strategically, these pipes are critical to global energy infrastructure, directly enabling reliable hydrocarbon flow from extraction to refining and distribution.

2. Key Specifications & Technical Characteristics

• Material Composition: Carbon-manganese steel with controlled microalloying (Nb, V, Ti) per API 5L PSL1 / PSL2; max sulfur ≤0.010%, max phosphorus ≤0.020%.

• Grade & Purity: Grades B, X42, X52, X60, X65, X70; PSL2 offers stricter chemical limits, lower carbon equivalent (CE ≤0.43), and mandatory impact testing.

• Physical Characteristics:

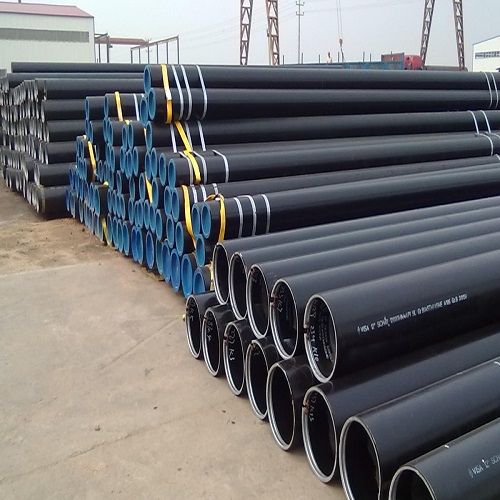

  • Form: Seamless (hot-finished) or longitudinally / spirally welded

  • Color: Mill-applied black varnish or FBE/3LPE coated (optional)

  • Outer Diameter: 21.3 mm (½″) to 1,219 mm (48″)

  • Wall Thickness: Schedule 10 through XXS (up to 40 mm typical)

  • Density: ~7.85 g/cm³

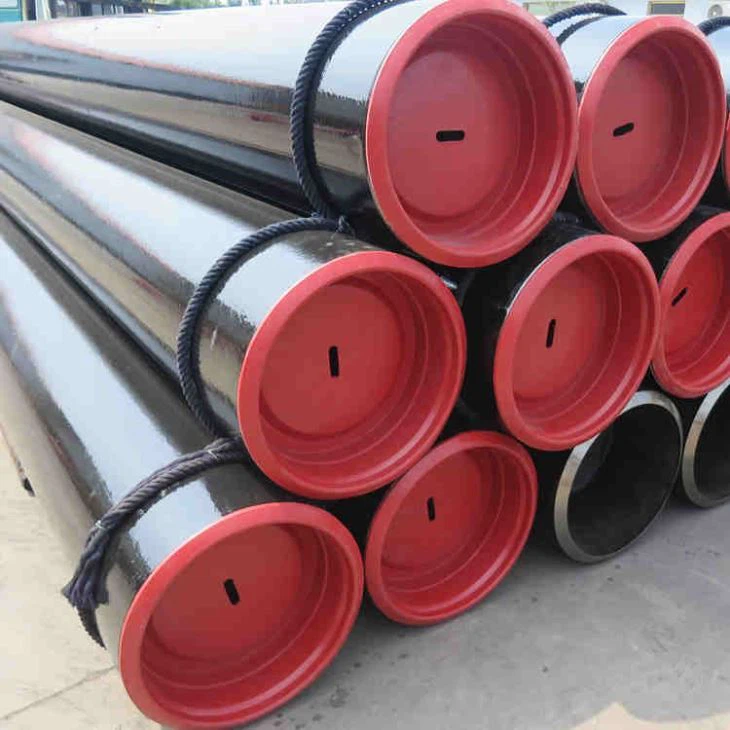

• Packaging Options: Bare ends with plastic protectors; beveled ends; bundled with steel straps; loose or in six-meter bundles; containerized or break-bulk.

• Shelf Life: Indefinite when stored indoors, elevated off-ground, with capped ends to prevent moisture ingress and oxidation.

3. Core Industrial Applications

• Primary Industries: Oil & gas upstream (flow lines, gathering lines), midstream (cross-country transmission pipelines), water transport (slurry, irrigation mains), and structural piling.

• Operational Use Cases: High-pressure natural gas trunk lines (up to 15 MPa), crude oil trunk lines in arctic or desert terrains, subsea pipelines with anti-corrosion coatings, and refinery transfer piping.

• Performance Advantages vs. Alternatives:

  • Durability: Higher yield strength (up to 70 ksi for X70) reduces wall thickness → lower material cost per km.

  • Efficiency: Smooth bore minimizes frictional pressure drop → reduced compressor/pump energy use.

  • Cost Advantage: Standardized dimensions enable rapid field welding and inspection, cutting installation labor by up to 20% compared to non-API custom pipes.

4. Competitive Advantages

• Quality Consistency: In-house ISO 17025-certified testing (hydrostatic, NDT, Charpy V-notch, tensile) with mill test reports traceable to heat number.

• Supply Reliability: Multi-continent stocking hubs (Houston, Rotterdam, Shanghai, Jebel Ali) ensure 98% on-time delivery for emergency and scheduled projects.

• Logistics Capability: Direct mill-to-site shipping with full documentation for customs clearance (origin certificates, API monogram license).

• Price Competitiveness: Volume-based tiered pricing + long-term contract inflation caps; 10–12% lower total landed cost than European mills due to optimized steel slab sourcing.

• Sustainability: Available with low-carbon steel feedstock (verified Scope 1+2 emissions) and recyclable to >95% at end-of-life.

• Technical Support: Dedicated piping engineers for welding procedure qualification (WPQ) and cathodic protection design; full IBR/PED compliance packages provided.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 20 metric tons (MT) per grade and wall thickness

• Bulk 20MT Loading Capacity: One standard 20ft container loads approximately 20–22 MT of API 5L line pipes (OD ≤ 12″). Larger diameters (≥14″) require break-bulk or flat-rack shipping.

• Bulk 40ft HC Container: Up to 26 MT (OD ≤ 12″) with secure dunnage.

• Lead Time: 30 days from mill for standard grades (B, X42, X52); 45–60 days for X65/X70 and PSL2 with impact testing.
