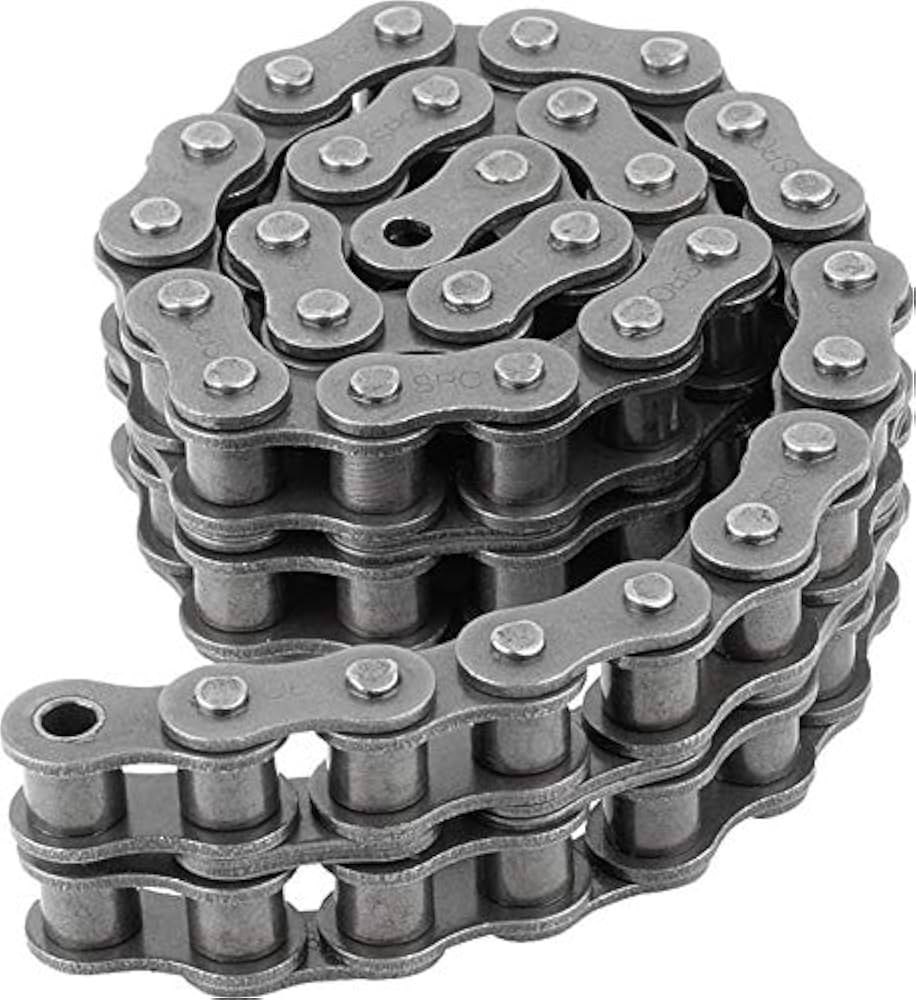

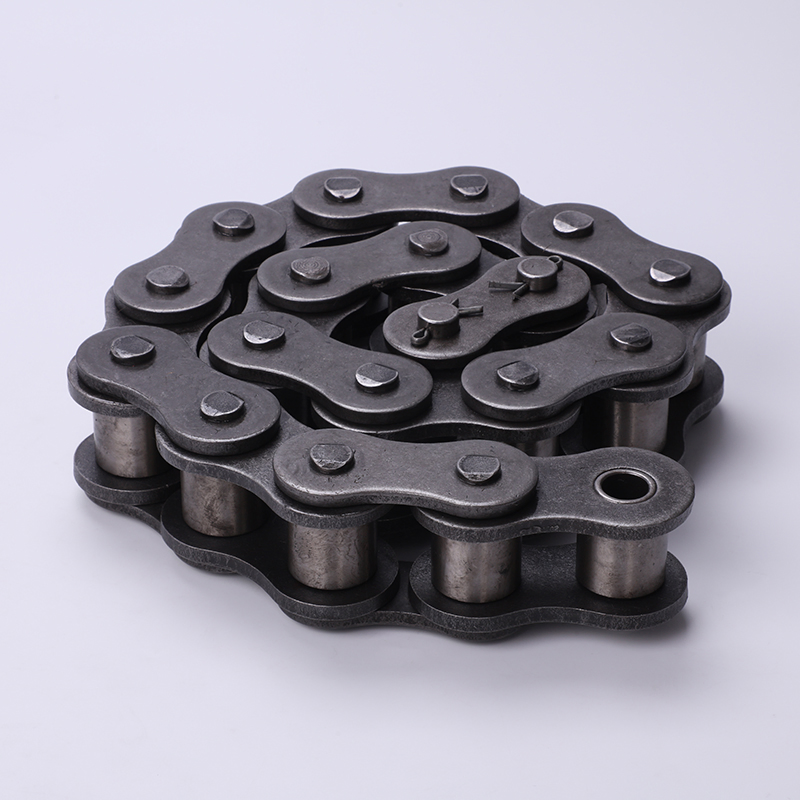

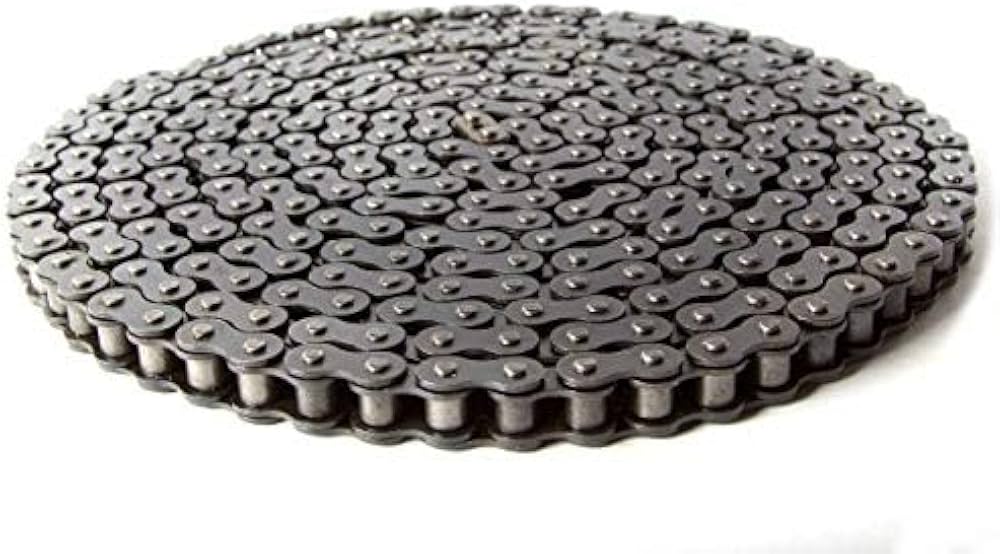

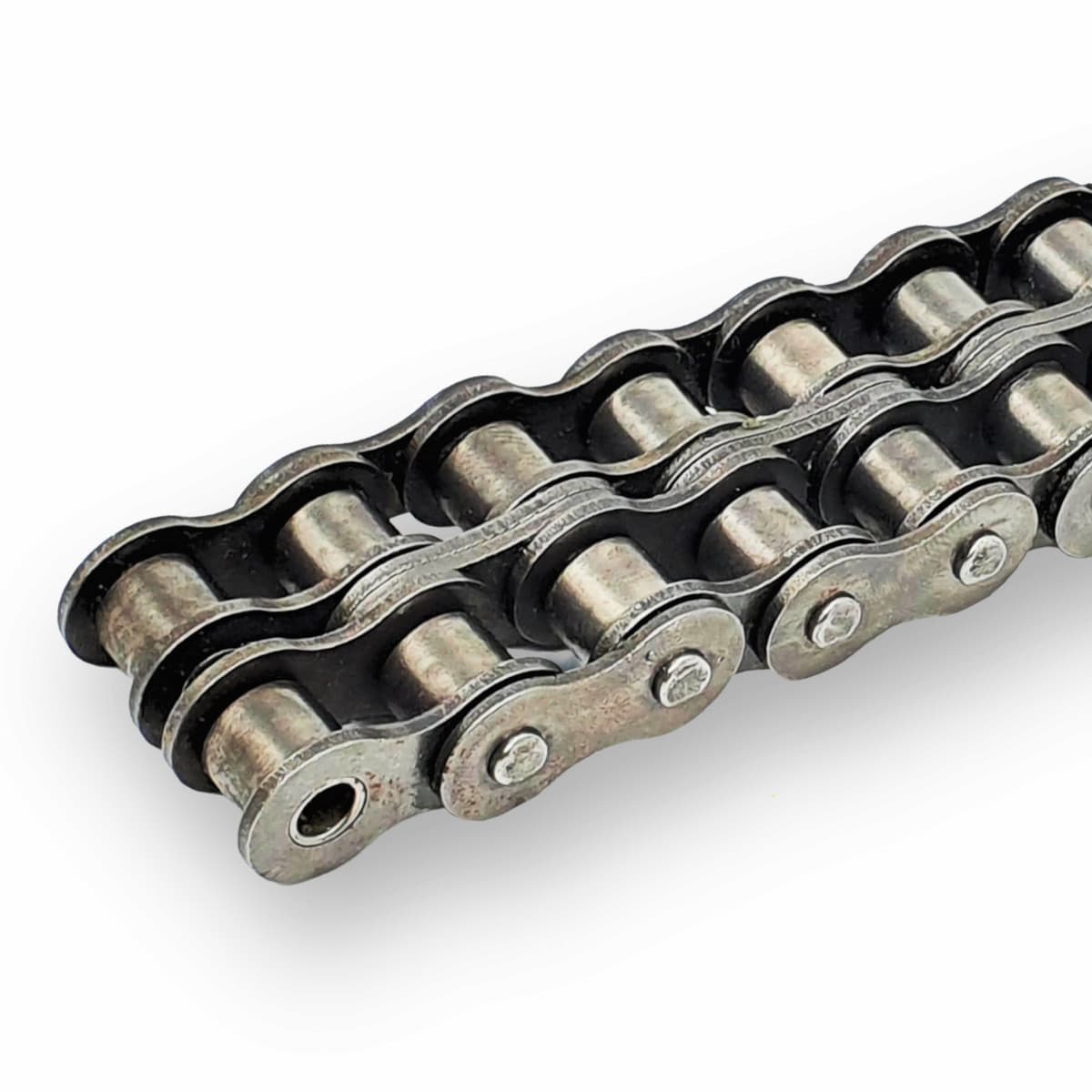

Roller Chain Pitch 08B-1

Description

1. Product Overview

Roller Chain Pitch 08B-1 is a precision-engineered industrial roller chain designed for medium-duty power transmission and conveyor applications. Engineered to deliver consistent tensile strength, smooth kinematic performance, and extended wear life, it is optimized for use in manufacturing lines, material handling systems, and processing equipment. Its key value proposition is reliable, low-maintenance power transmission that reduces downtime and total cost of ownership compared with lower-grade chains. Strategically, 08B-1 occupies a high-volume segment of the global supply chain where standardized dimensions, interchangeability, and predictable service life are critical for OEMs and maintenance procurement in heavy industry.

2. Key Specifications & Technical Characteristics

• Standard designation: ANSI/ISO 08B-1 (compatible with equivalent international standards).

• Pitch: 1/2 inch (12.7 mm).

• Material: High-strength carbon steel or alloy steel (case-hardened pins and rollers); optional stainless steel grade (AISI 304/316) for corrosive environments.

• Heat treatment: Case hardening on pins and rollers; shot-peened components available for fatigue resistance.

• Tensile strength: Typical static tensile strength range 25–35 kN (specify per chosen material/heat treatment).

• Working load (recommended): Dependent on speed and lubrication; refer to technical datasheet for chain classification and safety factors.

• Roller diameter: Standard per 08B-1 specification (approx. 7.75–8.0 mm nominal).

• Plate thickness and width: Manufactured to ANSI/ISO tolerances for interchangeability; heavy-plate options available for increased fatigue life.

• Corrosion protection: Zinc plating, black oxide, or passivation for stainless options; specialized coatings (e.g., phosphate, polymer) on request.

• Lubrication: Pre-lubricated options available; compatible with standard industrial lubricants and automatic oiler systems.

• Operating temperature range: Standard carbon/alloy chain -20°C to +120°C; stainless options extend range and corrosion resistance.

• Form and delivery: Assembled continuous chain (cut-to-length and sealed rolls available).

• Packaging options: Coils on steel spool, wooden crates, sealed plastic drums for pre-lubricated units, or palletized boxes for large orders.

• Shelf life: Indefinite under recommended storage (dry, ambient); pre-lubricated chains subject to storage-life guidance (typically 12–24 months with preserved lubricant).

• Documentation: Material certificates, hardness reports, dimensional drawings, chain-load charts, and maintenance guidelines included upon order.

3. Core Industrial Applications

• Primary industries: Manufacturing (automotive, assembly lines), logistics and warehousing (conveyors, sortation), food and beverage (with stainless option), mining and aggregates (secondary conveyors), packaging, and pulp & paper.

• Specific operational use cases: Conveyor drive trains, indexing mechanisms, bucket conveyors, pallet transfer systems, and secondary drives for pumps and mixers.

• Why it outperforms alternatives: 08B-1 balances compact pitch with robust roller diameter, delivering smoother engagement with sprockets and lower vibration than lighter pitches; stronger and more durable than economized commodity chains due to controlled material selection and heat treatment.

• Efficiency, durability, cost advantages: Optimized roller geometry reduces friction and wear, extending bearing and sprocket life; standardized dimensions minimize downtime by enabling fast replacement; lifecycle cost is lowered via longer mean time between failures and reduced maintenance intervention.

4. Competitive Advantages

• Quality consistency: Manufactured to ANSI/ISO tolerances with batch-level material and hardness traceability.

• Supply reliability: Production scheduling and inventory buffering to support continuous supply for OEMs and MRO buyers; scalable manufacturing to meet peak orders.

• Logistics capability: Bulk packaging and container-load optimization, export-ready documentation, and regional distribution options to shorten lead times.

• Price competitiveness: Tiered pricing for volume orders (MOQ-based discounts), multiple material-grade options to match cost-performance needs.

• Sustainability benefits: Durable design reduces replacement frequency and waste; recyclable steel construction; optional low-VOC coatings and compliant manufacturing processes on request.

• Technical support: Detailed installation and maintenance documentation, sprocket compatibility charts, load calculation assistance, and engineering support for custom lengths or special coatings.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Typical loading capacity per 20-ft container up to ~20–22 MT depending on packaging method; 40-ft container up to ~24–26 MT depending on packing density and palletization.

• Order fulfillment: Lead times vary by specification and quantity; standard carbon/alloy options available from stock for BULK orders, custom stainless or special treatments subject to production lead time.

• Sales documentation: Proforma invoice, commercial invoice, packing list, material certificates, and any agreed export paperwork provided with shipment.
