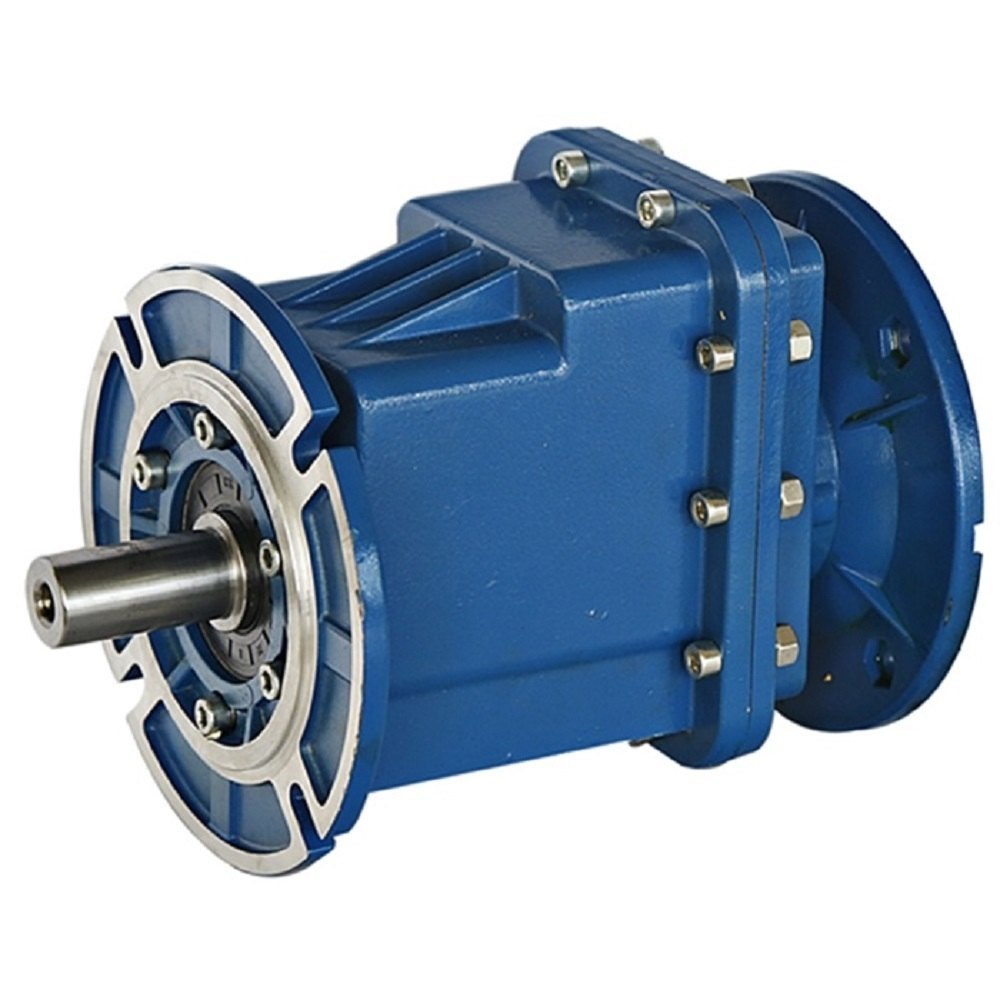

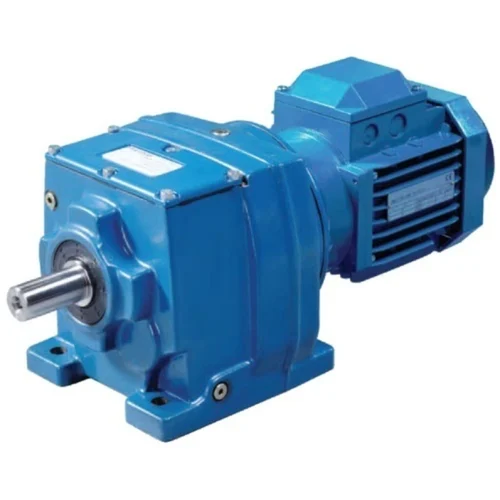

Industrial Gearbox Helical Inline Type

Description

Product Overview
The Industrial Gearbox Helical Inline Type is a high-performance power-transmission gearbox engineered for heavy-duty industrial drives where smooth torque, high efficiency, and compact inline shaft arrangement are required. It converts motor output into controlled speed and torque for conveyors, mixers, extruders, and other continuous-process equipment. The gearbox delivers robust load-carrying capacity, low noise operation, and extended service life—reducing downtime and total cost of ownership for large-scale operations. As a strategic component in industrial automation and material-handling systems, it enables predictable performance and simplifies integration across global manufacturing and processing plants.

Key Specifications & Technical Characteristics

• Gear type: Helical, inline arrangement; parallel input and output shafts.

• Materials: Case—high-strength cast iron (EN-GJL-250) or optional nodular iron (EN-GJS-600) for higher fatigue resistance; gears—induction-hardened alloy steel (e.g., 20CrMnTi or 42CrMo) with precision ground teeth.

• Surface treatment: Shot-peened and fully ground tooth profile; anti-corrosion primer and optional painted finish (RAL specified on order).

• Heat treatment: Carburized and quenched tooth surfaces to achieve core hardness and case depth for wear resistance.

• Bearing system: Heavy-duty tapered roller and cylindrical roller bearings with optimized preload for radial and axial loads.

• Seals & lubrication: Labyrinth or lip seals; synthetic gear oil pre-filled (ISO VG grade selectable), with oil sight glass and drain/fill ports.

• RATIOS & OUTPUTS: Wide ratio range (single- and multi-stage options) to meet varied reduction ratios; torques up to specified model rating (model-specific torque charts provided in datasheet).

• Precision class: ISO/AGMA accuracy classes available (standard industrial and higher-precision options).

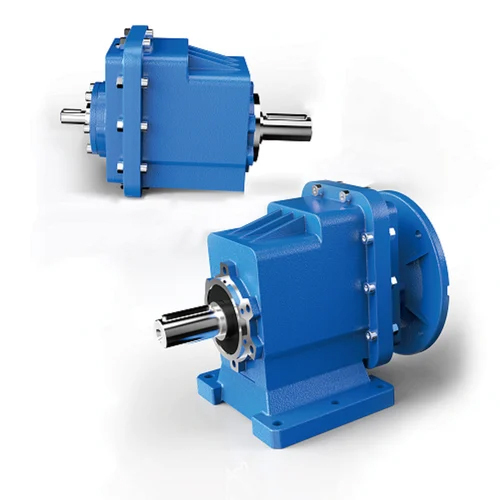

• Physical characteristics: Compact inline housing, flange or foot mounting options, standard shaft diameters per IEC metric sizes, weight varies by model—detailed mass tables in product datasheet.

• Noise level: Low-noise design achieved through helical gearing, typical dB(A) values provided per model at rated speed.

• Operating temperature range: Standard -20°C to +80°C; extended-range components available.

• IP rating: Standard IP55, optional IP66 for washdown or harsh environments.

• Packaging options: Crate (wooden export crate), shrink-wrapped on pallet, or custom-packed for sea/air shipments.

• Shelf life/Storage: Indefinite when stored dry and protected; recommended storage in controlled environment, pre-filled lubricants have manufacturer-recommended service intervals.

Core Industrial Applications

• Primary industries: Mining, cement, steel, power generation, petrochemical, pulp & paper, food processing (industrial), marine auxiliary systems, bulk materials handling, and heavy manufacturing.

• Specific use cases: Drive systems for belt and apron conveyors, bucket elevators, kiln and mill drives, mixer and agitator drives, extruder reduction stages, rotary dryers, and large fans/blowers.

• Performance advantages vs alternatives: Helical gearing provides higher tooth contact ratio versus spur gears—resulting in smoother torque transmission, reduced vibration, and higher load capacity for the same package size. Inline configuration simplifies coupling to motor and downstream equipment, reducing alignment complexity versus right-angle or planetary systems. Hardened, ground gears and premium bearings extend service intervals compared with lower-cost cast-gearbox alternatives.

• Operational benefits: Improved energy efficiency through reduced friction and optimized tooth geometry, predictable thermal behavior under continuous duty, and lower acoustic emissions—reducing noise-related workplace risks and compliance burdens.

Competitive Advantages

• Quality consistency: Manufactured to certified quality systems (ISO 9001), with batch traceability for materials, heat treatment records, and gear inspection reports (gear geometry, hardness maps).

• Supply reliability: Production capacity aligned for bulk B2B orders, safety-stock management, and established lead-time SLAs for recurring contracts.

• Logistics capability: Export packaging and documentation for global shipping, container-loading optimization, and optional consolidated shipments from regional distribution centers.

• Price competitiveness: Tiered pricing for volume buys and long-term agreements, transparent cost breakdowns for customization and value-engineered options.

• Sustainability: Durable design reduces replacement frequency; optional low-VOC coatings and recyclable packaging materials; lifecycle service parts available to extend operational life.

• Technical support: Comprehensive datasheets, 3D CAD models, installation and maintenance manuals, commissioning support, and field-service options; warranty and spare-parts support articulated in commercial terms.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Dependent on model and packaging; typical 20-foot container usable payload ~20–24 MT, 40-foot container usable payload ~26–28 MT. Exact container-loading plans and unit counts provided per order based on chosen model dimensions and crate configuration.
