Description
1. Product Overview

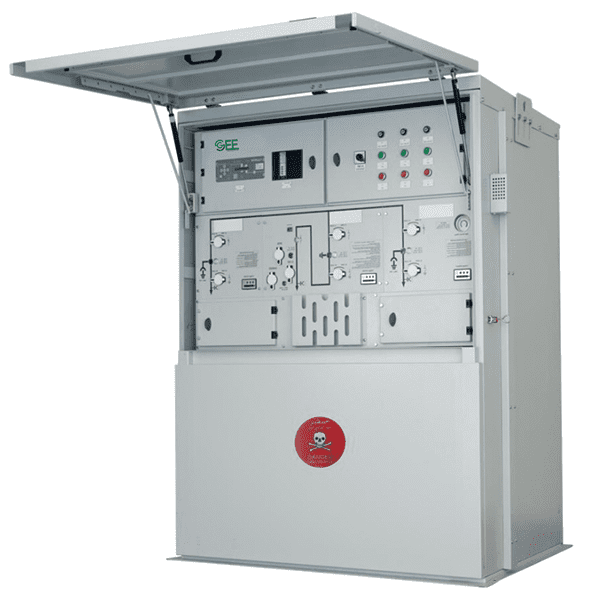

The Ring Main Unit (RMU) — IEC 62271-200 is a compact, factory-assembled medium-voltage switchgear system engineered for safe, reliable, and efficient power distribution within secondary electrical networks. Designed for utilities, industrial facilities, commercial infrastructure, renewable energy installations, and urban distribution systems, it provides dependable switching, protection, and network sectionalizing capabilities while minimizing operational downtime. Its modular design, high operational safety, and low maintenance requirements make it a preferred solution for modern electrical distribution networks. As global demand for resilient and intelligent power infrastructure grows, IEC 62271-200 compliant RMUs remain a strategic investment for enhancing grid reliability and operational efficiency.
2. Key Specifications & Technical Characteristics
- Standard Compliance: IEC 62271-200
- Product Type: Metal-enclosed medium-voltage Ring Main Unit (RMU)
- Rated Voltage: Typically 12kV, 24kV, and 36kV
- Rated Current: Up to 630A (higher ratings available upon request)
- Short-Circuit Withstand Current: Up to 25kA or higher depending on configuration
- Insulation Medium: SF₆ gas insulated or solid insulated (environmentally friendly options available)
- Switching Devices: Load Break Switch (LBS), Vacuum Circuit Breaker (VCB), Fuse Switch Combination
- Enclosure Material: Galvanized steel with corrosion-resistant powder-coated finish
- Protection Class: IP4X or higher
- Arc Classification: Internal Arc Classified (IAC) for enhanced personnel safety
- Operation: Manual, motorized, or remote SCADA-compatible operation
- Configuration: Modular and extensible designs available
- Color: Standard industrial grey or customized upon request
- Packaging: Export-grade wooden crates, reinforced pallets, or customized protective packaging
- Shelf Life: Not applicable; designed for long-term operational service exceeding 30 years under recommended conditions
3. Core Industrial Applications
- Electrical utility distribution networks
- Industrial manufacturing facilities
- Commercial buildings and business parks
- Renewable energy plants including solar and wind farms
- Oil & gas production facilities
- Mining operations
- Data centers and critical infrastructure
- Airports, hospitals, railways, and transportation systems
- Smart grid and urban power distribution projects
Operational Use Cases
- Medium-voltage power distribution and switching
- Ring network protection and sectionalizing
- Transformer protection
- Fault isolation and service continuity
- Distribution automation and remote monitoring integration
Performance Advantages
- Compact footprint maximizes installation space utilization
- High operational reliability with minimal maintenance requirements
- Fast fault isolation reduces outage duration
- Excellent operator safety through internal arc-tested construction
- Modular expansion capability lowers future infrastructure costs
- Long service life delivers reduced total cost of ownership
4. Competitive Advantages
- Manufactured in accordance with IEC 62271-200 international standards for dependable quality and safety
- Consistent manufacturing quality supported by rigorous factory testing and inspection
- Reliable global supply capability for utility-scale and industrial projects
- Efficient international logistics with secure export packaging
- Competitive pricing supported by scalable production capacity
- Available in both SF₆-insulated and environmentally friendly solid-insulated configurations
- Compatible with smart grid, SCADA, and digital monitoring systems
- Comprehensive technical documentation including drawings, test certificates, installation manuals, and commissioning support
- Technical engineering assistance and responsive after-sales support for global customers
- A strategic solution for improving electrical network reliability, operational safety, and long-term infrastructure performance
5. Commercial & Supply Information
- Minimum Order Quantity (MOQ): BULK 20MT
- Loading Capacity: Approximately 20–24 MT per 20-ft container (depending on RMU configuration, dimensions, and export packaging)
