Feeder Pillar Switchgear — IEC 61439

Description

1. Product Overview

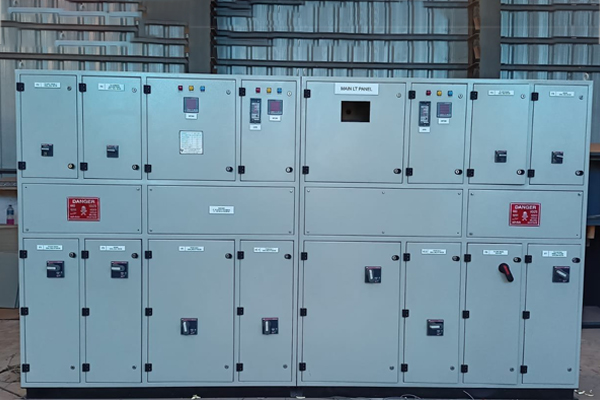

Feeder Pillar Switchgear — IEC 61439 is a low-voltage electrical distribution enclosure designed for safe power control, protection, and energy management in industrial, commercial, and utility networks. Manufactured according to IEC 61439 standards, it provides reliable housing for circuit breakers, protection devices, metering equipment, and distribution components in outdoor and indoor applications. Its robust construction, modular configuration, and high operational safety make it a preferred solution for efficient power distribution infrastructure. As global electrification projects expand, feeder pillar switchgear plays a strategic role in improving grid reliability, energy efficiency, and infrastructure resilience.

2. Key Specifications & Technical Characteristics

• Product Type: Low-voltage feeder pillar switchgear assembly
• Applicable Standard: IEC 61439 Low-Voltage Switchgear and Controlgear Assembly Standard
• Material Components:
  • Enclosure: Powder-coated galvanized steel, stainless steel, or aluminum alloy options
  • Internal busbars: High-conductivity copper or aluminum
  • Insulation components: Flame-retardant engineering plastics and electrical-grade insulating materials
  • Mounting accessories: Steel or corrosion-resistant hardware
• Rated Voltage: Typically up to 1000V AC
• Rated Current: Customized configurations from 100A to 4000A depending on application requirements
• Protection Rating: IP54, IP55, IP65 options for enhanced dust and water resistance
• Electrical Grade: Industrial-grade low-voltage distribution equipment
• Construction Type: Modular, compartmentalized, floor-mounted enclosure system
• Physical Characteristics:
  • Form: Vertical outdoor/indoor electrical cabinet
  • Color: Standard RAL industrial colors (custom colors available)
  • Surface Finish: Anti-corrosion powder coating or weather-resistant coating
  • Design: Freestanding structure with access doors and cable entry provisions
• Operating Temperature Range: Typically -25°C to +55°C (customizable for extreme environments)
• Packaging Options: Export-grade wooden crates, reinforced pallets, moisture protection wrapping
• Shelf Life: Long service life exceeding 20 years under proper installation and maintenance conditions

3. Core Industrial Applications

• Utility Power Distribution: Used by electricity providers for low-voltage feeder networks, transformer outlets, and street distribution systems.
• Industrial Facilities: Supports reliable power distribution in factories, processing plants, warehouses, and manufacturing complexes.
• Renewable Energy Projects: Applied in solar farms, wind power installations, and energy storage systems for controlled power distribution.
• Commercial Infrastructure: Used in shopping centers, office complexes, airports, and large buildings for electrical management.
• Construction & Infrastructure Projects: Provides temporary and permanent power distribution solutions for large-scale developments.

Operational Advantages:

• Provides safe segregation and protection of electrical components compared with conventional open distribution systems.
• Enhances electrical reliability through standardized design, tested assemblies, and optimized protection coordination.
• Reduces installation time and maintenance costs through modular construction and easy component accessibility.
• Offers superior durability against environmental exposure compared with standard electrical enclosures.

4. Competitive Advantages

• Quality Consistency: Manufactured under strict IEC 61439 compliance procedures with controlled assembly processes and tested electrical performance.
• Supply Reliability: Suitable for large-scale infrastructure projects requiring consistent production capacity and repeat deliveries.
• Logistics Capability: Designed for export shipment with secure packaging solutions and optimized transport handling.
• Price Competitiveness: Provides cost-efficient power distribution performance through durable materials, standardized components, and reduced lifecycle costs.
• Sustainability Benefits: Supports energy-efficient electrical networks by improving distribution reliability and reducing system losses.
• Technical Support & Documentation: Available with electrical drawings, compliance certificates, test reports, installation manuals, and customization support.
• Strategic Sourcing Value: A dependable long-term investment for utilities, EPC contractors, industrial operators, and infrastructure developers seeking reliable low-voltage distribution solutions.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 18–22 MT per 40-foot container (depending on configuration, dimensions, and packaging method)
