Description

1. Product Overview

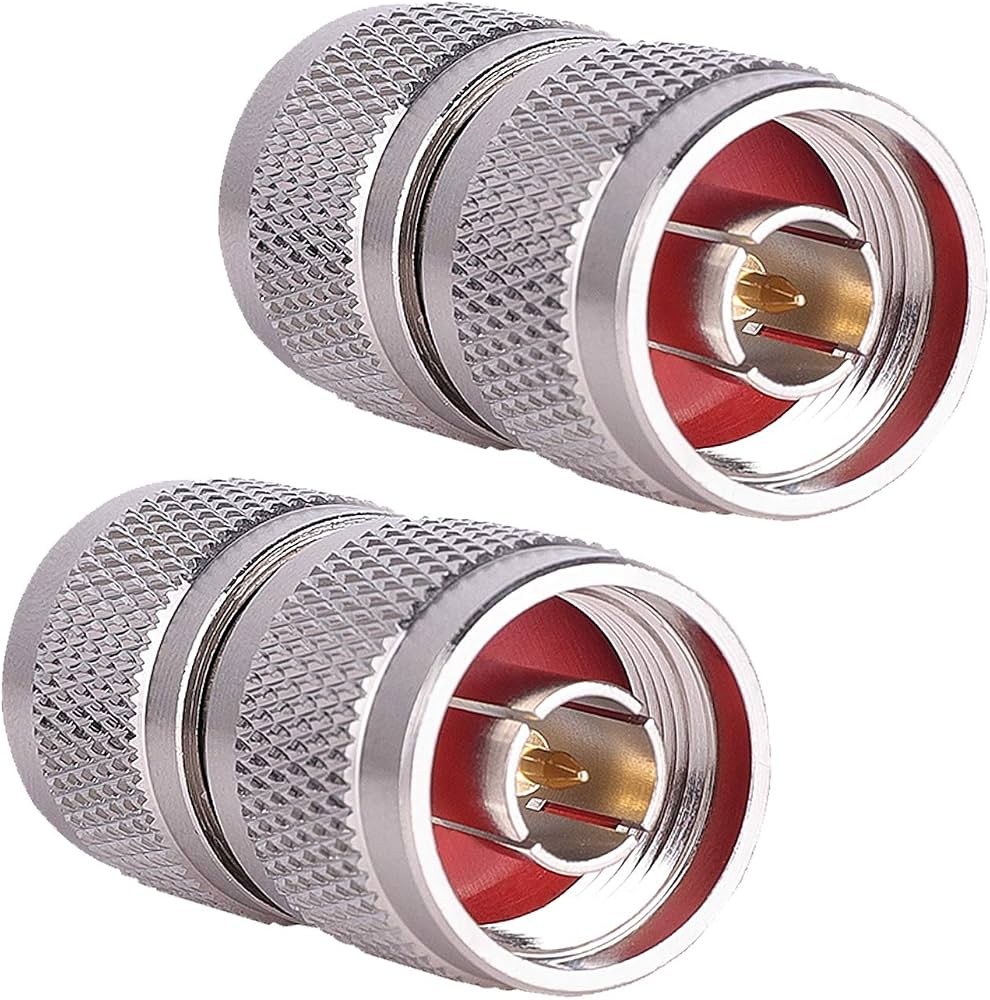

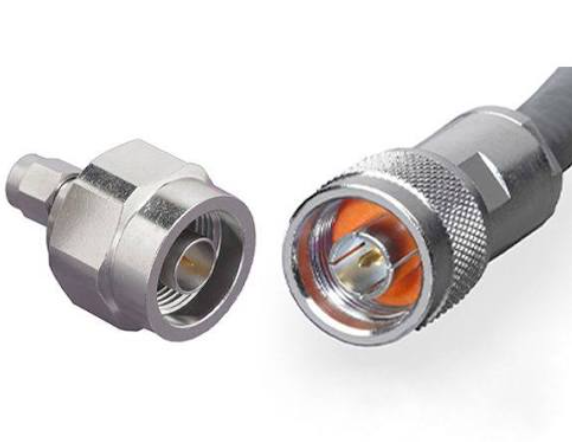

The RF Connector N Type is a high-performance coaxial RF connector engineered to provide secure, low-loss signal transmission in demanding radio frequency and microwave applications. Designed for reliable operation across a broad frequency range, it is widely used in telecommunications, wireless infrastructure, broadcast systems, aerospace, defense, and industrial communication networks. Its precision construction, excellent impedance matching, and weather-resistant design ensure consistent electrical performance in both indoor and outdoor installations. As global communication networks continue to expand, the N Type RF Connector remains a strategically important component for achieving dependable, high-frequency connectivity with long-term operational reliability.

2. Key Specifications & Technical Characteristics

• Material Components: Precision-machined brass or stainless steel body with gold-plated or silver-plated brass contacts; PTFE dielectric insulator; silicone or rubber sealing gasket for weatherproof models
• Connector Impedance: 50 Ohm (standard) or 75 Ohm (available for specialized applications)
• Frequency Range: Typically DC to 11 GHz (higher-frequency precision variants available)
• Electrical Characteristics: Low VSWR, low insertion loss, high return loss, excellent signal integrity
• Mechanical Features: Threaded coupling mechanism for secure vibration-resistant connection
• Physical Appearance: Metallic silver or gold finish with precision-machined construction
• Environmental Resistance: Corrosion-resistant, moisture-resistant, and UV-resistant options for outdoor deployment
• Packaging Options: Individual protective packaging, bulk cartons, industrial packaging, OEM packaging, export-grade cartons
• Shelf Life: Indefinite under recommended dry indoor storage conditions

3. Core Industrial Applications

The RF Connector N Type serves critical roles across numerous high-frequency communication industries, including:

• Telecommunications base stations and cellular network infrastructure
• RF communication equipment manufacturing
• Microwave communication systems
• Broadcasting and television transmission equipment
• Aerospace and defense communication systems
• Satellite communication installations
• Wireless networking infrastructure
• Industrial automation and wireless control systems
• Test and measurement instrumentation
• Antenna systems and RF cable assemblies

Its threaded coupling design provides superior mechanical stability compared to quick-connect alternatives, making it highly suitable for environments exposed to vibration, weather, and continuous operation. The connector delivers excellent electrical performance with minimal signal loss, reducing maintenance requirements while improving long-term system reliability and operational efficiency.

4. Competitive Advantages

• Consistently manufactured to stringent international quality standards for dependable RF performance
• Reliable global supply capability supporting OEM, telecommunications, and infrastructure projects
• Bulk production capacity ensuring stable availability for large-scale procurement
• Competitive pricing without compromising electrical or mechanical performance
• Durable corrosion-resistant construction minimizes replacement frequency and supports sustainable asset utilization
• Available with comprehensive technical documentation, dimensional drawings, material certifications, and engineering support for seamless system integration
• Suitable for demanding indoor and outdoor installations requiring long service life and dependable signal transmission

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 20–24 MT per 20-ft container (depending on packaging configuration) or 24–28 MT per 40-ft container
