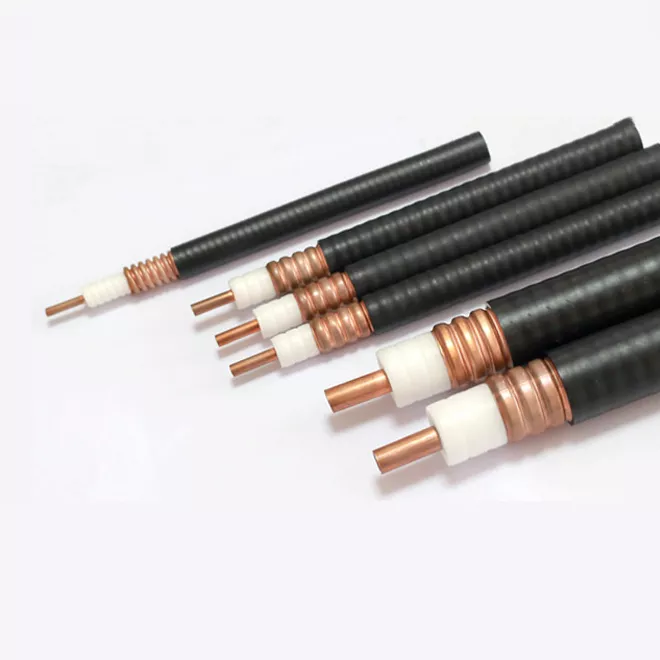

RF Cable 1 4 Inch

Description

1. Product Overview

RF Cable 1/4 Inch is a high-performance radio frequency coaxial cable designed for reliable transmission of high-frequency signals across telecommunications, wireless communication, broadcast, and industrial RF systems. Engineered with precision conductors, low-loss dielectric insulation, and robust shielding technology, it ensures excellent signal integrity, minimal attenuation, and stable performance in demanding environments. This cable is widely used for antenna connections, base station infrastructure, and RF equipment interconnections where durability and consistent electrical performance are critical. As global demand for advanced communication networks expands, 1/4 Inch RF Cable remains a strategic component for 5G, satellite, and industrial connectivity applications.

2. Key Specifications & Technical Characteristics

• Material Composition:
  • Inner conductor: High-conductivity copper or copper-clad aluminum (CCA) for efficient signal transmission
  • Dielectric insulation: Low-loss polyethylene (PE) or expanded polyethylene (Foam PE)
  • Shielding layer: Corrugated copper, aluminum, or braided metal shielding for electromagnetic protection
  • Outer jacket: UV-resistant polyethylene (PE) or flame-retardant PVC for environmental durability
• Grade / Performance Classification:
  • RF coaxial transmission cable
  • Low-loss communication grade
  • Suitable for commercial, industrial, and outdoor RF installations
• Physical Characteristics:
  • Cable size: 1/4 Inch (approximately 6.35 mm diameter class)
  • Structure: Flexible or semi-flexible coaxial design
  • Color: Typically black outer jacket
  • Operating frequency range: Up to several GHz depending on specification
  • Low attenuation design for long-distance signal transmission
  • Weather-resistant and corrosion-resistant construction
• Electrical Characteristics:
  • Characteristic impedance: 50 Ohms (standard RF communication impedance)
  • High shielding effectiveness against interference
  • Low return loss for improved signal efficiency
  • Stable performance under varying temperature conditions
• **Packaging Options:
  • Supplied in standard reels, wooden drums, or customized lengths
  • Export packaging available for containerized bulk shipments
  • Protective wrapping to prevent mechanical damage during transportation
• Shelf Life:
  • Typically 10+ years when stored under dry, temperature-controlled conditions

3. Core Industrial Applications

• Telecommunications & Wireless Networks
  • Used for connecting antennas, RF modules, repeaters, and base station equipment
  • Supports reliable signal transmission in 4G, 5G, and private wireless networks
• Broadcasting Systems
  • Applied in radio and television transmission infrastructure requiring stable RF performance
• Satellite Communication
  • Used in satellite antenna systems, ground stations, and RF signal distribution networks
• Industrial Automation & IoT Infrastructure
  • Enables dependable RF connectivity for industrial sensors, gateways, and communication devices
• Defense & Aerospace Communication
  • Suitable for secure RF transmission systems requiring high durability and signal reliability
• Performance Advantages Over Alternatives
  • Lower signal loss compared with standard cables
  • Superior shielding reduces electromagnetic interference
  • Compact size enables easier installation in space-limited applications
  • Long service life reduces replacement and maintenance costs

4. Competitive Advantages

• Consistent Quality Performance
  • Manufactured under strict quality control standards to ensure stable impedance, attenuation, and mechanical strength
• Reliable Supply Capability
  • Available for large-scale industrial procurement with consistent production capacity and export readiness
• Advanced Logistics Support
  • Optimized packaging for international shipping, bulk orders, and containerized transportation
• Cost Competitiveness
  • Provides an excellent balance between transmission performance, durability, and total lifecycle cost
• Environmental Benefits
  • Durable materials extend service life and reduce waste from frequent cable replacement
  • Options available with environmentally compliant materials and low-halogen insulation
• Technical Documentation & Support
  • Available with product specifications, test reports, quality certificates, and technical support for integration requirements

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity (MT per Container): Approximately 18–22 MT per 20-foot container depending on cable diameter, reel configuration, and packaging method.
