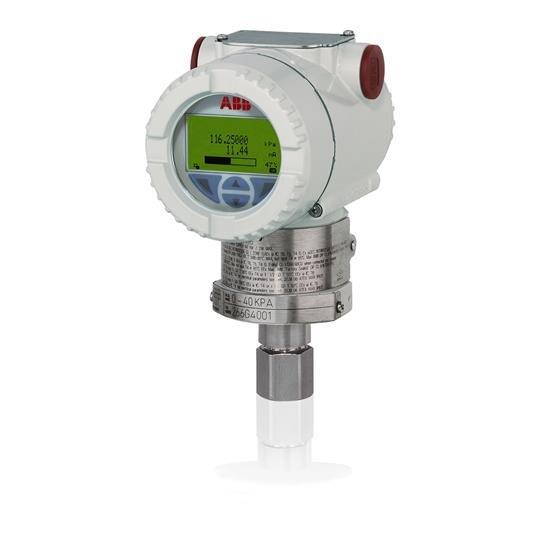

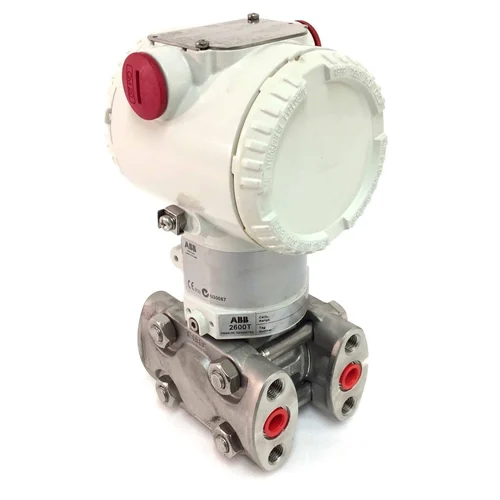

Pressure transmitter 2600T type

Description

1. Product Overview

The 2600T Pressure Transmitter is an industrial-grade instrument that measures static and dynamic pressure in liquids, gases, and steam for process control and safety systems. It delivers high-accuracy, stable pressure readings across wide operating ranges, enabling precise control of pumps, compressors, boilers, and hydraulic systems. Its key value proposition is reliable, long-term measurement fidelity with minimal drift, reducing downtime and improving process yield. Strategically, the 2600T addresses global demand for robust, field-ready transmitters that integrate into DCS/PLC networks and support stringent regulatory and uptime requirements in heavy industry.

2. Key Specifications & Technical Characteristics

• Measurement range: selectable ranges (0–1 bar to 0–600 bar) depending on model variant.

• Accuracy: typical ±0.05% to ±0.25% of span (depending on range and calibration option).

• Long-term stability: ≤0.1% span/year typical.

• Output signals: 4–20 mA HART / 4–20 mA with optional Modbus/FOUNDATION Fieldbus or digital protocols.

• Supply voltage: 12–36 V DC (standard), with intrinsic-safe and high-voltage options.

• Material construction: wetted parts stainless steel 316L (standard); optional Hastelloy C-276 or Monel for corrosive services.

• Seals and diaphragms: PTFE, Viton, or optional gold-plated diaphragms for aggressive media.

• Temperature rating: process temperature -40°C to +125°C (flange/diaphragm dependent); ambient -40°C to +85°C.

• Pressure ports: 1/4″ NPT, 1/2″ NPT, or flange connections (ANSI/ASME or DIN standards).

• Enclosure rating: IP66/IP67 as standard; optional IP68 for submersion; ATEX/IECEx certified versions available.

• Physical characteristics: compact transmitter housing; weight typically 1.2–2.5 kg depending on options; color: industry standard gray/metallic.

• Response time: <10 ms typical (electronic response <1 ms configurable).

• Power consumption: low-power design for loop-powered operation.

• Calibration: factory-traceable calibration certificate; on-site calibration supported.

• Documentation: technical datasheet, calibration certificate, installation & commissioning manual, CE/UKCA declarations, ATEX/IECEx certificates where applicable.

• Packaging options: wooden crate for bulk breakbulk; palletized in protective foam; export-grade cardboard for smaller orders; special packaging for hazardous or high-value variants.

• Shelf life / storage: not degradation-sensitive; recommended storage in dry, temperature-controlled environment; shelf-life guidance provided in datasheet.

3. Core Industrial Applications

• Oil & Gas: wellhead, pipeline, custody transfer, compressor and separator pressure monitoring. The 2600T’s accuracy and corrosion-resistant wetted materials deliver reliable readings in sour or saline environments.

• Petrochemical & Refining: reactor, distillation column, and heat-exchanger pressure control where stable long-term measurement reduces yield losses.

• Power Generation: boiler, steam drum, and turbine casing pressure management for safety trips and efficiency optimization.

• Water & Wastewater: pump station control, filtration systems, and pressure monitoring in treatment plants; robust ingress protection and low maintenance reduce lifecycle cost.

• Chemical Manufacturing: process reactors and storage tanks where aggressive media require specialized wetted materials and compatible diaphragms.

• Heavy Industry & Mining: hydraulic systems, slurry handling, and high-pressure filtration where mechanical durability and high overpressure protection are critical.
  Why it performs better than alternatives: the 2600T combines factory-traceable accuracy, material options for aggressive media, and industry-standard digital communications to minimize integration effort and calibration frequency. Its low drift and fast response time improve control-loop stability, reducing energy use and process variability.

4. Competitive Advantages

• Quality consistency: ISO-driven manufacturing with traceable serial-level calibration ensures repeatable performance across batches.

• Supply reliability: scalable production capacity and global distribution channels reduce lead times; options for stocked configurations for rapid shipment.

• Logistics capability: packaged for multimodal transport, supported by export documentation, customs clearance assistance, and global service hubs.

• Price competitiveness: modular platform reduces custom-engineering costs, enabling competitive unit pricing for bulk procurement without compromising performance.

• Sustainability: long service life and low maintenance reduce replacement rates; optional RoHS-compliant materials and recyclable packaging minimize environmental footprint.

• Technical support & documentation: multilingual product manuals, calibration certificates, application notes, and access to experienced field application engineers for integration and troubleshooting.
  Positioning: the 2600T is a strategic sourcing decision for buyers who require measurement reliability, global support, and predictable TCO for mission-critical pressure measurement.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): depends on configuration and packaging density; typical loading for a 20′ container up to 18–20 metric tonnes (packed), 40′ container up to 25–27 metric tonnes (packed).

• Lead time: configurable; stocked models available for expedited shipment, custom-configured units subject to typical manufacturing lead times (confirm at order).

• Warranty & service: standard warranty terms; extended warranty and on-site calibration/service contracts available.
