Polybutylene terephthalate (PBT resin)

Description

1. Product Overview
Polybutylene terephthalate (PBT resin) is a semi-crystalline, high-performance engineering thermoplastic renowned for its exceptional dimensional stability, chemical resistance, and heat aging properties. Primarily used in precision electronic components, automotive connectors, and industrial equipment housings, it delivers a unique balance of rapid crystallization (enabling fast cycle times) and high rigidity. With global supply chains under pressure to reduce failure rates in high-temperature, high-humidity environments, PBT resin has become a strategic substitute for nylon (PA6/66) and metal, offering lower moisture absorption and superior electrical insulation at a competitive total cost of ownership.

2. Key Specifications & Technical Characteristics

• Chemical composition: Polybutylene terephthalate homopolymer (unreinforced or available with 15–30% glass fiber reinforcement)

• Purity/grade: Injection molding grade, virgin resin; typical purity ≥99.5% (additive-free base resin)

• Physical characteristics:

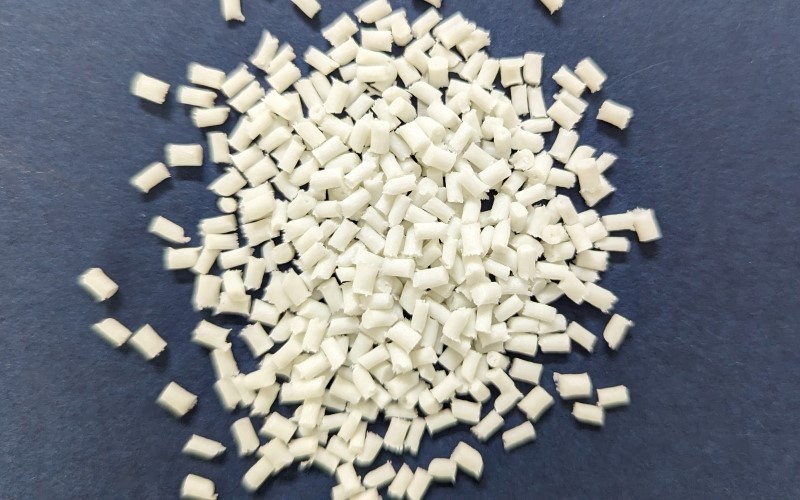

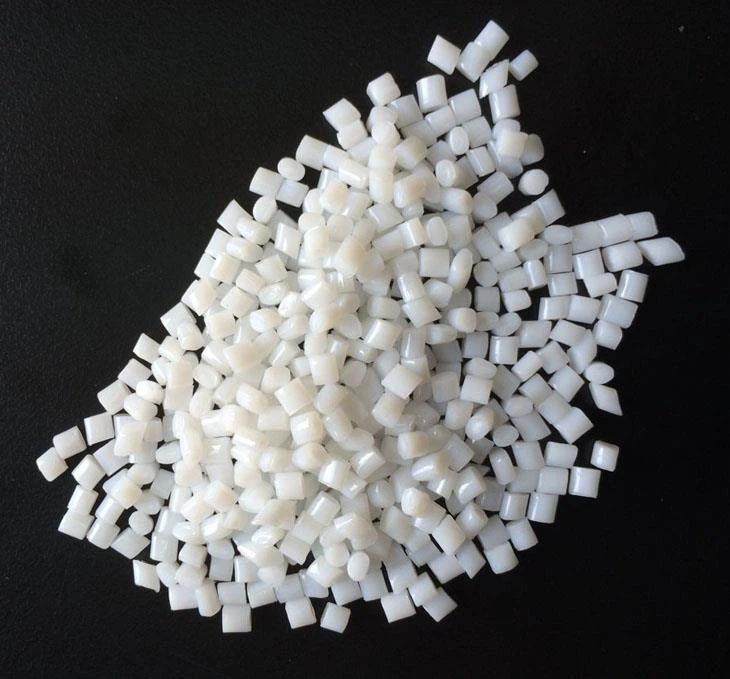

  • Form: Cylindrical or spherical pellets (2–3 mm diameter)

  • Color: Off-white to natural (light beige)

  • Melting point: 220–225°C

  • Density: 1.30–1.32 g/cm³ (unreinforced)

  • Melt flow index (MFI): 15–40 g/10 min (260°C/2.16 kg, grade dependent)

  • Water absorption: <0.1% (24 hr immersion)

• Packaging options: 25 kg moisture-barrier bags on pallets (1,000 kg per pallet); 500–1,000 kg FIBC big bags; 20 kg sealed kraft/aluminum foil bags for moisture-sensitive lines

• Shelf life: 12 months (if stored in original unopened packaging at <40°C and <60% RH); 6 months once opened

3. Core Industrial Applications

• Automotive electronics: Connectors, sensor housings, ignition coil casings, and actuator frames. PBT outperforms PA66 in high-humidity engine bays due to virtually zero moisture-induced swelling, ensuring stable connector pin retention and no cracking after thermal cycling.

• Electrical & consumer electronics: Circuit breakers, relay bases, USB-C connector insulators, and LED reflectors. Faster crystallization than PET or PPS means 15–30% shorter injection molding cycle times, directly lowering per-part production costs.

• Industrial equipment: Pump wear rings, gear blanks, and chemical pump housings. PBT’s excellent resistance to dilute acids, alkalis, and solvents at up to 120°C outperforms acetals (POM) which degrade in chlorinated water applications, reducing unscheduled downtime.

• Renewable energy: Photovoltaic junction box enclosures and EV charging plug housings. Superior tracking resistance (CTI ≥ 600V for certain grades) provides safety margin where polyamides fail due to carbonization.

4. Competitive Advantages

• Quality consistency: ISO 9001:2025 certified production with traceable batch data (including melt viscosity, ash content, and moisture level) from every lot. SPC-controlled to <2% coefficient of variation in key properties.

• Supply reliability: Multi-site manufacturing (Asia, Europe) with 12-month firm pricing options and dedicated safety stock for contract buyers. Proven 99.6% on-time-in-full (OTIF) over 18 consecutive quarters.

• Logistics capability: Pre-scheduled regular consolidation from major ports (Shanghai, Rotterdam, Houston) to 50+ countries. Express LCL for off-grade volumes.

• Price competitiveness: Structurally lower than PEEK, PPA, and LCP while exceeding ABS and PC in heat/chemical resistance at only 15–20% higher unit cost. Volume rebates and hedging programs available.

• Sustainability: Available with ISCC PLUS certified mass-balance bio-circular feedstock (up to 30% certified renewable carbon). Full EPD and RoHS/REACH/CA Prop 65 compliance documentation included.

• Technical support: On-call application engineering (including Moldflow simulation, drying protocols, and design-for-molding audits) at no charge for orders >20MT annually.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT (split across max 2 grades/colors per container)

• Loading capacity per standard 20FT container: 20 metric tons (net) – equivalent to 800 x 25kg bags or 20–22 FIBC big bags, palletized and shrink-wrapped for containerization
