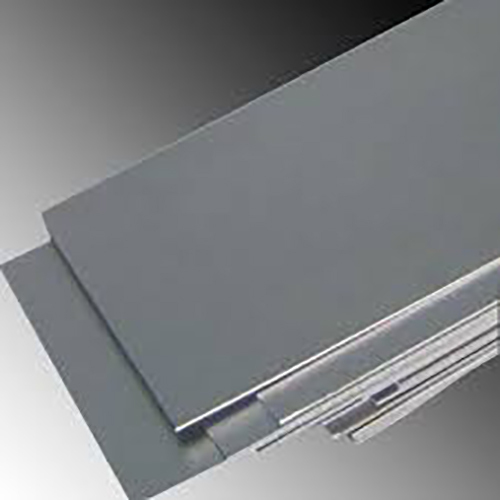

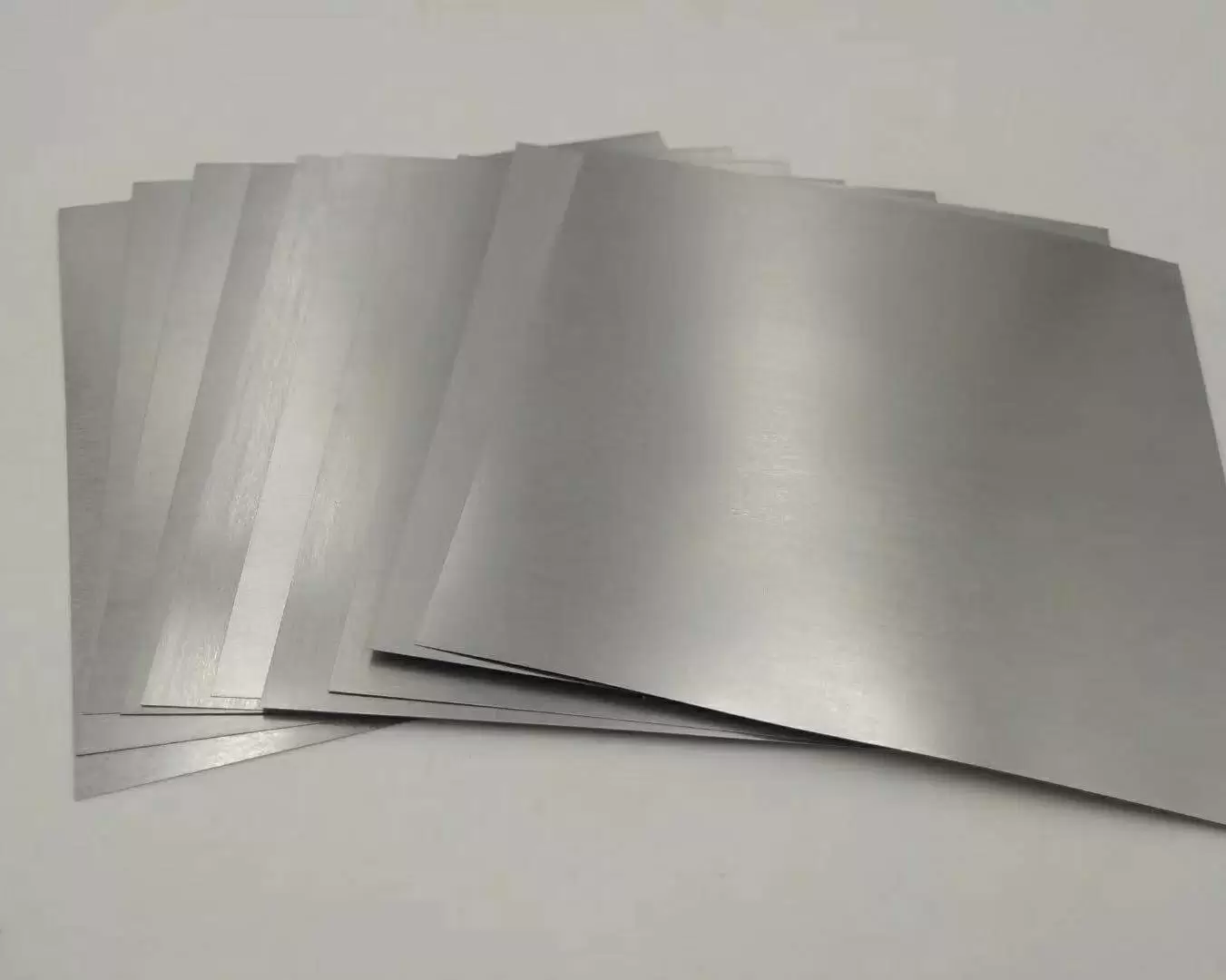

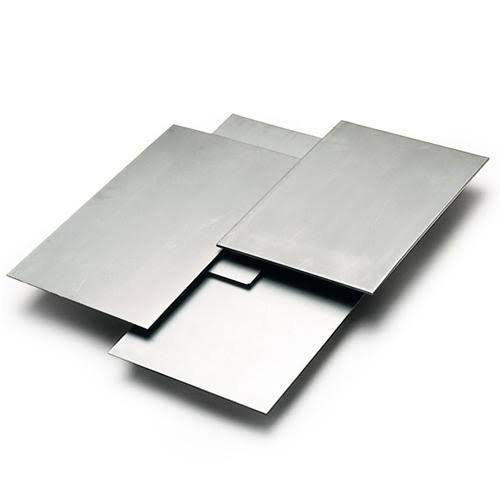

Molybdenum Sheet Material (MSM-10)

Description

1. Product Overview

Molybdenum Sheet Material (MSM-10) is a high-temperature, refractory metal sheet engineered from premium-grade molybdenum, offering exceptional thermal stability and mechanical strength in extreme environments. It is primarily used in high-temperature furnace components, glass melting electrodes, and aerospace structural parts where creep resistance and dimensional stability are critical. The key value proposition lies in its superior resistance to thermal shock and corrosion at temperatures exceeding 1,900°C in inert atmospheres. As global industries push toward higher efficiency and higher operating temperatures, MSM-10 provides a strategically indispensable material for advanced manufacturing and energy sectors.

2. Key Specifications & Technical Characteristics

• Chemical Composition: ≥99.95% pure molybdenum (Mo), with trace elements (Fe, Ni, C, O, N) each <100 ppm

• Purity Grade: High-purity Grade 365 (ASTM B386 / B387 compliant)

• Physical Form: Rolled or annealed sheet

• Color: Silver-gray metallic luster

• Density: 10.22 g/cm³ (theoretical >99.9%)

• Thickness Range: 0.1 mm – 15.0 mm (±0.02 mm tolerance for critical dimensions)

• Width/Length: Up to 600 mm × 1,500 mm (custom slit coils available)

• Surface Finish: Pickled, ground, or polished (Ra ≤0.8 μm upon request)

• Packaging Options: Vacuum-sealed anti-corrosion poly bags + wooden crates with desiccant, nitrogen-purged for long storage

• Shelf Life: 24 months in unopened original packaging under dry, room-temperature conditions

3. Core Industrial Applications

• High-Temperature Vacuum Furnaces (Primary Industry)
  Use case: Heat shields, heating element supports, sintering trays.
  Advantage: MSM-10 retains structural integrity at 1,800°C while alternative materials (e.g., graphite, tungsten alloys) suffer from oxidation or embrittlement, reducing downtime by up to 40%.

• Glass & Ceramic Manufacturing
  Use case: Electrodes for electric melting of specialty glass (borosilicate, LCD glass).
  Advantage: Unlike refractory metals like tantalum, MSM-10 offers lower cost per amp-hour and superior wetting resistance to molten glass, extending electrode life by 25–30%.

• Aerospace & Defense
  Use case: Rocket nozzle inserts, leading-edge re-entry components.
  Advantage: High creep resistance and low coefficient of thermal expansion (5.2 × 10⁻⁶/K) ensures dimensional accuracy under rapid thermal cycling – outperforming niobium alloys.

• Electronics & Semiconductor
  Use case: Sputtering targets, ion implantation components.
  Advantage: Ultra-low impurity levels eliminate cross-contamination risk in thin-film deposition, directly improving wafer yield.

4. Competitive Advantages

• Quality Consistency: Statistical process control (SPC) with 100% ultrasonic flaw detection; batch traceability down to ingot source.

• Supply Reliability: Dual-source raw material strategy with 12-month rolling forecast commitment; on-time delivery rate >98% for contracted orders.

• Logistics Capability: Global distribution hubs (Asia, EU, North America); expedited air freight option for emergency restocking (5–7 days).

• Price Competitiveness: Direct sintering and rolling integration eliminates middle margins – typically 10–15% below EU and Japanese equivalents for equal purity.

• Sustainability: Over 70% recycled content from closed-loop molybdenum scrap; ISO 14001-certified facility with zero liquid discharge.

• Technical Support: Full material certification pack (EN 10204 Type 3.1) + on-call metallurgical engineer for process optimization.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 100 kg per thickness specification (sample sheets available at 10 kg for qualification)

• BULK Loading Capacity:

  • 20FT standard container: max 22 metric tons (MT)

  • Recommended bulk order: 20 MT (full truckload equivalent for cost optimization)

• Lead Time:

  • Stock sizes: 10 working days

  • Custom dimensions: 25 working days ex-works

• Incoterms Supported: EXW, FOB (Shanghai/Rotterdam), CIF, DDP upon credit approval

For RFQ, technical datasheet, or mill test certificate – request enterprise portal access.
