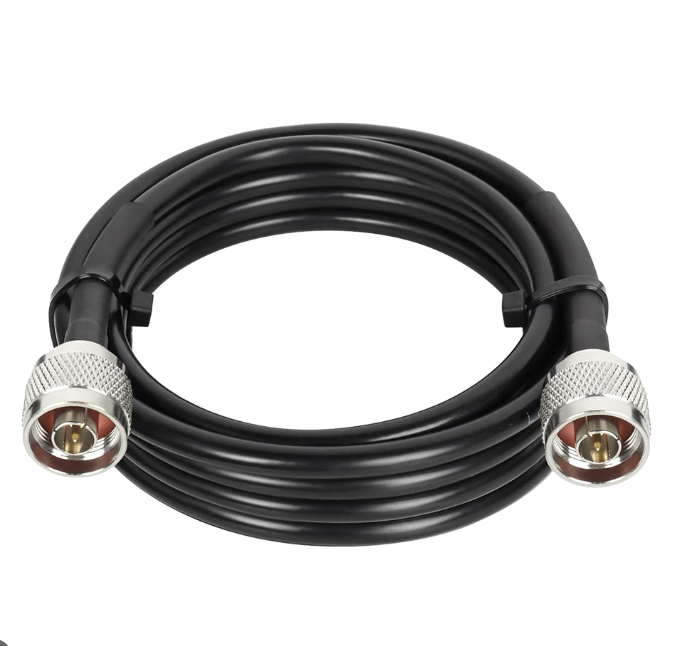

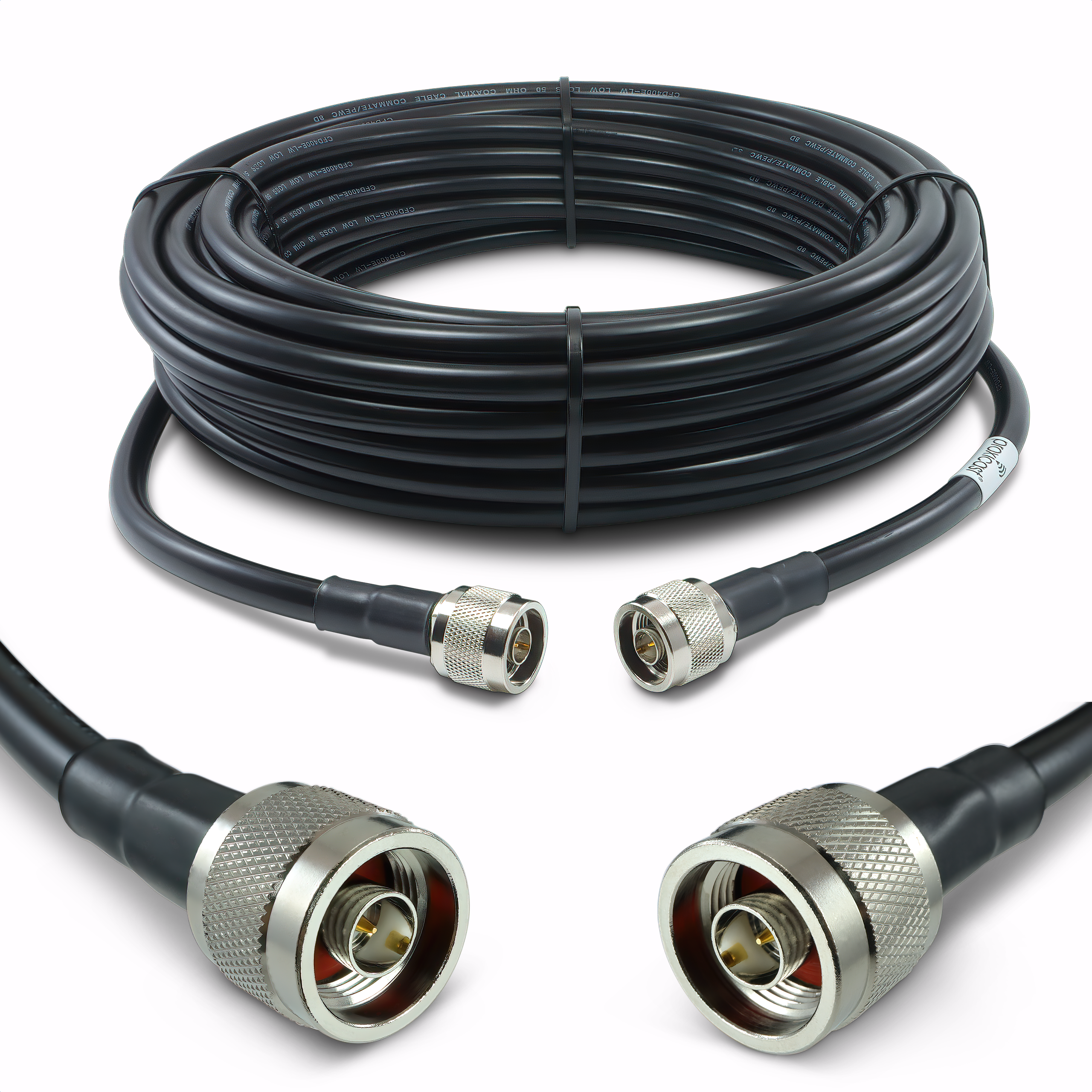

Low Loss RF Cable

Description

1. Product Overview

Low Loss RF Cable is a high-performance coaxial transmission cable engineered to minimize signal attenuation and maintain reliable high-frequency signal integrity across demanding communication systems. It is widely used in telecommunications, wireless networks, satellite systems, defense electronics, broadcasting, and industrial RF applications where efficient signal transfer is critical. Designed with advanced low-loss dielectric materials and precision shielding technology, it delivers superior performance, durability, and long-distance connectivity. As global demand for 5G infrastructure, satellite communication, and high-frequency electronic systems expands, low loss RF cables remain a strategically important component for modern connectivity networks.

2. Key Specifications & Technical Characteristics

• Material Composition:
  • Inner conductor: High-conductivity copper or copper-clad aluminum (CCA) for optimized electrical performance
  • Dielectric insulation: Low-loss polyethylene (PE), expanded PTFE, or foam dielectric materials
  • Shielding layer: Multi-layer aluminum foil, copper braid, or tinned copper shielding for enhanced electromagnetic protection
  • Outer jacket: UV-resistant polyethylene (PE), PVC, or flame-retardant materials for environmental durability
• Performance Grade:
  • Low attenuation RF transmission grade
  • High-frequency impedance-controlled design (typically 50 Ohm or 75 Ohm)
  • Suitable for microwave and broadband RF applications
• Physical Characteristics:
  • Form: Flexible or semi-flexible coaxial cable
  • Color: Typically black outer jacket (custom colors available)
  • Frequency range: Designed for MHz to GHz applications depending on cable type
  • Low signal loss and high shielding effectiveness
  • Temperature resistance: Suitable for indoor and outdoor industrial environments
• Packaging Options:
  • Wooden reels, plastic reels, or customized coil packaging
  • Export-grade moisture-resistant packaging
  • Customized lengths available according to project requirements
• Shelf Life:
  • Typically 10+ years when stored under recommended environmental conditions

3. Core Industrial Applications

• Telecommunications & 5G Networks
  • Used for base station connections, antenna feeder systems, and RF signal distribution networks requiring minimal transmission loss.
• Satellite & Aerospace Communication
  • Supports high-frequency signal transmission in satellite ground stations, radar systems, and aerospace communication equipment.
• Broadcasting Systems
  • Applied in radio, television, and professional broadcasting infrastructure where signal clarity and stability are essential.
• Defense & Security Electronics
  • Utilized in radar, electronic warfare, and secure communication systems requiring reliable RF performance.
• Industrial Automation & Testing Equipment
  • Enables accurate signal transmission in RF testing systems, measurement instruments, and advanced electronic equipment.

Performance Advantages:

• Lower attenuation compared with standard coaxial cables, improving signal strength over long distances
• Enhanced shielding reduces electromagnetic interference (EMI) and signal distortion
• High mechanical strength supports demanding industrial installations
• Longer service life reduces replacement and maintenance costs

4. Competitive Advantages

• Quality Consistency: Manufactured with precision-controlled materials and advanced production processes to ensure stable electrical performance across large-volume orders.
• Supply Reliability: Supported by scalable manufacturing capacity and consistent global sourcing capabilities for telecom and industrial projects.
• Logistics Capability: Export-ready packaging with flexible shipment options for bulk orders and international distribution.
• Price Competitiveness: Optimized manufacturing processes provide strong cost-performance advantages compared with premium RF cable alternatives.
• Sustainability Benefits: Durable construction reduces replacement frequency and supports longer operational lifecycles, minimizing material waste.
• Technical Support & Documentation: Available with technical datasheets, performance specifications, quality certifications, and application guidance for engineering requirements.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 18–22 MT per 20-foot container (depending on cable diameter, reel size, and packaging configuration)
