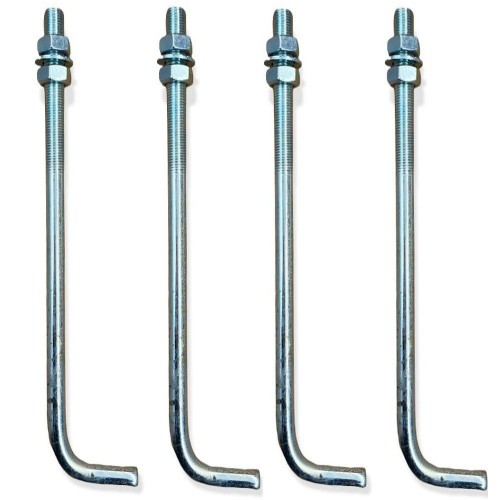

L-Type Anchor Bolt — F1554 / DIN equivalent

Description

1. Product Overview
   The L-Type Anchor Bolt is a high-strength structural fastener manufactured to ASTM F1554 specification with DIN-equivalent compliance, featuring a distinctive 90° bent (L-shaped) geometry designed for anchoring heavy structural supports to concrete foundations. Its primary industrial use is in civil, commercial, and industrial construction projects where permanent, load-bearing connections between steel structures and concrete are required. The key value proposition is its superior pull-out resistance and mechanical anchoring capability compared to straight bolts, eliminating the need for additional epoxies or expansion mechanisms. Strategically, this product is critical in the global construction market as it ensures structural integrity for building columns, bridge supports, highway sign posts, and industrial equipment mounts, making it a non-negotiable component in safety-compliant infrastructure projects.

2. Key Specifications & Technical Characteristics

• Material Components: Carbon steel, carbon boron steel, alloy steel, or high-strength low-alloy (HSLA) steel per ASTM F1554

• Grade Options: F1554 Grade 36 (36 ksi yield), Grade 55 (55 ksi yield), or Grade 105 (105 ksi yield) — buyer-specified

• Purity/Quality Standard: Full compliance with ASTM F1554 chemical requirements, mechanical properties, and dimensional tolerances; ISO 9001 manufacturing quality system

• Physical Characteristics:

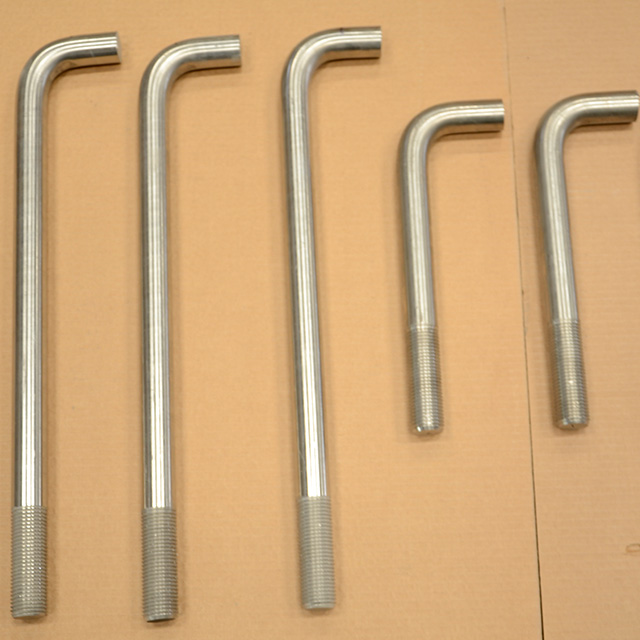

  • Form: L-shaped (90° bent) with straight threaded end for nut engagement

  • Body: Full-bodied cut-thread or reduced-bodied roll-thread options

  • Finish: Plain (uncoated) or hot-dip galvanized for corrosion protection

  • Bend Angle: 90° ± 5° tolerance

  • Hook Length Tolerance: ± 10% or ± ½” (whichever greater)

• Packaging Options: Bulk loose-packed in steel drums, bundled with protective wrapping, or containerized for export; custom packaging available for large orders

• Shelf Life: Indefinite when stored in dry conditions; galvanized variants offer enhanced long-term corrosion resistance

3. Core Industrial Applications

• Primary Industries: Civil construction, commercial real estate, industrial manufacturing, infrastructure (bridges, highways), energy (power plants, oil & gas facilities), and transportation (signage, lighting)

• Specific Operational Use Cases:

  • Anchoring building columns to concrete foundation slabs

  • Mounting column supports for highway signs, street lighting, and traffic signals

  • Securing steel bearing plates and heavy industrial equipment (generators, compressors, turbines)

  • Bridge support anchoring and structural frame connections

• Performance Advantages Over Alternatives:

  • Efficiency:preload-free mechanical anchoring eliminates epoxy curing time (vs. epoxy anchors)

  • Durability: 90° bend provides superior pull-out resistance and rotational stability under seismic/load cycling

  • Cost Advantage: Lower installed cost than expansion anchors; no specialized drilling equipment required

4. Competitive Advantages

• Quality Consistency: Full ASTM F1554 certification with heat-analysis chemical reports and mechanical test documentation for every batch

• Supply Reliability: ISO 9001-certified manufacturer with 20MT+ monthly production capacity; stock available for standard sizes

• Logistics Capability: Optimized container loading (see Section 5); global shipping with FOB/CIF terms; 7–14 day port delivery

• Price Competitiveness: Direct factory pricing 15–25% below Western brand equivalents; volume discounts for 50MT+ orders

• Sustainability Benefits: Galvanized variants meet ASTM A153 corrosion protection standards; steel is 100% recyclable

• Technical Support: Full technical data sheets, CAD drawings, installation guides, and engineering consultation available

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT

• Loading Capacity: 20MT per 20-foot dry container (approx. 1,200–1,500 units depending on diameter/length)L-Type Anchor Bolts manufactured to ASTM F1554 and DIN equivalent standards provide reliable structural anchoring for steel structures, foundations, and heavy equipment installations. Engineered for high tensile strength and long-term durability, these bolts ensure secure load transfer and dependable performance in demanding environments. Available in various grades, sizes, and finishes, they offer excellent compatibility with diverse construction requirements. Competitive Advantage Spotlight: Precision manufacturing and international standard compliance deliver consistent quality, superior strength, and enhanced installation reliability.
