Indium Tin Oxide (ITO) Target Materials

Description

1. Product Overview
Indium Tin Oxide (ITO) targets are sintered ceramic materials used for sputtering transparent conductive oxide (TCO) coatings. Primary industrial applications include flat-panel displays, touch sensors, and photovoltaic modules. The key value proposition is industry-leading uniformity and density (>99.7% theoretical density), minimizing arcing and particle generation during deposition. Strategically, ITO is indispensable for advanced electronics manufacturing where yield stability and material efficiency directly impact production profitability.

2. Key Specifications & Technical Characteristics

• Chemical composition: In₂O₃ / SnO₂ (90:10 wt% standard; custom ratios 95:5 to 85:15 available)

• Purity grade: 99.99% (4N) minimum; 99.995% (4N5) upon request

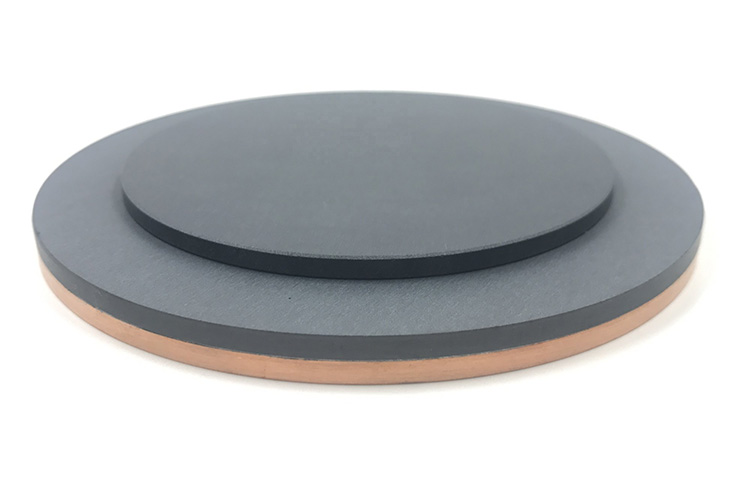

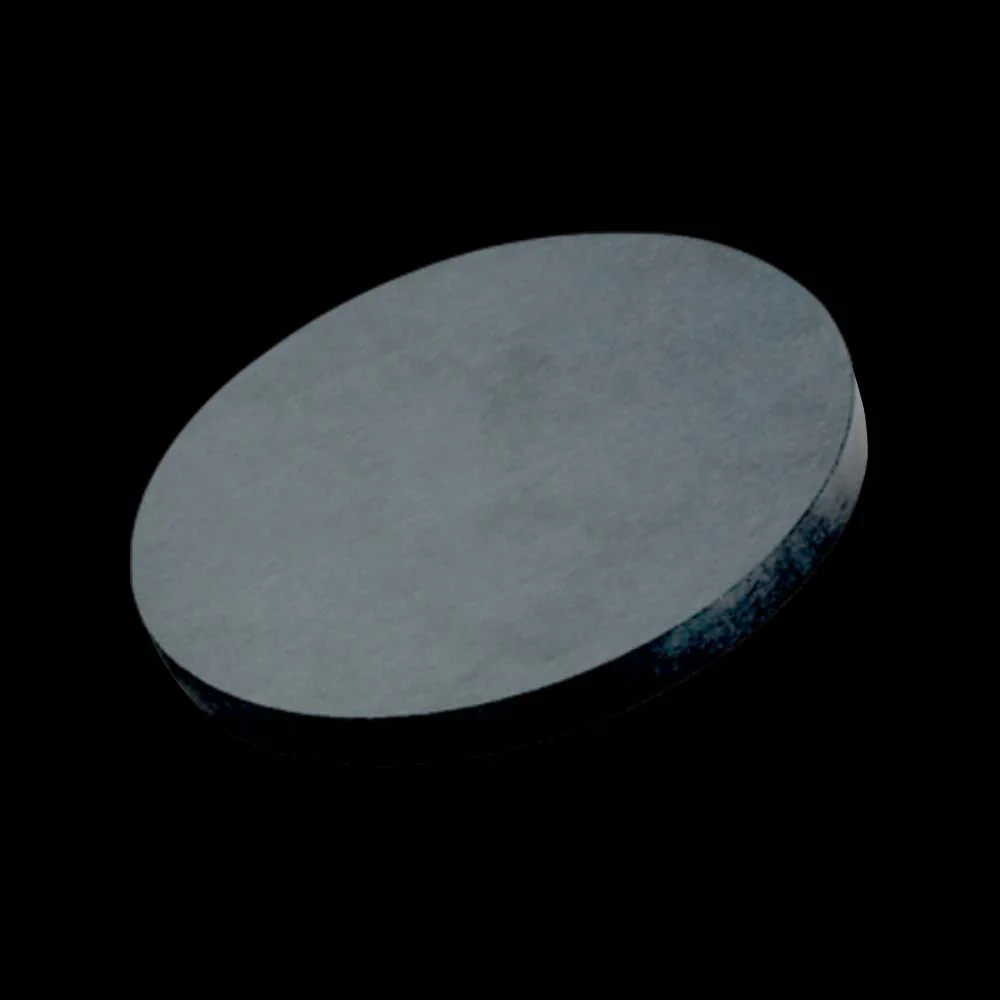

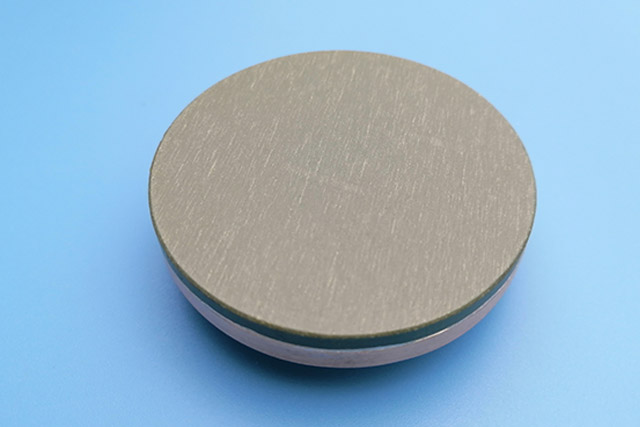

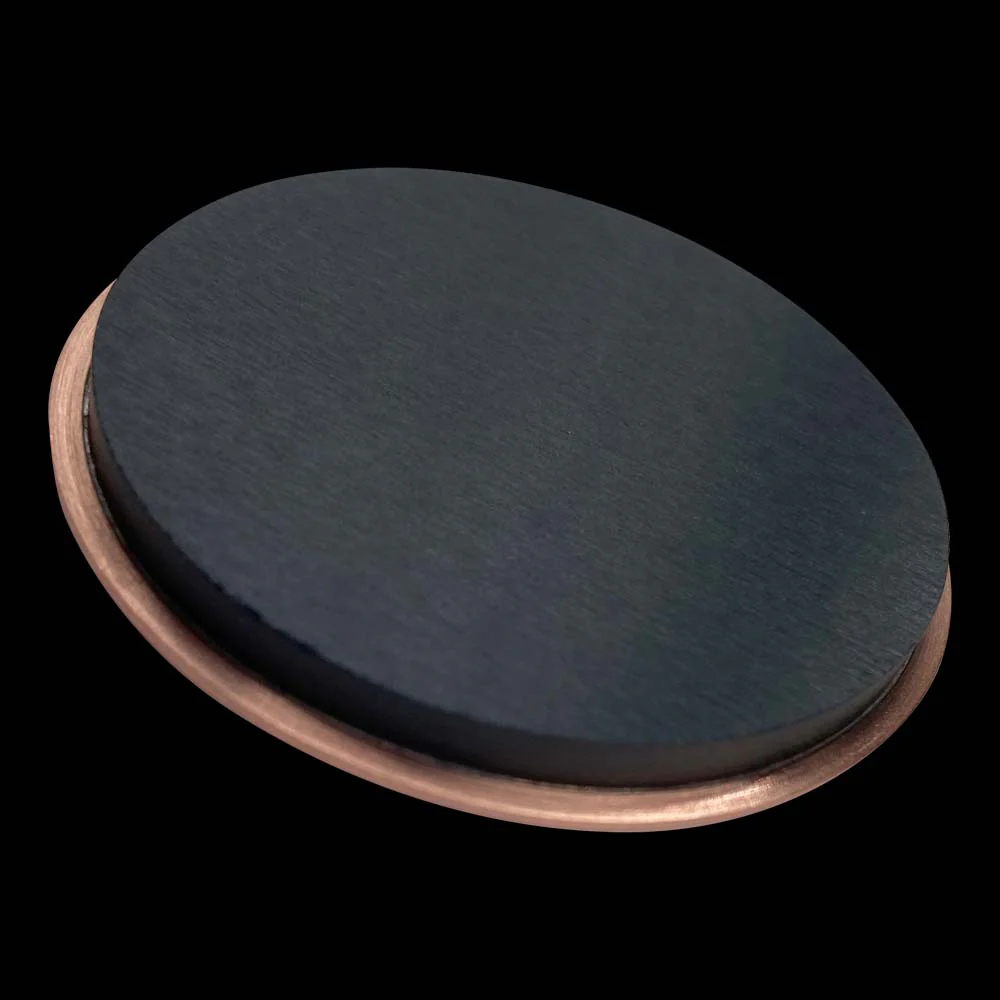

• Physical characteristics: Dark gray to greenish-gray ceramic disc, rectangular, or rotary tube; particle size D50 <5 µm; relative density ≥99.7%; resistivity ≤0.2 mΩ·cm

• Packaging options: Vacuum-sealed anti-static bag inside HDPE drum with desiccant; wooden crate for oversize targets

• Shelf life: 24 months when stored in dry, inert environment (<30% RH, 15–25°C)

3. Core Industrial Applications

• Flat-panel displays (LCD, OLED, microLED): Used for pixel electrodes and common electrodes → outperforms alternative TCOs with lower sheet resistance (≤15 Ω/sq) and 92% optical transmittance.

• Touch panels (capacitive, resistive): Applied as sensor layer → reduces RC delay, enabling faster touch response and larger panel sizes.

• Solar cells (a-Si, CIGS, perovskite): Front-contact TCO layer → higher carrier mobility (30–45 cm²/V·s) reduces series losses, improving module efficiency by 0.5–1.0% absolute.

• Low-emissivity (Low-E) glass: Infrared-reflective coating → delivers uniform thickness across 2.5 m width, cutting scrap rates by 15%.

4. Competitive Advantages

• Quality consistency: Six-sigma-controlled sintering process; each batch certified by GD-MS and XRD with traceability to raw indium ore source.

• Supply reliability: Long-term off-take agreements with refined indium producers; 24/7 buffer stock in three continents (Asia, Europe, North America).

• Logistics capability: DDP to any major industrial zone within 12–18 days; real-time temperature/humidity monitoring for sensitive shipments.

• Price competitiveness: Vertically integrated from mining to target finishing, removing 2–3 intermediary markups.

• Sustainability: 98% indium recovery via closed-loop recycling program; carbon-neutral shipping option available.

• Technical support: Free 3D target design validation, on-site bonding consultation, and 24-hour post-deposition yield analysis.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 5 kg for standard rectangular targets; 20 kg for rotary targets

• Bulk loading capacity: 20 metric tons (MT) per 20-ft container (mixed sizes packed in customized pallets)

• Lead time: 15 days for MOQ; 30 days for bulk orders of 20 MT
