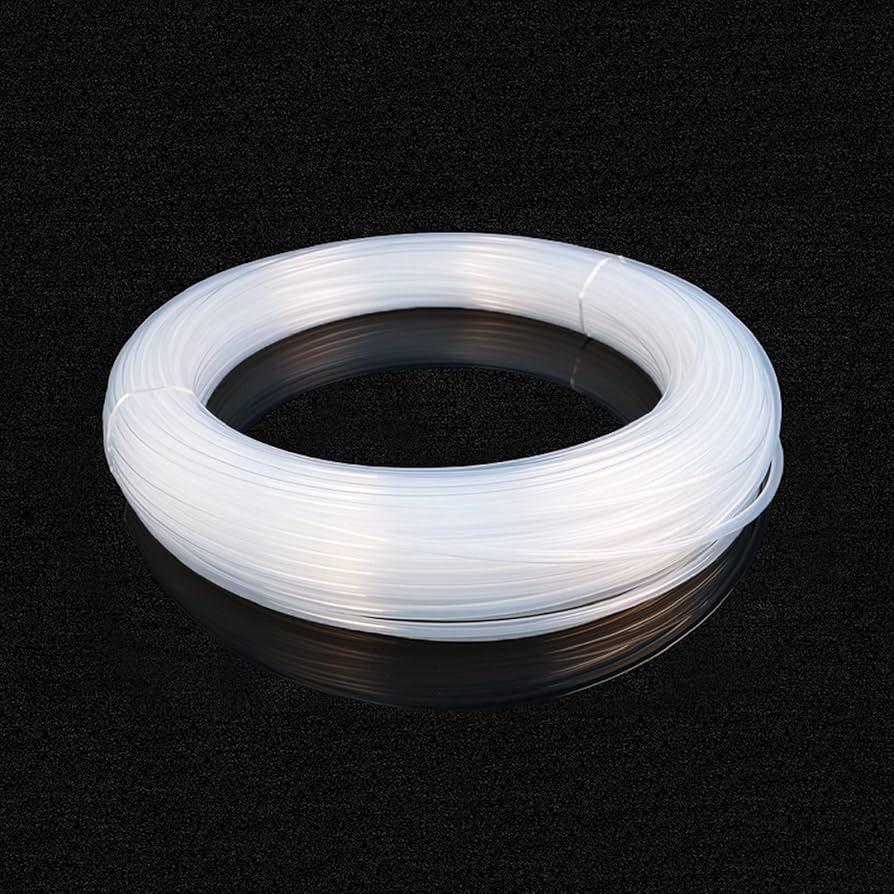

High-Purity PTFE Tubing (PFA / PTFE SEMI GRADE)

Description

1. Product Overview

This High-Purity PFA/PTFE SEMI Grade Tubing is engineered for the most demanding fluid handling applications in semiconductor fabrication, pharmaceutical processing, and ultra-clean chemical delivery. Manufactured under strict contamination-controlled conditions, it provides exceptional chemical inertness, thermal stability, and trace-metal extractables well below SEMI standards. As global fabs scale to advanced nodes (sub-5nm) and biopharma tightens leachables requirements, this tubing becomes a strategic enabler—reducing downtime, protecting yield, and ensuring regulatory compliance across high-value production lines.

2. Key Specifications & Technical Characteristics

• Chemical Composition: Perfluoroalkoxy alkanes (PFA) and Polytetrafluoroethylene (PTFE) – fully fluorinated polymer, no plasticizers or fillers

• Purity Grade: SEMI C57, C70 compliant; extractable ions (e.g., Cl⁻, F⁻) < 1 ppb; metals (e.g., Fe, Cr, Ni) < 0.1 ppb

• Physical Characteristics:

  • Inner diameter range: 1/8″ to 1″ (custom metric sizes available)

  • Translucent, smooth internal bore (Ra < 0.25 µm)

  • Operating temperature: –40°C to +260°C

  • Max working pressure: up to 800 psi (varies by wall thickness)

• Packaging Options: Double-bagged in Class 100 (ISO 5) cleanroom environment; spool lengths from 15 m to 300 m; cut sticks available

• Shelf Life: 10 years minimum when stored away from UV, ozone, and mechanical stress

3. Core Industrial Applications

• Semiconductor Manufacturing: High-purity chemical distribution (e.g., slurries, photoresists, cleaning solvents) in wet benches, CDS, and CMP systems. PFA tubing’s ultra-low extractables eliminate process contamination—critical for yield at advanced nodes where single defect particles can scrap an entire wafer lot.

• Pharmaceutical & Bioprocessing: Sterile fluid transfer, WFI (water for injection) loops, and aggressive solvent lines. Unlike stainless steel, PTFE is non-reactive and eliminates corrosion byproducts, reducing validation burden under USP <88> Class VI and FDA 21 CFR 177.1550.

• Analytical Instrumentation: Capillary connections in HPLC, ICP-MS, and gas analyzers. Superior chemical resistance extends component life by 3–5x vs. standard polymer tubes, lowering consumables cost per test.

• Chemical Processing: Handling acids (HF, H₂SO₄), bases, and ultrapure organics at elevated temperatures. No swelling, leaching, or permeation—ensures batch integrity in specialty chemical production.

4. Competitive Advantages

• Quality Consistency: Lot-to-lot traceability with statistical process control (SPC) on ID tolerance, extractables, and burst pressure. Certificates of Analysis (CoA) provided for every batch.

• Supply Reliability: Dual-source manufacturing (Americas and Asia) with safety stock agreements available. Lead times 3–4 weeks for standard sizes; 1-week expedite for critical fab ramp-ups.

• Logistics Capability: Global distribution via temperature-controlled air and sea freight. Real-time tracking integration with customer ERP systems.

• Price Competitiveness: Tiered pricing aligned with annual volume commitments (10%–18% below leading European and Japanese brands) without compromising SEMI-grade certification.

• Sustainability: 100% fluoropolymer recycling program for post-industrial waste. Reduced solvent usage in manufacturing vs. competitive grades (mass balance audited).

• Technical Support: Dedicated field application engineers for weldability, thermoforming, and custom manifold integration. Full documentation package: MSDS, USP Class VI, SEMI F57, and REACH/RoHS declarations.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT (metric tons) — equivalent to approximately 1,000–1,500 km of standard ¼″ tubing, depending on wall thickness.

• Loading Capacity: 20 MT per 20-ft standard dry container (palletized, 1,200 mm × 1,000 mm footprint, max stack height 1.8 m). Partial container shipments available for qualified distributors.
