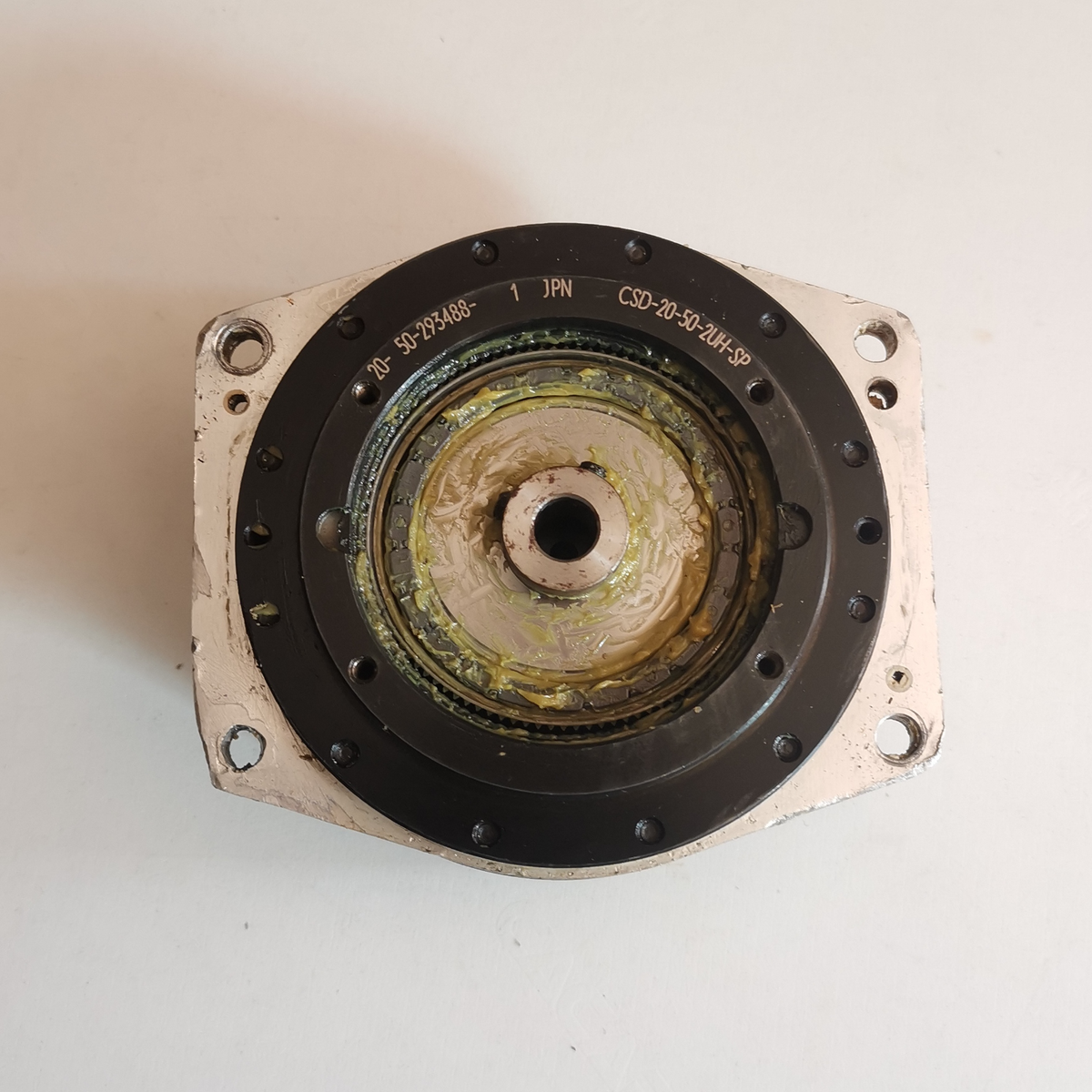

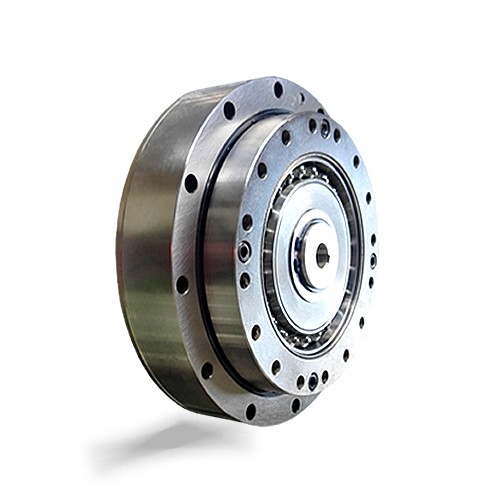

Harmonic Reducers (CSD / SHD SERIES)

Description

1. Product Overview

The CSD and SHD Series Harmonic Reducers represent a class of precision strain-wave gearing engineered for zero-backlash motion control and high-ratio torque transmission in compact form factors. These components are primarily used in robotics, aerospace actuation, and CNC rotary axes to enable sub-arcminute positional accuracy while maintaining torsional rigidity. Their strategic value lies in enabling miniaturization without sacrificing load capacity—directly addressing the industrial megatrend toward denser, lighter, and more energy-efficient automated systems.

2. Key Specifications & Technical Characteristics

• Mechanical composition: Case-hardened special steel (cup flexspline), high-durability duplex bearing (wave generator), and rigid circular spline.

• Precision grade: Transmission error ≤ 30 arcsec (standard) / ≤ 20 arcsec (precision grade available).

• Backlash: Zero-backlash (standard for both CSD and SHD).

• Reduction ratios: 30:1 to 160:1 (CSD) / 50:1 to 160:1 (SHD high-torque variant).

• Rated torque range: 2.8 Nm to 686 Nm depending on model size (14 to 50 frame sizes).

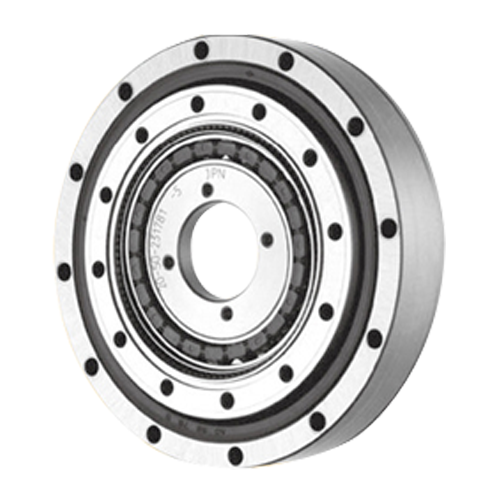

• Physical form: Hollow-bore shaft option (SHD series) / solid shaft (CSD series); outer diameter from 65 mm to 185 mm.

• Operating temperature: -20°C to +80°C (grease-lubricated, maintenance-sealed).

• Packaging options: Individual anti-corrosion VCI bag + foam-lined industrial cartons; bulk palletized for OEM integration lines.

• Shelf life: 8 years (unopened, dry warehouse storage at 10–40°C / ≤75% RH).

3. Core Industrial Applications

• Collaborative & industrial robotics (joint modules): Direct replacement for traditional cycloidal or planetary boxes where weight and zero-backlash are critical. The SHD’s hollow bore allows cabling through the joint, reducing robot arm bulk by up to 35% versus external wiring.

• Semiconductor wafer handling (EFEMs / atmospheric robots): CSD series provides sub-arcminute repeatability for precise die placement; high shock-load tolerance protects against emergency stops.

• Aerospace actuation (satellite solar panel drives, flight control surfaces): Low vibration signature and high vacuum compatibility (outgassing compliant) make SHD series preferred for non-back-drivable, high-hold-torque applications.

• Medical robotics (surgical manipulators, exoskeletons): The compact axial length (as low as 22 mm for size 14 CSD) enables lightweight, back-drivable designs for haptic feedback systems.

Performance advantage: Compared to planetary gears, harmonic reducers achieve double the torque density (Nm/kg) and eliminate periodic error from tooth meshing variation. Versus cycloidal drives, they operate at 20–30 dB lower noise floor and require 50% fewer maintenance intervals.

4. Competitive Advantages

• Quality consistency: 100% in-line transmission error and stiffness testing per unit; lot-to-lot Cpk ≥ 1.33 for key parameters (backlash, torque ripple).

• Supply reliability: Three redundant manufacturing sites (Asia Pacific, EU, Americas) with 12-week lead time for custom ratios and 2-week for standard SKUs.

• Logistics capability: Door-to-door tracking with bonded warehousing in Rotterdam, Singapore, and Houston; expedited air freight available for line-down protection.

• Price competitiveness: Tier-1 pricing but at 15–20% below EU/Japanese equivalents while maintaining equivalent ISO 13849 (safety) and RoHS3 compliance.

• Technical support: Full 3D CAD step files, lifetime grease recommendation matrix, and direct engineering support for mounting flange integration (48-hour response SLA for enterprise accounts).

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT (mixed sizes/ratios allowed; equivalent to approx. 4,500–6,000 units depending on frame size).

• Loading capacity: 20 MT per 20-foot dry container (stackable pallets, max height 1.1 m per layer).
