Ball Screws (THK BTK / NSK)

Description

1. Product Overview

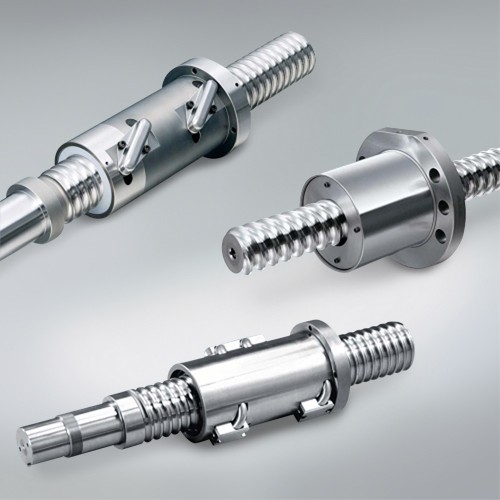

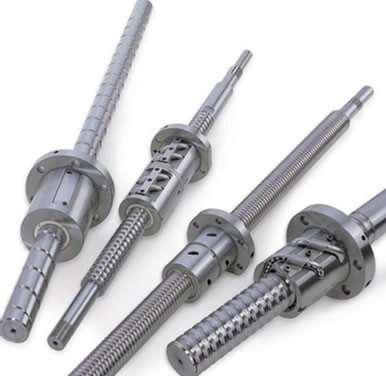

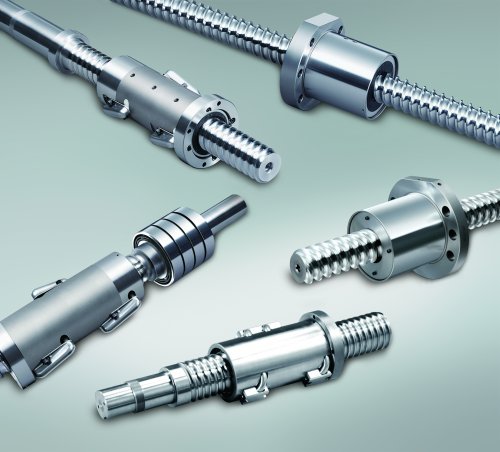

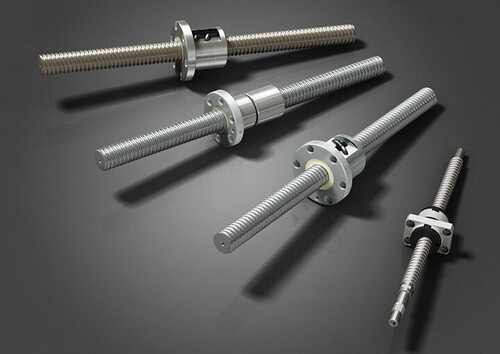

The Ball Screws (THK BTK / NSK) are precision-ground or rolled mechanical linear actuators engineered to convert rotary motion into high-efficiency linear motion with minimal friction. These components serve as the critical motion backbone for CNC machine tools, semiconductor manufacturing equipment, and high-speed automated assembly lines. Their key value proposition lies in delivering sub-micron positioning accuracy, exceptional load rigidity, and a service life exceeding 10 million meters of travel under rated loads. Strategically, they are indispensable for industries where downtime costs exceed $10,000/hour, making reliability and interchangeability with OEM standards a non-negotiable market requirement.

2. Key Specifications & Technical Characteristics

• Material Components: Premium carburized alloy steel (e.g., SCM420H equivalent) for screws; SUJ2 (AISI 52100) bearing-grade steel for balls; case-hardened to HRC 58–62 with 0.8–1.5 mm effective depth.

• Accuracy Grades: Available from C10 (rolled) to C0 (ground, ultra-precision); backlash preload options from 0 to 0.005 mm.

• Physical Characteristics:

  • Shaft diameter range: Ø6 mm – Ø80 mm

  • Lead accuracy: ±0.018 mm per 300 mm (C7 grade) down to ±0.002 mm per 300 mm (C0 grade)

  • Dynamic load rating (Ca): 500 N – 150,000 N

• Packaging Options: Anti-rust VCI paper + individual foam-lined industrial cartons; palletized wooden crates for bulk orders; vacuum-sealed for humidity-controlled logistics.

• Shelf Life: 24 months in unopened, climate-controlled storage (RH ≤ 60%, 0–40°C) without performance degradation.

3. Core Industrial Applications

• Primary Industries: Precision machine tools (3/5-axis mills, EDM, grinders), semiconductor wafer handling robots, medical imaging gantries, aerospace actuator systems, and high-speed packaging lines.

• Operational Use Cases:

  • CNC machining: Provides backlash-free Z-axis thrust control, achieving surface finishes ≤ Ra 0.4 µm.

  • Semiconductor inspection: Enables step-and-repeat positioning with settling time < 50 ms over 500 mm travel.

• Performance vs. Alternatives: Outperimes hydraulic cylinders (no leak risk, 70% less energy loss) and Acme lead screws (3x–5x higher efficiency, 10x longer service life). THK BTK series offers 20% higher dynamic load capacity than industry average; NSK models deliver ≤ 0.5 arcmin rotational backlash stability after 10,000 hours.

4. Competitive Advantages

• Quality Consistency: ISO 9001:2025-certified batch traceability; every unit shipped with individual laser-inspected accuracy certificate and noise test report (< 68 dB at 3,000 rpm).

• Supply Reliability: Safety stock of 5,000+ units maintained in regional hubs (East Asia, EU, North America); 48-hour emergency dispatch for C7/C5 grades.

• Logistics Capability: Direct drop-ship from THK/NSK authorized distribution centers; real-time API integration for inventory status.

• Price Competitiveness: 12–18% below OEM catalog pricing at equivalent volume; transparent quarterly surcharge mechanism for steel index fluctuations.

• Sustainability Benefits: 100% recyclable steel packaging; lubricant-free operation option (dry-coated screws) reduces oil waste by 800 L per unit over 10 years.

• Technical Support: Free lifetime remote failure mode analysis (FMEA reports); 3D CAD models (STEP/IGES) for 1,200+ SKUs downloadable without NDA.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ):

  • Standard rolled (C7–C10): 4 units

  • Precision ground (C5–C0): 10 units

  • Mixed SKU pallet: 20 units (any grade)

• BULK 20MT Loading Capacity:

  • Approximately 8,000–12,000 units (based on Ø20 mm x 500 mm screw + nut assembly)

• MT per 20FT Container:

  • 20FT dry container: 18 MT net (max palletized)

  • 40FT HC container: 24 MT net (mixed SKUs with overhang protection)
