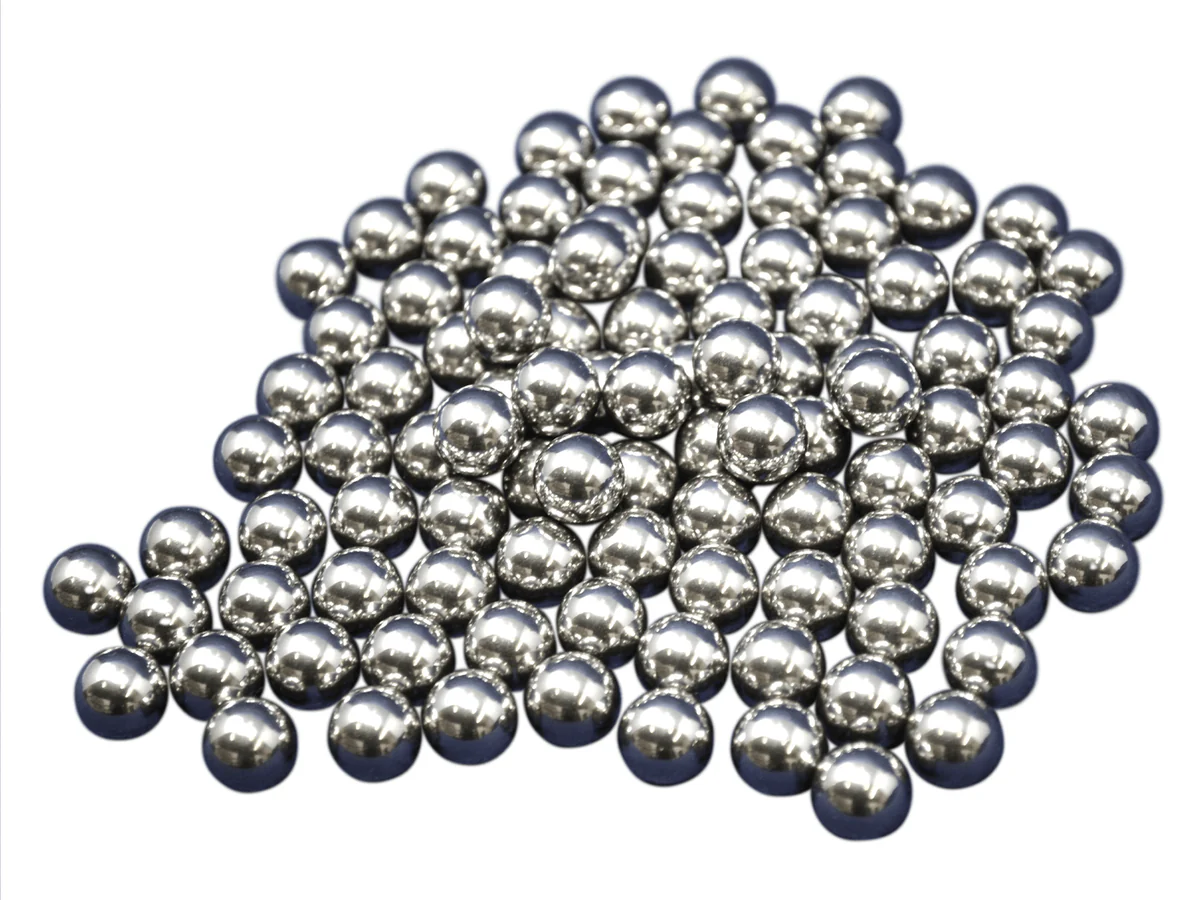

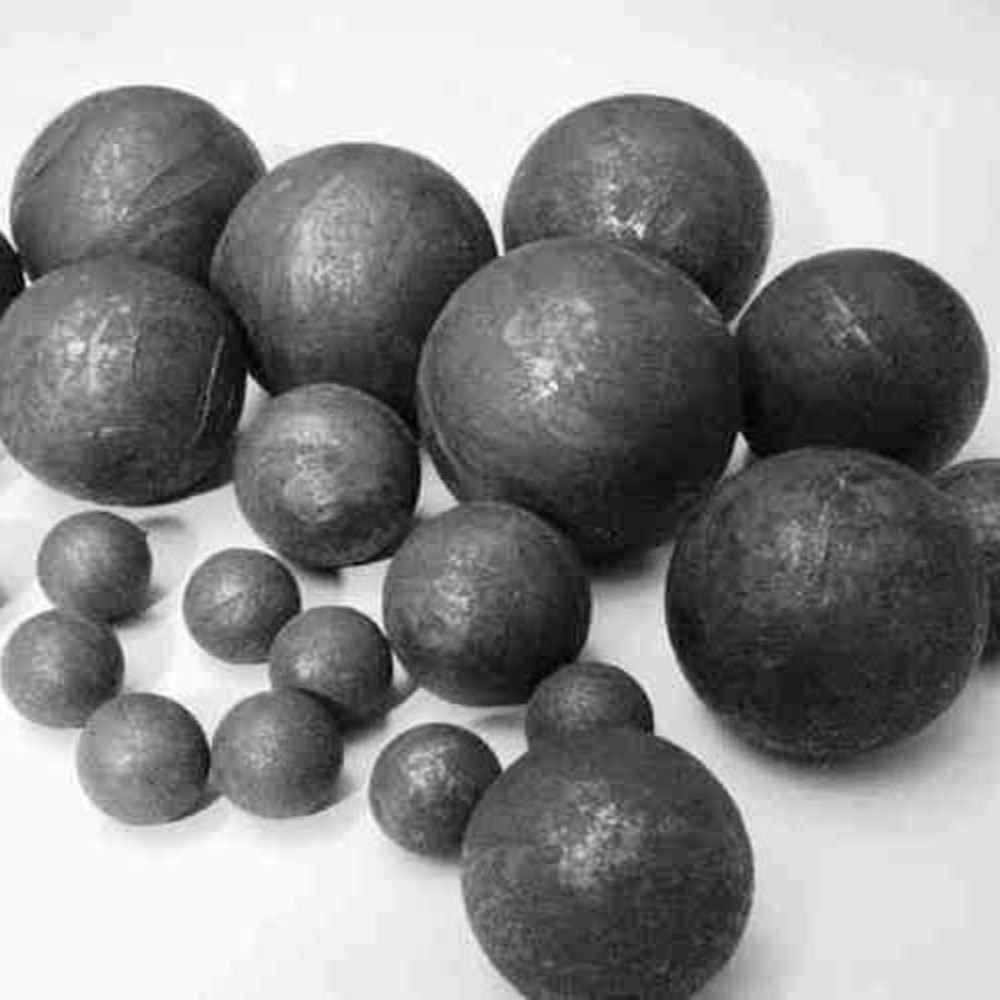

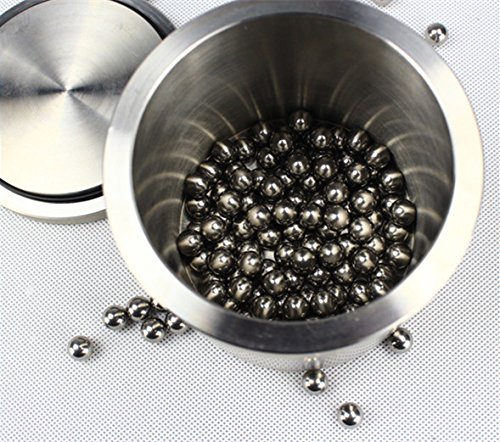

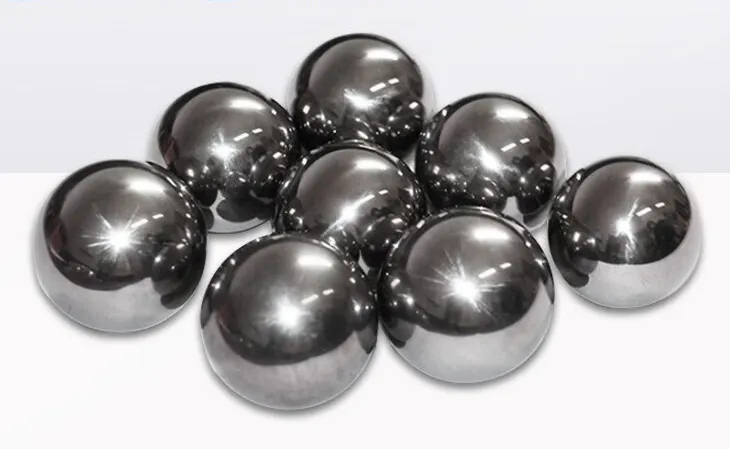

Grinding media steel balls

Description

1. Product Overview

Grinding media steel balls are high‑precision spherical cast or forged steel components engineered for use in tumbling and milling operations across mineral processing, cement, aggregate and chemical industries. Their primary industrial use is to provide controlled impact and attrition forces inside ball mills and SAG mills to reduce ore, clinker, or raw materials to specified particle sizes. Key value propositions include consistent size and hardness for predictable grinding performance, prolonged service life that reduces downtime and total cost of ownership, and tight quality control that ensures feed-size distribution and energy-efficiency targets are met. Strategically, reliable grinding media are central to plant throughput, product quality and operating cost optimization, making them a critical procurement item for large-scale industrial operations.

2. Key Specifications & Technical Characteristics

• Material: High‑carbon chromium steel (e.g., AISI 52100 / EN 31) or forged alloy steel options (Mn‑steel, chrome‑moly variants)

• Chemical composition: Typical ranges — C 0.95–1.20%, Cr 1.00–1.65% (for chrome grades); Mn, Si, Mo adjusted per alloy spec; lower‑chromium high‑manganese formulations also available on request

• Hardness: Core hardness and surface hardness options, typically HRC 58–65 after heat treatment; case‑hardened options available for impact resistance

• Size range: Standard diameters 10 mm to 150 mm (custom sizes on request); tight tolerance options +/- 0.1–0.5 mm depending on grade

• Sphericity / roundness: ≥ 90–98% (grade dependent); available graded size distribution per ISO/ASTM standards

• Density: Typical steel density ~7.75–7.85 g/cm3; specific gravity variants per alloy

• Surface condition: Shot‑blasted, rust‑inhibited, coated (optional) for transit protection

• Mechanical properties: High tensile strength and fatigue resistance; impact toughness specified per grade/testing protocol

• Packaging options: Bulk loose in open-top containers for direct loading; steel mesh bags (25–50 kg) on pallets; 1 MT sacks; IBC/steel cages for specialty orders; export‑grade fumigated timber pallets and tarpaulins

• Shelf life: Indefinite under normal dry storage; recommend indoor storage or covered stacking to prevent surface oxidation; rust inhibitors applied for long sea voyages

• Quality control: Batch traceability, spectrochemical analysis certificates, hardness testing, dimensional inspection and photographic test reports available

3. Core Industrial Applications

• Mining and Mineral Processing: Primary use in SAG and ball mills for comminution of ore (gold, copper, iron, bauxite, potash). Delivers predictable grind curves, reduces overgrinding, and improves recovery rates.

• Cement and Clinker Grinding: Used in raw and finish grinding circuits to achieve required Blaine fineness and particle size distribution with lower power consumption.

• Aggregate & Construction Materials: Size reduction of aggregates and recycled concretes where abrasion resistance and consistent wear rates are critical.

• Chemical and Ceramic Industries: Milling of raw materials, pigments, and ceramic bodies where contamination control and uniform particle size are required.
  Why it outperforms alternatives:

• Efficiency: Optimized hardness and size distribution improve grinding kinetics and lower specific energy consumption per tonne processed.

• Durability: Higher wear resistance and controlled toughness extend service life, reducing media consumption and maintenance interventions.

• Cost advantage: Longer life and better grinding efficiency reduce total operating cost vs lower‑quality cast balls or inferior alloys.

• Contamination control: Chrome and forged alloy options minimize metal contamination relative to some cast or mixed‑material media.

4. Competitive Advantages

• Quality consistency: Industrial production with ISO/ASTM compliant inspection regimes and batch certificates to ensure repeatable performance.

• Supply reliability: Bulk inventory staging and scheduled production runs to meet continuous mill campaigns; ability to support long‑term contracts and spot replenishment.

• Logistics capability: Export packaging, container loading expertise, and coordination for FOB/CIF shipments; local port handling and consolidated shipments to minimize lead time.

• Price competitiveness: Tiered pricing for contracted volumes and volume discounts for 20 MT+ bulk purchases; lifecycle cost modeling available on request to demonstrate TCO benefits.

• Sustainability: Longer service life reduces scrap and consumption; material selection and heat‑treatment processes optimized to reduce rework and waste; options for reclaimed/recycled feedstock media available for select grades.

• Technical support: Application engineering services including media selection studies, feed size optimization, life‑cycle wear models, and mill performance benchmarking. Full documentation: material certificates, test reports, handling and safety data sheets.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT

• Loading capacity (MT per container):

  • 20 ft container (max bulk loose): approx. 20–22 MT (depending on packing method and port regulations)

  • 40 ft container (max bulk loose): approx. 24–26 MT or up to 28–30 MT with optimized packing (mesh bags/palletized)

  • 40 ft HC: similar to 40 ft standard, optimized packing can increase payload; for exact figures provide packing preference and port for precise calculation
