Glulam Beam Stock

Description

1. Product Overview

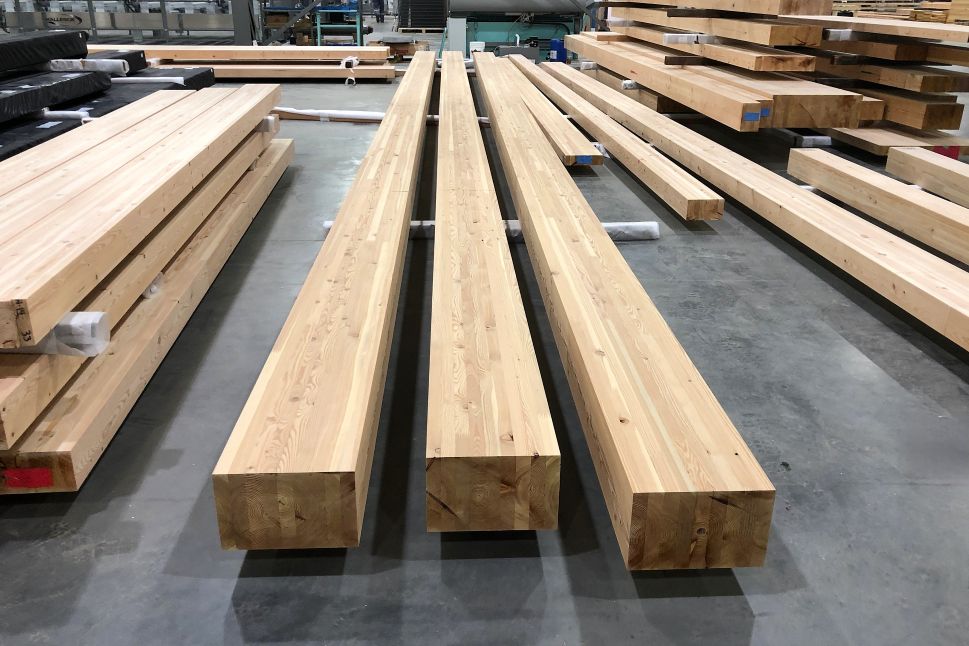

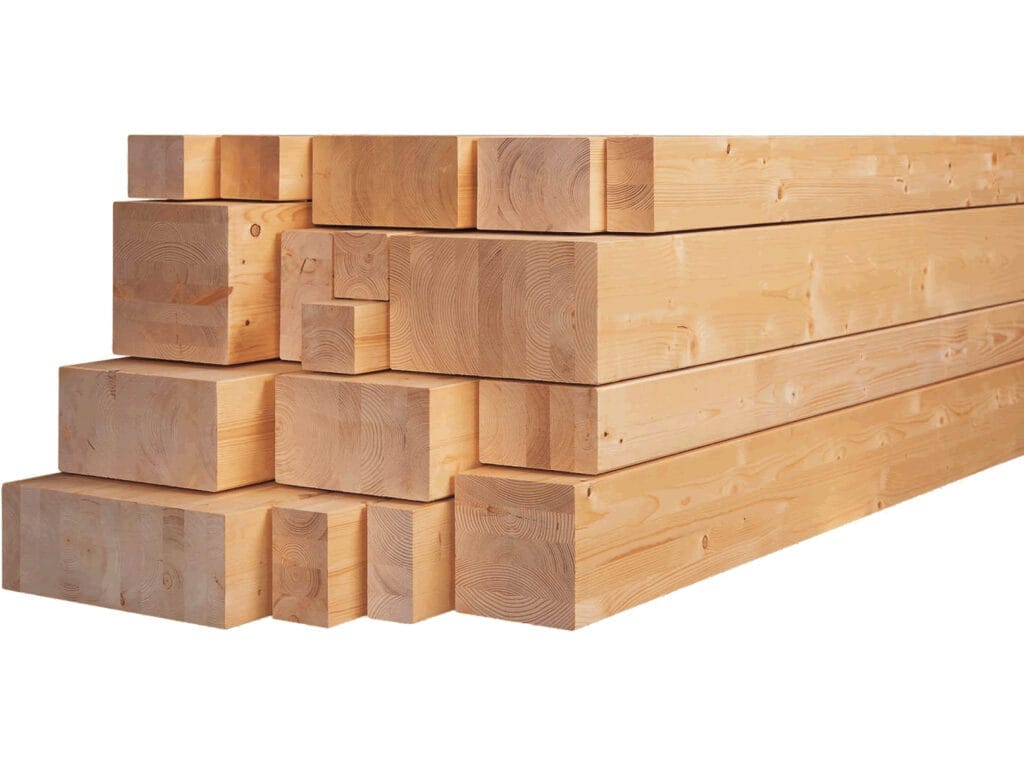

   Glulam Beam Stock is engineered laminated timber composed of multiple layers of kiln-dried, finger-jointed lumber bonded with structural-grade adhesives to create high-strength, dimensionally stable beams for heavy structural applications. Primarily used in commercial and industrial construction—bridges, warehouses, multi-storey timber buildings, long-span roof structures, and engineered frameworks—these beams deliver timber performance with predictable mechanical properties. The key value proposition is a high strength-to-weight ratio combined with precise dimensional tolerances and design flexibility, enabling faster erection, reduced foundation loads, and optimized material use compared with solid sawn timber or steel in comparable spans. Strategically, Glulam Beam Stock addresses growing demand for sustainable, low-carbon construction materials while offering scalability for large-volume industrial projects.

2. Key Specifications & Technical Characteristics

• Material composition: Cross-laminated, finger-jointed softwood laminations (commonly spruce, pine, or fir), bonded with structural polyurethane or melamine-urea-formaldehyde adhesives.

• Grade/Class: Structural glulam, available in commonly specified design classes (e.g., GL24h, GL28h, or equivalent regional grades); custom grades available on request.

• Mechanical properties: Characteristic bending strength and modulus of elasticity per grade (provided on request and certified per EN 14080 or ANSI/AITC standards).

• Dimensions: Standard stock depths and widths up to 360 mm depth and 1500 mm width; lengths available up to 24 m continuous, custom lengths on order.

• Lamella thickness: Typically 20–45 mm per lamella, adjustable to spec.

• Density: Typical oven-dry density range 350–500 kg/m³ depending on species.

• Surface finish: Planed smooth; can be supplied rough-sawn or sanded to指定 tolerances.

• Tolerances: Dimensional tolerances compliant with EN 14080 or equivalent—straightness, crown, and twist tolerances available upon request.

• Fire treatment: Options for fire-retardant treatments (surface or pressure-impregnated) to meet local code requirements.

• Durability treatments: Preservative treatments available for outdoor/exposed applications.

• Moisture content: Kiln-dried to target 12% (±3%) or per project specification.

• Packaging: Wrapped and banded on pallets or custom crating for export; protective end-caps and moisture barrier film available.

• Shelf life/storage: Indefinite in dry storage; recommended indoor, ventilated storage above ground, protected from direct moisture and UV exposure.

3. Core Industrial Applications

• Commercial construction: Long-span beams for shopping centers, office atria, and public buildings where appearance, strength, and reduced erection time are critical.

• Industrial facilities and warehousing: Heavy load-bearing beams for mezzanines, racking supports, and roof structures enabling rapid installation and lower foundation costs compared to steel.

• Infrastructure and bridges: Pedestrian and light-vehicle glulam bridges where high strength-to-weight and fatigue resistance reduce lifecycle costs.

• Pre-fabricated modular systems: Precision-manufactured components for off-site construction, enabling consistent quality and faster on-site assembly.

• Architectural and exposed timber applications: Structural members that double as finish elements, reducing secondary finishing costs.
  Why it outperforms alternatives:

• Efficiency: Higher usable span per unit weight than solid timber, enabling smaller sections and less material usage.

• Durability & consistency: Engineered layers minimize defects (knots, splits) and provide predictable mechanical behavior versus variable solid-sawn timber.

• Cost-effectiveness: Lower transport and erection costs relative to comparable steel solutions for certain spans; reduced waste due to precision manufacturing.

• Sustainability: Renewable wood source with lower embodied carbon than steel or concrete, supporting green building certifications.

4. Competitive Advantages

• Quality consistency: Manufactured under controlled factory conditions with batch certification and traceability to species, adhesive, and processing records.

• Supply reliability: Large-volume production capability with scheduled supply contracts and contingency stock levels to support project timelines.

• Logistics capability: Export-ready packaging, containerized loading plans, and coordination for sea, rail, or road shipping to major global ports.

• Price competitiveness: Competitive FOB/CIF pricing for bulk 20 MT+ orders, with volume discounts and multi-shipment scheduling to optimize cash flow.

• Sustainability credentials: Sourced from sustainably managed forests (FSC/PEFC options available), low embodied carbon, and recyclability at end of life.

• Technical support: Engineering data packs, CAD/CAM files for prefabrication, structural calculation reports, and code-compliance documentation available to support design approval.
  Positioning: Treated as a strategic sourcing decision—combining predictable performance, lower lifecycle costs, and supply-chain resilience for large construction programs.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity (MT per container): Approximate loading capacities: 20-foot container up to 22–24 MT (depending on packing configuration), 40-foot container up to 26–28 MT; roll-on/roll-off or flat-rack options for oversized sections. Final loading plans provided per order to maximize containerization efficiency.
