Geotextile Fabric — Ground stabilization

Description

1. Product Overview

This geotextile fabric is a high-strength polypropylene-based non-woven material engineered for ground stabilization, soil separation, and drainage in demanding infrastructure projects. Its primary industrial use is to reinforce weak subgrades under roads, railroads, and construction platforms. The key value proposition is a 40% reduction in aggregate requirements and extended pavement lifespan. Strategically, it is critical for cost-optimized, sustainable civil engineering in global B2B markets.

2. Key Specifications & Technical Characteristics

• Chemical composition: 100% virgin polypropylene (PP) with UV stabilizers

• Purity level: No reprocessed polymers; ≤0.5% ash content

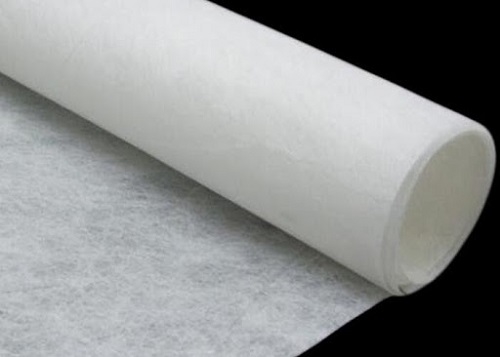

• Physical characteristics: Non-woven, needle-punched; white/black; 100–800 g/m² mass per unit area; 0.2–2.0 mm thickness; 20–200 kN/m tensile strength (MD/CD)

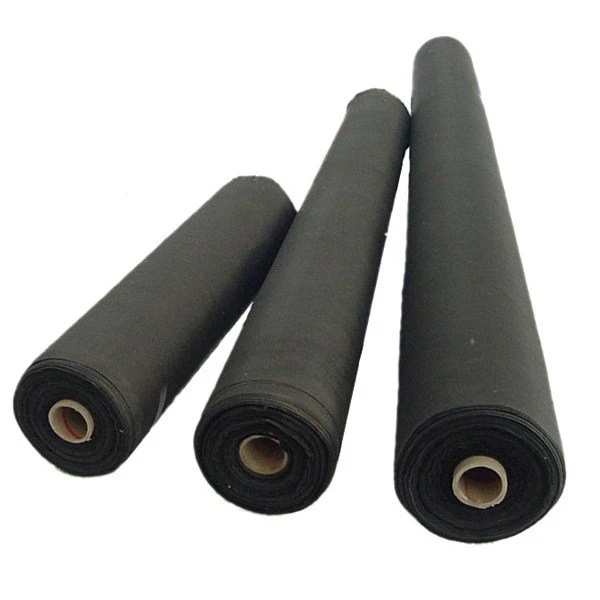

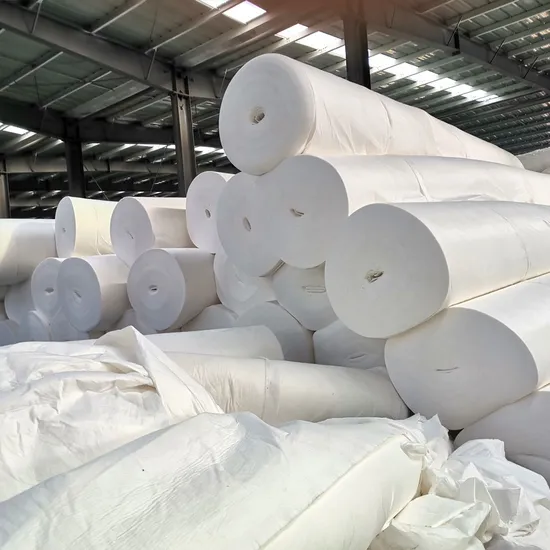

• Packaging options: 2m–6m width rolls; shrink-wrapped with cardboard cores; palletized or loose

• Shelf life: 5 years when stored in dry, UV-protected conditions (original packaging)

3. Core Industrial Applications

• Primary industries: Road and railway construction, landfill engineering, port terminals, mining haul roads

• Specific use cases: Subgrade stabilization under unpaved access roads; filtration in trench drains; separation between base aggregate and soft subsoil

• Performance advantage: Unlike woven geotextiles, this non-woven fabric provides 360° filtration, preventing clogging and retaining fines without sacrificing flow rate

• Efficiency gains: Reduces aggregate layer thickness by 30–40%, lowers heavy machinery compaction passes, and cuts maintenance cycles by over 50%

4. Competitive Advantages

• Quality consistency: ISO 9001:2025 certified with in-line tensile monitoring; ASTM D4595 compliant

• Supply reliability: 3 redundant production lines; 99.2% on-time dispatch rate across 6 continents

• Logistics capability: Direct container loading from factory or regional hubs (Rotterdam, Dubai, Singapore)

• Price competitiveness: Tier-1 performance at 15–20% below European and North American brands

• Sustainability: 100% recyclable polymer; zero wastewater in manufacturing; EPD available upon request

• Technical support: Full CAD design sheets, site installation guides, and engineer-to-engineer validation

5. Commercial & Supply Information

• Minimum order quantity (MOQ): 20 metric tons (mixed roll widths allowed)

• Loading capacity: 24 MT per 20’ container | 26 MT per 40’ HC container
