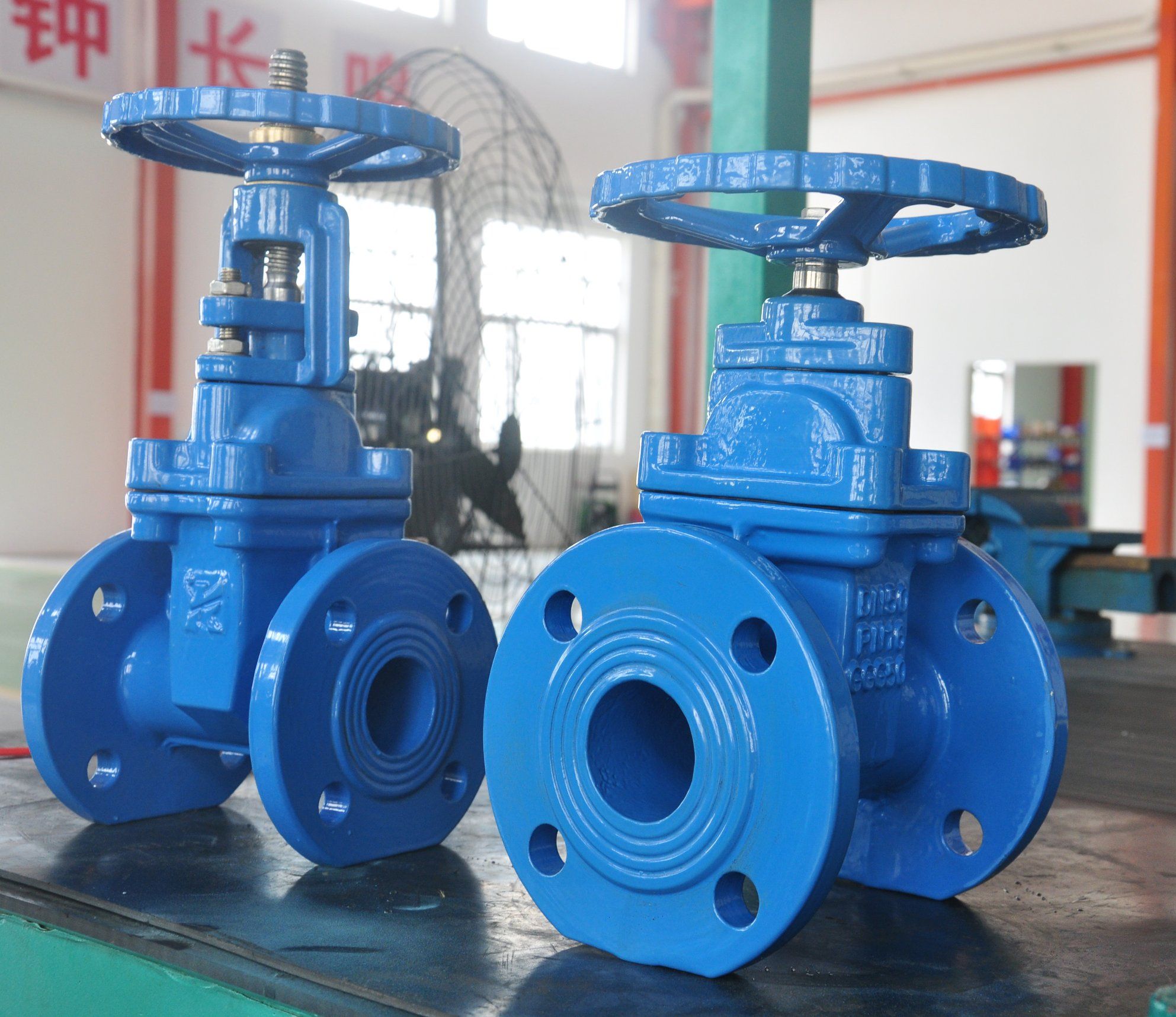

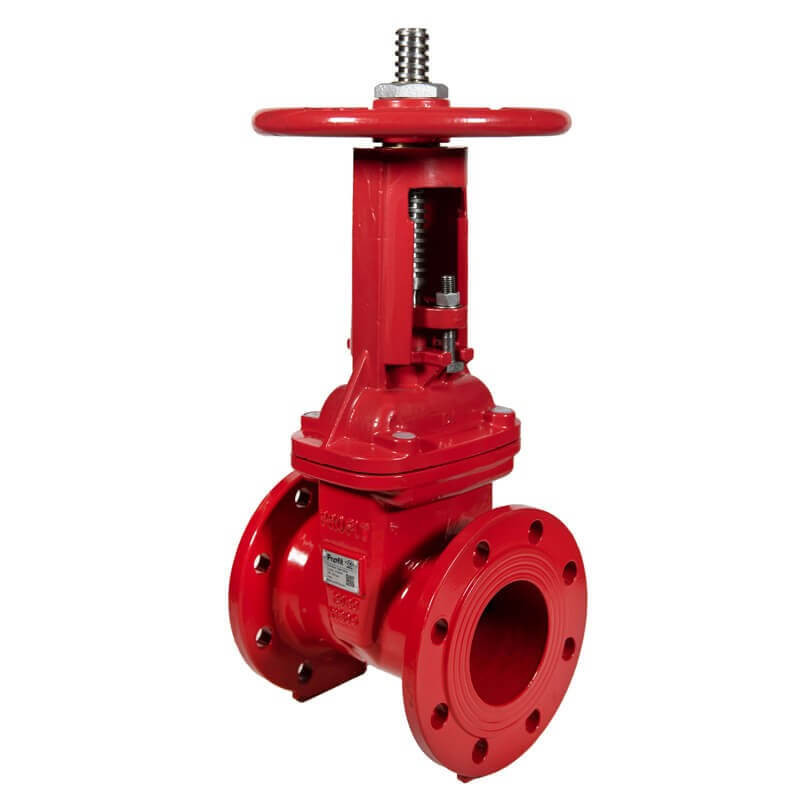

Gate Valve Flanged Type Industrial Standard

Description

1. Product Overview

Gate Valve Flanged Type Industrial Standard is a heavy-duty isolation valve engineered for reliable on/off flow control in high-pressure and high-temperature industrial pipelines. Designed for use across oil & gas, petrochemical, power generation, water treatment, and industrial manufacturing, this flanged gate valve provides tight shut-off, low-pressure drop and long service life in demanding process environments. Its key value proposition is robust sealing performance combined with standardized flanged connections for fast integration into existing piping systems, minimizing downtime and lifecycle maintenance costs. Strategically, this valve supports plant reliability and regulatory compliance by reducing leak risk and simplifying maintenance workflows across large-scale industrial operations.

2. Key Specifications & Technical Characteristics

• Materials: Body and bonnet cast carbon steel (ASTM A216 WCB) standard; alternatives available: stainless steel (CF8/CF8M), duplex stainless steel, alloy steels on request.

• Gate/Disc: Solid wedge or flexible wedge options, stainless steel or carbon steel with hardened facing.

• Stem: Rising or non-rising stem, stainless steel (AISI 410/420) with anti-seize treatment.

• Seat: Metal-to-metal or resilient (PTFE/RTFE) seat options for bubble-tight shutoff.

• Pressure rating: ANSI/ASME Class 150, 300, 600, 900, 1500 (selection to match system requirements).

• Temperature range: -29°C to 550°C depending on material and seat selection; high-temperature trims available.

• End connection: Raised face flanges to ANSI B16.5 (150–1500#), DR and RTJ flanges available.

• Face-to-face dimensions: ANSI/BS standard face-to-face per API 600 / ISO 5752 as applicable.

• Actuation: Manual gearbox/wheel, pneumatic piston, electric actuator, or hydraulic actuator interfaces.

• Surface finish and coating: Internal surface machined and passivated; external epoxy primer and topcoat, corrosion protection to NACE/ISO standards on request.

• Physical characteristics: Typical valve mass and dimensional data provided per size (DN50–DN1200 / 2”–48”); particle/solid content tolerance for slurry service versions.

• Packaging: Industrial crating with protective coating, moisture barrier, end-cap protection; export-ready wooden crate or container-stuffing preparation.

• Shelf life: Indefinite for valve hardware when stored dry and protected; elastomeric/resilient seat life dependent on storage conditions—recommend installation within 2 years or store per manufacturer guidance.

• Documentation: Mill test certificates, material traceability, pressure test certificates (hydrostatic), inspection reports, QA/QC dossier, and installation/maintenance manual.

3. Core Industrial Applications

• Oil & Gas Upstream/Downstream: Mainline isolation, emergency shutoff, and sectionalization on crude, produced water, and refined product pipelines. Offers superior shutoff and compatibility with pigging operations when specified with suitable trims.

• Petrochemical & Refining: Feedstock isolation and fractionation column isolation where leak-tight shutoff and material compatibility are critical.

• Power Generation: Steam and condensate isolation in coal, gas, and nuclear plants; high-temperature trims provide long life in thermal cycles.

• Water & Wastewater Treatment: Bulk flow isolation, raw water intake and effluent discharge lines; resilient-seat options for potable water systems.

• Mining & Minerals Processing: Slurry and tailings lines with robust body materials and wear-resistant gate options to extend service intervals.
  Why it outperforms alternatives: flanged gate valves provide lower pressure drop than globe valves for full-bore flow, offer tighter long-term shutoff than many butterfly valves under high differential pressure, and are easier to retrofit due to standardized flange interfaces. Configurable materials and trims enable tailored service life and lower total cost of ownership through reduced maintenance frequency.

4. Competitive Advantages

• Quality consistency: Manufactured to ISO 9001-aligned processes with full material traceability and batch testing to ensure repeatable performance across orders.

• Supply reliability: Production capacity and stock programs for common sizes and classes; priority production slots and vendor-managed inventory options for long-term contracts.

• Logistics capability: Export-ready packaging, container loading optimization, and consolidated shipping for bulk 20 MT loads; global freight forwarding partnerships to reduce lead times.

• Price competitiveness: Volume pricing, long-term contract discounts, and value-engineered trim options that lower lifecycle cost without compromising safety.

• Sustainability: Materials and coatings selected for longer service life, reduced leak rates, and repairable trims to extend in-field lifespan; waste-minimizing packaging options available.

• Technical support: Comprehensive technical dossiers, CAD drawings, flange and face-to-face verification, factory acceptance testing (FAT) on request, and after-sales maintenance support including spare parts kits and refurbishment services.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Typical loading capacity depends on valve size and packaging; indicative container loading: up to 20–22 MT per 20’ container for compact sizes, up to 24–26 MT per 40’ container with optimized dunnage; confirm per order with size breakdown.
