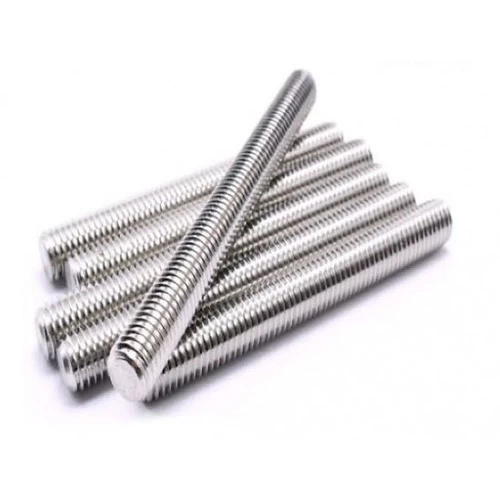

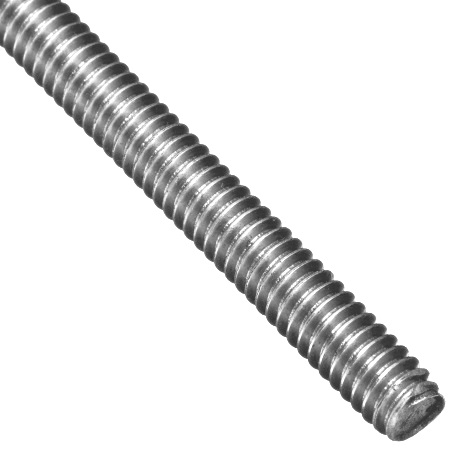

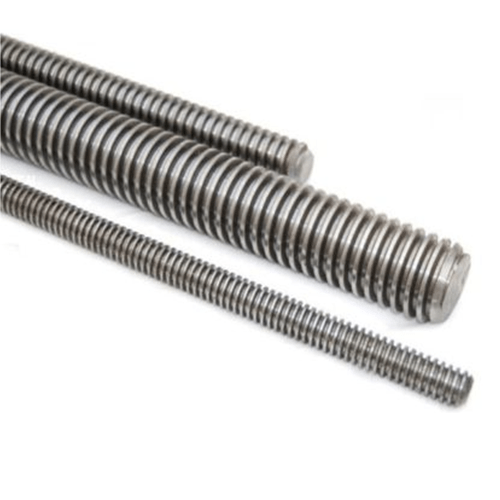

High Tensile Threaded Rod — DIN 975 Grade 8.8

Description

1. Product Overview

High Tensile Threaded Rod — DIN 975 Grade 8.8 is a precision-manufactured, metric threaded rod engineered for high-strength fastening in structural, mechanical, and civil engineering applications. Designed to meet DIN 975 specification and delivered to Grade 8.8 mechanical properties, it provides a reliable tensile and yield performance for load-bearing connections, anchor systems, and heavy machinery assembly. The rod’s key value proposition is predictable, certified strength combined with dimensional accuracy, enabling safer designs, simplified procurement, and reduced installation risk. Strategically, this product addresses the growing demand from infrastructure, manufacturing, and energy sectors for standardized, high-capacity fasteners that support faster build cycles and lower lifecycle costs.

2. Key Specifications & Technical Characteristics

• Material: Medium carbon steel, quenched and tempered to meet DIN 975 requirements.

• Mechanical grade: 8.8 (minimum tensile strength ~800 MPa, yield strength ~640 MPa).

• Chemical composition (typical): Carbon (C) 0.25–0.35%, Manganese (Mn) 0.60–1.20%, Silicon (Si) ≤0.40%, Phosphorus (P) ≤0.035%, Sulfur (S) ≤0.035%; other trace elements per DIN/EN standards.

• Surface finish: Plain (bright), zinc plated (electro-galvanized), hot-dip galvanized, or black phosphate (specify per order).

• Thread form: Metric coarse (M) standard thread pitch per ISO metric thread; manufactured to DIN tolerances for thread profile and pitch.

• Diameters available: M6 to M30 (custom sizes on request).

• Lengths available: Standard lengths 1 m, 2 m, 3 m; cut-to-length service available.

• Dimensional tolerance: Conforms to DIN 975 dimensional tolerances for straightness, thread engagement, and overall length.

• Hardness: Typical range HRC 28–37 after heat treatment (process controlled to maintain mechanical properties).

• Packaging options: Bundles with protective end caps, wooden crates, steel palletized bundles, or shrink-wrapped coils for smaller sizes. Barcoding and batch labels included.

• Certification & traceability: Mill test certificates (MTC) to EN 10204 3.1 available per shipment; batch traceability to heat number.

• Shelf life: Indefinite when stored dry; recommended storage in covered, ventilated conditions to prevent corrosion for uncoated items.

3. Core Industrial Applications

• Construction & Civil Engineering: Structural bolting, anchor rods for concrete foundations, formwork tie-rods, and seismic bracing systems. Performs better than low-grade fasteners under sustained loads and dynamic stress, reducing maintenance and retrofit costs.

• Heavy Machinery & Equipment Manufacturing: Fastening of frames, gearboxes, and assembly fixtures where predictable tensile capacity and fatigue resistance are critical. Enables higher safety margins and longer service intervals.

• Oil & Gas, Petrochemical: Flange bolting, skid foundations, and platform connections where strength-to-weight and proven material certification reduce operational risk. Corrosion-resistant coatings available for aggressive environments.

• Infrastructure & Utilities: Bridge assembly, power transmission towers, and renewable energy foundations requiring standardized, high-strength rods for reliable long-term performance.

• Fabrication & OEM Supply Chains: General-purpose high-strength fastener for fixtures, jigs, and custom assemblies where consistent mechanical properties simplify engineering calculations and procurement standardization.

4. Competitive Advantages

• Quality consistency: Manufactured to DIN 975 with controlled heat treatment and statistical lot testing; delivered with EN 10204 3.1 MTC and batch traceability.

• Supply reliability: Established production and inventory management ensure predictable lead times; scalable production for large projects.

• Logistics capability: Bulk palletization and container loading optimized for export; packaging tailored to reduce handling damage.

• Price competitiveness: Cost-effective when sourced in BULK volumes with volume pricing tiers and FOB/CIF shipping options.

• Sustainability: Material efficiency through optimized heat-treatment processes; recyclable steel and options for low-VOC coatings on request.

• Technical support: Application engineering guidance, torque/load tables, and installation best-practice documents available; customized testing (fatigue, tensile) offered on request.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT

• Loading capacity: Typical container loading up to 20–24 MT per 20’ container depending on packaging and diameter mix (confirm at time of order for specific SKU mix).
